NSP151L-AHXRKU (2016)

Toyota Yaris

Production Jul 2016 - Aug 2017
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF10(1310-1709)NSP152 ; (1310-1802)NSP151..C ; (1403-1609)NCP15#..RHD ; (1607-1710)NSP1

Click highlighted areas on diagram

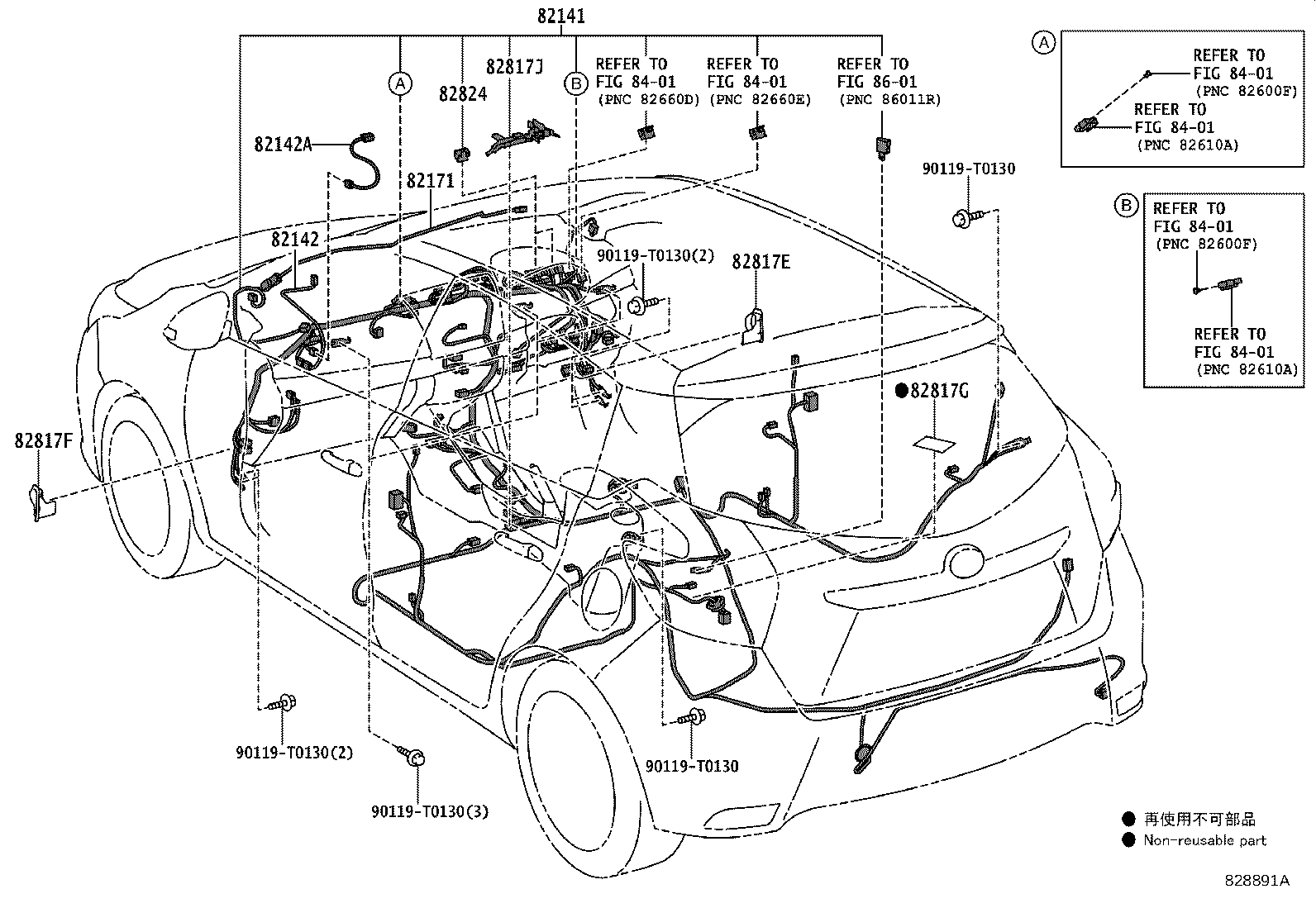

INSTRUMENT PANEL & FLOOR & ROOF

diagram 82141 82142 82142A 82171 82817E 82817F 82817G 82817J 82824 8401 8401 8401 8401 8401 8401 8601 90119T0130 90119T0130 90119T0130 90119T0130 90119T0130
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82146-0DK10

NSP151..VN..R

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-0D020

NSP15#..GCC,GEN,PH,TH,VN

 1
82171 - WIRE, ROOF, NO.1
82171-0D270

NSP15#..GCC,GEN,PH,TH,VN

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0D600

NSP15#..GCC,GEN,PH,TH,VN

 1
82817-0D600

NSP151..C

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-0D610

NSP151..C

 1
82817-0D610

NSP15#..GCC,GEN,PH,TH,VN

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52710

NSP151..C

 1
82817-52710

NSP15#..GCC,GEN,PH,TH,VN

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-0D690

NSP151..GCC,GEN,IDN,PH,TAIW,VN;NCP15#,NSP150,152..GCC,GEN,IDN,MA,PH,TH,VN

 1
82824 - CONNECTOR, WIRING HARNESS
82824-52630

NSP151..GCC,GEN,IDN,PH,TAIW,VN;NCP15#,NSP150,152..GCC,GEN,IDN,MA,PH,TH,VN

 2
Common parts
90119-T0130
Linked diagrams
8401
8601
