NSP151L-AHXRKU (2016)

Toyota Yaris

Production Jul 2016 - Aug 2017
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NSP152 ; (1310-1710) ; (1710-1802)IDN,TAIW

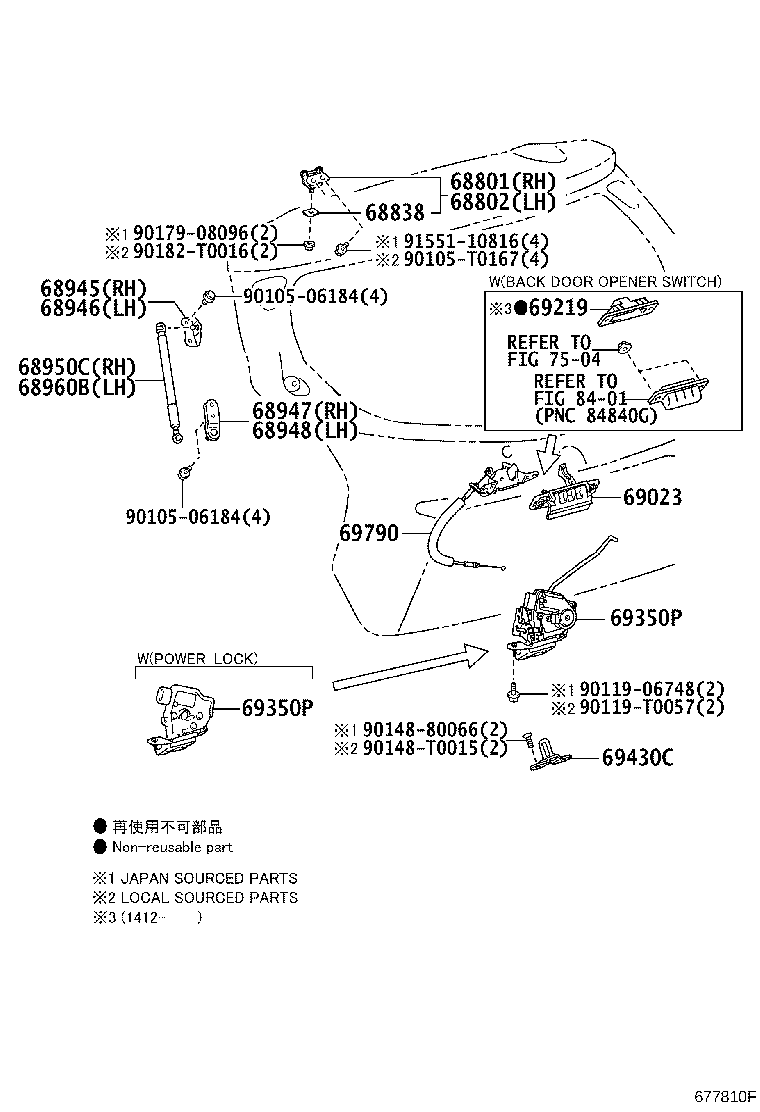

Click highlighted areas on diagram

diagram 68801 68802 68838 68945 68946 68947 68948 68950C 68960B 69023 69219 69350P 69350P 69430C 69790 7504 8401 9010506184 9010506184 90105T0167 9011906748 90119T0057 9014880066 90148T0015 9017908096 90182T0016 9155110816
Part # Description Qty Price
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-0D180

NSP15#..GCC,GEN,PH,TH,VN

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68801-0D180

NSP15#..GCC,GEN,PH,TH,VN

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-0D130

NSP15#..GCC,GEN,PH,TH,VN

T=1.5

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0D050

NSP15#..GCC,GEN,PH,TH,VN

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-0D050

NSP15#..GCC,GEN,PH,TH,VN

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0D010

NSP15#..GCC,GEN,PH,TH,VN

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68947-0D010

NSP15#..GCC,GEN,PH,TH,VN

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0D090

NSP15#..GCC,GEN,PH,TH,VN

 1
68950-0D090

NSP151..C

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-0D030

NSP15#..GCC,GEN,PH,TH,VN

 1
68960-0D030

NSP151..C

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0D180

NSP15#..GCC,GEN,PH,TH,VN

 1
69350-0D180

NSP151..C

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0D180

NSP15#..GCC,GEN,PH,TH,VN

 1
69350-0D180

NSP151..C

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0D090

NSP15#..GCC,GEN,PH,TH,VN

 1
69430-0D090

NSP151..C

 1
Common parts
90105-06184
90105-T0167
90119-06748
90119-T0057
90148-80066
90148-T0015
90179-08096
90182-T0016
91551-10816
Linked diagrams
7504
8401
