NSP151L-AHXRKU (2016)

Toyota Yaris

Production Jul 2016 - Aug 2017
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NSP152 ; (1310-1710)NCP15#,NSP150,151; (1710-1802)IDN,TAIW

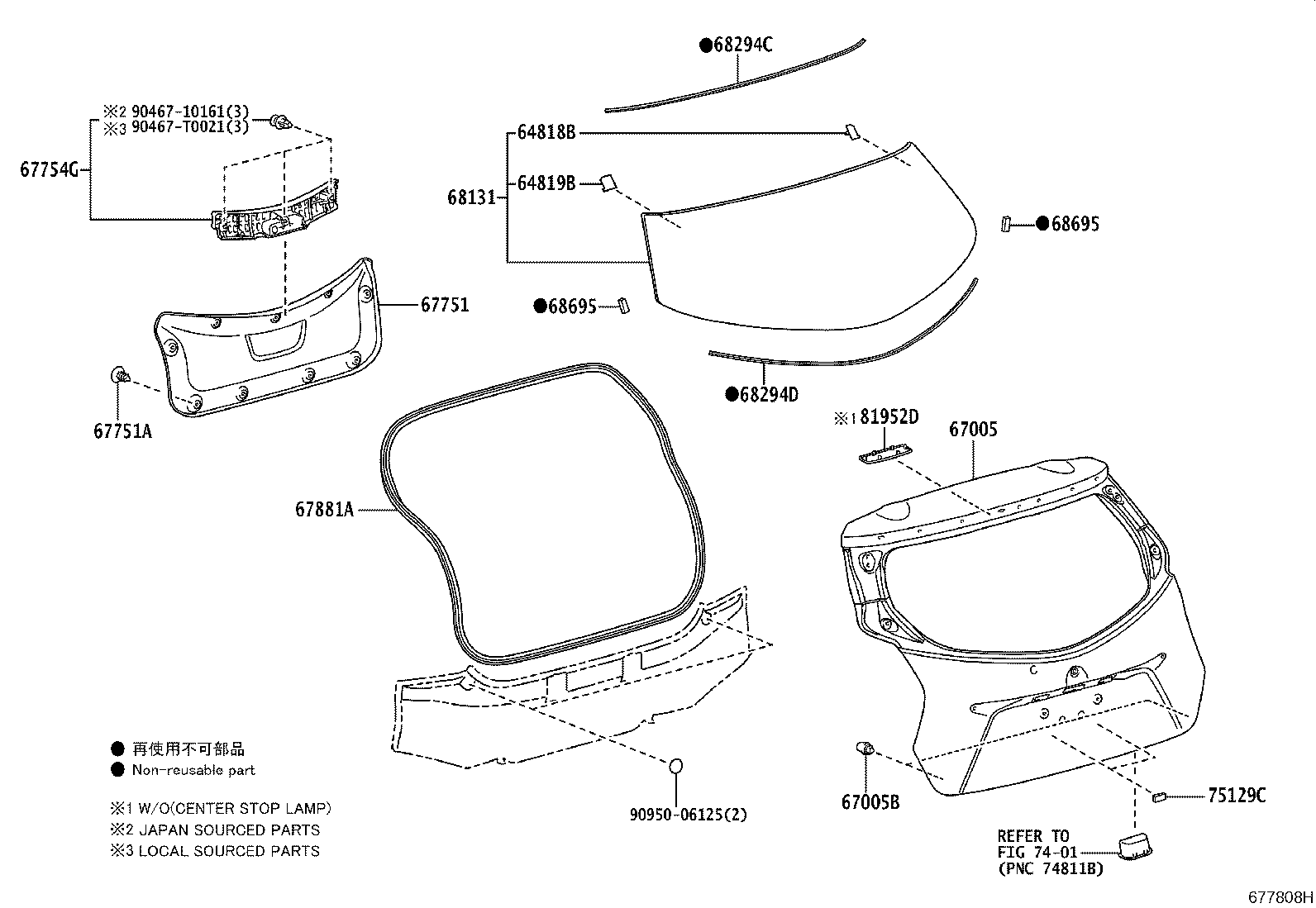

Click highlighted areas on diagram

diagram 64818B 64819B 67005 67005B 67751 67751A 67754G 67881A 68131 68294C 68294D 68695 68695 7401 75129C 81952D 9046710161 90467T0021 9095006125
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-0D010

NSP15#..GCC,GEN,PH,TH,VN

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-0D010

NSP15#..GCC,GEN,PH,TH,VN

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09125

NSP15#..GCC,GEN,PH,TH,VN

 2
90541-09125

NSP151..C

 2
67751 - BOARD, BACK DOOR TRIM
67750-0D120C0

NSP15#..GCC,GEN,TH,VN

BLACK,TRIM0#,2#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-08186C0

NSP15#

BLACK

 9
90467-08186C3

NSP15#..GCC,GEN,PH,TH,VN

BLACK

 9
67754G - SPACER, BACK DOOR TRIM
67754-0D050

NSP15#..GCC,GEN,PH,TH,VN

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-0D080

NSP15#..GCC,GEN,PH,TH,VN

 1
68294C - DAM, BACK DOOR GLASS ADHESIVE, NO.1
64813-0D230

NSP15#..GCC,GEN,PH,TH,VN

 1
68294D - DAM, BACK DOOR GLASS ADHESIVE, NO.2
64814-0D080

NSP15#..GCC,GEN,PH,TH,VN

 1
68695 - PAD, BACK DOOR WINDOW FRAME
75955-0D010

NSP15#..GCC,GEN,PH,TH,VN

 2
68695 - PAD, BACK DOOR WINDOW FRAME
75955-0D010

NSP15#..GCC,GEN,PH,TH,VN

 2
75129C - CUSHION, REAR LICENCE PLATE
75129-0D030

NSP15#..GCC,GEN,PH,TH,VN

 2
Common parts
90467-10161
90467-T0021
90950-06125
Linked diagrams
7401
