NSP151L-AHXDK (2016)
Toyota Yaris

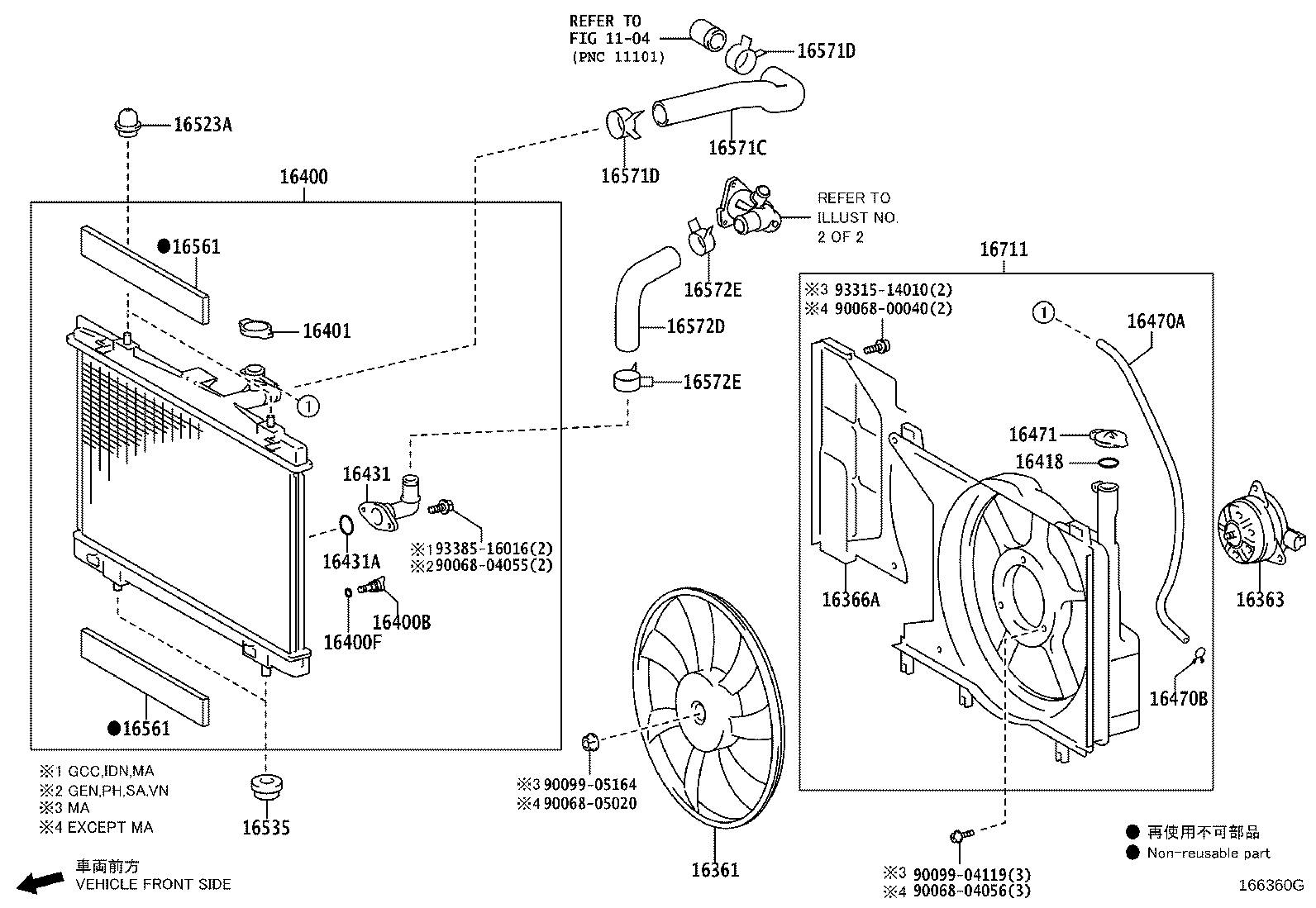

ILLUST NO. 1 OF 2(1607- )1NRFE,2NRFE..GCC,GEN,IDN,MA,PH,SA,VN..A,B,C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0M110 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
1 | ||
| 16366A - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0Y240 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Y191 |
1NRFE,2NRFE..NSP150,151..GEN,PH,VN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2NRFE..NSP151..C |
1 | ||
| 16417-0C180 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2NRFE..NSP151..C |
1 | ||
| 16492-0L060 |
1NRFE,2NRFE..NSP150,151..GEN,PH,VN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0M010 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN |
1 | ||
| 16418 - PACKING | ||||
| 16476-0H060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-0Y190 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-0Y100 |
1NRFE,2NRFE..NSP150,151..GEN,PH,VN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0Y240 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2NRFE..NSP151..C |
1 | ||
| 90467-11085 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-0Y050 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
2NRFE..NSP151..C (J) |
2 | ||
| 16523-0M050 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN (L) |
2 | ||
| 16523-21030 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN (J) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
2 | ||
| 90480-22025 |
2NRFE..NSP151..C |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0Y010 |
1NRFE,2NRFE,3NRFE..NSP15#..GEN,PH,TH,VN |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0Y010 |
1NRFE,2NRFE,3NRFE..NSP15#..GEN,PH,TH,VN |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2NRFE..NSP151..C |
2 | ||
| 96136-43901 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2NRFE..NSP151..C |
2 | ||
| 96136-43901 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y160 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,VN |
1 | ||
| 16572-0Y161 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
2 | ||
| 96136-43901 |
2NRFE..NSP151..C |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN |
2 | ||
| 96136-43901 |
2NRFE..NSP151..C |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y160 |
1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN |
1 | ||
| Common parts | ||||
| 90068-00040 | ||||
| 90068-04055 | ||||
| 90068-04056 | ||||
| 90068-05020 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 93315-14010 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1104 | ||||
