NCP93L-BEPRKK (2008)
Toyota Yaris
(0602-1108) ; (1108- )USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-52070 |
NCP93..CND |
1 | ||
| 04493-52070 |
NCP93 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-52320 |
NCP93..ATM..CND |
1 | ||
| 47201-52320 |
NCP93..ATM |
1 | ||
| 47201-52460 |
NCP93..ATM..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
NCP93..CND |
1 | ||
| 90029-20059 |
NCP93 |
1 | ||
| 90015-AH002 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15804 |
NCP93 |
1 | ||
| 90029-15804 |
NCP93..CND |
1 | ||
| 90029-15803 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52160 |
NCP93..ATM |
1 | ||
| 47220-52160 |
NCP93..ATM..CND |
1 | ||
| 47220-52200 |
NCP93..ATM..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90029-43001 |
NCP93..CND |
1 | ||
| 90029-43001 |
NCP93 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
NCP93..CND |
1 | ||
| 90109-06077 |
NCP93 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47230-28240 |
NCP93..CND |
1 | ||
| 47230-28240 |
NCP93 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP93..CND |
2 | ||
| 31417-35010 |
NCP93 |
2 | ||
| 90029-48001 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP93..CND |
2 | ||
| 31417-35010 |
NCP93 |
2 | ||
| 90029-48001 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
NCP93 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-25010 |
NCP93 |
1 | ||
| 47299-25010 |
NCP93 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||

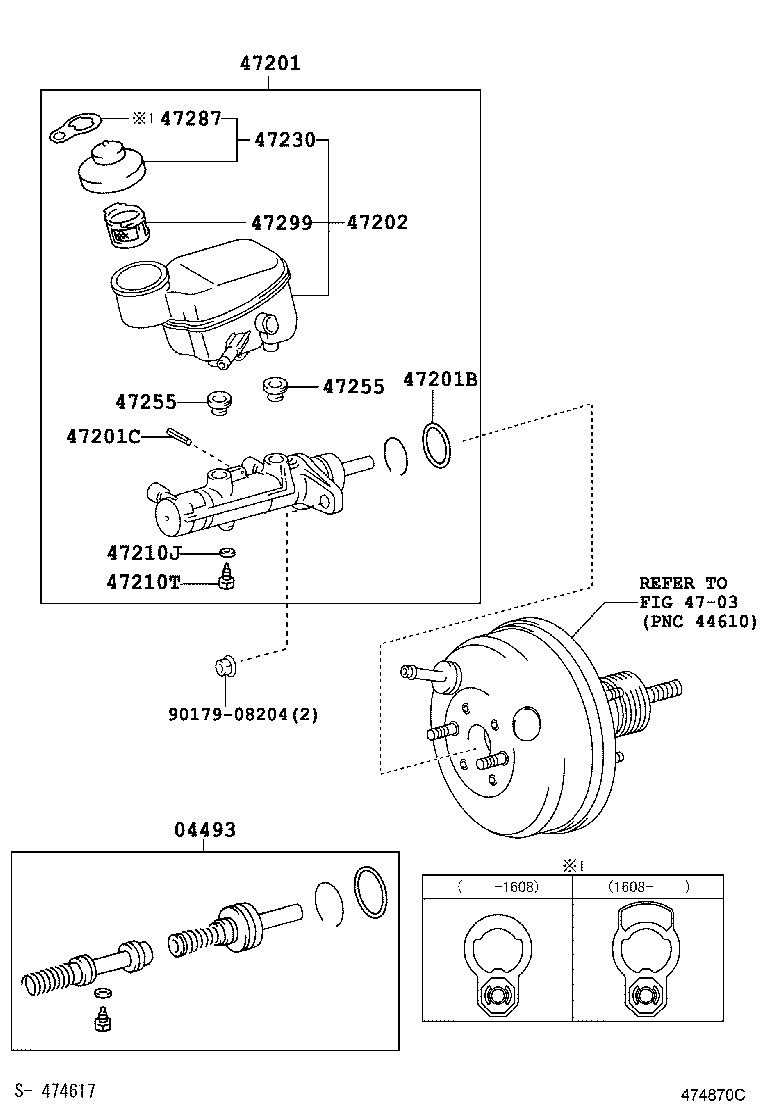

| Linked diagrams | ||||
| 4703 | ||||
(0908- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-52320 |
NCP93..ATM..CND |
1 | ||
| 47201-52320 |
NCP93..ATM |
1 | ||
| 47201-52460 |
NCP93..ATM..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
NCP93..CND |
1 | ||
| 90029-20059 |
NCP93 |
1 | ||
| 90015-AH002 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15804 |
NCP93 |
1 | ||
| 90029-15804 |
NCP93..CND |
1 | ||
| 90029-15803 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52160 |
NCP93..ATM |
1 | ||
| 47220-52160 |
NCP93..ATM..CND |
1 | ||
| 47220-52200 |
NCP93..ATM..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47230-28240 |
NCP93..CND |
1 | ||
| 47230-28240 |
NCP93 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP93..CND |
2 | ||
| 31417-35010 |
NCP93 |
2 | ||
| 90029-48001 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP93..CND |
2 | ||
| 31417-35010 |
NCP93 |
2 | ||
| 90029-48001 |
NCP93..CND ABS-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
NCP93 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-25010 |
NCP93 |
1 | ||
| 47299-25010 |
NCP93 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||

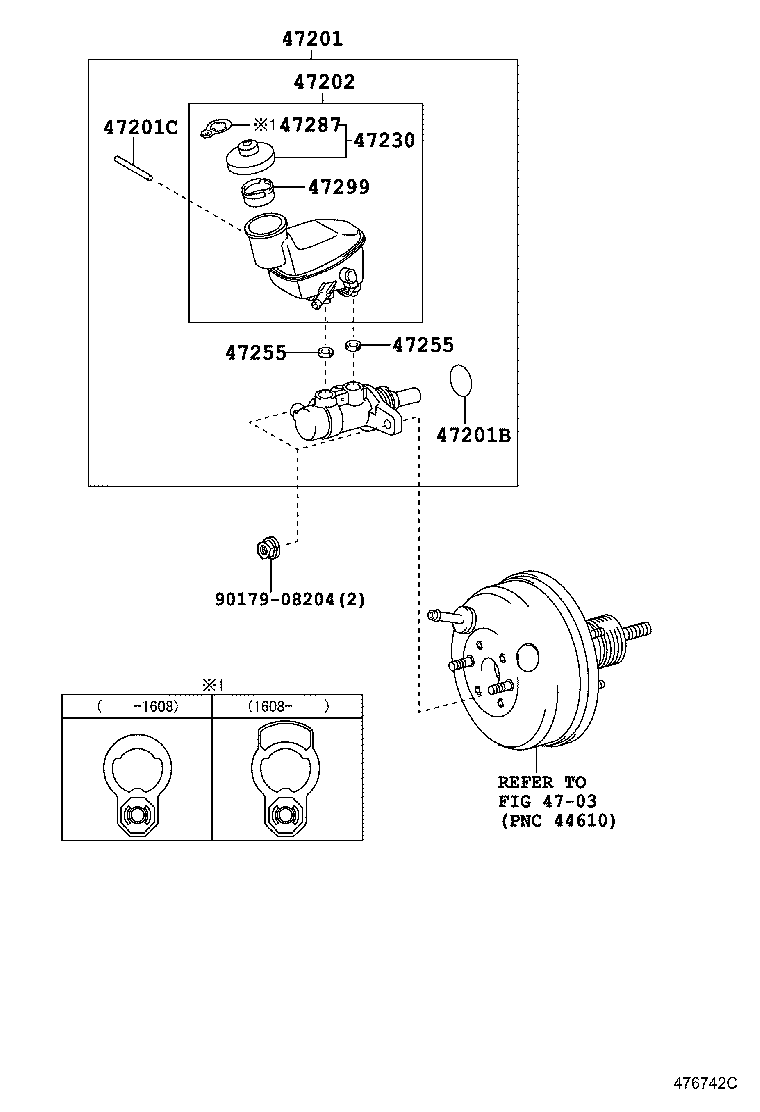

| Linked diagrams | ||||
| 4703 | ||||
