NCP93L-BEPRKK (2006)
Toyota Yaris
ILLUST NO. 1 OF 2(0602- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-52020B0 |
NCP93 GRAY,TRIM1# |
2 | ||
| 73135-52020E0 |
NCP93 GREGE,TRIM4# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-52020B0 |
NCP93 GRAY,TRIM1# |
2 | ||
| 73135-52020E0 |
NCP93 GREGE,TRIM4# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-52020E1 |
NCP93 GREGE,TRIM4# |
2 | ||
| 73178-52020B0 |
NCP93 GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-52020E1 |
NCP93 GREGE,TRIM4# |
2 | ||
| 73178-52020B0 |
NCP93 GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52050E0 |
NCP93 GREGE,TRIM4# |
2 | ||
| 73200-52050B1 |
NCP93 GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52050E0 |
NCP93 GREGE,TRIM4# |
2 | ||
| 73200-52050B1 |
NCP93 GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52620C0 |
NCP93 BLACK,TRIM1# |
1 | ||
| 73210-52620E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52660C0 |
NCP93 BLACK,TRIM1# |
1 | ||
| 73220-52660E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52610E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73230-52610B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010B1 |
NCP93 DK.GRAY,TRIM1#,4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010B1 |
NCP93 DK.GRAY,TRIM1#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-52600B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 73230-52600E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11060 | ||||
| 90109-11062 | ||||
| 90179-11010 | ||||
| 91631-40614 | ||||
ILLUST NO. 2 OF 2(0602- )

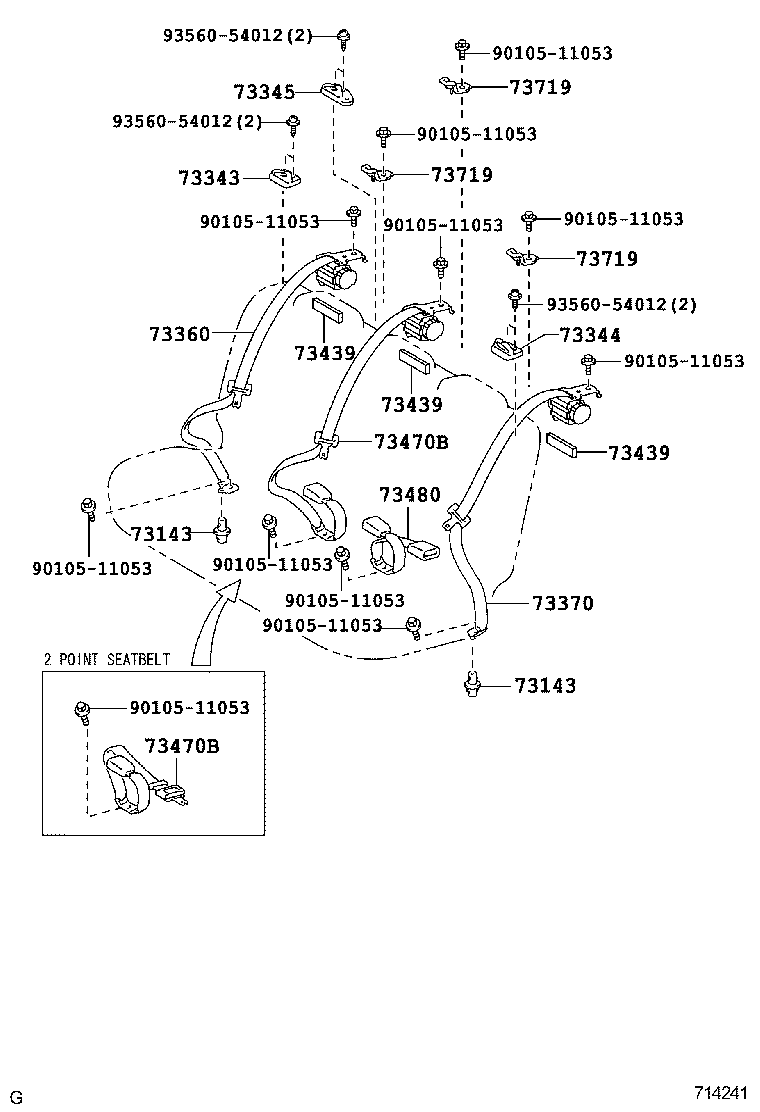

REAR SEAT(FIXED)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
NCP93 |
2 | ||
| 73143-52011 |
NCP93 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
NCP93 |
2 | ||
| 73143-52011 |
NCP93 |
2 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73345-20010B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 73345-20010E1 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73345-33020B3 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 73345-33020E1 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-20010B0 |
NCP93..CND REAR SEAT-UNITED FIXE,DK.GRAY,TRIM1# |
1 | ||
| 73345-20010E1 |
NCP93..CND REAR SEAT-UNITED FIXE&SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN,GREGE,TRIM4# |
1 | ||
| 73345-20010E1 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73345-20010B0 |
NCP93..CND REAR SEAT-UNITED FIXE&SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 73345-52030B0 |
NCP93..CND DK.GRAY,TRIM1# |
1 | ||
| 73345-52030E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52240E1 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73360-52230E1 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73360-52240C1 |
NCP93..CND BLACK,TRIM1# |
1 | ||
| 73360-52230C1 |
NCP93..CND REAR SEAT-UNITED FIXE,BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52200C0 |
NCP93..CND BLACK,TRIM1# |
1 | ||
| 73370-52190E0 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73370-52200E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73370-52190C0 |
NCP93..CND REAR SEAT-UNITED FIXE,BLACK,TRIM1# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NCP93 |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NCP93 |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NCP93 |
3 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52330C1 |
NCP93..CND REAR SEAT-UNITED FIXE,BLACK,TRIM1# |
1 | ||
| 73470-52330E1 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52330C1 |
NCP93..CND REAR SEAT-UNITED FIXE,BLACK,TRIM1# |
1 | ||
| 73470-52330E1 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52310C0 |
NCP93 BLACK,TRIM1# |
1 | ||
| 73480-52310E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NCP93 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NCP93 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NCP93 |
3 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 93560-54012 | ||||
ILLUST NO. 2 OF 2(0602- )

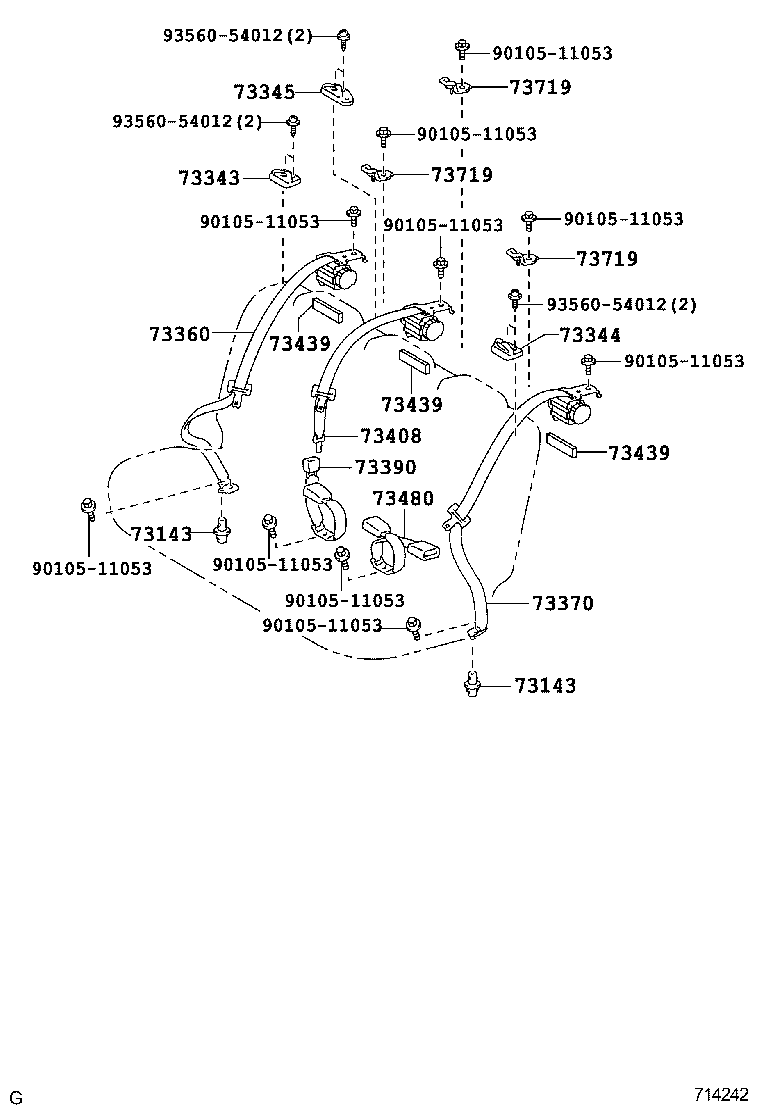

REAR SEAT(SEPARATED)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
NCP93 |
2 | ||
| 73143-52011 |
NCP93 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
NCP93 |
2 | ||
| 73143-52011 |
NCP93 |
2 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73345-20010B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 73345-20010E1 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73345-33020B3 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 73345-33020E1 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-20010B0 |
NCP93..CND REAR SEAT-UNITED FIXE,DK.GRAY,TRIM1# |
1 | ||
| 73345-20010E1 |
NCP93..CND REAR SEAT-UNITED FIXE&SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN,GREGE,TRIM4# |
1 | ||
| 73345-20010E1 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73345-20010B0 |
NCP93..CND REAR SEAT-UNITED FIXE&SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 73345-52030B0 |
NCP93..CND DK.GRAY,TRIM1# |
1 | ||
| 73345-52030E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52240E1 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73360-52230E1 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73360-52240C1 |
NCP93..CND BLACK,TRIM1# |
1 | ||
| 73360-52230C1 |
NCP93..CND REAR SEAT-UNITED FIXE,BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52200C0 |
NCP93..CND BLACK,TRIM1# |
1 | ||
| 73370-52190E0 |
NCP93..CND REAR SEAT-UNITED FIXE,GREGE,TRIM4# |
1 | ||
| 73370-52200E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73370-52190C0 |
NCP93..CND REAR SEAT-UNITED FIXE,BLACK,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73409-52030C0 |
NCP93..CND BLACK,TRIM1# |
1 | ||
| 73409-52030E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73408 - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER | ||||
| 73408-52020E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 73408-52020C0 |
NCP93..CND BLACK,TRIM1# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NCP93 |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NCP93 |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NCP93 |
3 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52310C0 |
NCP93 BLACK,TRIM1# |
1 | ||
| 73480-52310E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NCP93 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NCP93 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NCP93 |
3 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 93560-54012 | ||||
