NCP93L-BEPRKK (2006)
Toyota Yaris

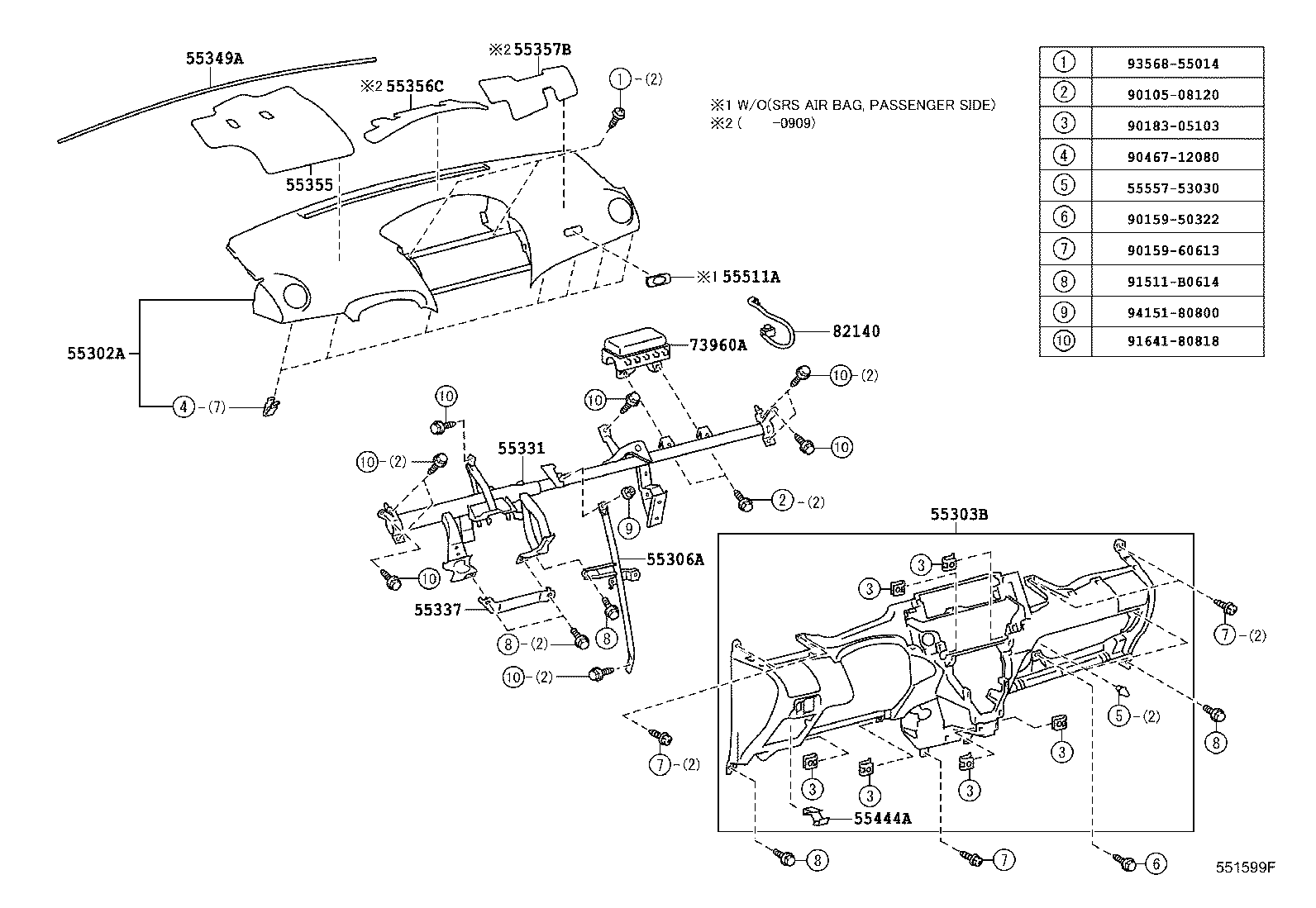

ILLUST NO. 1 OF 2(0602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52051B0 |
NCP93 DK.GRAY,TRIM1#,4# |
1 | ||
| 55302-52050B0 |
NCP93 DK.GRAY,TRIM1#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52160B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55303-52160E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52210 |
NCP93 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52440 |
NCP93 |
1 | ||
| 55330-52441 |
NCP93 |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-52020 |
NCP93 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52060 |
NCP93 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52260 |
NCP93 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52080 |
NCP93 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-52010 |
NCP93 |
1 | ||
| Common parts | ||||
| 55557-53030 | ||||
| 90105-08120 | ||||
| 90159-50322 | ||||
| 90159-60613 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91511-B0614 | ||||
| 91641-80818 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

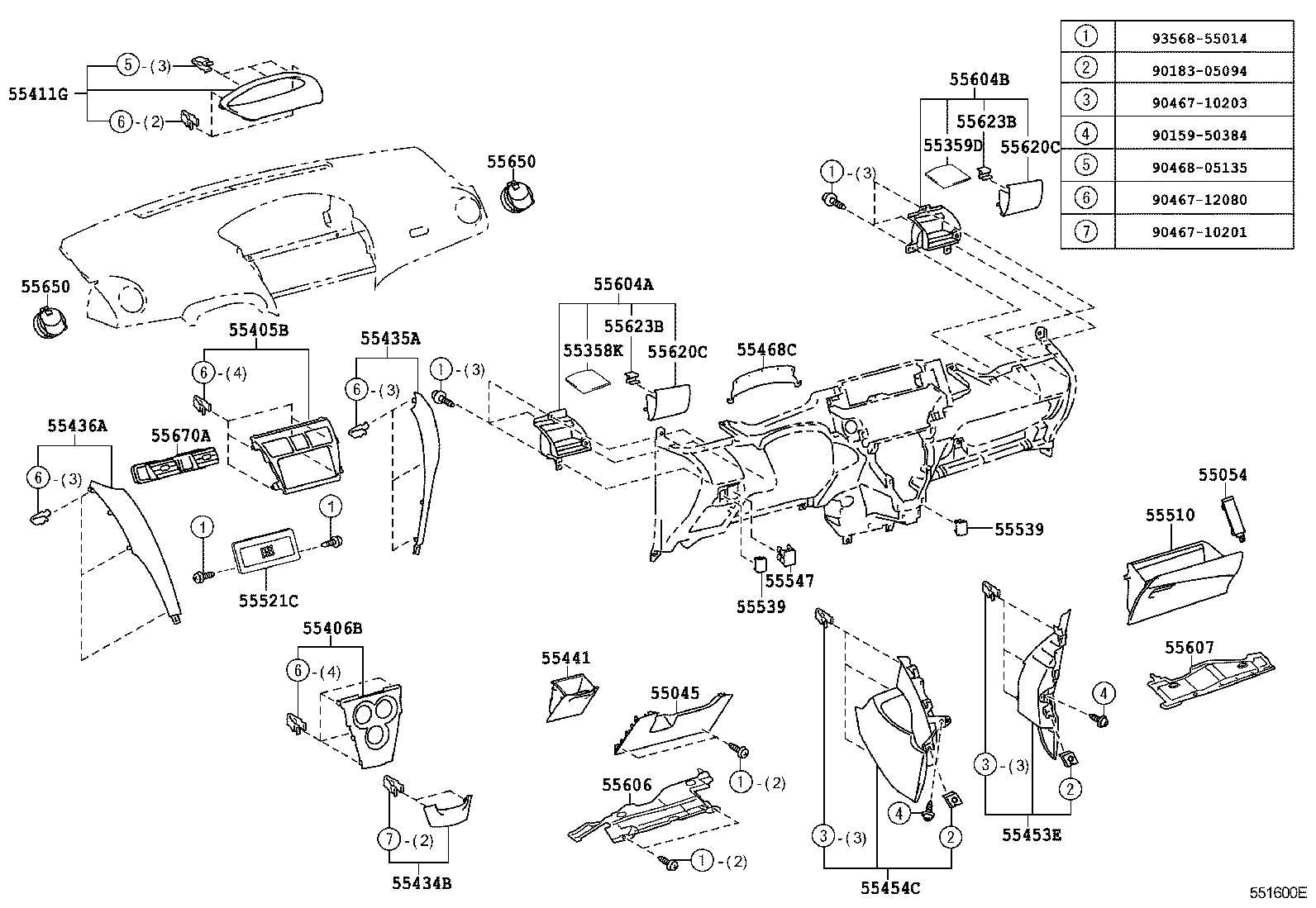

ILLUST NO. 2 OF 2(0602- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-52030E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55045-52030B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NCP93 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-52110 |
NCP93 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-52090 |
NCP93 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52640 |
NCP93 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52170 |
NCP93 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52210B0 |
NCP93 DK.GRAY,TRIM1#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52170B0 |
NCP93 DK.GRAY,TRIM1#,4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-52030B0 |
NCP93 DK.GRAY,TRIM1#,4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-52030B0 |
NCP93 DK.GRAY,TRIM1#,4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-52120B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55441-52120E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55453E - PAD, INSTRUMENT, LOWER RH | ||||
| 55480-52040E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55480-52040B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55454C - PAD, INSTRUMENT, LOWER LH | ||||
| 55470-52010B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55470-52010E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52040 |
NCP93 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52170B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55550-52170E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55522-52020 |
NCP93..CND AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA NEW MULTI |
1 | ||
| 55522-52020 |
NCP93..CND |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NCP93..CND DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NCP93..CND DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
NCP93..CND GREGE,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010B1 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55547-28010E2 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-52060E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55618-52060B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-52040E0 |
NCP93 GREGE,TRIM4# |
1 | ||
| 55619-52040B0 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-52020B0 |
NCP93 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-52030E0 |
NCP93 GREGE,TRIM4#,RH |
1 | ||
| 55620-52020E0 |
NCP93 GREGE,TRIM4#,LH |
1 | ||
| 55620-52030B0 |
NCP93 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-52020B0 |
NCP93 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-52030E0 |
NCP93 GREGE,TRIM4#,RH |
1 | ||
| 55620-52020E0 |
NCP93 GREGE,TRIM4#,LH |
1 | ||
| 55620-52030B0 |
NCP93 DK.GRAY,TRIM1#,RH |
1 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-52050 |
NCP93 RH |
1 | ||
| 55623-52040 |
NCP93 LH |
1 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-52050 |
NCP93 RH |
1 | ||
| 55623-52040 |
NCP93 LH |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52140B0 |
NCP93 DK.GRAY,TRIM1#,4# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52140B0 |
NCP93 DK.GRAY,TRIM1#,4# |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52030 |
NCP93 |
1 | ||
| Common parts | ||||
| 90159-50384 | ||||
| 90183-05094 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
