NCP93L-BEPRKA (2006)

Toyota Yaris

Production Feb 2006 - Aug 2008
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0602- )

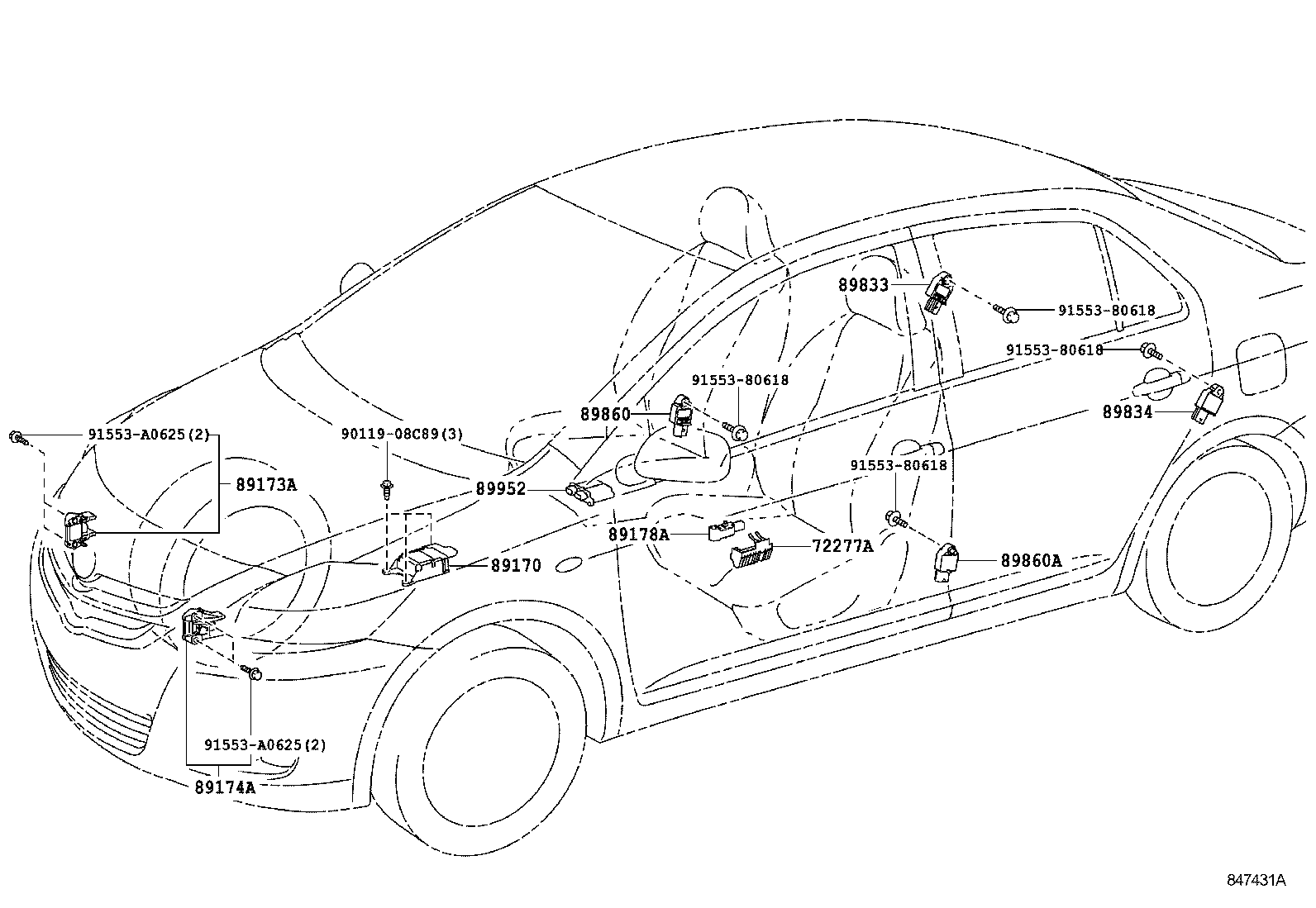

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89833 89834 89860 89860A 89952 9011908C89 9155380618 9155380618 9155380618 9155380618 91553A0625 91553A0625
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-34010

NCP93

 1
89170 - SENSOR ASSY, AIR BAG
89170-52780

NCP93..USA

 1
89170-52790

NCP93..USA

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09270

NCP93

 1
89173-29245

NCP93

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09270

NCP93

 1
89173-29245

NCP93

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33040

NCP93

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-22020

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89831-0W040

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-22020

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89831-0W040

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0H010

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89831-22010

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-22010

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89831-0H010

NCP93

SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

NCP93

 1
89952-35011

NCP93..USA

SRS AIR BAG-DRIVER & PASSENGER

 1
Common parts
90119-08C89
91553-80618
91553-A0625
