NCP93L-BEPRKA (2006)
Toyota Yaris

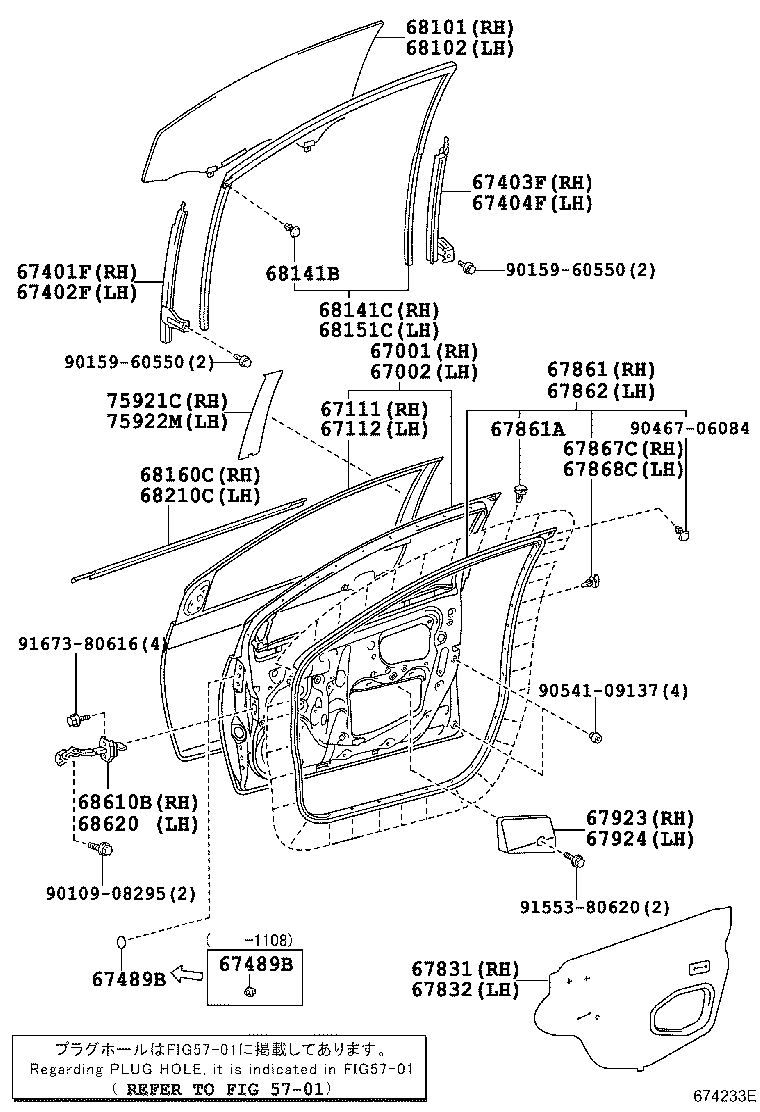

ILLUST NO. 1 OF 2(0602- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52420 |
NCP93..USA |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52420 |
NCP93..USA |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-52180 |
NCP93 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-52170 |
NCP93 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52110 |
NCP93 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52100 |
NCP93 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52190 |
NCP93 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52160 |
NCP93 |
1 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-52020 |
NCP93 |
2 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-52020 |
NCP93 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52341 |
NCP93 |
1 | ||
| 67831-52340 |
NCP93 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-52220 |
NCP93 |
1 | ||
| 67832-52221 |
NCP93 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52200 |
NCP93 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-52020 |
NCP93 RH |
12 | ||
| 67867-52030 |
NCP93 LH |
12 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52190 |
NCP93 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP93 |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP93 |
22 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-52150 |
NCP93 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-52160 |
NCP93 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52270 |
NCP93 *UVCT,T=3.1,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52270 |
NCP93 *UVCT,T=3.1,GREEN |
1 | ||
| 68141B - CLIP, DOOR GLASS RUN | ||||
| 90467-06084 |
NCP93 |
2 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52190 |
NCP93 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52180 |
NCP93 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52150 |
NCP93 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52150 |
NCP93 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52100 |
NCP93 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-52100 |
NCP93 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52090 |
NCP93..USA |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52090 |
NCP93..USA |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90467-06084 | ||||
| 90541-09137 | ||||
| 91553-80620 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(0602- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-52140 |
NCP93..USA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
1 | ||
| 67491-52150 |
NCP93 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-52130 |
NCP93..USA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
1 | ||
| 67492-52140 |
NCP93 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-5C700E1 |
NCP93..USA POWER WINDOW-WITH,GREGE,TRIM4# |
1 | ||
| 67610-5C680E1 |
NCP93..USA POWER PACKAGE&POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),GREGE,TRIM4# |
1 | ||
| 67610-5C690B1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67610-5C770E1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67610-5C680B1 |
NCP93..USA POWER PACKAGE&POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),DK.GRAY,TRIM1# |
1 | ||
| 67610-5C700B1 |
NCP93..USA POWER WINDOW-WITH,DK.GRAY,TRIM1# |
1 | ||
| 67610-5C690E1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67610-5C770B1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67610-5C760B1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(AFFECT),DK.GRAY,TRIM1# |
1 | ||
| 67610-5C680E1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),GREGE,TRIM4# |
1 | ||
| 67610-5C680B1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),DK.GRAY,TRIM1# |
1 | ||
| 67610-5C760E1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(AFFECT),GREGE,TRIM4# |
1 | ||
| 67610-5C780E1 |
NCP93 GREGE,TRIM4# |
1 | ||
| 67610-5C771E0 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67610-5C691B0 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67610-5C780B1 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 67610-5C691E0 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67610-5C771B0 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP93 NO.1 |
8 | ||
| 90467-10161 |
NCP93 NO.2 |
8 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP93 NO.1 |
8 | ||
| 90467-10161 |
NCP93 NO.2 |
8 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP93 NO.1 |
8 | ||
| 90467-10161 |
NCP93 NO.2 |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-52Q60B1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67620-52P80E1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67620-52P70B1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),DK.GRAY,TRIM1# |
1 | ||
| 67620-52P70B1 |
NCP93..USA POWER PACKAGE&POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),DK.GRAY,TRIM1# |
1 | ||
| 67620-52P90B1 |
NCP93..USA POWER WINDOW-WITH,DK.GRAY,TRIM1# |
1 | ||
| 67620-52Q61E0 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67620-52Q50E1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(AFFECT),GREGE,TRIM4# |
1 | ||
| 67620-52P70E1 |
NCP93..USA POWER PACKAGE&POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),GREGE,TRIM4# |
1 | ||
| 67620-52Q50B1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(AFFECT),DK.GRAY,TRIM1# |
1 | ||
| 67620-52P81B0 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67620-52P80B1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67620-52P90E1 |
NCP93..USA POWER WINDOW-WITH,GREGE,TRIM4# |
1 | ||
| 67620-52P70E1 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(AFFECT),GREGE,TRIM4# |
1 | ||
| 67620-52Q70E1 |
NCP93 GREGE,TRIM4# |
1 | ||
| 67620-52P81E0 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67620-52Q61B0 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),DK.GRAY,TRIM1# |
1 | ||
| 67620-52Q70B1 |
NCP93 DK.GRAY,TRIM1# |
1 | ||
| 67620-52Q60E1 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC),GREGE,TRIM4# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-52100 |
NCP93 |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-52100 |
NCP93 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52180 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC) |
1 | ||
| 68171-52180 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC) |
1 | ||
| 68171-52180 |
NCP93 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52150 |
NCP93..USA POWER WINDOW-WITH&DOOR TRIM ORNAMENT-FABRIC(VERIC) |
1 | ||
| 68172-52150 |
NCP93..USA DOOR TRIM ORNAMENT-FABRIC(VERIC) |
1 | ||
| 68172-52150 |
NCP93 |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 7401 | ||||
