NCP93L-BEPRKA (2006)
Toyota Yaris
Production
Feb 2006
-
Aug 2008
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

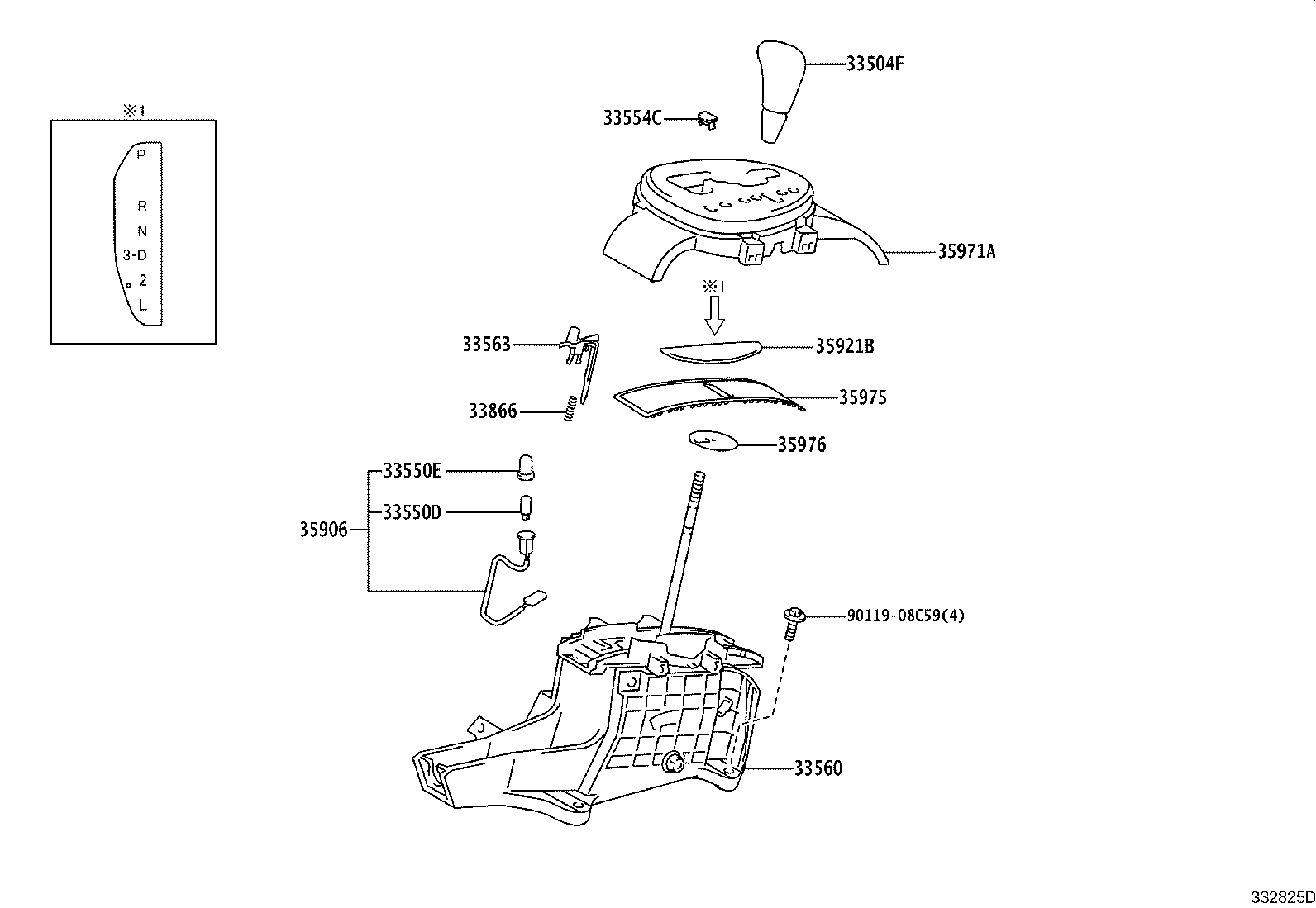

ILLUST NO. 1 OF 2(0602- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52080B0 |
NCP93..ATM DK.GRAY,TRIM1#,4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-74010 |
NCP93..ATM 12V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52020 |
NCP93..ATM |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-52030 |
NCP93..ATM |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-52320 |
NCP93..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52100 |
NCP93..ATM |
1 | ||
| 33563-52090 |
NCP93..ATM..USA DOOR INSIDE HANDLE-PLATING |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-52010 |
NCP93..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52060 |
NCP93..ATM |
1 | ||
| 35921B - PLATE, CONTROL POSITION INDICATOR NO,2 | ||||
| 35921-52090 |
NCP93..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-52230 |
NCP93..ATM |
1 | ||
| 35971-52320 |
NCP93..ATM..USA DOOR INSIDE HANDLE-PLATING |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52080 |
NCP93..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-52080 |
NCP93..ATM |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||

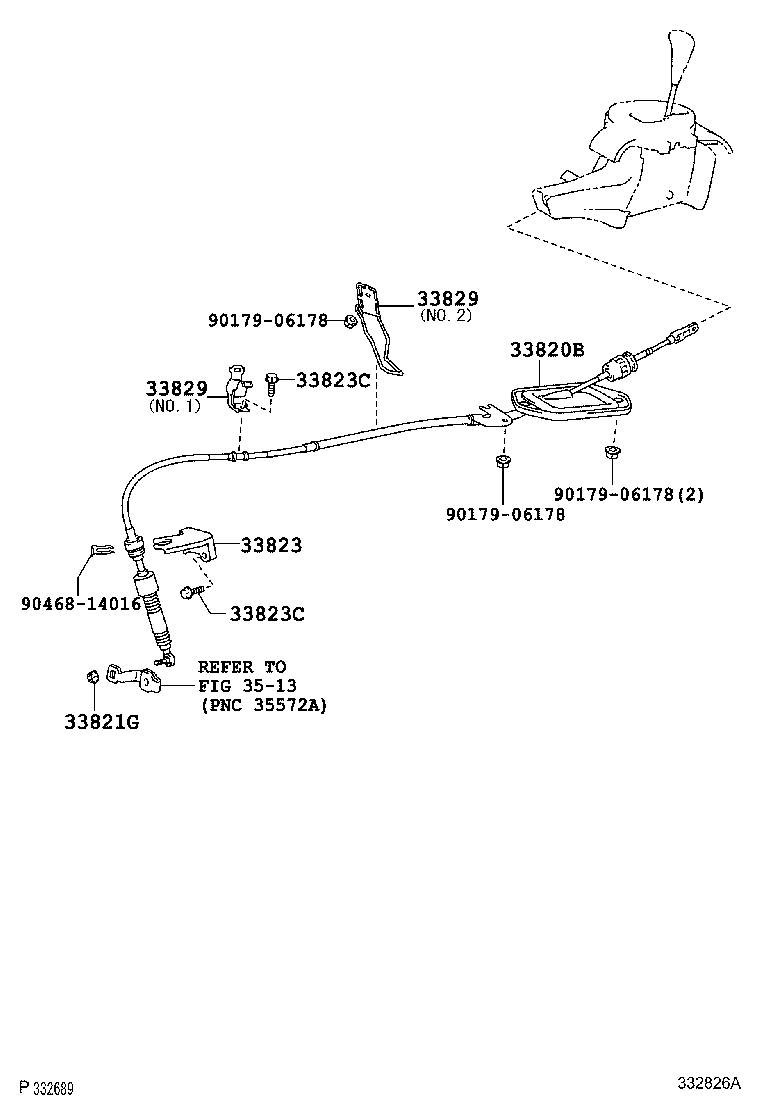

ILLUST NO. 2 OF 2(0602- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52481 |
NCP93..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
NCP93..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52041 |
NCP93..ATM |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP93..ATM |
3 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP93..ATM |
3 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52092 |
NCP93..ATM NO.2 |
1 | ||
| 33829-52091 |
NCP93..ATM NO.2 |
1 | ||
| 33829-52092 |
NCP93..ATM NO.2 |
1 | ||
| 33829-52111 |
NCP93..ATM NO.1 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52092 |
NCP93..ATM NO.2 |
1 | ||
| 33829-52091 |
NCP93..ATM NO.2 |
1 | ||
| 33829-52092 |
NCP93..ATM NO.2 |
1 | ||
| 33829-52111 |
NCP93..ATM NO.1 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3513 | ||||
