NCP93L-BEMRKA (2006)

Toyota Yaris

Production Feb 2006 - Aug 2008
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0602-1104)

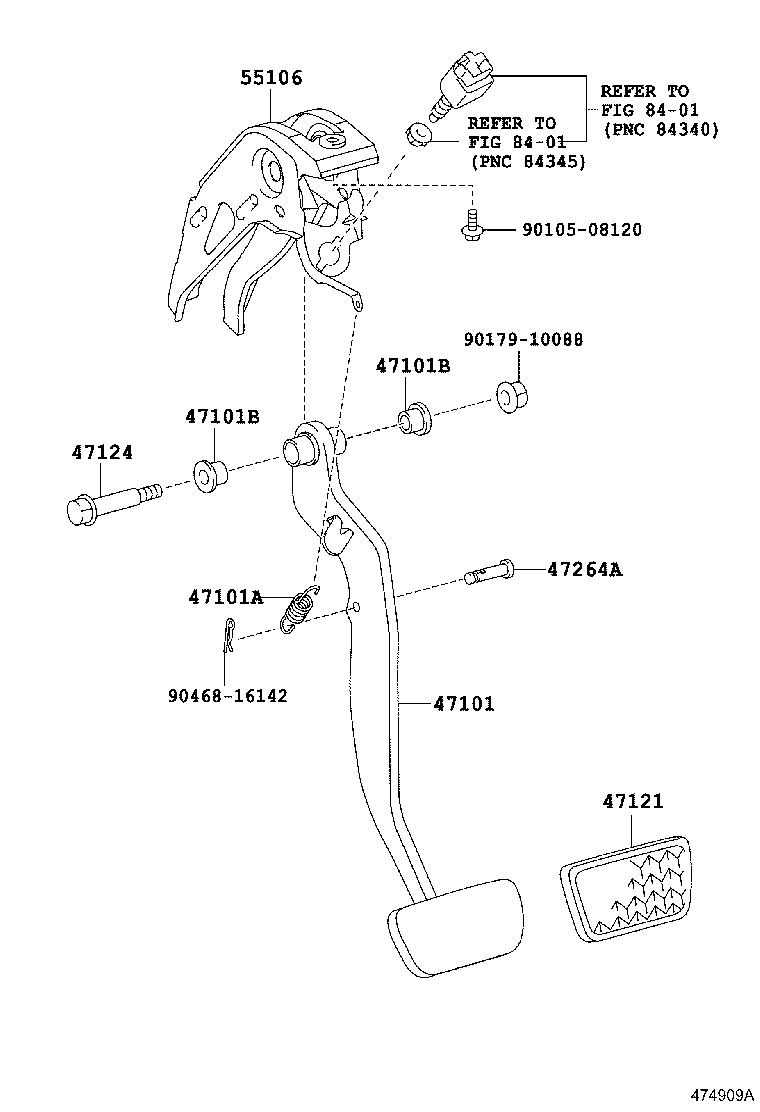

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47264A 55106 8401 8401 9010508120 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-52250

NCP93..MTM..USA

ABS-WITH(W/0 BRAKE ASSIST)

 1
47101-52270

NCP93..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14077

NCP93

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP93

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP93

 2
47121 - PAD, BRAKE PEDAL
31321-52010

NCP93..MTM

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

NCP93

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

NCP93

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-52160

NCP93..USA

ABS-WITH(W/0 BRAKE ASSIST)

 1
55106-52170

NCP93

 1
Common parts
90105-08120
90179-10088
90468-16142
Linked diagrams
8401
