NCP91L-AHPRKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0508- )

Click highlighted areas on diagram

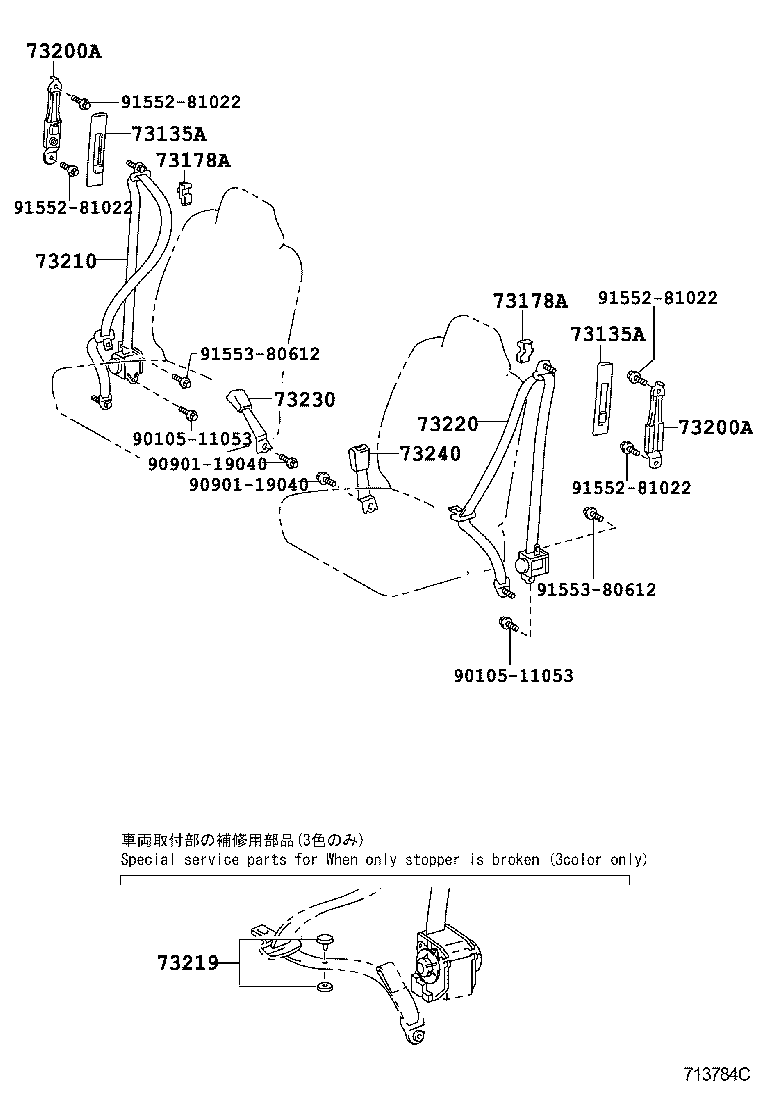

FRONT SEAT BELT

diagram 73135A 73135A 73178A 73178A 73200A 73200A 73210 73219 73220 73230 73240 9010511053 9010511053 9090119040 9090119040 9155281022 9155281022 9155281022 9155281022 9155380612 9155380612
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020B0

NCP91..5D..STD

GRAY,TRIM1#

 2
73135-52020B0

NCP91..5D..STD..CND

GRAY,TRIM1#

 2
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020B0

NCP91..5D..STD

GRAY,TRIM1#

 2
73135-52020B0

NCP91..5D..STD..CND

GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020B0

NCP91..5D..STD

GRAY,TRIM1#

 2
73178-52020B0

NCP91..5D..STD..CND

GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020B0

NCP91..5D..STD

GRAY,TRIM1#

 2
73178-52020B0

NCP91..5D..STD..CND

GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050B1

NCP91..5D..STD

GRAY,TRIM1#

 2
73200-52050B1

NCP91..5D..STD..CND

GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050B1

NCP91..5D..STD

GRAY,TRIM1#

 2
73200-52050B1

NCP91..5D..STD..CND

GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52530C4

NCP91..5D..STD

BLACK,TRIM1#

 1
73210-52530C4

NCP91..5D..STD..CND

BLACK,TRIM1#

 1
73210-52531C4

NCP91..5D..STD..CND

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

NCP91

GRAY

 1
73219-33010

NCP91

BLACK

 1
73219-33030

NCP91

BEIGE

 1
73219-33010

NCP91

BLACK

 1
73219-33020

NCP91

GRAY

 1
73219-33030

NCP91

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52560C4

NCP91..5D..STD

BLACK,TRIM1#

 1
73220-52560C4

NCP91..5D..STD..CND

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52480B0

NCP91

DK.GRAY,TRIM1#

 1
73230-52480B0

NCP91

DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52420B0

NCP91

DK.GRAY,TRIM1#

 1
73230-52420B0

NCP91

DK.GRAY,TRIM1#

 1
Common parts
90105-11053
90901-19040
91552-81022
91553-80612

ILLUST NO. 2 OF 2(0508- )

Click highlighted areas on diagram

REAR SEAT BELT(CENTER = 2 POINT)

diagram 73143 73143 73360 73370 73371 73371 73383A 73470B 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010906272
Part # Description Qty Price
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP91

 2
73143-52010

NCP91

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP91

 2
73143-52010

NCP91

 2
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52211C2

NCP91

BLACK,TRIM1#

 1
73360-52212C2

NCP91

BLACK,TRIM1#

 1
73360-52211C2

NCP91

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52162C2

NCP91

BLACK,TRIM1#

 1
73370-52161C2

NCP91

BLACK,TRIM1#

 1
73370-52161C2

NCP91

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP91..STD

GRAY,TRIM1#

 2
73371-44020P0

NCP91..STD..CND

GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP91..STD

GRAY,TRIM1#

 2
73371-44020P0

NCP91..STD..CND

GRAY,TRIM1#

 2
73383A - HOOK, RR SEAT BELT
73383-33020

NCP91

 1
73383-33020

NCP91

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52370C0

NCP91

BLACK,TRIM1#

 1
73470-52370C0

NCP91

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52160C1

NCP91

BLACK,TRIM1#

 1
73480-52160C1

NCP91

BLACK,TRIM1#

 1
Common parts
90105-11053
90109-06272

ILLUST NO. 2 OF 2(0508- )

Click highlighted areas on diagram

REAR SEAT BELT(CENTER = 3 POINT)

diagram 73139A 73143 73143 73330C 73340C 73350C 73360 73370 73371 73371 73373 73380A 73383A 73390C 73470B 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010906272
Part # Description Qty Price
73139A - COVER, SEAT BELT ANCHOR
73139-52040B1

NCP91..STD

GRAY,TRIM1#

 1
73139-52040B1

NCP91..STD..CND

GRAY,TRIM1#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP91

 2
73143-52010

NCP91

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP91

 2
73143-52010

NCP91

 2
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73310-52020C0

NCP91..STD

BLACK,TRIM1#

 1
73310-52022C0

NCP91..STD..CND

BLACK,TRIM1#

 1
73310-52021C0

NCP91..STD..CND

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52211C2

NCP91

BLACK,TRIM1#

 1
73360-52212C2

NCP91

BLACK,TRIM1#

 1
73360-52211C2

NCP91

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52162C2

NCP91

BLACK,TRIM1#

 1
73370-52161C2

NCP91

BLACK,TRIM1#

 1
73370-52161C2

NCP91

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP91..STD

GRAY,TRIM1#

 2
73371-44020P0

NCP91..STD..CND

GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP91..STD

GRAY,TRIM1#

 2
73371-44020P0

NCP91..STD..CND

GRAY,TRIM1#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73137-52020B0

NCP91..STD

GRAY,TRIM1#

 1
73137-52020B0

NCP91..STD..CND

GRAY,TRIM1#

 1
73383A - HOOK, RR SEAT BELT
73383-33020

NCP91

 1
73383-33020

NCP91

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52370C0

NCP91

BLACK,TRIM1#

 1
73470-52370C0

NCP91

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52160C1

NCP91

BLACK,TRIM1#

 1
73480-52160C1

NCP91

BLACK,TRIM1#

 1
Common parts
90105-11053
90109-06272
