NCP91L-AHMVKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

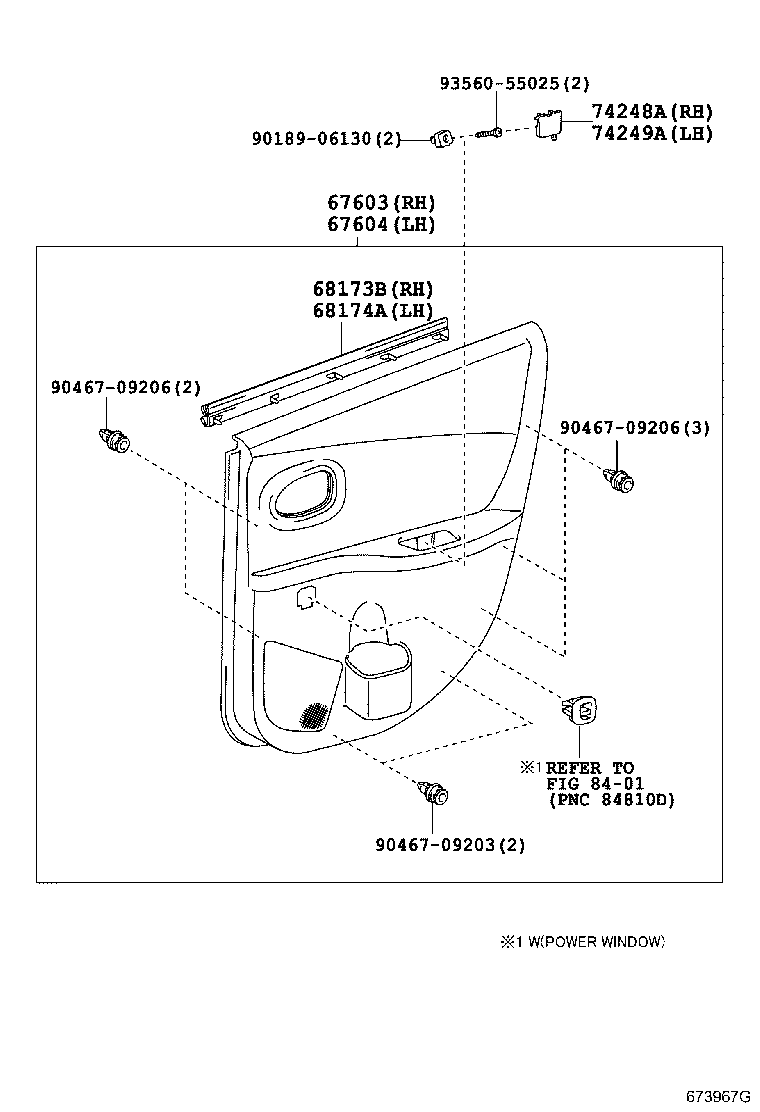

ILLUST NO. 2 OF 2(0508- )5D

Click highlighted areas on diagram

DOOR TRIM

diagram 67603 67604 68173B 68174A 74248A 74249A 8401 9018906130 9046709203 9046709206 9046709206 9356055025
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-52C10B0

NCP91..5D..RS

BLACK,TRIM1#

 1
67630-52B90B0

NCP91..5D..RS

AUDIO-RADIOLESS 2SPEAKER MULTI,BLACK,TRIM1#

 1
67630-52B50B1

NCP91..5D..RS

AUDIO-RADIOLESS 2SPEAKER MULTI,DK.GRAY,TRIM1#

 1
67630-52D60B0

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR)&AUDIO-RADIOLESS 2SPEAKER MULTI,BLACK,TRIM1#

 1
67630-52D70B0

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

 1
67630-52C30B1

NCP91..5D..RS

DK.GRAY,TRIM1#

 1
67630-52C70B1

NCP91..5D..RS

DK.GRAY,TRIM1#

 1
67630-52C70B1

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1#

 1
67630-52C60B1

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR)&AUDIO-RADIOLESS 2SPEAKER MULTI,DK.GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-52F00B0

NCP91..5D..RS

AUDIO-RADIOLESS 2SPEAKER MULTI,BLACK,TRIM1#

 1
67640-52G70B0

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR)&AUDIO-RADIOLESS 2SPEAKER MULTI,BLACK,TRIM1#

 1
67640-52G80B0

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

 1
67640-52F20B0

NCP91..5D..RS

BLACK,TRIM1#

 1
67640-52A20B1

NCP91..5D..RS

AUDIO-RADIOLESS 2SPEAKER MULTI,DK.GRAY,TRIM1#

 1
67640-52A80B1

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1#

 1
67640-52A70B1

NCP91..5D..RS

POWER WINDOW-WITH(FRONT & REAR)&AUDIO-RADIOLESS 2SPEAKER MULTI,DK.GRAY,TRIM1#

 1
67640-52A40B1

NCP91..5D..RS

DK.GRAY,TRIM1#

 1
67640-52A80B1

NCP91..5D..RS

DK.GRAY,TRIM1#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-52110

NCP91..5D

 1
68173-52110

NCP91..5D

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-52110

NCP91..5D

 1
68174-52110

NCP91..5D

 1
74248A - PLUG, REAR DOOR ARMREST, RH
74248-52010B0

NCP91..5D

DK.GRAY,TRIM1#

 1
74248-52010B0

NCP91..5D

DK.GRAY,TRIM1#

 1
74249A - PLUG, REAR DOOR ARMREST, LH
74249-52010B0

NCP91..5D

DK.GRAY,TRIM1#

 1
74249-52010B0

NCP91..5D

DK.GRAY,TRIM1#

 1
Common parts
90189-06130
90467-09203
90467-09206
93560-55025
Linked diagrams
8401

ILLUST NO. 1 OF 2(0508- )5D

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67003 67004 6707 6707 67113 67114 67407E 67408E 67811A 67841E 67842E 67867D 67868D 67871 67871A 67872 68103 68104 68123B 68124B 68142C 68152C 68180C 68188 68189 68230C 68630D 68640A 75923 75924 9010908295 9015150016 9015960550 9046706084 9155380612
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-52322

NCP91..5D..CND

 1
67003-52321

NCP91..5D

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-52322

NCP91..5D..CND

 1
67004-52321

NCP91..5D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-52160

NCP91..5D

 1
67113-52160

NCP91..5D

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-52160

NCP91..5D

 1
67114-52160

NCP91..5D

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-52110

NCP91..5D

 1
67407-52110

NCP91..5D

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-52110

NCP91..5D

 1
67408-52110

NCP91..5D

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-52160

NCP91..5D

 1
67841-52170

NCP91..5D

AUDIO-RADIOLESS 2SPEAKER MULTI

 1
67841-52160

NCP91..5D

 1
67841-52170

NCP91..5D..CND

AUDIO-RADIOLESS 2SPEAKER MULTI

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-52170

NCP91..5D

AUDIO-RADIOLESS 2SPEAKER MULTI

 1
67841-52170

NCP91..5D..CND

AUDIO-RADIOLESS 2SPEAKER MULTI

 1
67841-52160

NCP91..5D

 1
67841-52160

NCP91..5D

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

NCP91..5D

 22
67867-12150

NCP91..5D

 22
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

NCP91..5D

 22
67867-12150

NCP91..5D

 22
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-52130

NCP91..5D

 1
67871-52130

NCP91..5D

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-52030

NCP91..5D

RH,PINK

 9
67867-52020

NCP91..5D

LH,BLUE

 9
67867-52020

NCP91..5D

LH,BLUE

 9
67867-52030

NCP91..5D

RH,PINK

 9
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-52150

NCP91..5D

 1
67872-52150

NCP91..5D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68130-52211

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68130-52211

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68140-52211

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68140-52211

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-52130

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68123-52130

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-52130

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68124-52130

NCP91..5D

*UVCT,T=3.1,GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-52131

NCP91..5D

 1
68142-52131

NCP91..5D

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-52141

NCP91..5D

 1
68152-52141

NCP91..5D

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-52100

NCP91..5D

 1
68180-52100

NCP91..5D

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-52070

NCP91..5D

 1
68188-52070

NCP91..5D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-52070

NCP91..5D

 1
68189-52070

NCP91..5D

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-52100

NCP91..5D

 1
68230-52100

NCP91..5D

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-52062

NCP91..5D

 1
68630-52061

NCP91..5D

 1
68630-52061

NCP91..5D

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-52061

NCP91..5D

 1
68630-52061

NCP91..5D

 1
68630-52062

NCP91..5D

 1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-52060

NCP91..5D

 1
75923-52060

NCP91..5D

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-52060

NCP91..5D

 1
75924-52060

NCP91..5D

 1
Common parts
90109-08295
90151-50016
90159-60550
90467-06084
91553-80612
Linked diagrams
5701
6707
