NCP91L-AHMVKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )5F

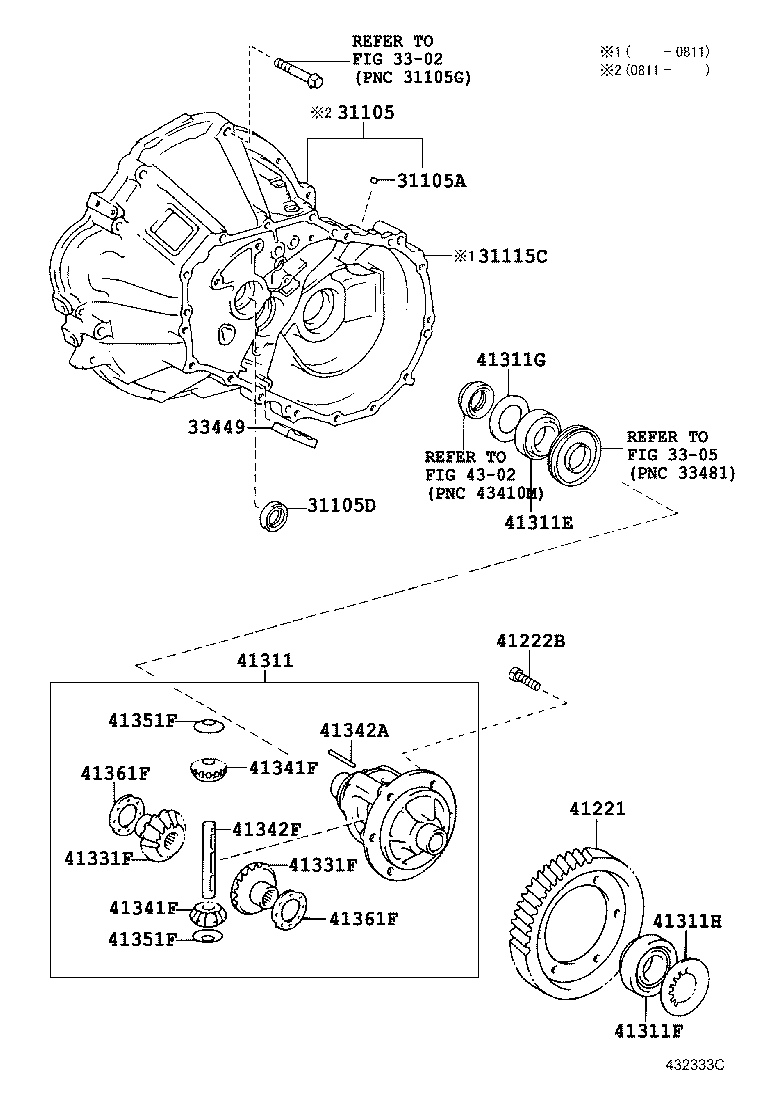

Click highlighted areas on diagram

C50

diagram 31105 31105A 31105D 31115C 3302 3305 33449 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-52060

NCP91..5F

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NCP91..5F

 1
90331-08002

NCP91..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25011

NCP91..5F

 1
90311-25028

NCP91..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-52070

NCP91..5F

 1
31115-52070

NCP91..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NCP91..5F

 1
33449-12020

NCP91..5F

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12310

NCP91..5F

 1
41221-52280

NCP91..5F

 1
41221-12310

NCP91..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

NCP91..5F

 8
90105-11040

NCP91..5F

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-12041

NCP91..5F

 1
41301-12041

NCP91..5F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

NCP91..5F

 1
90366-38004

NCP91..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

NCP91..5F

 1
90368-38010

NCP91..5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NCP91..5F

T=2.1

 1
90560-41003

NCP91..5F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41020

NCP91..5F

T=2.40,MARK GG

 1
90564-41016

NCP91..5F

T=2.20,MARK CC

 1
90564-41015

NCP91..5F

T=2.15,MARK BB

 1
90564-41023

NCP91..5F

T=2.55,MARK KK

 1
90564-41022

NCP91..5F

T=2.50,MARK JJ

 1
90564-41018

NCP91..5F

T=2.30,MARK EE

 1
90564-41024

NCP91..5F

T=2.60,MARK LL

 1
90564-41027

NCP91..5F

T=2.75,MARK PP

 1
90564-41017

NCP91..5F

T=2.25,MARK DD

 1
90564-41031

NCP91..5F

T=2.95,MARK TT

 1
90564-41014

NCP91..5F

T=2.10,MARK AA

 1
90564-41030

NCP91..5F

T=2.90,MARK SS

 1
90564-41025

NCP91..5F

T=2.65,MARK MM

 1
90564-41028

NCP91..5F

T=2.80,MARK QQ

 1
90564-41032

NCP91..5F

T=3.00,MARK UU

 1
90564-41019

NCP91..5F

T=2.35,MARK FF

 1
90564-41029

NCP91..5F

T=2.85,MARK RR

 1
90564-41016

NCP91..5F

T=2.20,MARK CC

 1
90564-41021

NCP91..5F

T=2.45,MARK HH

 1
90564-41018

NCP91..5F

T=2.30,MARK EE

 1
90564-41017

NCP91..5F

T=2.25,MARK DD

 1
90564-41023

NCP91..5F

T=2.55,MARK KK

 1
90564-41026

NCP91..5F

T=2.70,MARK NN

 1
90564-41019

NCP91..5F

T=2.35,MARK FF

 1
90564-41026

NCP91..5F

T=2.70,MARK NN

 1
90564-41020

NCP91..5F

T=2.40,MARK GG

 1
90564-41015

NCP91..5F

T=2.15,MARK BB

 1
90564-41024

NCP91..5F

T=2.60,MARK LL

 1
90564-41014

NCP91..5F

T=2.10,MARK AA

 1
90564-41029

NCP91..5F

T=2.85,MARK RR

 1
90564-41021

NCP91..5F

T=2.45,MARK HH

 1
90564-41022

NCP91..5F

T=2.50,MARK JJ

 1
90564-41032

NCP91..5F

T=3.00,MARK UU

 1
90564-41031

NCP91..5F

T=2.95,MARK TT

 1
90564-41025

NCP91..5F

T=2.65,MARK MM

 1
90564-41030

NCP91..5F

T=2.90,MARK SS

 1
90564-41027

NCP91..5F

T=2.75,MARK PP

 1
90564-41028

NCP91..5F

T=2.80,MARK QQ

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NCP91..5F

 2
41331-12011

NCP91..5F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NCP91..5F

 2
41331-12011

NCP91..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NCP91..5F

 2
41341-12030

NCP91..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NCP91..5F

 2
41341-12030

NCP91..5F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NCP91

 1
90250-06058

NCP91

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

NCP91..5F

 1
41342-12140

NCP91..5F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NCP91

 2
41351-12020

NCP91

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NCP91

 2
41351-12020

NCP91

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

NCP91..5F

T=1.10,MARK 03

 2
41361-22140

NCP91..5F

T=0.95,MARK 14

 2
41361-22150

NCP91..5F

T=1.05,MARK 15

 2
41361-22160

NCP91..5F

T=1.15,MARK 16

 2
41361-22040

NCP91..5F

T=1.20,MARK 04

 2
41361-22020

NCP91..5F

T=1.00,MARK 02

 2
41361-22040

NCP91..5F

T=1.20,MARK 04

 2
41361-22030

NCP91..5F

T=1.10,MARK 03

 2
41361-22150

NCP91..5F

T=1.05,MARK 15

 2
41361-22160

NCP91..5F

T=1.15,MARK 16

 2
41361-22140

NCP91..5F

T=0.95,MARK 14

 2
41361-22020

NCP91..5F

T=1.00,MARK 02

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

NCP91..5F

T=1.10,MARK 03

 2
41361-22140

NCP91..5F

T=0.95,MARK 14

 2
41361-22150

NCP91..5F

T=1.05,MARK 15

 2
41361-22160

NCP91..5F

T=1.15,MARK 16

 2
41361-22040

NCP91..5F

T=1.20,MARK 04

 2
41361-22020

NCP91..5F

T=1.00,MARK 02

 2
41361-22040

NCP91..5F

T=1.20,MARK 04

 2
41361-22030

NCP91..5F

T=1.10,MARK 03

 2
41361-22150

NCP91..5F

T=1.05,MARK 15

 2
41361-22160

NCP91..5F

T=1.15,MARK 16

 2
41361-22140

NCP91..5F

T=0.95,MARK 14

 2
41361-22020

NCP91..5F

T=1.00,MARK 02

 2
Linked diagrams
3302
3305
4302
