Toyota Yaris NCP91 CLUTCH PEDAL & FLEXIBLE HOSE

NCP91L-AHMVKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

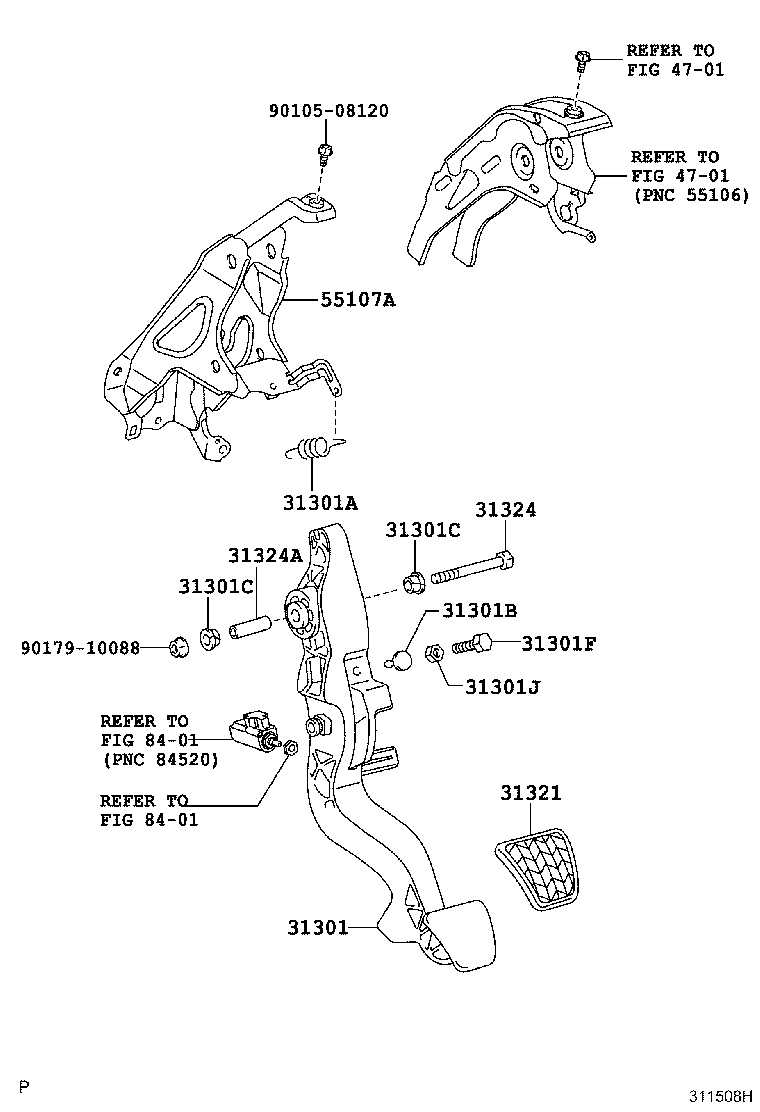

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31311-52040	NCP91..5F	08/2008 - 12/2999	1
31311-52040	NCP91..5F	08/2005 - 08/2007	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047	NCP91..5F	08/2005 - 08/2007	1
90507-14047	NCP91..5F	08/2008 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	NCP91..5F	08/2005 - 08/2007	1
90541-06036	NCP91..5F	08/2008 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NCP91..5F	08/2008 - 12/2999	2
90386-13015	NCP91..5F	08/2005 - 08/2007	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NCP91..5F	08/2008 - 12/2999	2
90386-13015	NCP91..5F	08/2005 - 08/2007	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	NCP91..5F	08/2008 - 12/2999	1
90101-10369	NCP91..5F	08/2005 - 08/2007	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000	NCP91..5F	08/2008 - 08/2011	1
94130-61000	NCP91..5F	08/2005 - 08/2007	1
31321 - PAD, CLUTCH PEDAL
31321-52010	NCP91..5F	08/2005 - 08/2007	1
31321-52010	NCP91..5F	08/2008 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90105-10563	NCP91..5F	01/2011 - 12/2999	1
90101-10081	NCP91..5F	08/2008 - 12/2010	1
90101-10081	NCP91..5F	08/2005 - 08/2007	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	NCP91..5F	08/2005 - 08/2007	1
90387-10004	NCP91..5F	08/2008 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-52120	NCP91..5F	08/2008 - 12/2010	1
55107-52121	NCP91..5F	01/2011 - 12/2999	1
55107-52120	NCP91..5F	08/2005 - 08/2007	1
Common parts
90105-08120
90179-10088
Linked diagrams
4701
8401

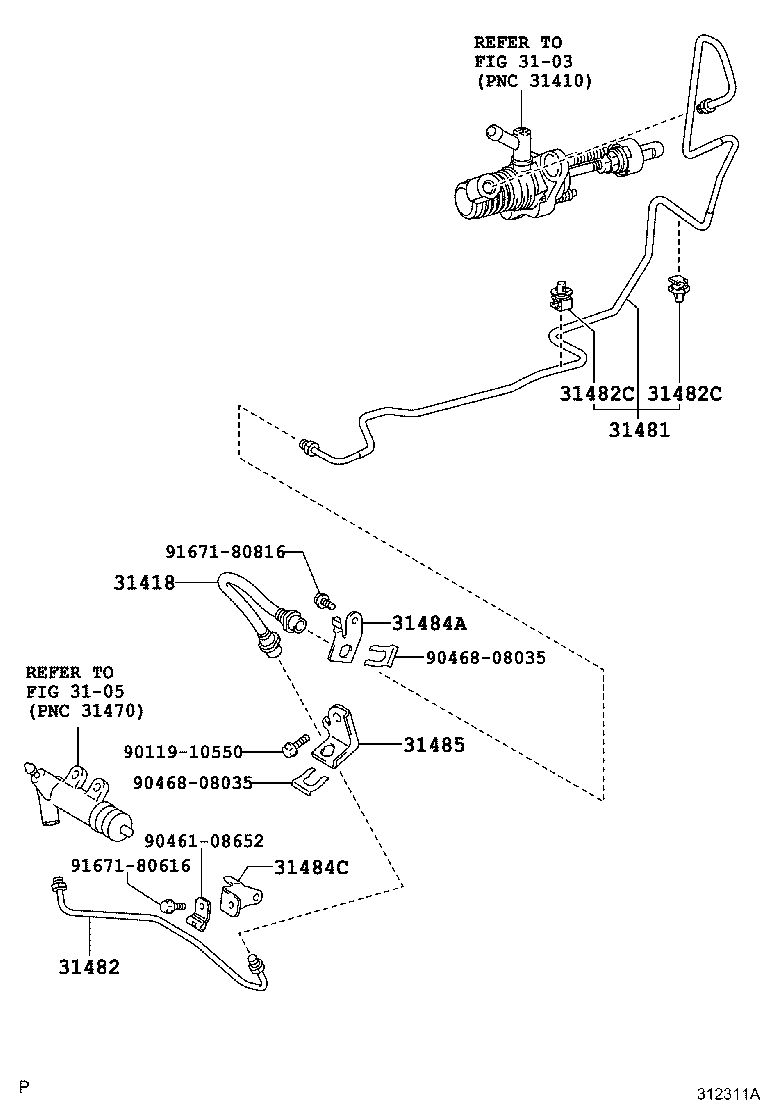

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02E09	NCP91..5F	08/2005 - 08/2007	1
90947-02E09	NCP91..5F	08/2008 - 12/2999	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-52110	NCP91..5F	08/2005 - 08/2007	1
31481-52110	NCP91..5F	08/2008 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52070	NCP91..5F	08/2005 - 08/2007	1
31482-52070	NCP91..5F	08/2008 - 12/2999	1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17	NCP91..5F	08/2008 - 12/2999	2
90949-01D17	NCP91..5F	08/2005 - 08/2007	2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17	NCP91..5F	08/2008 - 12/2999	2
90949-01D17	NCP91..5F	08/2005 - 08/2007	2
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090	NCP91..5F	08/2008 - 12/2999	1
31484-52090	NCP91..5F	08/2005 - 08/2007	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150	NCP91..5F	08/2008 - 07/2011	1
31484-12271	NCP91..5F	08/2005 - 12/2005	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52050	NCP91..5F	08/2008 - 12/2999	1
31484-52050	NCP91..5F	08/2005 - 08/2007	1
Common parts
90119-10550
90461-08652
90468-08035
91671-80616
91671-80816
Linked diagrams
3103
3105
