NCP91L-AGPVKK (2007)
Toyota Yaris
(0508-0808)

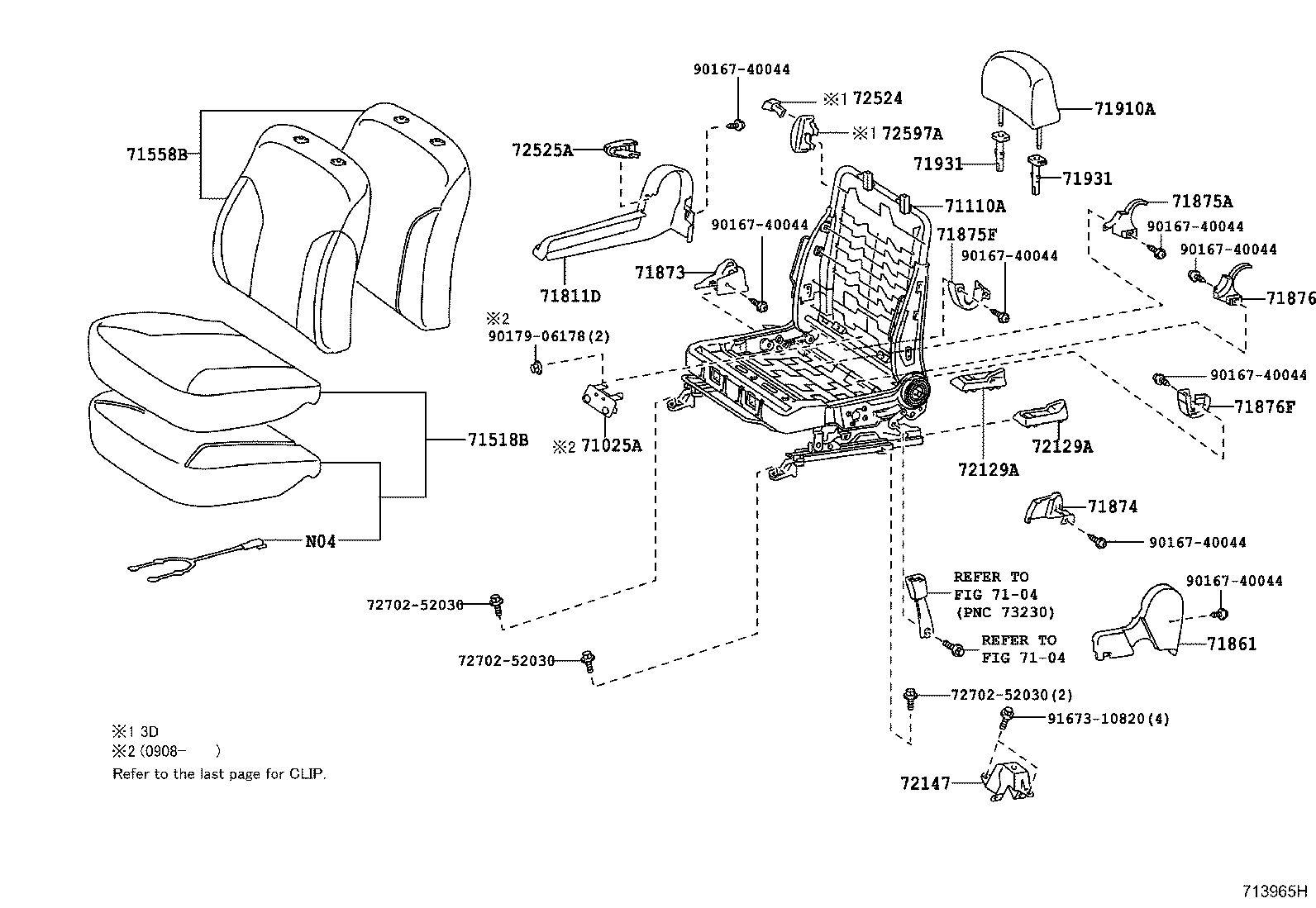

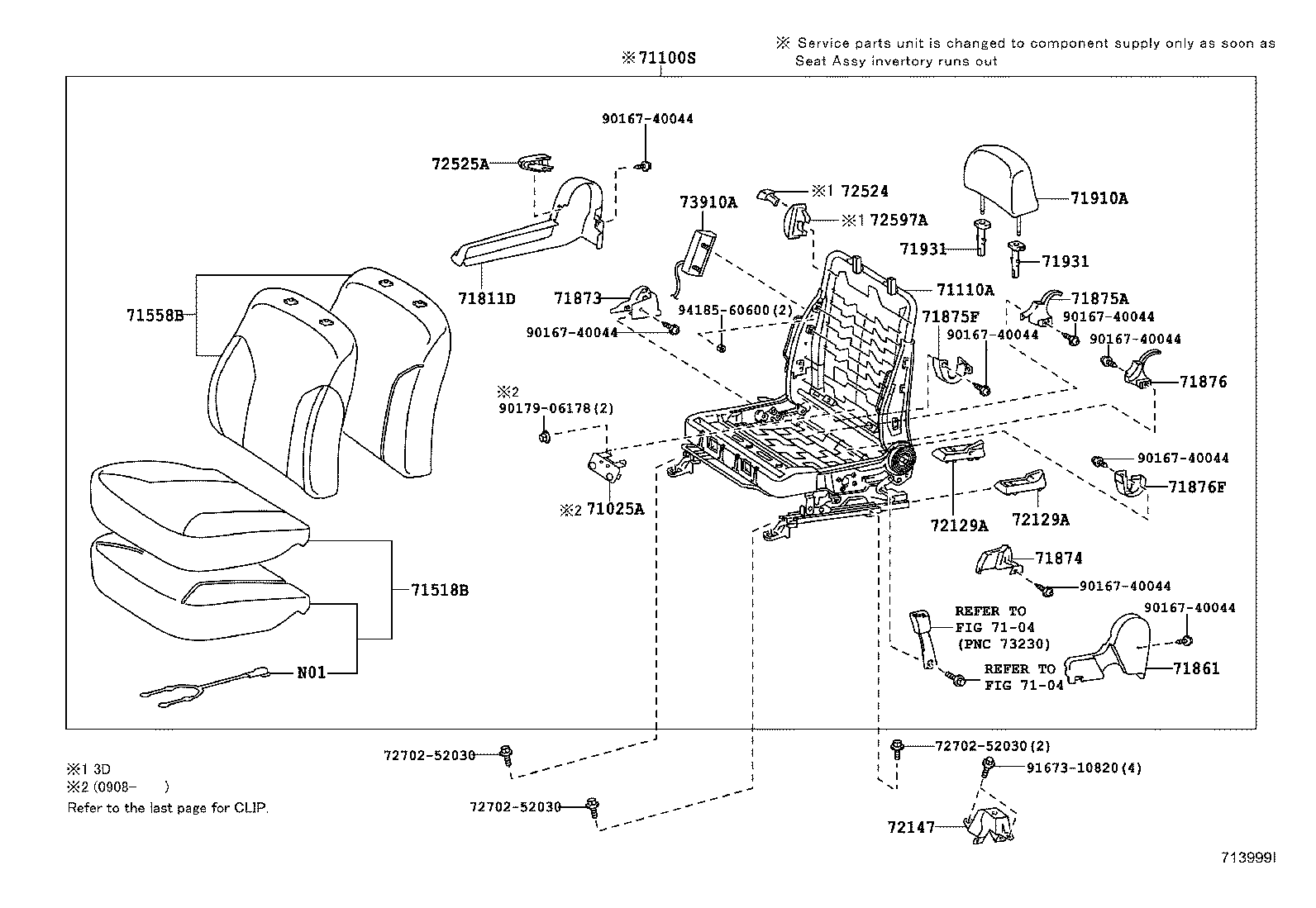

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52310 |
NCP91..3D..RS |
1 | ||
| 71110-52310 |
NCP91..3D..RS |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52F10C0 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71518-52F20C0 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71518-52F20C0 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71518-52F10C1 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71518-52F20C1 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71518-52F20C1 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52D50C0 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D50C0 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D40C1 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71558-52D50C1 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D50C1 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D40C2 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71811-52200B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71861-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52080B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71873-52080B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52180B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874-52180B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91 |
6 | ||
| 72129-52030 |
NCP91 |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91 |
6 | ||
| 72129-52030 |
NCP91 |
8 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
NCP91 |
1 | ||
| 72147-52020 |
NCP91 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72054-21010B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 72525-21010B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72525-58030B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-52050B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 72597-52050B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0508-0808)

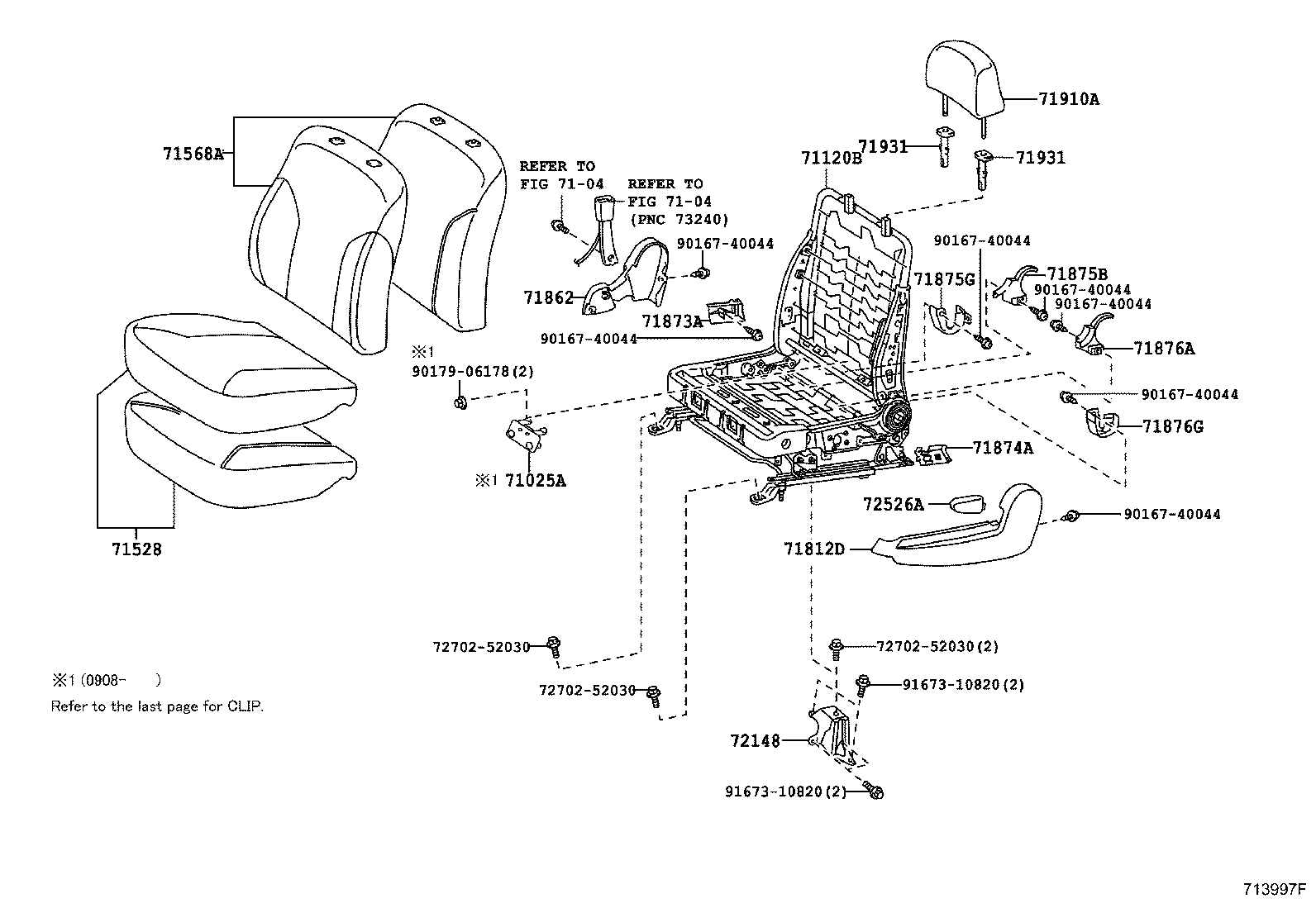

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52340 |
NCP91..RS |
1 | ||
| 71120-52340 |
NCP91..RS |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-5C600C0 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 71528-52A90C0 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-52A90C1 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-52A90C1 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-52A90C0 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-5C600C2 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71558-52B50C2 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71568-52C10C0 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52B50C1 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 71568-52C10C0 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71568-52C10C1 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71568-52C10C1 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71812-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71812-52190B2 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71862-52140B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71862-52140B2 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71873-52190B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874-52070B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874-52070B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
NCP91 |
1 | ||
| 72148-52010 |
NCP91 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0508-0808)

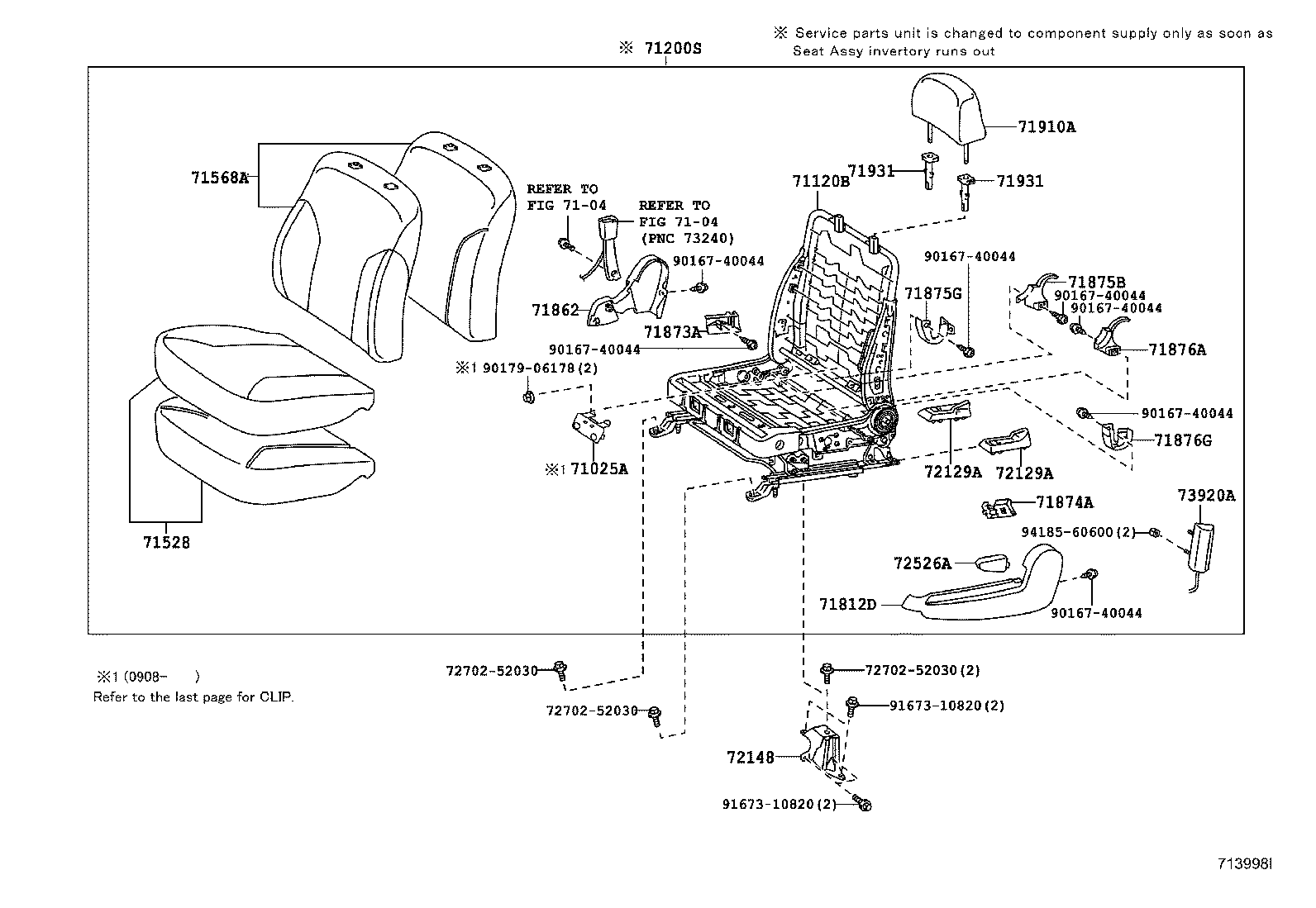

DRIVER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52340 |
NCP91..RS |
1 | ||
| 71120-52340 |
NCP91..RS |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-52Q80B2 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71200-52Q80B1 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71200-52Q80B2 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71200-52Q80B1 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-5C600C0 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 71528-52A90C0 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-52A90C1 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-52A90C1 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-52A90C0 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71528-5C600C2 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71558-52B50C2 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71568-52C10C0 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52B50C1 |
NCP91..RS BLACK,TRIM1# |
1 | ||
| 71568-52C10C0 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71568-52C10C1 |
NCP91..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71568-52C10C1 |
NCP91..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71812-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71812-52190B2 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71862-52140B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71862-52140B2 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71873-52190B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874-52070B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874-52070B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91 |
6 | ||
| 72129-52030 |
NCP91 |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91 |
6 | ||
| 72129-52030 |
NCP91 |
8 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
NCP91 |
1 | ||
| 72148-52010 |
NCP91 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52070 |
NCP91..RS;NCP91..3D..STD SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 73920-52070 |
NCP91..RS;NCP91..USA REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 73920-52070 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 73920-52070 |
NCP91..RS;NCP91..USA REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0508-0808)
PASSENGER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-52N70B2 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71100-52N70B3 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71100-52N70B2 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71100-52N70B3 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52310 |
NCP91..3D..RS |
1 | ||
| 71110-52310 |
NCP91..3D..RS |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52F10C0 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71518-52F20C0 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71518-52F20C0 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71518-52F10C1 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71518-52F20C1 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71518-52F20C1 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52D50C0 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D50C0 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D40C1 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71558-52D50C1 |
NCP91..3D..RS REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D50C1 |
NCP91..3D..RS SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1# |
1 | ||
| 71558-52D40C2 |
NCP91..3D..RS BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52200B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71811-52200B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71861-52190B2 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52080B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71873-52080B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52180B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71874-52180B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71910-52520C0 |
NCP91..RS BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP91 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NCP91 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91 |
6 | ||
| 72129-52030 |
NCP91 |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91 |
6 | ||
| 72129-52030 |
NCP91 |
8 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
NCP91 |
1 | ||
| 72147-52020 |
NCP91 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72054-21010B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 72525-21010B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72525-58030B0 |
NCP91 DK.GRAY,TRIM1# |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-52050B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 72597-52050B0 |
NCP91..3D DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52070 |
NCP91..RS;NCP91..USA REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 73910-52070 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 73910-52070 |
NCP91..RS;NCP91..USA REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 73910-52070 |
NCP91 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0508- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
