NCP91L-AGPVKK (2007)

Toyota Yaris

Production Aug 2007 - Aug 2008
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)

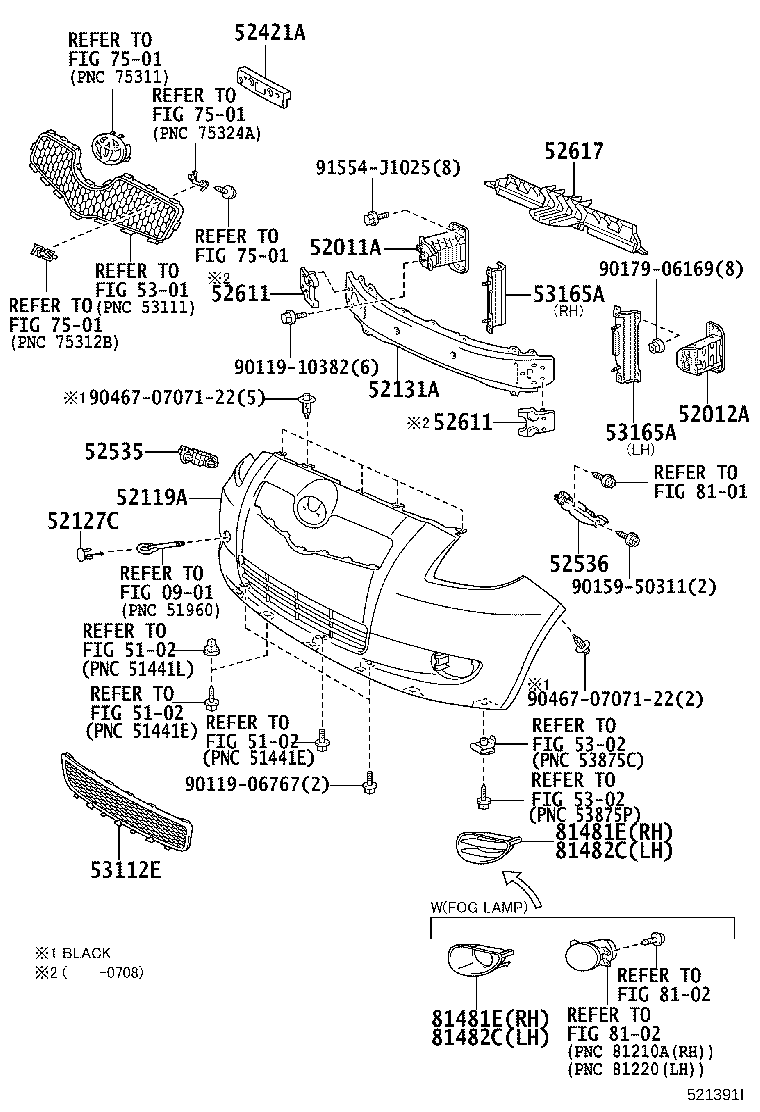

Click highlighted areas on diagram

diagram 0901 5102 5102 5102 52011A 52012A 52119A 52127C 52131A 52421A 52535 52536 52611 52611 52617 5301 5302 5302 53112E 53165A 53165A 7501 7501 7501 7501 8101 8102 8102 81481E 81481E 81482C 81482C 9011906767 9011910382 9015950311 9017906169 904670707122 904670707122 91554J1025
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-52020

NCP91

 1
52011-52020

NCP91

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-52020

NCP91

 1
52012-52020

NCP91..CND;NCP91..3D..USA

 1
52119A - COVER, FRONT BUMPER
52119-52925

NCP91..RS

PAINT REQ.,FRONT FOG LAMP-WITH

 1
52119-52925

NCP91

PAINT REQ.

 1
52119-52922

NCP91..RS

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52909

NCP91

 1
52127-52909

NCP91

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250

NCP91..CND

 1
52131-52250

NCP91..CND

 1
52421A - PAD, FRONT BUMPER
52421-52020

NCP91..CND;NCP91..3D..USA

 1
52421-52020

NCP91

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52060

NCP91

 1
52535-52060

NCP91

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52050

NCP91

 1
52536-52050

NCP91

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52120

NCP91..CND;NCP91..3D..USA

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52120

NCP91..CND;NCP91..3D..USA

 2
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-52020

NCP91

 1
52617-52020

NCP91

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52180

NCP91

NO PAINT REQ.

 1
53112-52180

NCP91

NO PAINT REQ.

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020

NCP91

RH

 1
53165-52030

NCP91

LH

 1
53164-52020

NCP91

RH

 1
53165-52030

NCP91

LH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020

NCP91

RH

 1
53165-52030

NCP91

LH

 1
53164-52020

NCP91

RH

 1
53165-52030

NCP91

LH

 1
81481E - COVER, FOG LAMP, RH
81481-52150

NCP91

FRONT FOG & DRIVING LAMP-WITH

 1
81481-52110

NCP91

 1
81481-52150

NCP91

FRONT FOG LAMP-WITH

 1
81481-52110

NCP91

 1
81481E - COVER, FOG LAMP, RH
81481-52150

NCP91

FRONT FOG & DRIVING LAMP-WITH

 1
81481-52110

NCP91

 1
81481-52150

NCP91

FRONT FOG LAMP-WITH

 1
81481-52110

NCP91

 1
81482C - COVER, FOG LAMP, LH
81482-52100

NCP91

 1
81482-52110

NCP91

FRONT FOG LAMP-WITH

 1
81482-52110

NCP91

FRONT FOG & DRIVING LAMP-WITH

 1
81482-52100

NCP91

 1
81482C - COVER, FOG LAMP, LH
81482-52100

NCP91

 1
81482-52110

NCP91

FRONT FOG LAMP-WITH

 1
81482-52110

NCP91

FRONT FOG & DRIVING LAMP-WITH

 1
81482-52100

NCP91

 1
Common parts
90119-06767
90119-10382
90159-50311
90179-06169
90467-0707122
91554-J1025
Linked diagrams
0901
5102
5301
5302
7501
8101
8102
