NCP91L-AGPVKK (2007)

Toyota Yaris

Production Aug 2007 - Aug 2008
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

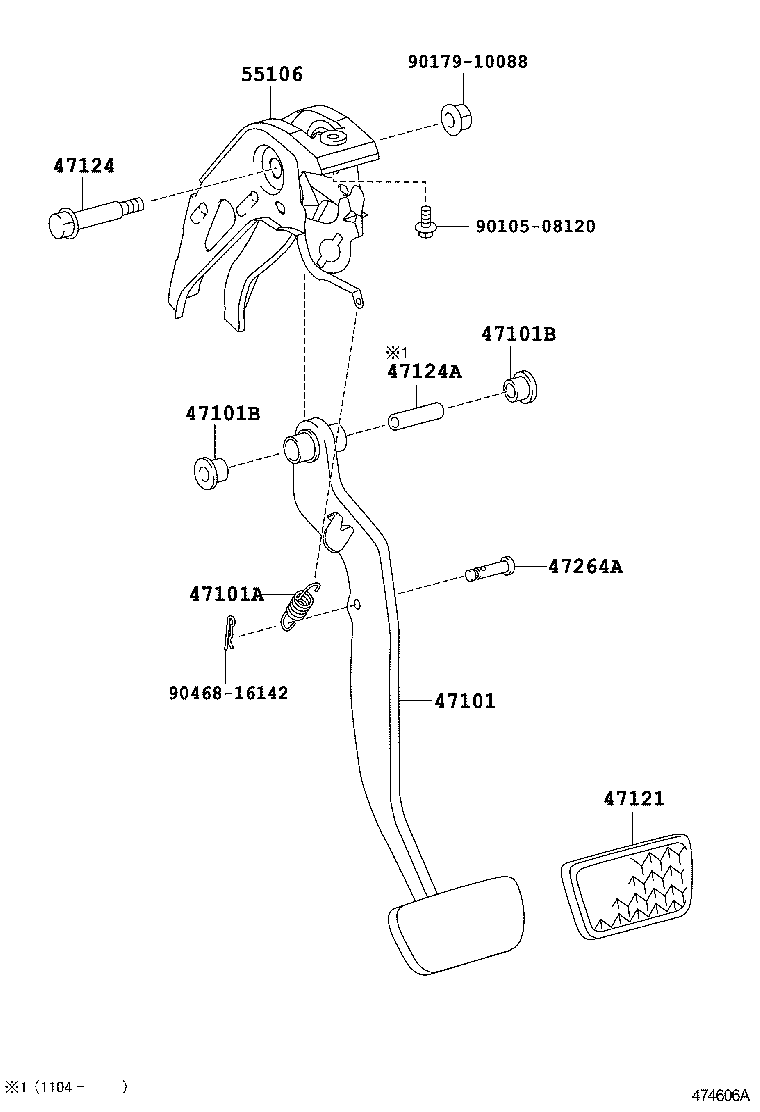

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47264A 55106 9010508120 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-52260

NCP91..4FC..CND

 1
47101-52280

NCP91..4FC..CND

ABS (ANTI-LOCK BRK SYSTM)-WITHOUT

 1
47101-52260

NCP91..4FC..CND

 1
47101-52280

NCP91..4FC..CND

ABS-WITHOUT

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14077

NCP91

 1
90506-14077

NCP91

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP91

 2
90386-13015

NCP91

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP91

 2
90386-13015

NCP91

 2
47121 - PAD, BRAKE PEDAL
47121-52010

NCP91..4FC

 1
47121-52010

NCP91..4FC

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

NCP91

 1
90109-10167

NCP91

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

NCP91

 1
90249-08051

NCP91

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-52170

NCP91..CND

ABS-WITHOUT

 1
55106-52160

NCP91..CND

 1
55106-52170

NCP91..CND

ABS (ANTI-LOCK BRK SYSTM)-WITHOUT

 1
55106-52160

NCP91..CND

 1
Common parts
90105-08120
90179-10088
90468-16142
