NCP91L-AGPVKK (2007)

Toyota Yaris

Production Aug 2007 - Aug 2008
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

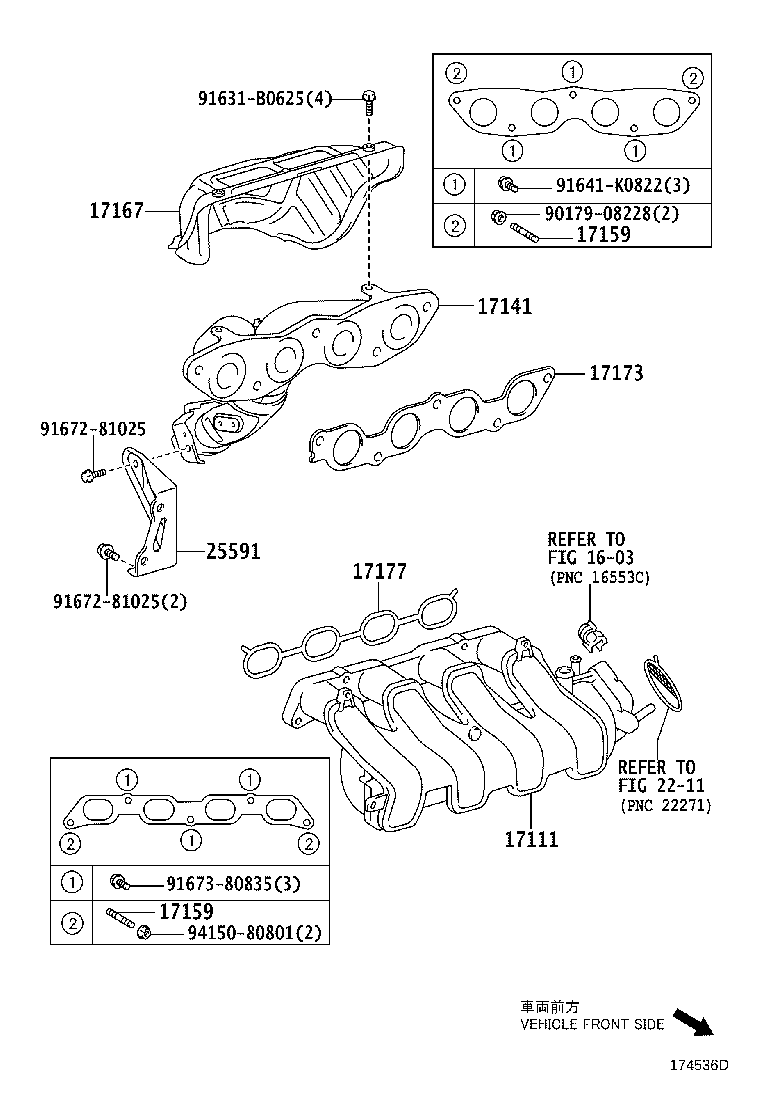

Click highlighted areas on diagram

diagram 1603 17111 17141 17159 17159 17167 17173 17177 2211 25591 9017908228 91631B0625 91641K0822 9167281025 9167281025 9167380835 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-21080

1NZFE..NCP91

 1
17101-21080

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
17141 - MANIFOLD, EXHAUST
17141-21130

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
17141-21130

1NZFE..NCP91

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1NZFE..NCP91

EXHAUST SIDE

 2
90126-08026

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

INTAKE SIDE

 2
90126-08037

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

EXHAUST SIDE

 2
90126-08026

1NZFE..NCP91

INTAKE SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1NZFE..NCP91

EXHAUST SIDE

 2
90126-08026

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

INTAKE SIDE

 2
90126-08037

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

EXHAUST SIDE

 2
90126-08026

1NZFE..NCP91

INTAKE SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21110

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
17167-21110

1NZFE..NCP91

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020

1NZFE..NCP91

 1
17173-21020

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
17177-21020

1NZFE..NCP91

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21060

1NZFE..NCP91

 1
25591-21060

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
Common parts
90179-08228
91631-B0625
91641-K0822
91672-81025
91673-80835
94150-80801
Linked diagrams
1603
2211
