Toyota Yaris NCP91 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
YARIS
NCP91L-AGPVKK (2008)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NCP91L-AGPVKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0508- )

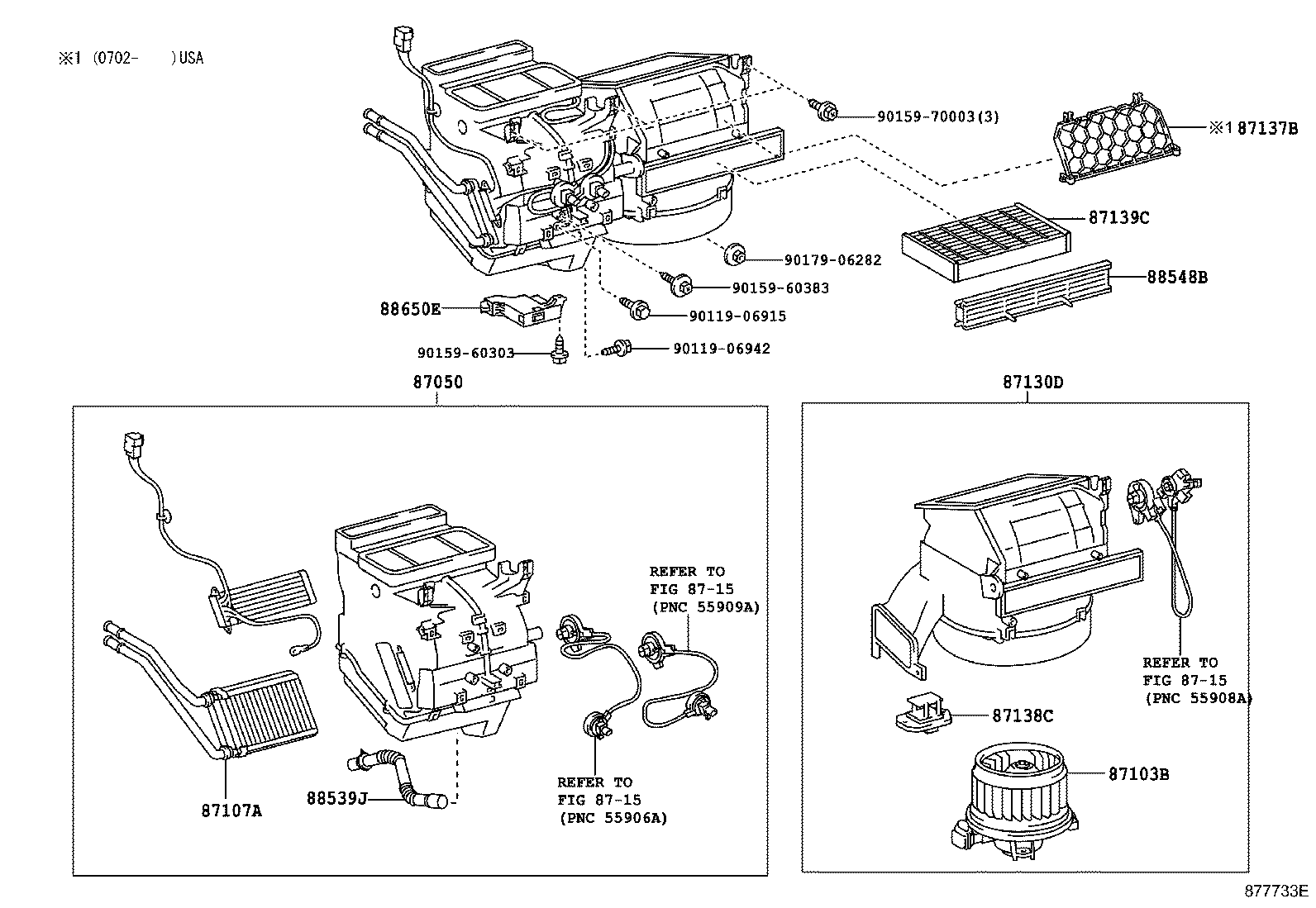

Click highlighted areas on diagram

W/O(A/C) & W(PTC HEATER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52082	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 07/2006	1
87050-52112	NCP91..CND	08/2005 - 07/2006	1
87050-52083	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
87050-52113	NCP91..CND	08/2008 - 02/2010	1
87050-52083	NCP91..CND	02/2010 - 08/2011	1
87050-52113	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 08/2011	1
87050-52113	NCP91..CND AIR CONDITIONER-DEALER KIT	02/2010 - 08/2011	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140	NCP91	08/2005 - 08/2007	1
87103-52141	NCP91	09/2010 - 07/2011	1
87103-52140	NCP91	08/2008 - 08/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060	NCP91	08/2005 - 08/2007	1
87107-52060	NCP91	08/2008 - 02/2009	1
87107-52061	NCP91	02/2009 - 08/2011	1
87130D - BLOWER ASSY
87130-52090	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 01/2007	1
87130-52130	NCP91..CND	08/2005 - 01/2007	1
87130-52092	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
87130-52132	NCP91..CND AIR CONDITIONER-DEALER KIT	02/2010 - 07/2011	1
87130-52132	NCP91..CND	08/2008 - 02/2010	1
87130-52092	NCP91..CND	02/2010 - 07/2011	1
87130-52132	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 07/2011	1
87138C - RESISTOR, BLOWER
87138-52030	NCP91	08/2008 - 07/2011	1
87138-52030	NCP91	08/2005 - 08/2007	1
87139C - FILTER, CLEAN AIR
87139-52020	NCP91..CND	08/2005 - 08/2007	1
87139-52020	NCP91..CND MICRO DUST FILTER	08/2008 - 07/2011	1
87139-50060	NCP91..CND DEODORANT FILTER	08/2008 - 07/2011	1
88539J - HOSE, DRAIN COOLER
88539-52020	NCP91	08/2005 - 08/2007	1
88539-52040	NCP91	01/2011 - 07/2011	1
88539-52020	NCP91..CND	08/2008 - 12/2010	1
88548B - CASE, AIR FILTER
88548-52040	NCP91	08/2005 - 08/2007	1
88548-52040	NCP91	08/2008 - 07/2011	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52361	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88650-52401	NCP91..CND	08/2005 - 08/2007	1
88650-52401	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88650-52640	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88650-52361	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88650-52640	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 07/2011	1
88650-52640	NCP91..CND	02/2010 - 07/2011	1
88650-52650	NCP91..CND	08/2008 - 02/2010	1
88650-52650	NCP91..CND AIR CONDITIONER-DEALER KIT,W/O(AIR CONDITIONER)	02/2010 - 07/2011	1
88650-52650	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 07/2011	1
Common parts
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(0508- )

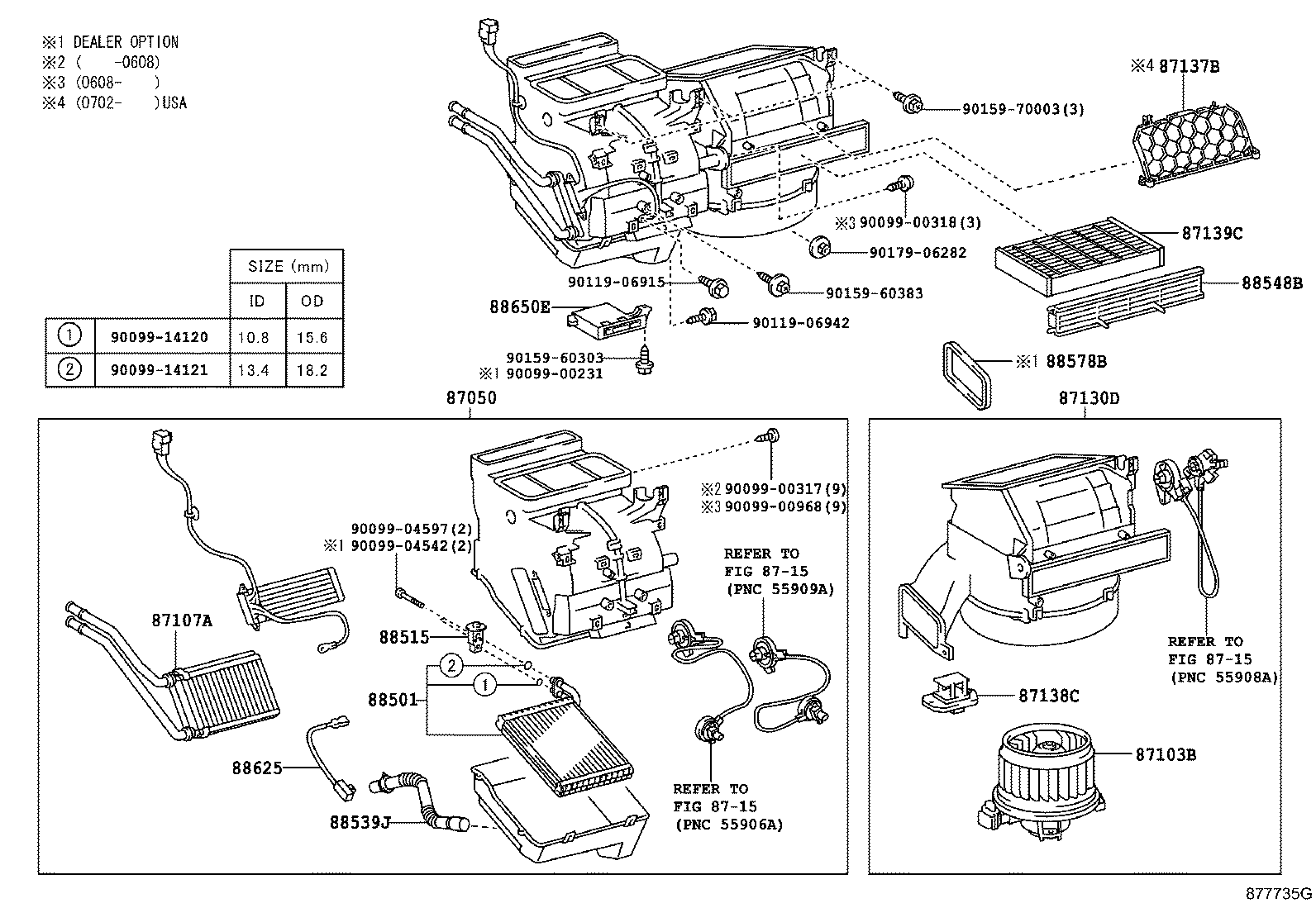

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52082	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 07/2006	1
87050-52112	NCP91..CND	08/2005 - 07/2006	1
87050-52083	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
87050-52113	NCP91..CND	08/2008 - 02/2010	1
87050-52083	NCP91..CND	02/2010 - 08/2011	1
87050-52113	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 08/2011	1
87050-52113	NCP91..CND AIR CONDITIONER-DEALER KIT	02/2010 - 08/2011	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140	NCP91	08/2005 - 08/2007	1
87103-52141	NCP91	09/2010 - 07/2011	1
87103-52140	NCP91	08/2008 - 08/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060	NCP91	08/2005 - 08/2007	1
87107-52060	NCP91	08/2008 - 02/2009	1
87107-52061	NCP91	02/2009 - 08/2011	1
87130D - BLOWER ASSY
87130-52090	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 01/2007	1
87130-52130	NCP91..CND	08/2005 - 01/2007	1
87130-52092	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
87130-52132	NCP91..CND AIR CONDITIONER-DEALER KIT	02/2010 - 07/2011	1
87130-52132	NCP91..CND	08/2008 - 02/2010	1
87130-52092	NCP91..CND	02/2010 - 07/2011	1
87130-52132	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 07/2011	1
87138C - RESISTOR, BLOWER
87138-52030	NCP91	08/2008 - 07/2011	1
87138-52030	NCP91	08/2005 - 08/2007	1
87139C - FILTER, CLEAN AIR
87139-52020	NCP91..CND	08/2005 - 08/2007	1
87139-52020	NCP91..CND MICRO DUST FILTER	08/2008 - 07/2011	1
87139-50060	NCP91..CND DEODORANT FILTER	08/2008 - 07/2011	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52100	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88501-52101	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
88501-52101	NCP91	02/2010 - 12/2010	1
88501-52101	NCP91..CND AIR CONDITIONER-DEALER KIT	12/2010 - 08/2011	1
88501-52102	NCP91..CND	01/2011 - 08/2011	1
88501-52101	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88501-52100	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88515 - VALVE, COOLER EXPANSION
88515-26070	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88515-26070	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88515-26070	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88515-26070	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
88515-68010	NCP91..CND	01/2011 - 08/2011	1
88515-26070	NCP91..CND AIR CONDITIONER-DEALER KIT	12/2010 - 08/2011	1
88515-26070	NCP91	02/2010 - 12/2010	1
88539J - HOSE, DRAIN COOLER
88539-52020	NCP91	08/2005 - 08/2007	1
88539-52040	NCP91	01/2011 - 07/2011	1
88539-52020	NCP91..CND	08/2008 - 12/2010	1
88548B - CASE, AIR FILTER
88548-52040	NCP91	08/2005 - 08/2007	1
88548-52040	NCP91	08/2008 - 07/2011	1
88578B - PACKING, COOLING UNIT, NO.1
88578-52100	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 12/2999	1
88578-52100	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88625-26090	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
88625-26090	NCP91	02/2010 - 07/2011	1
88625-26090	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88625-26090	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52361	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88650-52401	NCP91..CND	08/2005 - 08/2007	1
88650-52401	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88650-52640	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88650-52361	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88650-52640	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 07/2011	1
88650-52640	NCP91..CND	02/2010 - 07/2011	1
88650-52650	NCP91..CND	08/2008 - 02/2010	1
88650-52650	NCP91..CND AIR CONDITIONER-DEALER KIT,W/O(AIR CONDITIONER)	02/2010 - 07/2011	1
88650-52650	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 07/2011	1
Common parts
90099-00231
90099-00317
90099-00318
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

(0508- )

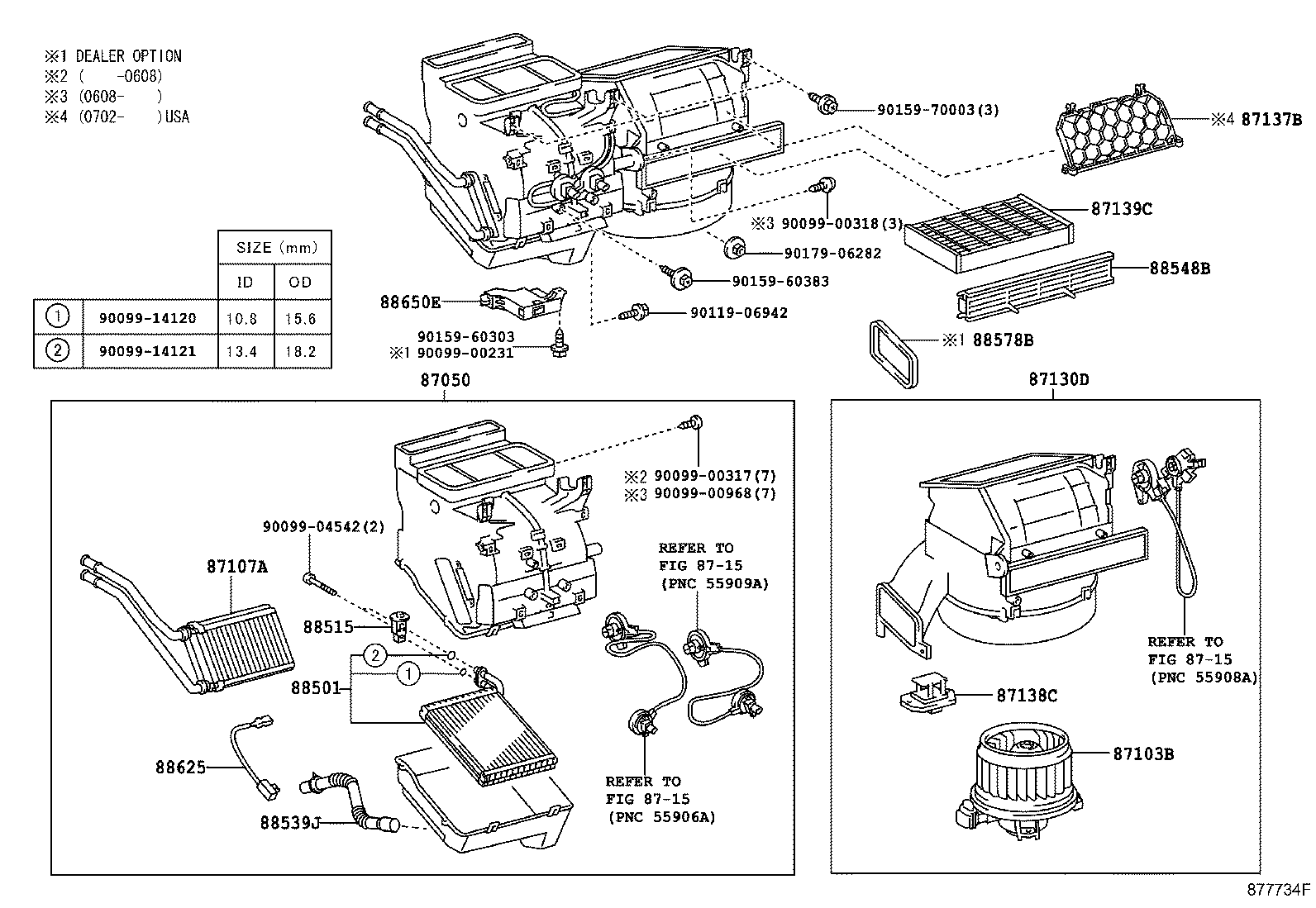

Click highlighted areas on diagram

MANUAL A/C & W(PTC HEATER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52082	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 07/2006	1
87050-52112	NCP91..CND	08/2005 - 07/2006	1
87050-52083	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
87050-52113	NCP91..CND	08/2008 - 02/2010	1
87050-52083	NCP91..CND	02/2010 - 08/2011	1
87050-52113	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 08/2011	1
87050-52113	NCP91..CND AIR CONDITIONER-DEALER KIT	02/2010 - 08/2011	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140	NCP91	08/2005 - 08/2007	1
87103-52141	NCP91	09/2010 - 07/2011	1
87103-52140	NCP91	08/2008 - 08/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060	NCP91	08/2005 - 08/2007	1
87107-52060	NCP91	08/2008 - 02/2009	1
87107-52061	NCP91	02/2009 - 08/2011	1
87130D - BLOWER ASSY
87130-52090	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 01/2007	1
87130-52130	NCP91..CND	08/2005 - 01/2007	1
87130-52092	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
87130-52132	NCP91..CND AIR CONDITIONER-DEALER KIT	02/2010 - 07/2011	1
87130-52132	NCP91..CND	08/2008 - 02/2010	1
87130-52092	NCP91..CND	02/2010 - 07/2011	1
87130-52132	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 07/2011	1
87138C - RESISTOR, BLOWER
87138-52030	NCP91	08/2008 - 07/2011	1
87138-52030	NCP91	08/2005 - 08/2007	1
87139C - FILTER, CLEAN AIR
87139-52020	NCP91..CND	08/2005 - 08/2007	1
87139-52020	NCP91..CND MICRO DUST FILTER	08/2008 - 07/2011	1
87139-50060	NCP91..CND DEODORANT FILTER	08/2008 - 07/2011	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52100	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88501-52101	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
88501-52101	NCP91	02/2010 - 12/2010	1
88501-52101	NCP91..CND AIR CONDITIONER-DEALER KIT	12/2010 - 08/2011	1
88501-52102	NCP91..CND	01/2011 - 08/2011	1
88501-52101	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88501-52100	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88515 - VALVE, COOLER EXPANSION
88515-26070	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88515-26070	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88515-26070	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88515-26070	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
88515-68010	NCP91..CND	01/2011 - 08/2011	1
88515-26070	NCP91..CND AIR CONDITIONER-DEALER KIT	12/2010 - 08/2011	1
88515-26070	NCP91	02/2010 - 12/2010	1
88539J - HOSE, DRAIN COOLER
88539-52020	NCP91	08/2005 - 08/2007	1
88539-52040	NCP91	01/2011 - 07/2011	1
88539-52020	NCP91..CND	08/2008 - 12/2010	1
88548B - CASE, AIR FILTER
88548-52040	NCP91	08/2005 - 08/2007	1
88548-52040	NCP91	08/2008 - 07/2011	1
88578B - PACKING, COOLING UNIT, NO.1
88578-52100	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 12/2999	1
88578-52100	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88625-26090	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
88625-26090	NCP91	02/2010 - 07/2011	1
88625-26090	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88625-26090	NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52361	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88650-52401	NCP91..CND	08/2005 - 08/2007	1
88650-52401	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
88650-52640	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
88650-52361	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
88650-52640	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 07/2011	1
88650-52640	NCP91..CND	02/2010 - 07/2011	1
88650-52650	NCP91..CND	08/2008 - 02/2010	1
88650-52650	NCP91..CND AIR CONDITIONER-DEALER KIT,W/O(AIR CONDITIONER)	02/2010 - 07/2011	1
88650-52650	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	02/2010 - 07/2011	1
Common parts
90099-00231
90099-00317
90099-00318
90099-00968
90099-04542
90099-04597
90099-14120
90099-14121
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

NCP91L-AGPVKK (2008)

(0508- )

(0508- )

(0508- )

Part Price Details
