NCP91L-AGPVKK (2008)
Toyota Yaris
Production
Aug 2008
-
Aug 2011
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )

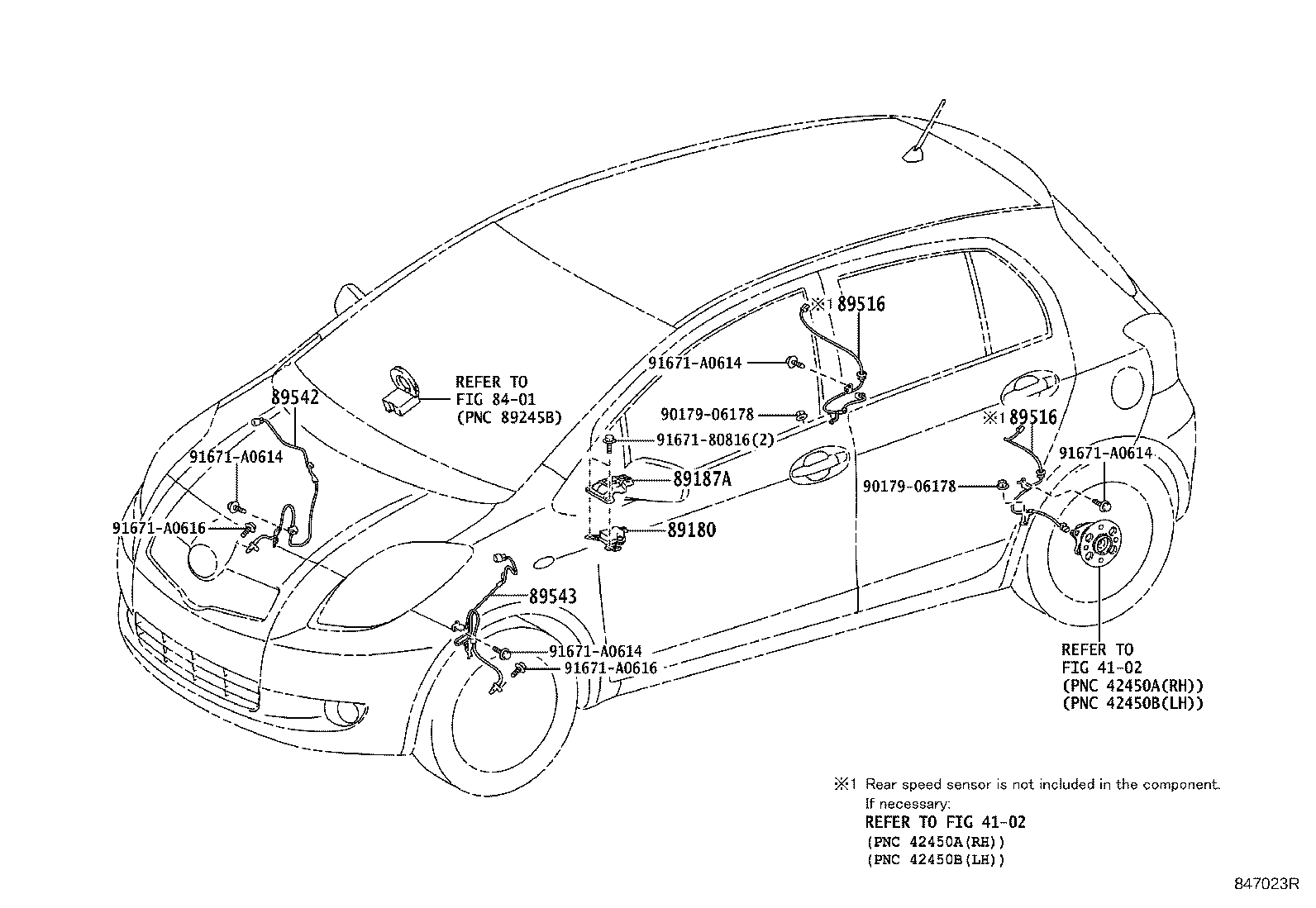

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-52050 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 89187A - PROTECTOR, YAWRATE SENSOR | ||||
| 89187-52010 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-52090 |
NCP91..CND RH |
1 | ||
| 89516-52100 |
NCP91 LH |
1 | ||
| 89516-52110 |
NCP91 RH |
1 | ||
| 89516-52120 |
NCP91 LH |
1 | ||
| 89516-52090 |
NCP91 RH |
1 | ||
| 89516-52100 |
NCP91..CND LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-52090 |
NCP91..CND RH |
1 | ||
| 89516-52100 |
NCP91 LH |
1 | ||
| 89516-52110 |
NCP91 RH |
1 | ||
| 89516-52120 |
NCP91 LH |
1 | ||
| 89516-52090 |
NCP91 RH |
1 | ||
| 89516-52100 |
NCP91..CND LH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-52030 |
NCP91..CND |
1 | ||
| 89542-52030 |
NCP91 |
1 | ||
| 89542-52090 |
NCP91 |
1 | ||
| 89542-52060 |
NCP91 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-52030 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 89543-52030 |
NCP91..CND |
1 | ||
| 89543-52030 |
NCP91 |
1 | ||
| 89543-52060 |
NCP91 |
1 | ||
| 89543-52090 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 89543-52060 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 89543-52090 |
NCP91 |
1 | ||
| 89543-52030 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91671-80816 | ||||
| 91671-A0614 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
