Toyota Yaris NCP91 WIRING & CLAMP

NCP91L-AGPVKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0508- )

Click highlighted areas on diagram

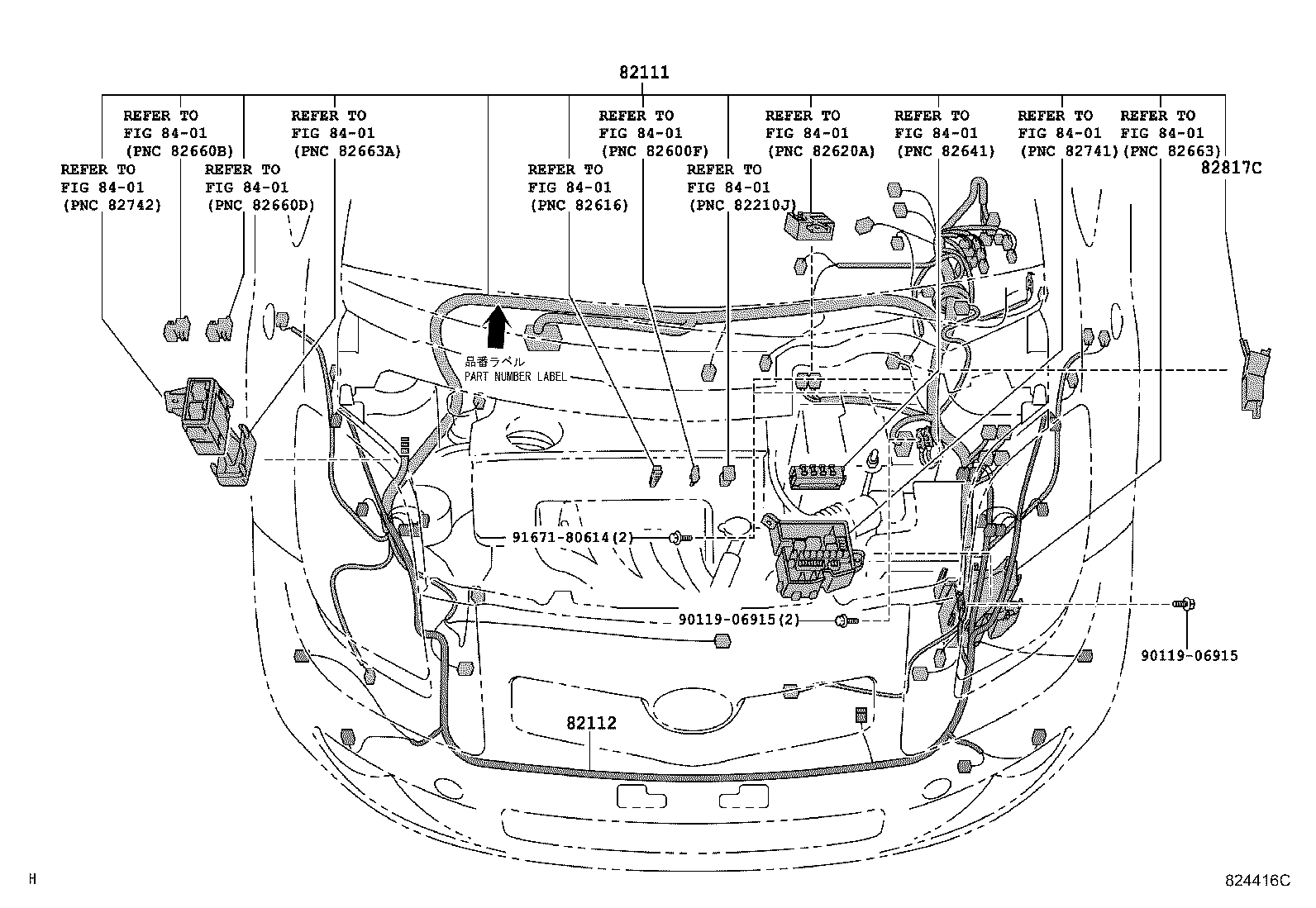

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-52D60	NCP91..CND	08/2005 - 03/2006	1
82111-52E50	NCP91..CND ABS-WITHOUT	08/2005 - 03/2006	1
82111-52X60	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH	08/2009 - 12/2010	1
82111-52T22	NCP91..CND	12/2010 - 08/2011	1
82111-52T20	NCP91..CND	08/2008 - 12/2010	1
82111-52D60	NCP91..CND	08/2005 - 03/2006	1
82111-52T30	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT	08/2008 - 08/2011	1
82111-52E50	NCP91..CND ABS-WITHOUT	08/2005 - 03/2006	1
82111-52X61	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH	12/2010 - 08/2011	1
82111-52T20	NCP91..CND	08/2008 - 12/2010	1
82111-52T30	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT	08/2008 - 08/2011	1
82111-52X60	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH	08/2009 - 12/2010	1
82111-52T22	NCP91..CND	12/2010 - 08/2011	1
82111-52X61	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH	12/2010 - 08/2011	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-52090	NCP91 FRONT FOG LAMP-WITH	08/2005 - 08/2007	1
82112-52420	NCP91	08/2008 - 07/2011	1
82112-52430	NCP91 FRONT FOG & DRIVING LAMP-WITH	08/2008 - 07/2011	1
82112-52080	NCP91	08/2005 - 08/2007	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-52511	NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT	08/2008 - 03/2009	1
82817-52511	NCP91	08/2005 - 08/2007	1
82817-52580	NCP91..CND	04/2009 - 08/2011	1
Common parts
90119-06915
91671-80614
Linked diagrams
8401

ILLUST NO. 3 OF 7(0508- )

Click highlighted areas on diagram

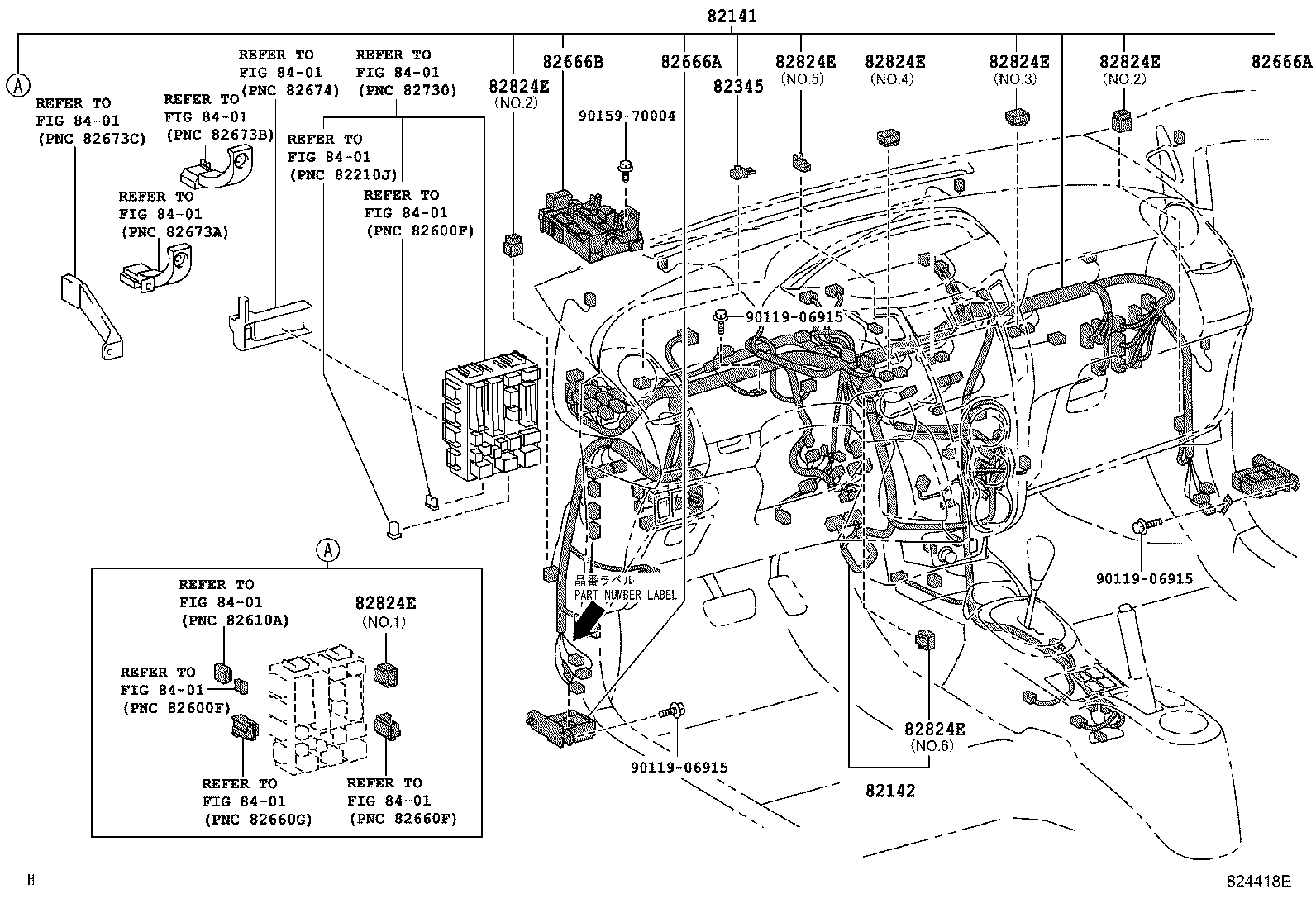

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-52W90	NCP91..3D..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	08/2005 - 08/2007	1
82141-52W80	NCP91..3D..CND	08/2005 - 08/2007	1
82141-52X00	NCP91..3D..CND POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW	08/2005 - 08/2007	1
82141-52X50	NCP91..3D..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW	08/2005 - 08/2007	1
82141-5CV80	NCP91..3D..RS POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)	08/2008 - 02/2010	1
82141-5DE60	NCP91..3D..RS VSC-WITH	08/2009 - 02/2010	1
82141-5CV60	NCP91..3D..RS	08/2008 - 02/2010	1
82141-5CV80	NCP91..3D..RS	02/2010 - 08/2011	1
82141-52W90	NCP91..3D..CND PART NUMBER LABEL=82141-52W90 OR 82141-52K30	08/2005 - 08/2007	1
82141-5DE70	NCP91..3D..RS VSC-WITH	02/2010 - 08/2011	1
82141-52W80	NCP91..3D..CND PART NUMBER LABEL=82141-52W80 OR 82141-52K20	08/2005 - 08/2007	1
82141-52X00	NCP91..3D..CND PART NUMBER LABEL=82141-52X00 OR 82141-52K50	08/2005 - 08/2007	1
82141-5DE70	NCP91..3D..RS VSC-WITH&POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)	08/2009 - 02/2010	1
82141-52X50	NCP91..3D..CND PART NUMBER LABEL=82141-52X50 OR 82141-52K70	08/2005 - 08/2007	1
82141-5CV60	NCP91..3D..RS PART NUMBER LABEL=82141-5CV60 OR 82141-5CS00	08/2008 - 02/2010	1
82141-5DE70	NCP91..3D..RS PART NUMBER LABEL=82141-5DE70 OR 82141-5DE30	08/2009 - 02/2010	1
82141-5DE60	NCP91..3D..RS PART NUMBER LABEL=82141-5DE60 OR 82141-5DD90	08/2009 - 02/2010	1
82141-5CV80	NCP91..3D..RS PART NUMBER LABEL=82141-5CV80 OR 82141-5CS20	08/2008 - 02/2010	1
82141-5DE70	NCP91..3D..RS PART NUMBER LABEL=82141-5DE70 OR 82141-5DE30	02/2010 - 08/2011	1
82141-5CV80	NCP91..3D..RS PART NUMBER LABEL=82141-5CV80 OR 82141-5CS20	02/2010 - 08/2011	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-52140	NCP91..CND	08/2005 - 08/2007	1
82142-52160	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2005 - 08/2007	1
82142-52160	NCP91..CND AIR CONDITIONER-L/ UNIT (W/H ONLY)	08/2005 - 08/2007	1
82142-52160	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2005 - 08/2007	1
82142-52140	NCP91..CND	08/2008 - 02/2010	1
82142-52160	NCP91..CND AIR CONDITIONER-DEALER KIT	08/2008 - 02/2010	1
82142-52160	NCP91..CND AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)	08/2008 - 02/2010	1
82142-52160	NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))	08/2008 - 02/2010	1
82142-52160	NCP91..CND	02/2010 - 07/2011	1
82345 - DIODE
82345-32010	NCP91	08/2008 - 08/2011	1
82345-32010	NCP91	08/2005 - 08/2007	1
82666A - HOLDER, CONNECTOR NO.2
82666-52080	NCP91	08/2005 - 08/2007	2
82666-52080	NCP91	08/2008 - 08/2011	2
82666A - HOLDER, CONNECTOR NO.2
82666-52080	NCP91	08/2005 - 08/2007	2
82666-52080	NCP91	08/2008 - 08/2011	2
82666B - HOLDER, CONNECTOR NO.3
82666-52090	NCP91	08/2005 - 08/2007	1
82666-52090	NCP91	08/2008 - 08/2011	1
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
82824E - CONNECTOR, WIRING HARNESS
82824-22070	NCP91 NO.1	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2005 - 08/2007	1
82824-52290	NCP91 NO.4	08/2008 - 08/2011	2
82824-52280	NCP91 NO.3	08/2008 - 08/2011	1
82824-22070	NCP91 NO.1	08/2008 - 08/2011	1
82824-52290	NCP91 NO.4	08/2005 - 08/2007	2
82824-52280	NCP91 NO.6,NO.3	08/2005 - 08/2007	1
82824-21030	NCP91 NO.5	08/2008 - 08/2011	1
82824-52080	NCP91 NO.6	08/2008 - 08/2011	1
82824-47210	NCP91 NO.2	08/2005 - 08/2007	2
82824-47210	NCP91 NO.2	08/2008 - 08/2011	2
Common parts
90119-06915
90159-70004
Linked diagrams
8401

ILLUST NO. 4 OF 7(0508- )

Click highlighted areas on diagram

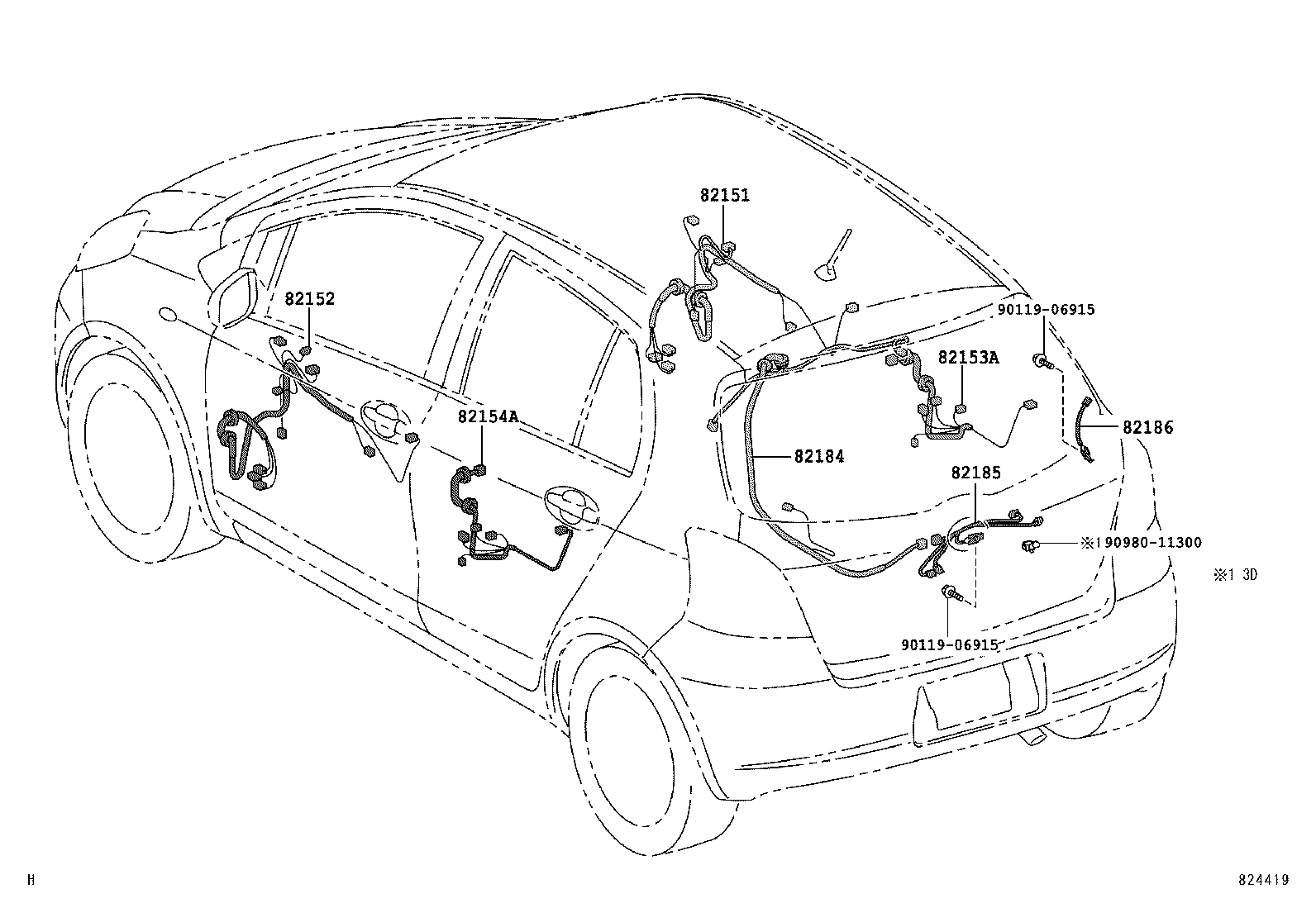

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-52A30	NCP91..3D	08/2005 - 08/2007	1
82151-52A80	NCP91..3D POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW&POWER WINDOW-WITH(FRONT ONLY)	08/2005 - 08/2007	1
82151-52A30	NCP91..3D..RS	08/2008 - 02/2010	1
82151-52A50	NCP91..3D..RS POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)	08/2008 - 02/2010	1
82151-52A50	NCP91..3D POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW	08/2005 - 08/2007	1
82151-52A80	NCP91..3D..RS	02/2010 - 08/2011	1
82151-52A80	NCP91..3D..RS POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)&POWER WINDOW-WITH(FRONT ONLY)	08/2008 - 02/2010	1
82152 - WIRE, FRONT DOOR, LH
82152-52640	NCP91..3D	08/2005 - 08/2007	1
82152-52720	NCP91..3D POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW&POWER WINDOW-WITH(FRONT ONLY)	08/2005 - 08/2007	1
82152-52660	NCP91..3D..RS POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)	08/2008 - 02/2010	1
82152-52640	NCP91..3D..RS	08/2008 - 02/2010	1
82152-52660	NCP91..3D POWER DOOR LOCK-WITH D+P TWO-TURN W/P-SW	08/2005 - 08/2007	1
82152-52G80	NCP91..3D..RS POWER DOOR LOCK-W(DRIVER+PASSENGER:TWO-TURN & P-SWITCH)&POWER WINDOW-WITH(FRONT ONLY)	08/2008 - 02/2010	1
82152-52G80	NCP91..3D..RS	02/2010 - 08/2011	1
82184 - WIRE, BACK DOOR, NO.1
82184-52340	NCP91..CND	08/2005 - 08/2007	1
82184-52340	NCP91..CND	08/2008 - 08/2011	1
82185 - WIRE, BACK DOOR, NO.2
82185-52290	NCP91	08/2005 - 08/2007	1
82185-52510	NCP91	08/2008 - 08/2011	1
82186 - WIRE, REAR WINDOW, NO.1
82186-52090	NCP91..CND	08/2005 - 08/2007	1
82186-52090	NCP91..CND	08/2008 - 07/2011	1
Common parts
90119-06915
90980-11300

ILLUST NO. 5 OF 7(0508- )

Click highlighted areas on diagram

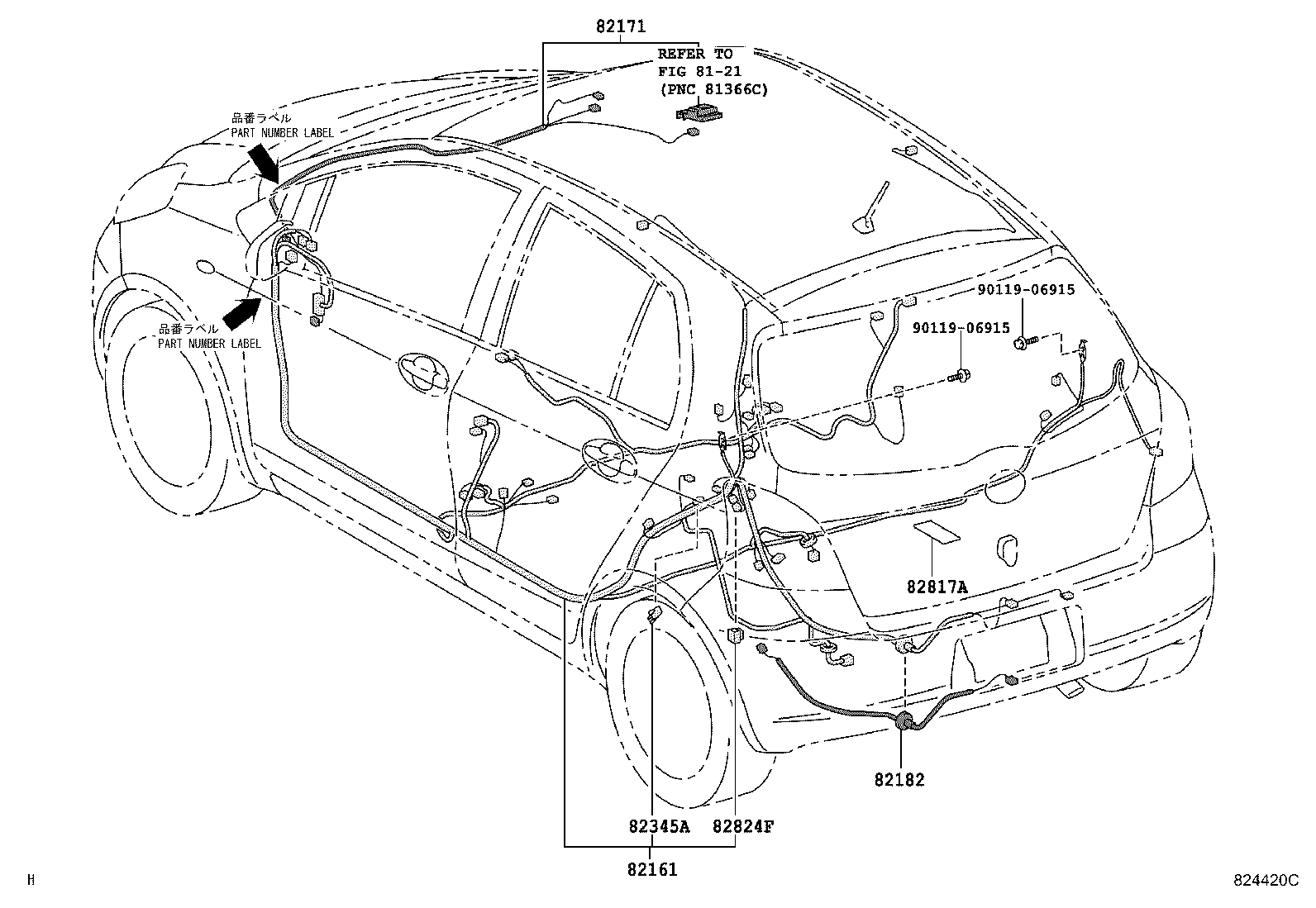

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-52E90	NCP91..3D SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN	08/2005 - 08/2007	1
82161-52V60	NCP91..3D..CND	08/2008 - 01/2010	1
82161-52E20	NCP91..3D	08/2005 - 08/2007	1
82161-52E90	NCP91..3D PART NUMBER LABEL=82161-52E90	08/2005 - 08/2007	1
82161-52E20	NCP91..3D PART NUMBER LABEL=82161-52E20	08/2005 - 08/2007	1
82161-52V70	NCP91..3D..CND SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN	08/2008 - 01/2010	1
82161-52V70	NCP91..3D..CND	01/2010 - 08/2011	1
82161-52V70	NCP91..3D..CND PART NUMBER LABEL=82161-52V70	08/2008 - 01/2010	1
82161-52V60	NCP91..3D..CND PART NUMBER LABEL=82161-52V60	08/2008 - 01/2010	1
82161-52V70	NCP91..3D..CND PART NUMBER LABEL=82161-52V70	01/2010 - 08/2011	1
82171 - WIRE, ROOF, NO.1
82171-52280	NCP91 PART NUMBER LABEL=82171-52280	08/2005 - 08/2007	1
82171-52280	NCP91	08/2005 - 08/2007	1
82171-52280	NCP91	08/2008 - 07/2011	1
82171-52280	NCP91 PART NUMBER LABEL=82171-52280	08/2008 - 07/2011	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-52050	NCP91	08/2008 - 07/2011	1
82182-52050	NCP91	08/2005 - 08/2007	1
82345A - DIODE
82345-32010	NCP91	08/2005 - 08/2007	1
82345-32010	NCP91	08/2008 - 08/2011	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52710	NCP91	08/2008 - 08/2011	3
82817-16100	NCP91	08/2005 - 10/2005	3
82824F - CONNECTOR, WIRING HARNESS
82824-44030	NCP91	08/2008 - 08/2011	1
82824-44030	NCP91	08/2005 - 08/2007	1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 6 OF 7(0508- )

Click highlighted areas on diagram

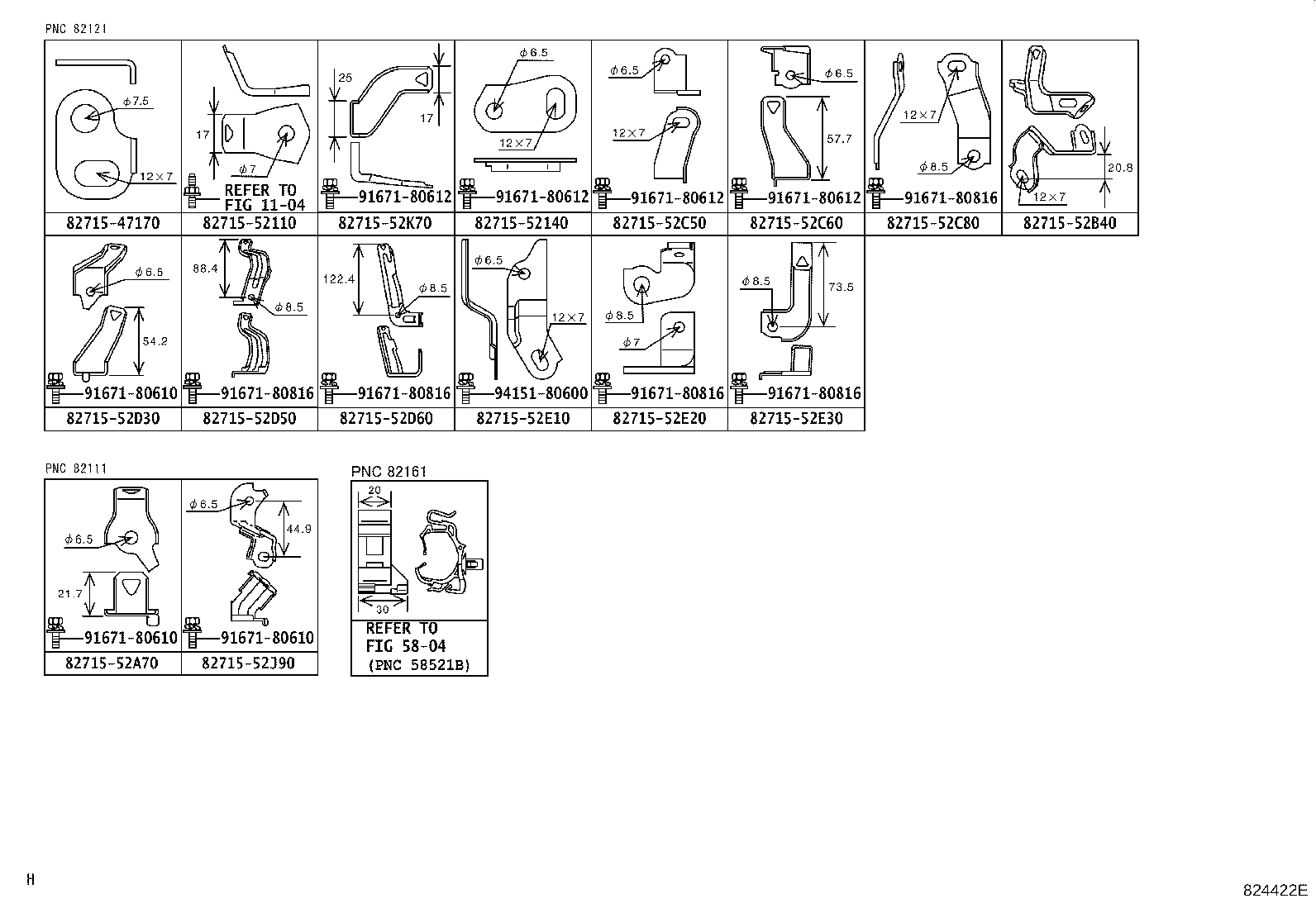

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-47170
82715-52110
82715-52140
82715-52A70
82715-52B40
82715-52C50
82715-52C60
82715-52C80
82715-52D30
82715-52D50
82715-52D60
82715-52E10
82715-52E20
82715-52E30
82715-52J90
82715-52K70
91671-80610
91671-80612
91671-80816
94151-80600
Linked diagrams
1104
5804

ILLUST NO. 2 OF 7(0508- )

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-52B20	NCP91..4FC	08/2005 - 08/2007	1
82121-52B20	NCP91..4FC	08/2008 - 08/2011	1
82123 - WIRE, ENGINE, NO.3
82123-52270	NCP91..4FC	08/2005 - 08/2007	1
82123-52270	NCP91..4FC	08/2008 - 08/2011	1
82219A - WIRE, SENSOR
82219-52040	NCP91..CND;NCP91..3D..USA	08/2005 - 08/2007	1
82219-52040	NCP91	08/2008 - 07/2011	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-52620	NCP91	08/2005 - 08/2007	1
82817-52620	NCP91	08/2008 - 07/2011	1
82823S - CAP, STARTER TERMINAL
82823-20080	NCP91	08/2008 - 08/2011	1
82823-20080	NCP91	08/2005 - 08/2007	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NCP91	08/2005 - 08/2007	1
82823-22050	NCP91	08/2008 - 08/2011	1
Common parts
90119-06915
91552-81020
91671-80614
91673-80614
94151-80801

ILLUST NO. 7 OF 7(0508- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-52050
82824-52130
82824-60460
90080-98298
90980-10619
90980-10860
90980-10942
90980-10957
90980-11148
90980-11156
90980-11162
90980-11314
90980-11967

NCP91L-AGPVKK (2008)

ILLUST NO. 1 OF 7(0508- )

ILLUST NO. 3 OF 7(0508- )

ILLUST NO. 4 OF 7(0508- )

ILLUST NO. 5 OF 7(0508- )

ILLUST NO. 6 OF 7(0508- )

ILLUST NO. 2 OF 7(0508- )

ILLUST NO. 7 OF 7(0508- )

Part Price Details
