NCP91L-AGPVKK (2008)
Toyota Yaris

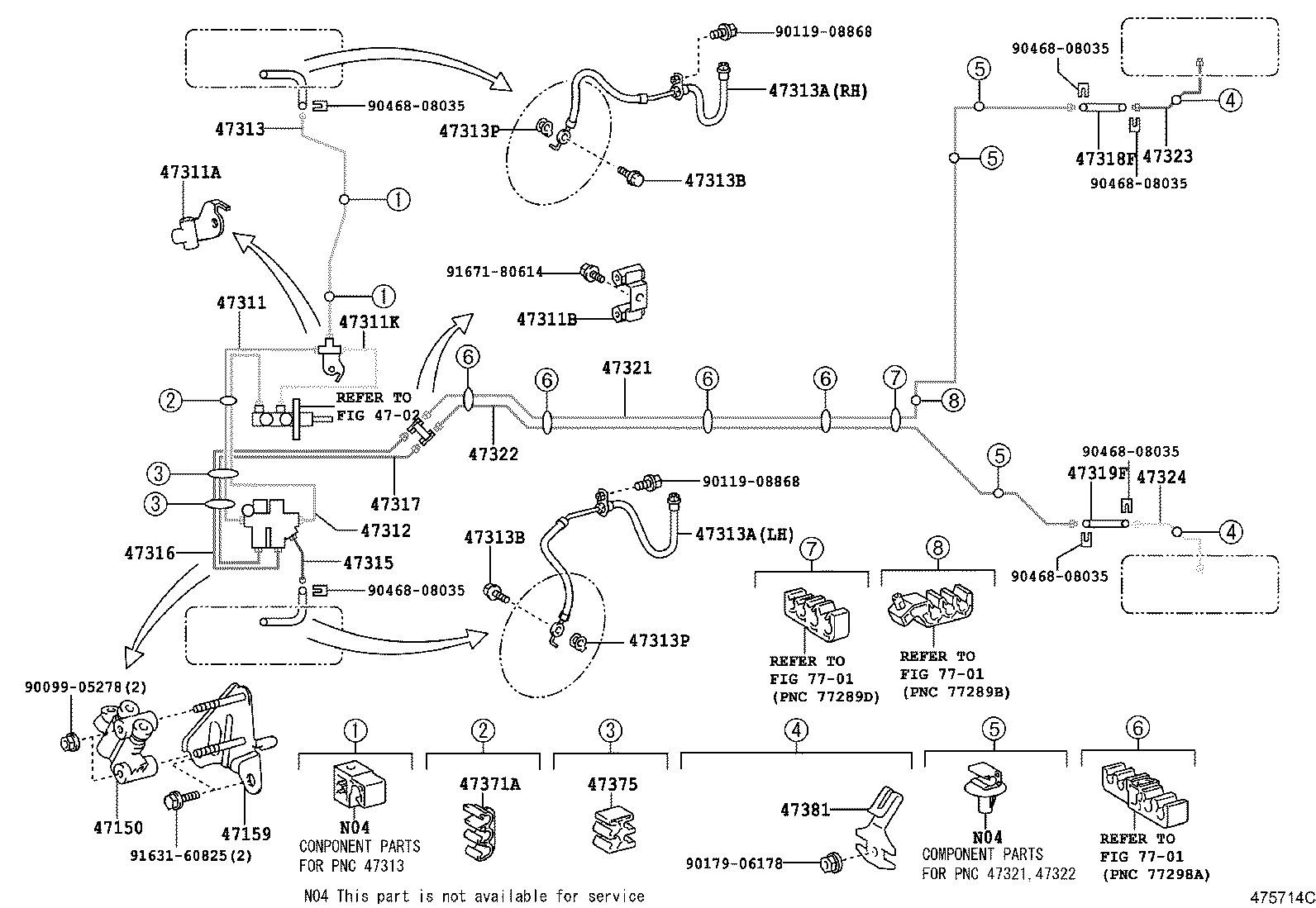

ILLUST NO. 1 OF 2(0508- )
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-10090 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47150-10090 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-52010 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47159-52010 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52240 |
NCP91..CND |
1 | ||
| 47311-52260 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47311-52390 |
NCP91..CND |
1 | ||
| 47311-52260 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47311-52440 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10314 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 90413-10314 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP91 |
1 | ||
| 90412-10260 |
NCP91 |
1 | ||
| 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY | ||||
| 47311-52270 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47311-52270 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52220 |
NCP91..CND |
1 | ||
| 47312-52240 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47312-52240 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47312-52350 |
NCP91..CND |
1 | ||
| 47312-52390 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52130 |
NCP91..CND |
1 | ||
| 47313-52150 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47313-52190 |
NCP91 |
1 | ||
| 47313-52150 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP91 |
2 | ||
| 90401-10058 |
NCP91 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP91 |
2 | ||
| 90401-10058 |
NCP91 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP91 |
2 | ||
| 47389-50020 |
NCP91 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP91 |
2 | ||
| 47389-50020 |
NCP91 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52180 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47315-52180 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47315-52210 |
NCP91 |
1 | ||
| 47315-52160 |
NCP91..CND |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52140 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47316-52180 |
NCP91 |
1 | ||
| 47316-52120 |
NCP91..CND |
1 | ||
| 47316-52140 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52140 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47317-52120 |
NCP91..CND |
1 | ||
| 47317-52260 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47317-52140 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47317-52180 |
NCP91..CND |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
NCP91 |
1 | ||
| 90947-02E09 |
NCP91 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
NCP91 |
1 | ||
| 90947-02E10 |
NCP91 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52270 |
NCP91 |
1 | ||
| 47321-52270 |
NCP91 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52250 |
NCP91 |
1 | ||
| 47322-52250 |
NCP91 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52100 |
NCP91 |
1 | ||
| 47323-52100 |
NCP91 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52090 |
NCP91 |
1 | ||
| 47324-52090 |
NCP91 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 90464-00868 |
NCP91 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00883 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
2 | ||
| 90464-00883 |
NCP91..CND ABS-WITHOUT |
2 | ||
| 90464-00883 |
NCP91..CND |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
NCP91 |
2 | ||
| 47381-52020 |
NCP91 |
2 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91631-60825 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

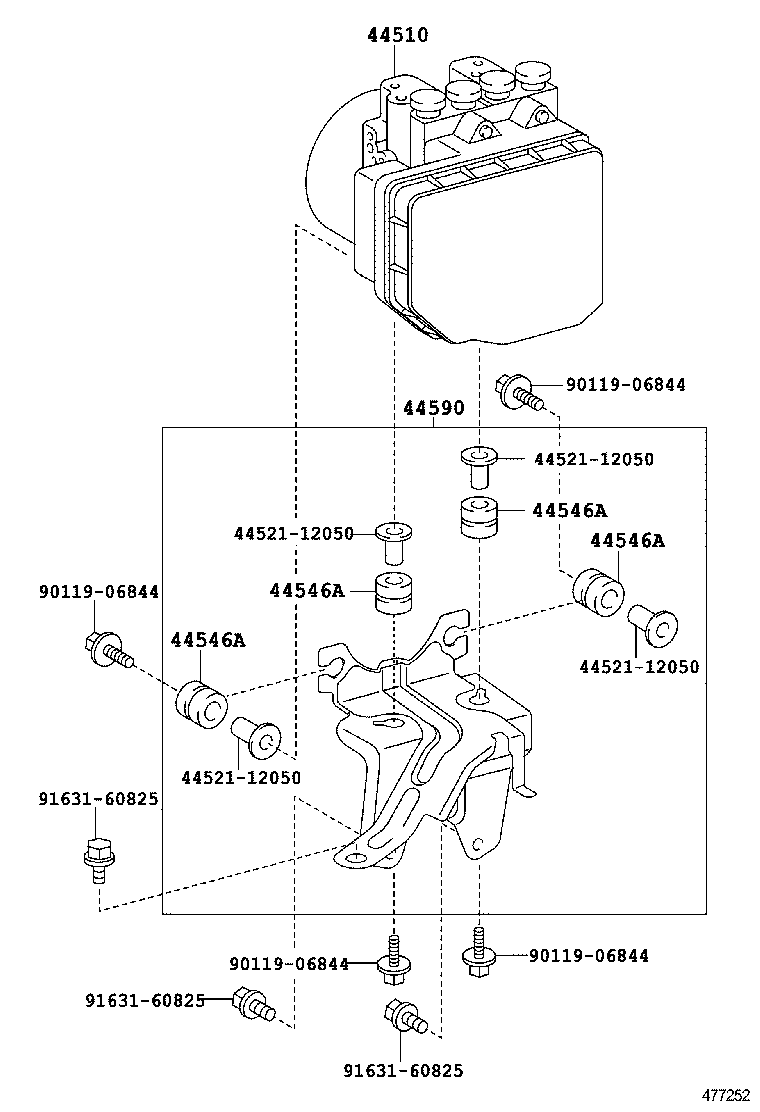

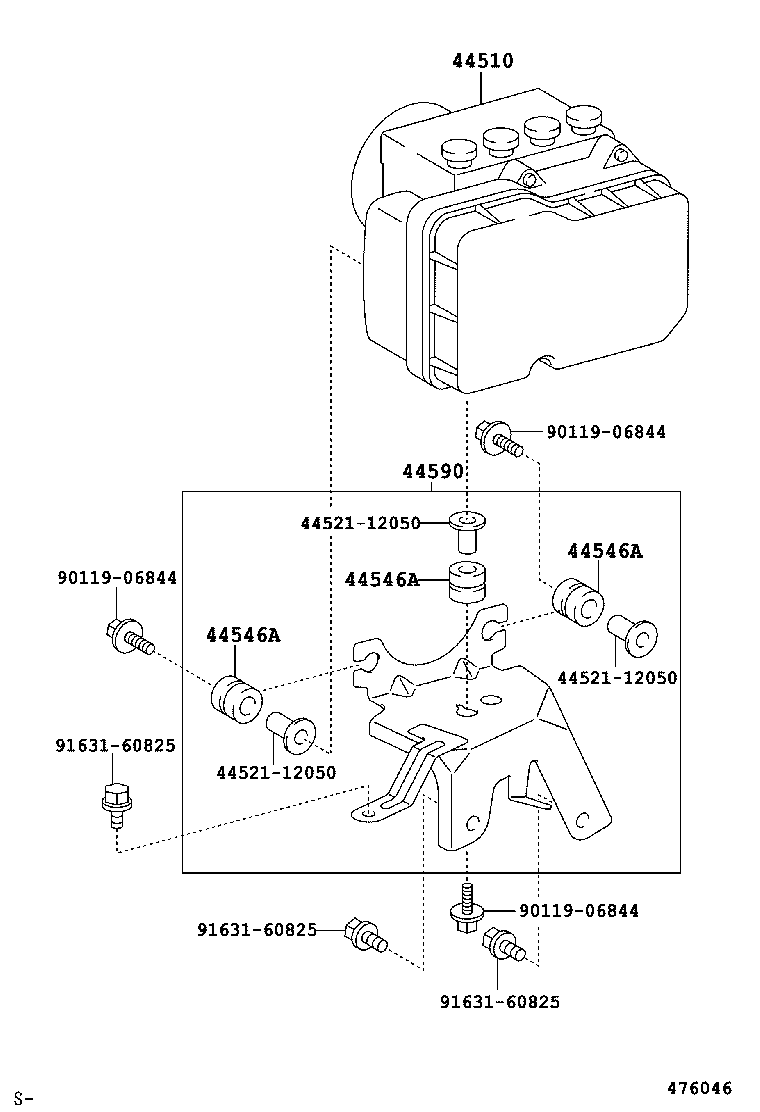

ILLUST NO. 2 OF 2(0808- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52580 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 44050-52A30 |
NCP91..CND |
1 | ||
| 44050-52580 |
NCP91..CND |
1 | ||
| 44050-52A30 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 44050-52C50 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52130 |
NCP91..CND |
1 | ||
| 44590-52170 |
NCP91..CND |
1 | ||
| 44590-52210 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||
ILLUST NO. 1 OF 2(0808- )
W(ABS) OR W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52240 |
NCP91..CND |
1 | ||
| 47311-52260 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47311-52390 |
NCP91..CND |
1 | ||
| 47311-52260 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47311-52440 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP91 |
1 | ||
| 90412-10260 |
NCP91 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52220 |
NCP91..CND |
1 | ||
| 47312-52240 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47312-52240 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47312-52350 |
NCP91..CND |
1 | ||
| 47312-52390 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52130 |
NCP91..CND |
1 | ||
| 47313-52150 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47313-52190 |
NCP91 |
1 | ||
| 47313-52150 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E07 |
NCP91 RH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 90947-02E08 |
NCP91 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP91 |
2 | ||
| 90401-10058 |
NCP91 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP91 |
2 | ||
| 90401-10058 |
NCP91 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP91 |
2 | ||
| 47389-50020 |
NCP91 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP91 |
2 | ||
| 47389-50020 |
NCP91 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52180 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47315-52180 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47315-52210 |
NCP91 |
1 | ||
| 47315-52160 |
NCP91..CND |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52140 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47316-52180 |
NCP91 |
1 | ||
| 47316-52120 |
NCP91..CND |
1 | ||
| 47316-52140 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52140 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 47317-52120 |
NCP91..CND |
1 | ||
| 47317-52260 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 47317-52140 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 47317-52180 |
NCP91..CND |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
NCP91 |
1 | ||
| 90947-02E09 |
NCP91 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
NCP91 |
1 | ||
| 90947-02E10 |
NCP91 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52270 |
NCP91 |
1 | ||
| 47321-52270 |
NCP91 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52250 |
NCP91 |
1 | ||
| 47322-52250 |
NCP91 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52100 |
NCP91 |
1 | ||
| 47323-52100 |
NCP91 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52090 |
NCP91 |
1 | ||
| 47324-52090 |
NCP91 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 90464-00868 |
NCP91 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP91..CND |
1 | ||
| 90464-00925 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 90949-01969 |
NCP91..CND |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C82 |
NCP91..CND |
2 | ||
| 90949-01C82 |
NCP91 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
NCP91 |
2 | ||
| 47381-52020 |
NCP91 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(0908- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52580 |
NCP91..CND ABS-WITHOUT |
1 | ||
| 44050-52A30 |
NCP91..CND |
1 | ||
| 44050-52580 |
NCP91..CND |
1 | ||
| 44050-52A30 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
1 | ||
| 44050-52C50 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-63010 |
NCP91..CND |
3 | ||
| 44546-12110 |
NCP91 |
3 | ||
| 44546-63010 |
NCP91..CND ABS-WITHOUT |
3 | ||
| 44546-12110 |
NCP91 ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52130 |
NCP91..CND |
1 | ||
| 44590-52170 |
NCP91..CND |
1 | ||
| 44590-52210 |
NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
