NCP91L-AGPVKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

Click highlighted areas on diagram

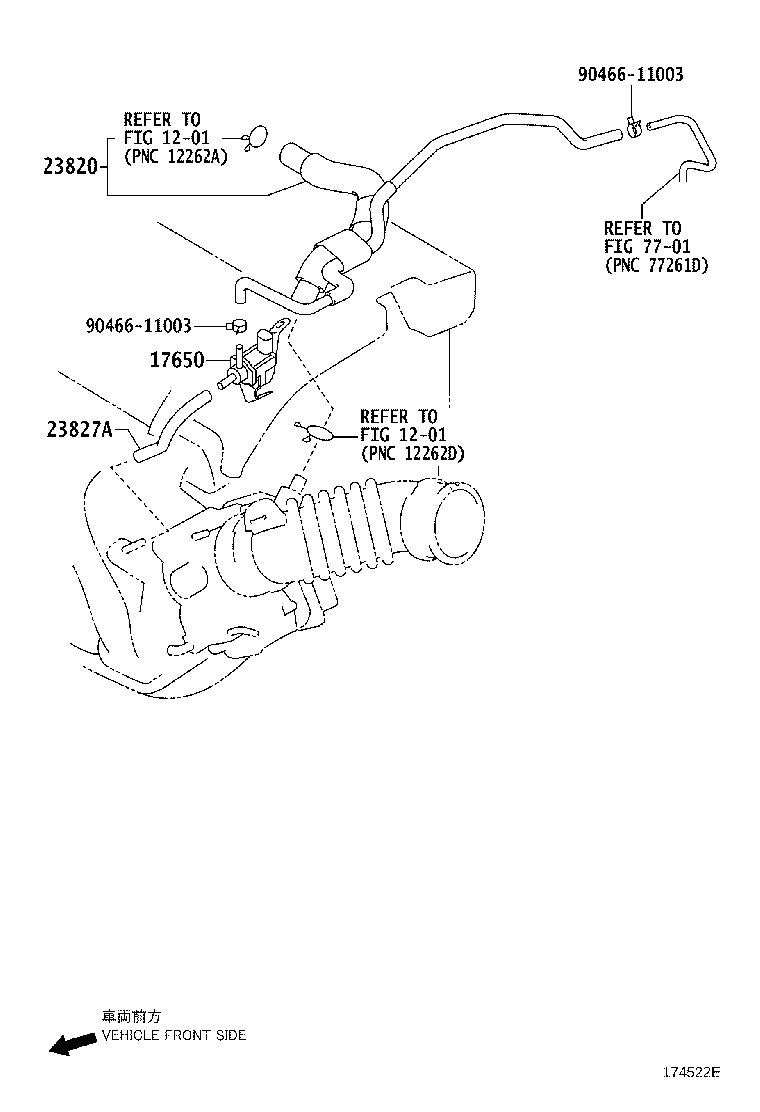

diagram 1201 1201 17650 23820 23827A 7701 9046611003 9046611003
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-21090

1NZFE..NCP91

 1
25860-21090

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21100

1NZFE..NCP91

 1
23820-21100

1NZFE..NCP91

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
95328-07017

1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA

 1
23827-21150

1NZFE..NCP91

 1
Common parts
90466-11003
Linked diagrams
1201
7701
