NCP91L-AGPRKK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

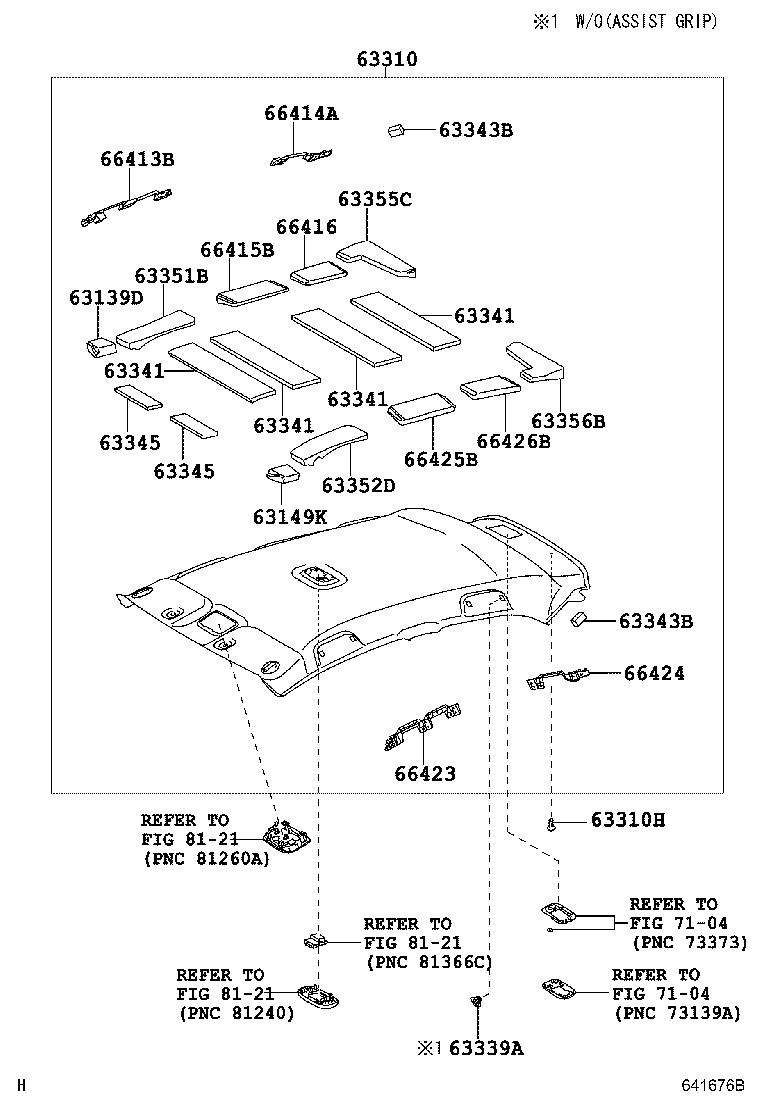

Click highlighted areas on diagram

diagram 63139D 63149K 63310 63310H 63339A 63341 63341 63341 63341 63343B 63343B 63345 63345 63351B 63352D 63355C 63356B 66413B 66414A 66415B 66416 66423 66424 66425B 66426B 7104 7104 8121 8121 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63301-52080B0

NCP91..3D..STD..CND

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

 1
63301-52070B0

NCP91..3D..STD..CND

GRAY,TRIM1#

 1
63301-52070B0

NCP91..3D..CND

GRAY,TRIM1#

 1
63301-52080B0

NCP91..3D..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN,GRAY,TRIM1#

 1
63301-52080B0

NCP91..3D..CND

GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6

NCP91..STD..CND

GRAY,TRIM1#

 1
90467-05164B0

NCP91..STD..CND

LT.GRAY,TRIM1#

 1
90467-05164B6

NCP91..STD

GRAY,TRIM1#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B1

NCP91..3D..STD..CND

GRAY,TRIM1#

 6
63339-52030B1

NCP91..3D..STD..CND

GRAY,TRIM1#

 6
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63343B - PAD, ROOF SILENCER, REAR
63343-52040

NCP91

 2
63343-52040

NCP91

 2
63343B - PAD, ROOF SILENCER, REAR
63343-52040

NCP91

 2
63343-52040

NCP91

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

NCP91

 2
63345-52030

NCP91

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

NCP91

 2
63345-52030

NCP91

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52180

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66413-52190

NCP91..3D

 1
66413-52180

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66413-52190

NCP91..3D..CND

 1
66413-52180

NCP91..CND

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52210

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66414-52200

NCP91..3D..CND

 1
66414-52210

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66414-52210

NCP91..CND

 1
66414-52200

NCP91..3D

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52170

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66423-52190

NCP91..3D

 1
66423-52170

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66423-52190

NCP91..3D..CND

 1
66423-52170

NCP91..CND

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52200

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66424-52190

NCP91..3D..CND

 1
66424-52190

NCP91..3D

 1
66424-52200

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66424-52200

NCP91..CND

 1
Linked diagrams
7104
8121

(0508- )

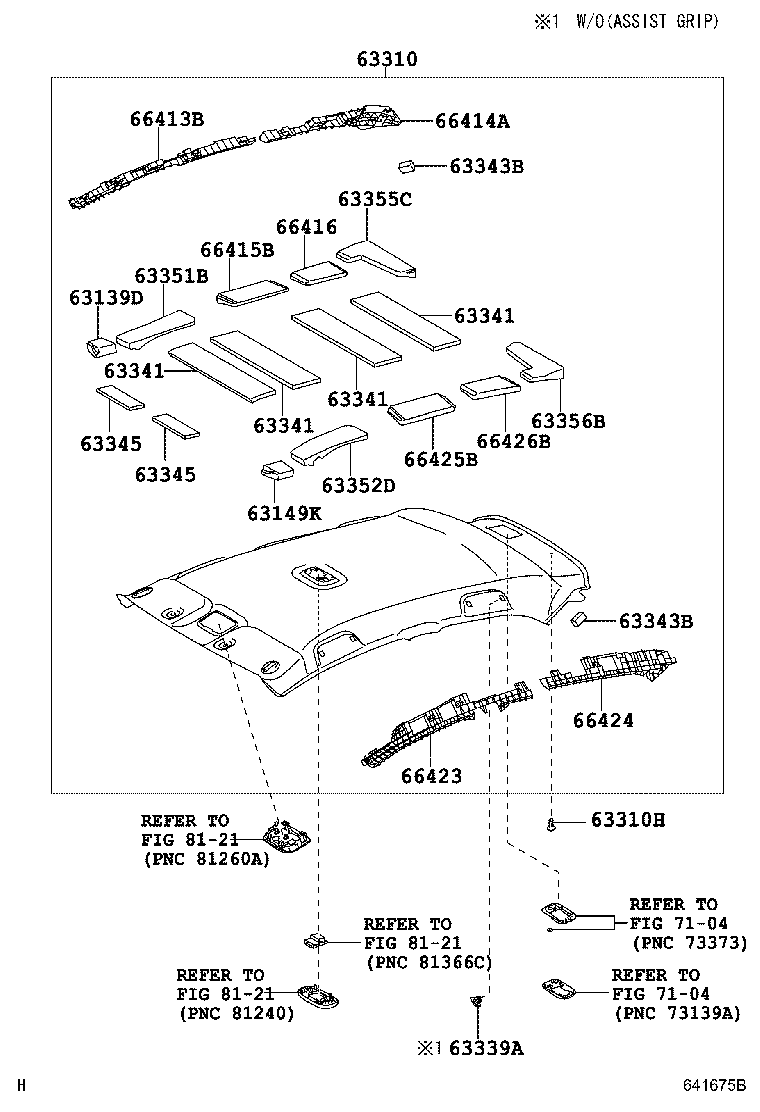

Click highlighted areas on diagram

W(SRS CURTAIN SHIELD AIR BAG)

diagram 63139D 63149K 63310 63310H 63339A 63341 63341 63341 63341 63343B 63343B 63345 63345 63351B 63352D 63355C 63356B 66413B 66414A 66415B 66416 66423 66424 66425B 66426B 7104 7104 8121 8121 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63301-52080B0

NCP91..3D..STD..CND

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

 1
63301-52070B0

NCP91..3D..STD..CND

GRAY,TRIM1#

 1
63301-52070B0

NCP91..3D..CND

GRAY,TRIM1#

 1
63301-52080B0

NCP91..3D..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN,GRAY,TRIM1#

 1
63301-52080B0

NCP91..3D..CND

GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B6

NCP91..STD..CND

GRAY,TRIM1#

 1
90467-05164B0

NCP91..STD..CND

LT.GRAY,TRIM1#

 1
90467-05164B6

NCP91..STD

GRAY,TRIM1#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B1

NCP91..3D..STD..CND

GRAY,TRIM1#

 6
63339-52030B1

NCP91..3D..STD..CND

GRAY,TRIM1#

 6
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-52150

NCP91..5D..CND;NCP91..3D..STD..CND

 4
63341-52150

NCP91..CND

 4
63343B - PAD, ROOF SILENCER, REAR
63343-52040

NCP91

 2
63343-52040

NCP91

 2
63343B - PAD, ROOF SILENCER, REAR
63343-52040

NCP91

 2
63343-52040

NCP91

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

NCP91

 2
63345-52030

NCP91

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52030

NCP91

 2
63345-52030

NCP91

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52180

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66413-52190

NCP91..3D

 1
66413-52180

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66413-52190

NCP91..3D..CND

 1
66413-52180

NCP91..CND

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52210

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66414-52200

NCP91..3D..CND

 1
66414-52210

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66414-52210

NCP91..CND

 1
66414-52200

NCP91..3D

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52170

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66423-52190

NCP91..3D

 1
66423-52170

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66423-52190

NCP91..3D..CND

 1
66423-52170

NCP91..CND

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52200

NCP91..CND

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN

 1
66424-52190

NCP91..3D..CND

 1
66424-52190

NCP91..3D

 1
66424-52200

NCP91

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 1
66424-52200

NCP91..CND

 1
Linked diagrams
7104
8121
