NCP151L-AHPRKU (2014)

Toyota Yaris

Production Mar 2014 - Jun 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

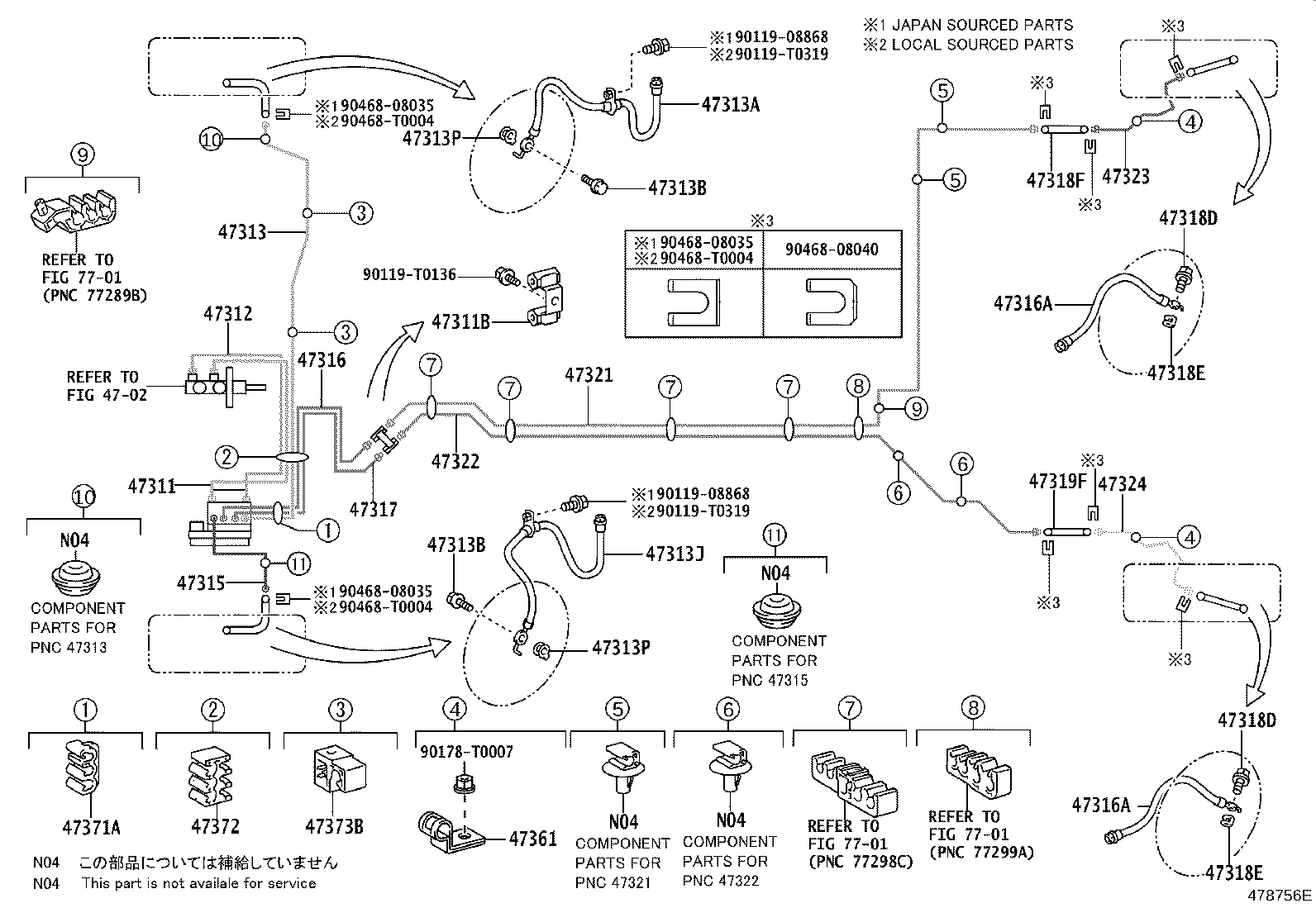

ILLUST NO. 1 OF 2(1403- )NCP151,NSP150..GCC..G ; (1403- )NCP150,NSP151..AGT,BZ,GCC,GEN ; (1403

Click highlighted areas on diagram

BRAKE TUBE, W(ABS OR VSC)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47361 47371A 47372 47373B 7701 7701 7701 9011908868 9011908868 90119T0136 90119T0319 90119T0319 90178T0007 9017906264 9046808035 9046808040 90468T0004 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D570

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP15#..GCC,GEN,PH,VN

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D500

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D490

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2081

NCP15#..GCC,GEN,PH,VN

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP15#..GCC,GEN,PH,VN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP15#..GCC,GEN,PH,VN

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2082

NCP15#..GCC,GEN,PH,VN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP15#..GCC,GEN,PH,VN

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP15#..GCC,GEN,PH,VN

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D500

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D390

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D390

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2083

NCP15#..GCC,GEN,PH,VN

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2084

NCP15#..GCC,GEN,PH,VN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D360

NCP15#..GCC,GEN,PH,VN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D360

NCP15#..GCC,GEN,PH,VN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D240

NCP151..VN;NCP15#..(GEN,PH)..G

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D240

NCP151..VN;NCP15#..(GEN,PH)..G

 1
47361 - CLAMP, TUBE
90461-T0006

NCP15#..GCC,GEN,PH,VN

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D18

NCP15#..LHD..(GCC,GEN,PH,VN)

 2
Common parts
90119-08868
90119-T0136
90119-T0319
90178-T0007
90179-06264
90468-08035
90468-08040
90468-T0004
91671-80614
Linked diagrams
4702
7701

ILLUST NO. 1 OF 2(1403- )CVT..B,C ; (1403- )4FC,5F..V..C ;(1403- )NCP15#,NSP150..RHD..GEN,

Click highlighted areas on diagram

W(ABS OR VSC), REAR DISC BRAKE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47316A 47316A 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47361 47371A 47371A 47371A 47372 47372 47373B 47374B 47375 7701 7701 7701 9011908868 9011908868 90119T0136 90119T0319 90119T0319 90178T0007 9046808035 9046808035 9046808035 9046808040 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D570

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP15#..GCC,GEN,PH,VN

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D500

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D490

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2081

NCP15#..GCC,GEN,PH,VN

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP15#..GCC,GEN,PH,VN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP15#..GCC,GEN,PH,VN

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2082

NCP15#..GCC,GEN,PH,VN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP15#..GCC,GEN,PH,VN

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP15#..GCC,GEN,PH,VN

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D500

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D390

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2085

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2085

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D390

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2083

NCP15#..GCC,GEN,PH,VN

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2084

NCP15#..GCC,GEN,PH,VN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D360

NCP15#..GCC,GEN,PH,VN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D360

NCP15#..GCC,GEN,PH,VN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D240

NCP151..VN;NCP15#..(GEN,PH)..G

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D240

NCP151..VN;NCP15#..(GEN,PH)..G

 1
47361 - CLAMP, TUBE
90461-T0006

NCP15#..GCC,GEN,PH,VN

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D18

NCP15#..LHD..(GCC,GEN,PH,VN)

 2
Common parts
90119-08868
90119-T0136
90119-T0319
90178-T0007
90468-08035
90468-08040
90468-T0004
Linked diagrams
4702
7701

ILLUST NO. 1 OF 2(1403- )NCP151..VN ; (1403- )NCP150,NSP151..PH,VN ; (1403- )NCP151,NSP150.

Click highlighted areas on diagram

BRAKE TUBE, W(ABS)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47316A 47316A 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47361 47371A 47372 47373B 7701 7701 7701 9011908868 9011908868 90119T0136 90119T0319 90119T0319 90178T0007 9046808035 9046808035 9046808035 9046808040 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D570

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP15#..GCC,GEN,PH,VN

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D500

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D490

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2081

NCP15#..GCC,GEN,PH,VN

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP15#..GCC,GEN,PH,VN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP15#..GCC,GEN,PH,VN

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2082

NCP15#..GCC,GEN,PH,VN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP15#..GCC,GEN,PH,VN

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP15#..GCC,GEN,PH,VN

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D500

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D390

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2085

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2085

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D390

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

NCP151..VN;NCP15#..(GEN,PH)..G

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2083

NCP15#..GCC,GEN,PH,VN

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2084

NCP15#..GCC,GEN,PH,VN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D360

NCP15#..GCC,GEN,PH,VN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D360

NCP15#..GCC,GEN,PH,VN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D240

NCP151..VN;NCP15#..(GEN,PH)..G

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D240

NCP151..VN;NCP15#..(GEN,PH)..G

 1
47361 - CLAMP, TUBE
90461-T0006

NCP15#..GCC,GEN,PH,VN

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01969

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D18

NCP15#..LHD..(GCC,GEN,PH,VN)

 2
Common parts
90119-08868
90119-T0136
90119-T0319
90178-T0007
90468-08035
90468-08040
90468-T0004
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1403- )LHD..ATM,MTM..AGT,BZ,GCC,GEN,PH,VN

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D250

NCP151..VN;NCP15#..(GEN,PH)..G

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP15#..GCC,GEN,PH,VN

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP15#..GCC,GEN,PH,VN

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP15#..GCC,GEN,PH,VN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP15#..GCC,GEN,PH,VN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP15#..GCC,GEN,PH,VN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP15#..GCC,GEN,PH,VN

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D180

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
Common parts
90119-06844
90119-T0199
90119-T0325
91631-60825

ILLUST NO. 2 OF 2(1403- )B,C

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D250

NCP151..VN;NCP15#..(GEN,PH)..G

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP15#..GCC,GEN,PH,VN

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP15#..GCC,GEN,PH,VN

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP15#..GCC,GEN,PH,VN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP15#..GCC,GEN,PH,VN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP15#..GCC,GEN,PH,VN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP15#..GCC,GEN,PH,VN

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D180

NCP15#..LHD..(GCC,GEN,PH,VN)

 1
Common parts
90119-T0199
90119-T0325
