NCP151L-AHPGK (2014)

Toyota Yaris

Production Mar 2014 - Jun 2016
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )TAIW ; (1806- )H

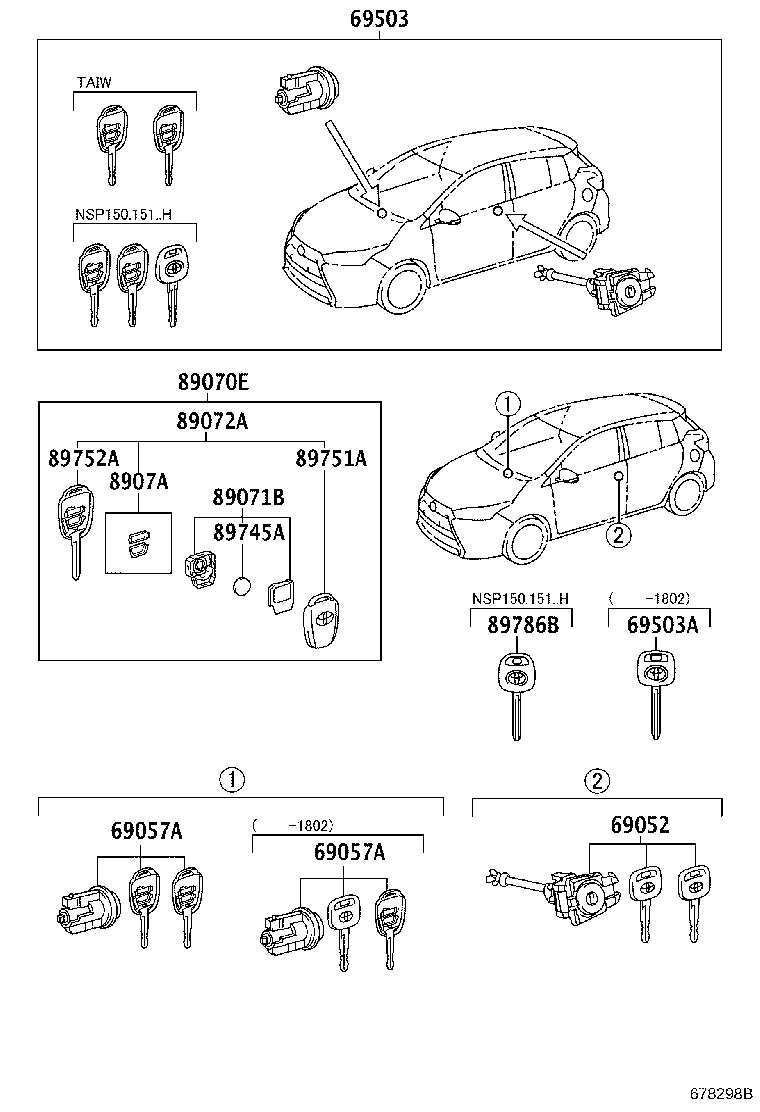

Click highlighted areas on diagram

WITHOUT(SMART ENTRY)

diagram 69052 69057A 69057A 69503 69503A 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D170

NCP151..D,R;NCP151..GCC..G;NCP150..GCC,GEN,PH

 1
69503 - CYLINDER SET, LOCK
69005-0D790

NCP151..4FC..(GEN,VN)..G

 1
69503A - KEY, BLANK
69515-52180

NCP151..(GEN,VN)..G

MASTER KEY

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0D580

NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN)..(D,R)

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-0D070

NCP151..D,R;NCP151..GCC..G;NCP150..GCC,GEN,PH

 1
89071-0D070

NCP150..4FC..GEN..R;NCP151..LHD..GEN..(D,R)

LATIN AMERICA SPEC

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D340

NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN)..(D,R)

 1
8907A - SWITCH SET, TRANSMITTER
8907A-52010

NCP150..4FC..GEN..R;NCP151..LHD..GEN..(D,R)

LATIN AMERICA SPEC

 1
8907A-52010

NCP151..D,R;NCP151..GCC..G;NCP150..GCC,GEN,PH

 1
89745A - BATTERY, TRANSMITTER
89745-0D040

NCP151..D,R;NCP151..GCC..G;NCP150..GCC,GEN,PH

CR1620

 1
89745-0D040

NCP150..4FC..GEN..R;NCP151..LHD..GEN..(D,R)

LATIN AMERICA SPEC

 1
89751A - COVER, TRANSMITTER HOUSING
89751-42090

NCP151..D,R;NCP151..GCC..G;NCP150..GCC,GEN,PH

 1
89751-42090

NCP150..4FC..GEN..R;NCP151..LHD..GEN..(D,R)

LATIN AMERICA SPEC

 1
89752A - CASE, TRANSMITTER HOUSING
89752-0D120

NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN)..(D,R)

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-08040

NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN)..(D,R)

BLANK KEY

 1
