NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1607)GCC,GEN,IDN,MA,PH,TH,VN ; (1607- )NCP150

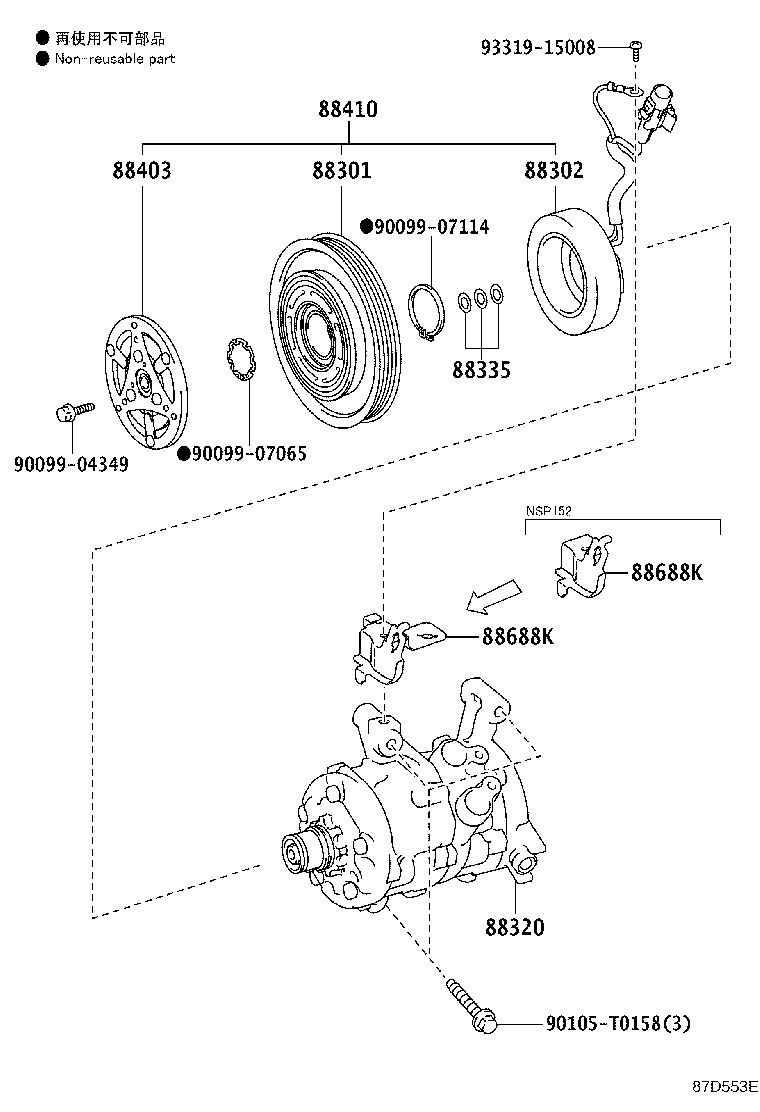

Click highlighted areas on diagram

diagram 88301 88302 88320 88335 88403 88410 88688K 88688K 9009904349 9009907065 9009907114 90105T0158 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-0D160

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88412-0D160

NCP150..C

 1
88412-0D160

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-0D110

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88411-0D110

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88411-0D110

NCP150..C

 1
88320 - COMPRESSOR ASSY, COOLER
88320-0D060

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88320-0D060

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88320-0D060

NCP150..C

 1
88335 - GASKET KIT, OVERHAUL
88335-30420

NSP151..GEN,PH,VN;NCP15#,NSP150,152..GEN,IDN,MA,PH,TH,VN

 1
88335-14020

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88335-14020

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88335-30420

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88335-30420

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-0K080

NCP150..C

 1
88403-0K080

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88403-0K080

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88410 - CLUTCH ASSY, MAGNET
88410-0D280

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88410-0D280

NCP15#..GCC,GEN,IDN,MA,PH,VN

 1
88410-0D280

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88688K - BRACKET, COOLER COMPRESSOR
88849-0D020

NCP150..C

 1
88849-0D020

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88849-0D020

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88688K - BRACKET, COOLER COMPRESSOR
88849-0D020

NCP150..C

 1
88849-0D020

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88849-0D020

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
Common parts
90099-04349
90099-07065
90099-07114
90105-T0158
93319-15008
