NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1403- )NCP150..C

Click highlighted areas on diagram

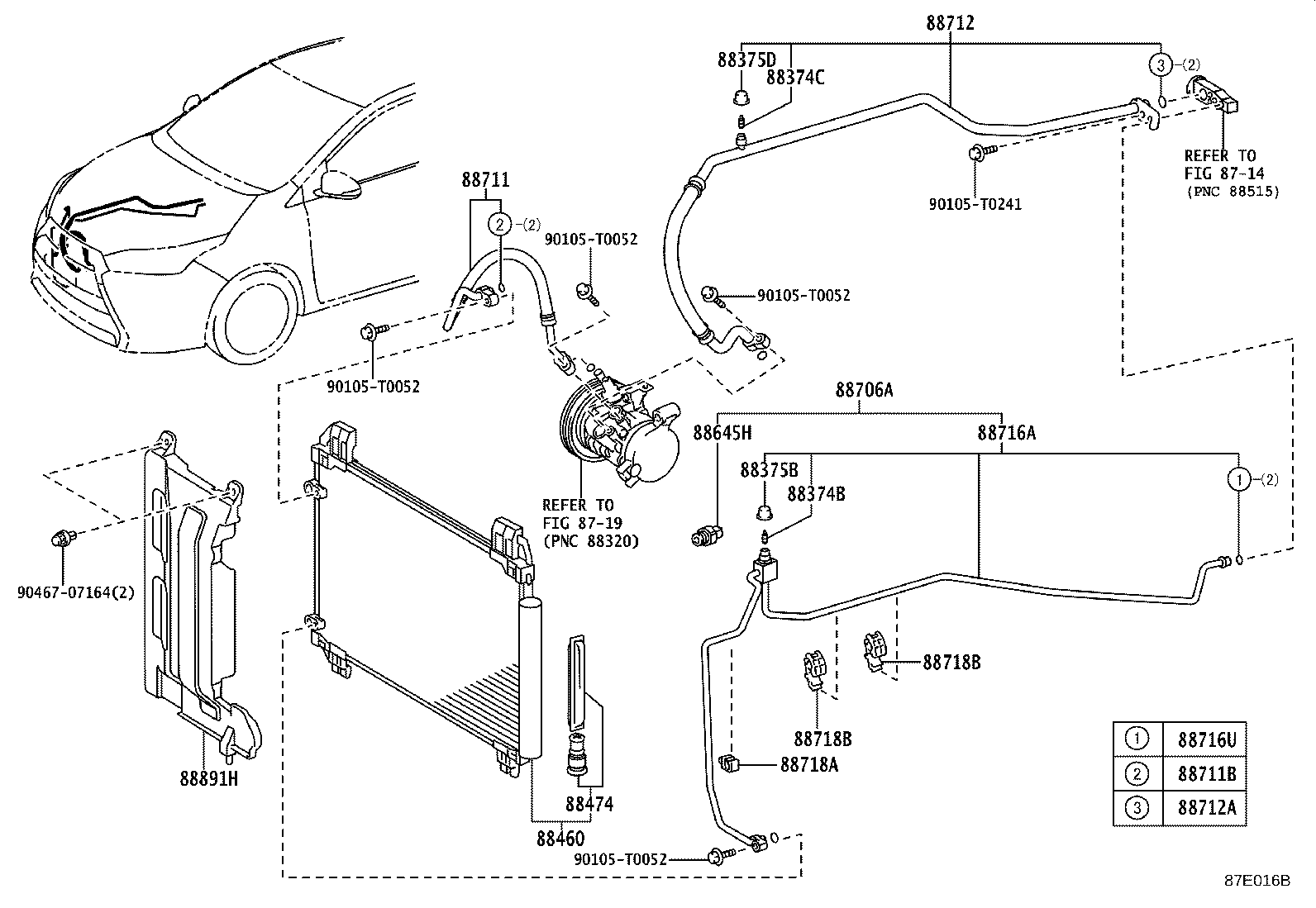

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88706A 88711 88711B 88712 88712A 88716A 88716U 88718A 88718B 88718B 88891H 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 9046707164
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP150..C

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NCP150..C

 1
88460 - CONDENSER ASSY, COOLER
88460-0D290

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88460-0D370

NCP150..C

 1
88460-0D290

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88460-0D370

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88460-0D370

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88474 - DRYER, COOLER
88474-17010

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88474-17010

NCP150..C

 1
88474-17010

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP150..C

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D590

NCP150..C

 1
88806-0D010

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88806-0D010

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D480

NCP150..C

 1
88711-0D400

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88711-0D400

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14120

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88842-0D010

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88712-0D710

NCP150..C

 1
88842-0D010

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14121

NCP150..C

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D580

NCP150..C

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-0D210

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88718-0D210

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88718-0D500

NCP150..C

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D640

NCP150..C

 2
88718-0D550

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 2
88718-0D550

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D640

NCP150..C

 2
88718-0D550

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 2
88718-0D550

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 2
88891H - COVER, COOLER, NO.1
88891-0D270

NCP150..C

 1
88891-0D270

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88891-0D310

NCP150..C

 1
88891-0D310

NCP150..4FC..IDN..(G,R)

SINGAPORE & BRUNEI SPEC

 1
88891-0D220

NCP150..4FC..R..C

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

 1
88891-0D220

NCP150..4FC..IDN..G

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
88891-0D270

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
88891-0D310

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
