ILLUST NO. 2 OF 3(1310-1708)NCP15#,NSP150,152..RHD ; (1610-1802)C

Click highlighted areas on diagram

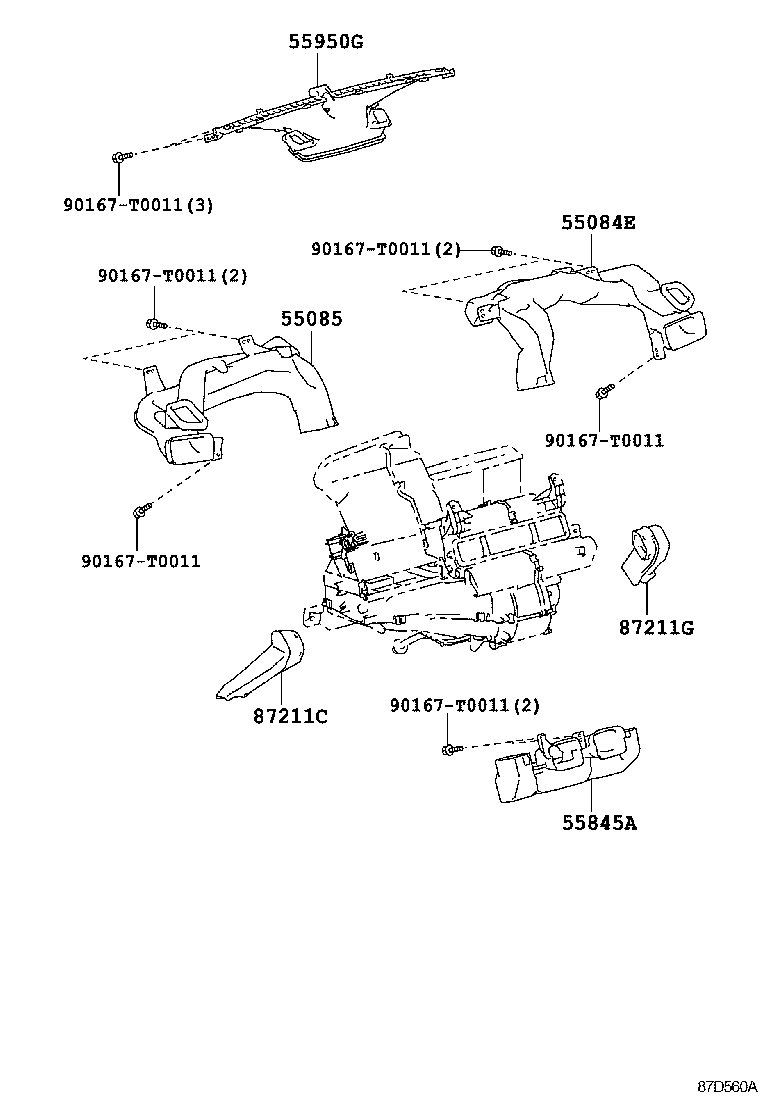

AIR DUCT

diagram 55084E 55085 55845A 55950G 87211C 87211G 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55085-0D110

NCP150..C

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55084-0D140

NCP150..C

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0D200

NCP150..C

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D220

NCP150..C

 1
87211C - DUCT, AIR, NO.4
87211-0D420

NCP150..C

 1
87211G - DUCT, AIR, NO.5
87211-0D410

NCP150..C

 1
Common parts
90167-T0011

ILLUST NO. 3 OF 3(1310-1708)NCP15#,NSP150,152..RHD ; (1610-1802)C

Click highlighted areas on diagram

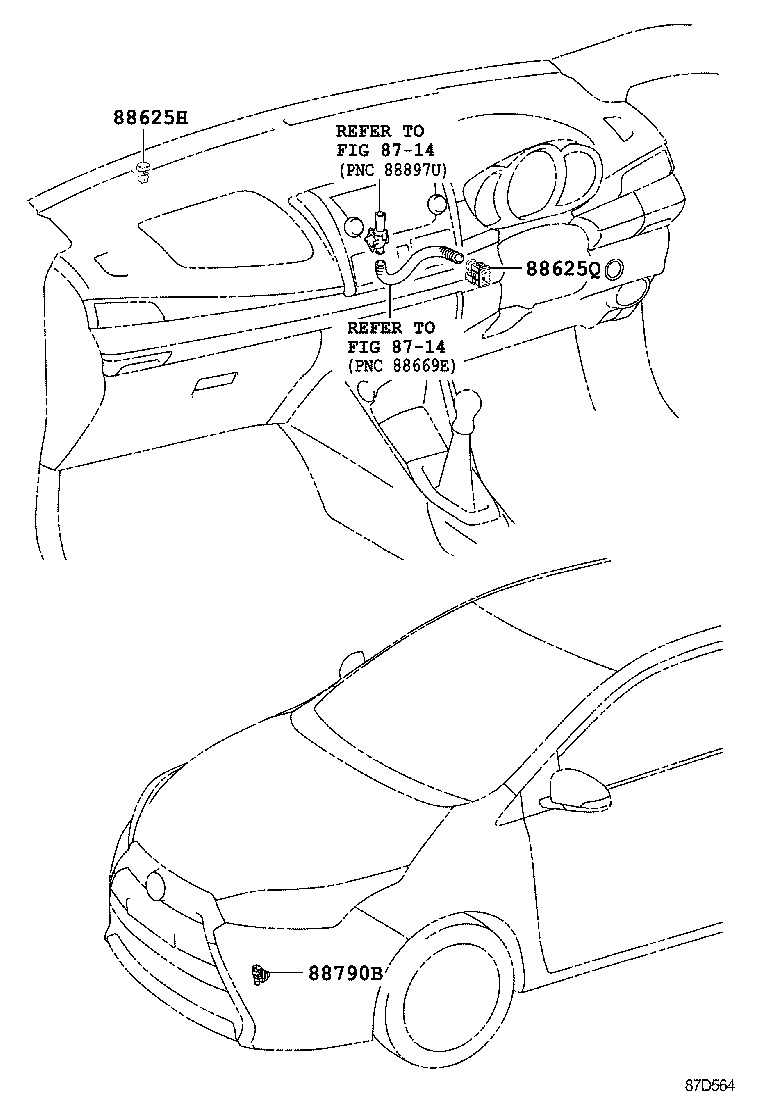

SENSOR

diagram 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
88790B - THERMISTOR ASSY
88790-22131

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
Linked diagrams
8714

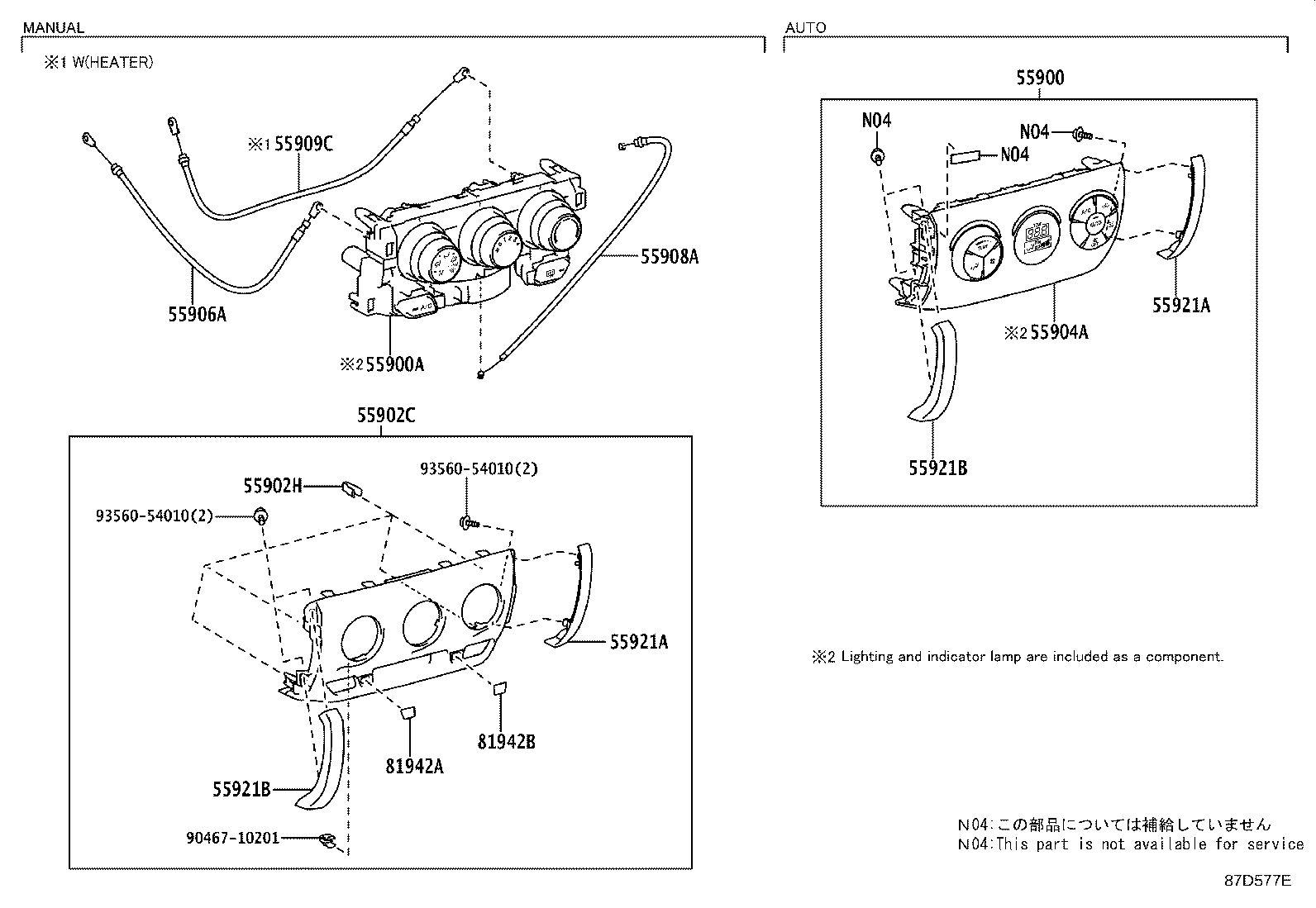

ILLUST NO. 1 OF 3(1310-1708)NCP15#,NSP150,152..RHD ; (1610-1802)C

Click highlighted areas on diagram

HEATER CONTROL

diagram 55900 55900A 55902C 55902H 55904A 55906A 55908A 55909C 55921A 55921A 55921B 55921B 81942A 81942B 9046710201 9356054010 9356054010
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0D500

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0D630

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

 1
55900-0D630

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC

 1
55900-0D630

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55900-0D630

NCP150..G..C

 1
55900-0D650

NCP150..R..C

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-0D300

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55902-0D300

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55902-0D300

NCP150..(G,R)..C

 1
55902H - CLIP(FOR AIR CONDITIONER PANEL)
90467-10203

NCP150..(G,R)..C

 4
90467-10203

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 4
90467-10203

NCP150..4FC..IDN..G

BRUNEI SPEC

 4
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-0D050

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D130

NCP150..(G,R)..C

 1
55906-0D130

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55906-0D130

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0D140

NCP150..(G,R)..C

 1
55908-0D140

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55908-0D140

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55921A - RETAINER, HEATER CONTROL
55902-0D680

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55921-0D060

NCP150..(G,R)..C

 1
55921-0D060

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55921-0D060

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55921A - RETAINER, HEATER CONTROL
55902-0D680

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55921-0D060

NCP150..(G,R)..C

 1
55921-0D060

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55921-0D060

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55921B - RETAINER, HEATER CONTROL
55902-0D670

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55922-0D060

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55922-0D060

NCP150..(G,R)..C

 1
55922-0D060

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
55921B - RETAINER, HEATER CONTROL
55902-0D670

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55922-0D060

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
55922-0D060

NCP150..(G,R)..C

 1
55922-0D060

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-0D750

NCP150..(G,R)..C

 1
81942-0D750

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
81942-0D750

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-0D760

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC

 1
81942-0D760

NCP150..(G,R)..C

 1
81942-0D760

NCP150..4FC..IDN..G

BRUNEI SPEC

 1
Common parts
90467-10201
93560-54010
