NCP150R-CHPGKE (2014)
Toyota Yaris
(1310-1708)NCP15#,NSP150,152..RHD

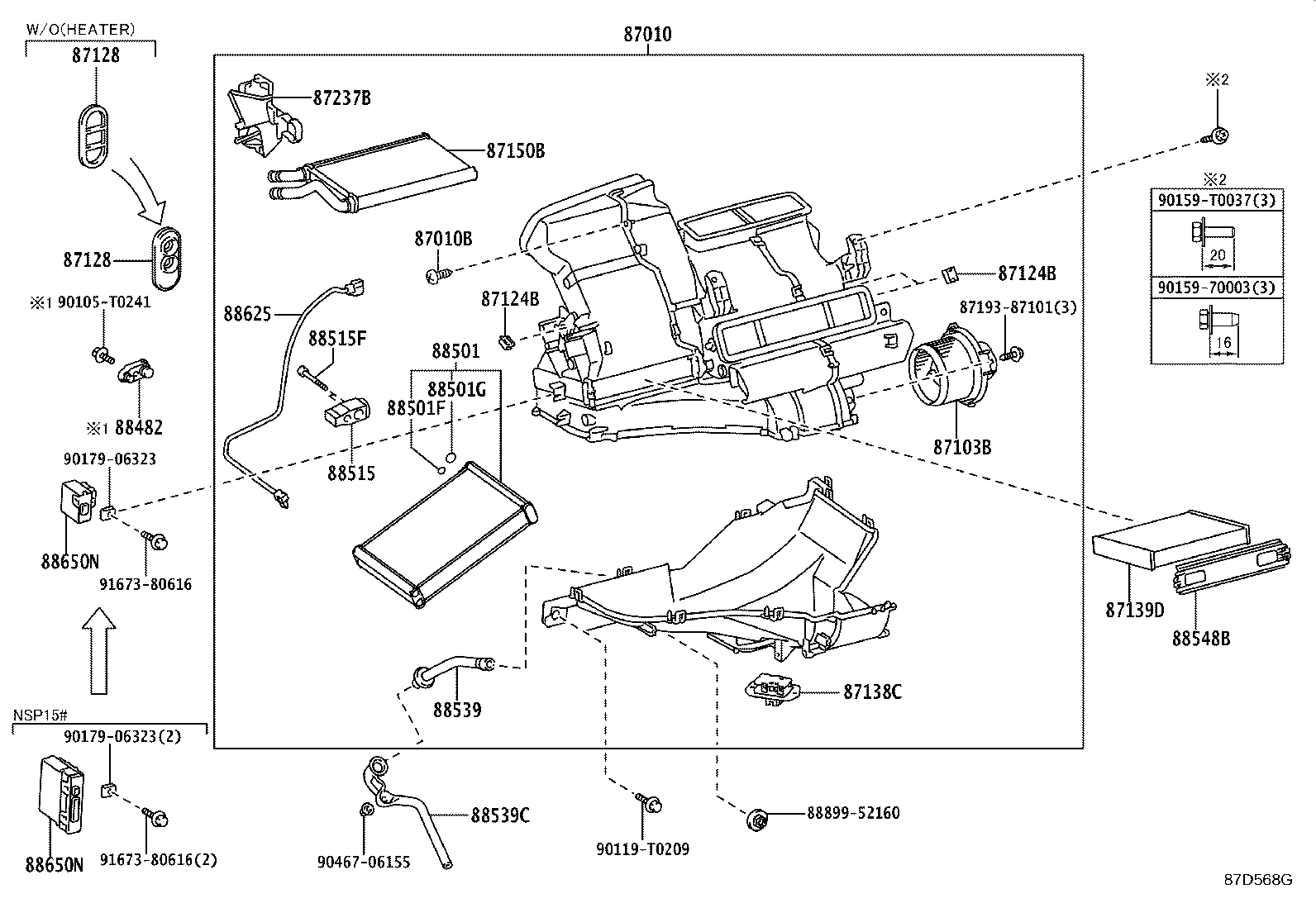

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DB70 |
NCP150..(G,R)..C |
1 | ||
| 87010-0DB80 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NCP150..(G,R)..C |
12 | ||
| 90099-00968 |
NCP150..4FC..IDN..G BRUNEI SPEC |
18 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D360 |
NCP150..C |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D310 |
NCP150..(G,R)..C |
2 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D310 |
NCP150..(G,R)..C |
2 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D150 |
NCP150..C |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D150 |
NCP150..C |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D300 |
NCP150..(G,R)..C |
1 | ||
| 87138-0D330 |
NCP150..(G,R)..C |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0D050 |
NCP150..MA DUST FILTER |
1 | ||
| 87139-50100 |
NCP150..C *DPF |
1 | ||
| 87139-0D170 |
NCP150..IDN DUST FILTER |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-0D010 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D320 |
NCP150..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NCP150..C ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NCP150..C ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D300 |
NCP150..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NCP150..C |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D420 |
NCP150..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D440 |
NCP150..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D230 |
NCP150..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D130 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88620-0D120 |
NCP150..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D430 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D460 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..(G,R)..C |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D430 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D460 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..(G,R)..C |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1310-1708)NCP15#,NSP152..RHD ; (1610-1802)C
MANUAL BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DB70 |
NCP150..(G,R)..C |
1 | ||
| 87010-0DB80 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NCP150..(G,R)..C |
12 | ||
| 90099-00968 |
NCP150..4FC..IDN..G BRUNEI SPEC |
18 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D360 |
NCP150..C |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D310 |
NCP150..(G,R)..C |
2 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D310 |
NCP150..(G,R)..C |
2 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D150 |
NCP150..C |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D300 |
NCP150..(G,R)..C |
1 | ||
| 87138-0D330 |
NCP150..(G,R)..C |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0D050 |
NCP150..MA DUST FILTER |
1 | ||
| 87139-50100 |
NCP150..C *DPF |
1 | ||
| 87139-0D170 |
NCP150..IDN DUST FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D320 |
NCP150..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NCP150..C ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NCP150..C ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D300 |
NCP150..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NCP150..C |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D420 |
NCP150..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D440 |
NCP150..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D230 |
NCP150..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D130 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88620-0D120 |
NCP150..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D430 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D460 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..(G,R)..C |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D430 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D460 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..(G,R)..C |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1310-1708)NCP15#,NSP152..RHD ; (1610-1802)C

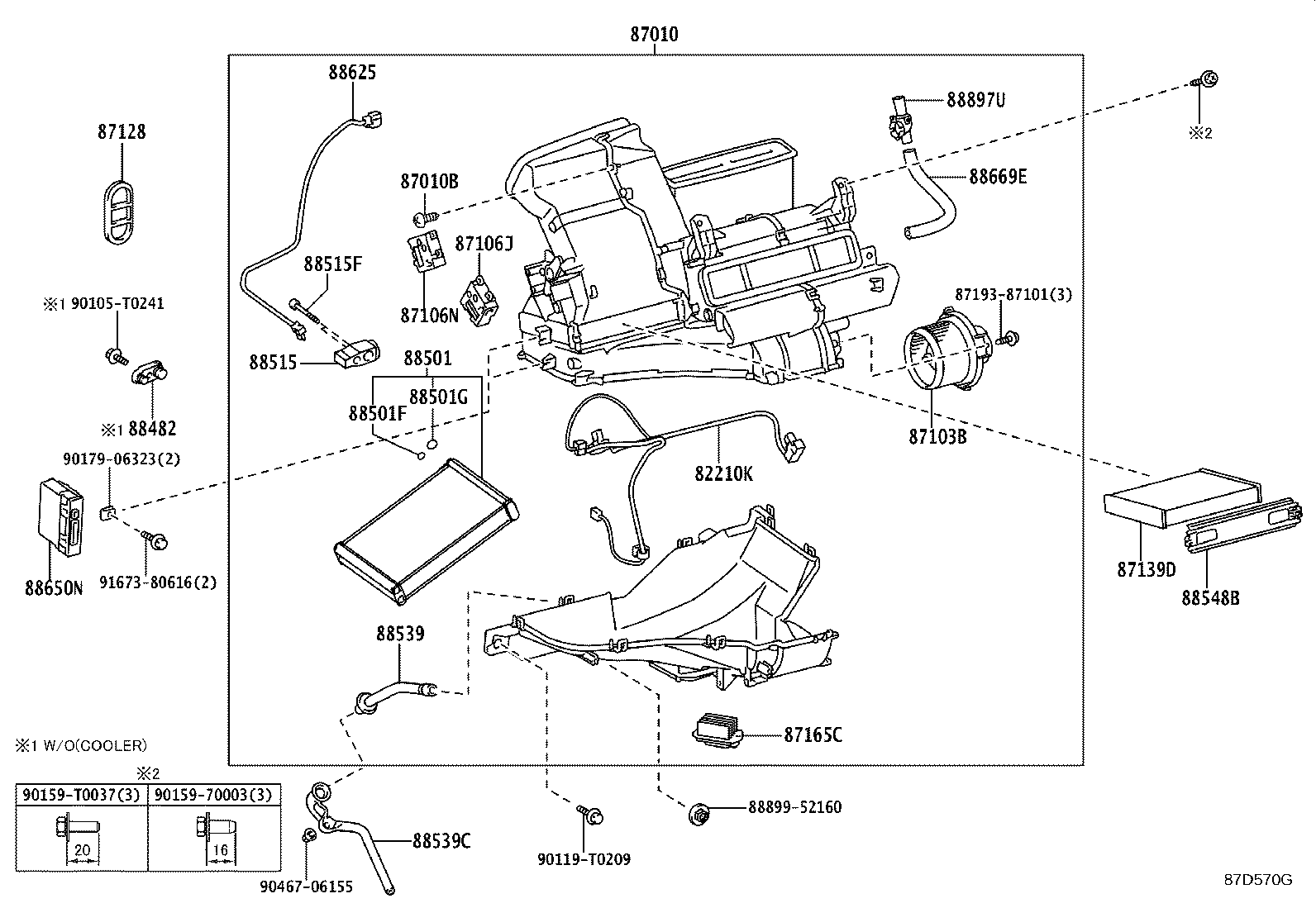

AUTO BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0D010 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DB70 |
NCP150..(G,R)..C |
1 | ||
| 87010-0DB80 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NCP150..(G,R)..C |
12 | ||
| 90099-00968 |
NCP150..4FC..IDN..G BRUNEI SPEC |
18 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D360 |
NCP150..C |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0D190 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D200 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D150 |
NCP150..C |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0D050 |
NCP150..MA DUST FILTER |
1 | ||
| 87139-50100 |
NCP150..C *DPF |
1 | ||
| 87139-0D170 |
NCP150..IDN DUST FILTER |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0D060 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-0D010 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D320 |
NCP150..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NCP150..C ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NCP150..C ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D300 |
NCP150..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NCP150..C |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D420 |
NCP150..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D440 |
NCP150..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D230 |
NCP150..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D130 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88620-0D120 |
NCP150..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D430 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D460 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88650-0D430 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88650-0D430 |
NCP150..(G,R)..C |
1 | ||
| 88650-0D430 |
NCP150..4FC..R..C SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP)) |
1 | ||
| 88669E - HOSE, AIR | ||||
| 87233-0D010 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-0D040 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
