NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

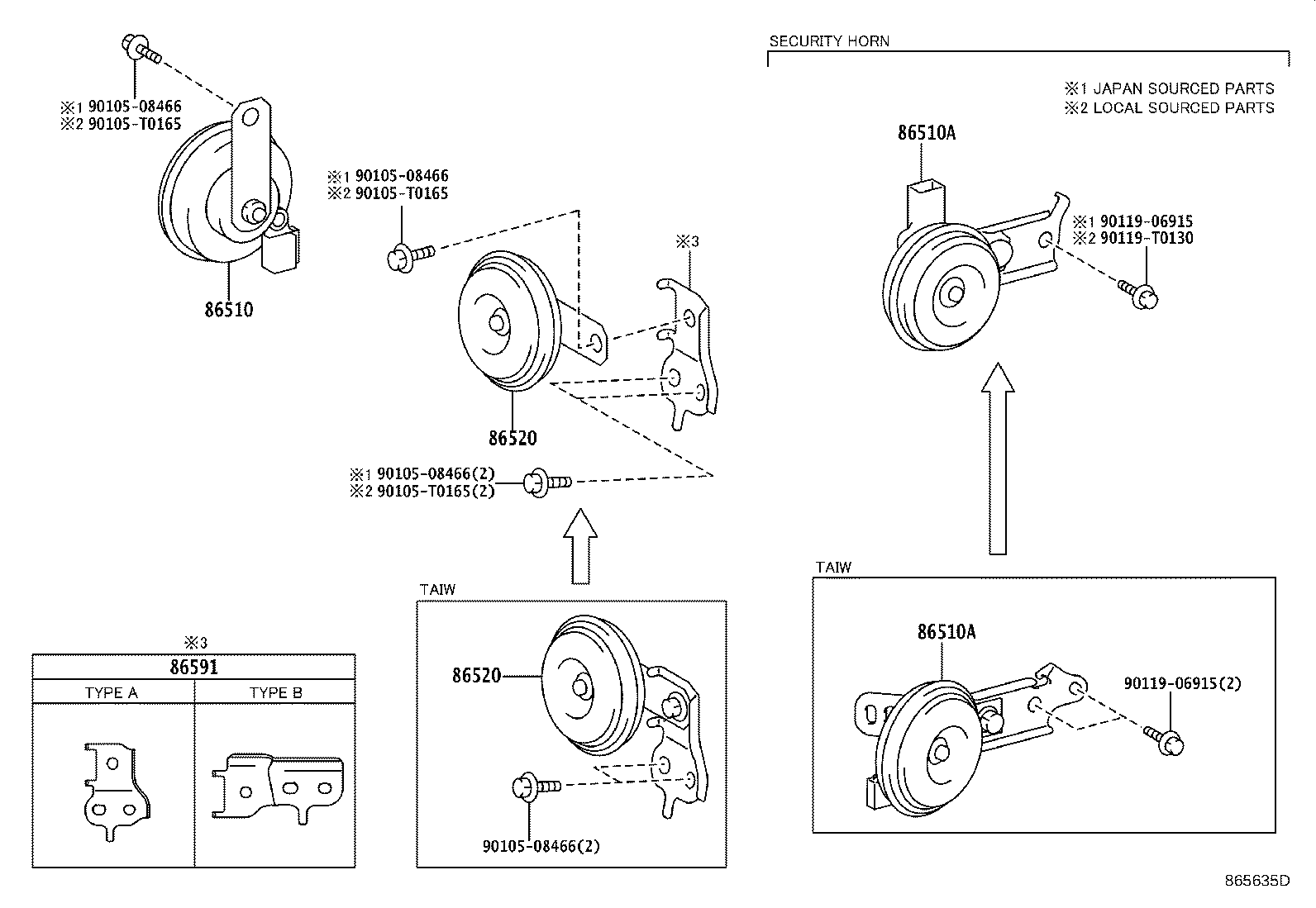

Click highlighted areas on diagram

diagram 86510 86510A 86510A 86520 86520 86591 9010508466 9010508466 9010508466 9010508466 90105T0165 90105T0165 90105T0165 9011906915 9011906915 90119T0130
Part # Description Qty Price
86510A - HORN ASSY, SECURITY
86560-0D060

NCP150..IDN

 1
86560-52090

NCP150..MA

 1
86510A - HORN ASSY, SECURITY
86560-0D060

NCP150..IDN

 1
86560-52090

NCP150..MA

 1
86520 - HORN ASSY, LOW PITCHED
86520-0D160

NCP150..C

 1
86520 - HORN ASSY, LOW PITCHED
86520-0D160

NCP150..C

 1
86591 - BRACKET, HORN
86591-0D030

NCP150..C

TYPE A:REFER ILLUST.

 1
Common parts
90105-08466
90105-T0165
90119-06915
90119-T0130
