NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1609)NCP15# ; (1310-1708)GCC,GEN,PH,TH,VN; (1310-1709)NSP152 ; (1605-1802)TA

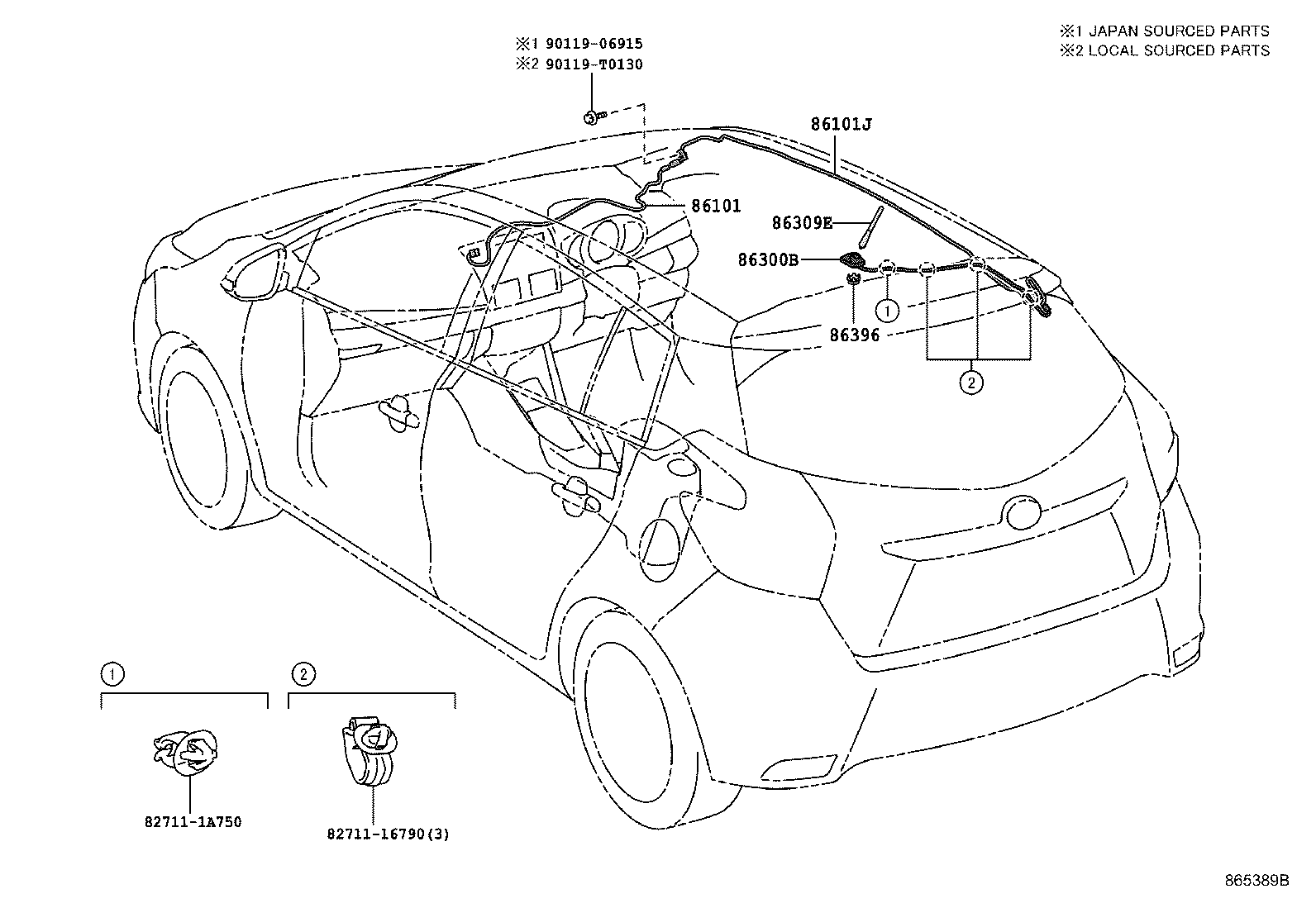

Click highlighted areas on diagram

diagram 8271116790 827111A750 86101 86101J 86300B 86309E 86396 9011906915 90119T0130
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0D570

NCP150..C

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0D560

NCP150..C

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D310

NCP150..C

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0D180

NCP150..C

 1
86396 - NUT, ANTENNA
86396-47010

NCP150..C

 1
Common parts
82711-16790
82711-1A750
90119-06915
90119-T0130
