NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

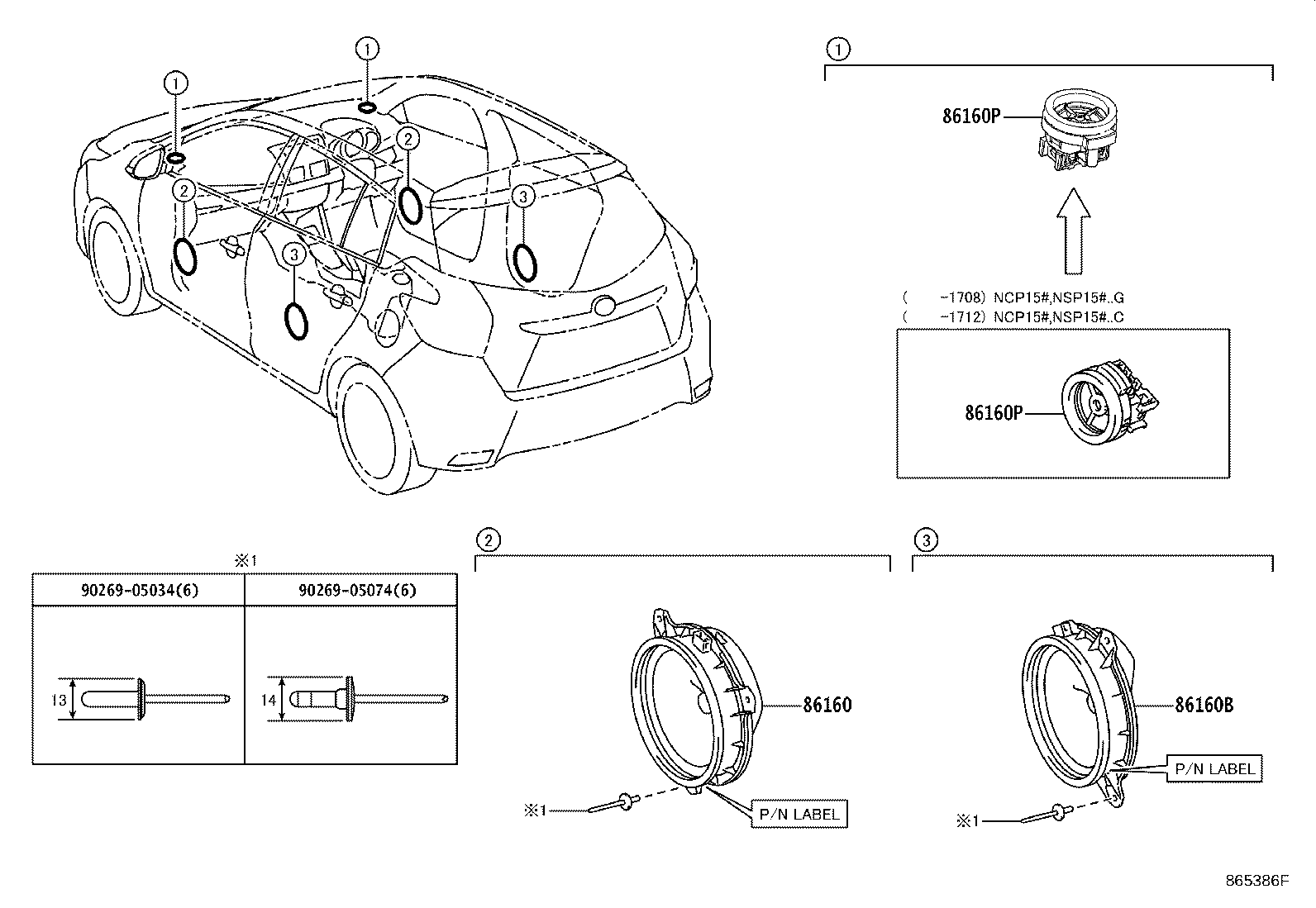

Click highlighted areas on diagram

diagram 86160 86160B 86160P 86160P 9026905034 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0D400

NCP150..C

 2
86160B - SPEAKER ASSY, REAR
86160-0D400

NCP150..C

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0K280

NCP150..4FC..R..C

BRUNEI SPEC

 2
86160-0K280

NCP150..(G,V)..C

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0K280

NCP150..4FC..R..C

BRUNEI SPEC

 2
86160-0K280

NCP150..(G,V)..C

 2
Common parts
90269-05034
90269-05074
