NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NCP15#,NSP152 ; (1310-1710)CVT..D ; (1310-1710)NSP150,151..GCC,GEN,PH,VN

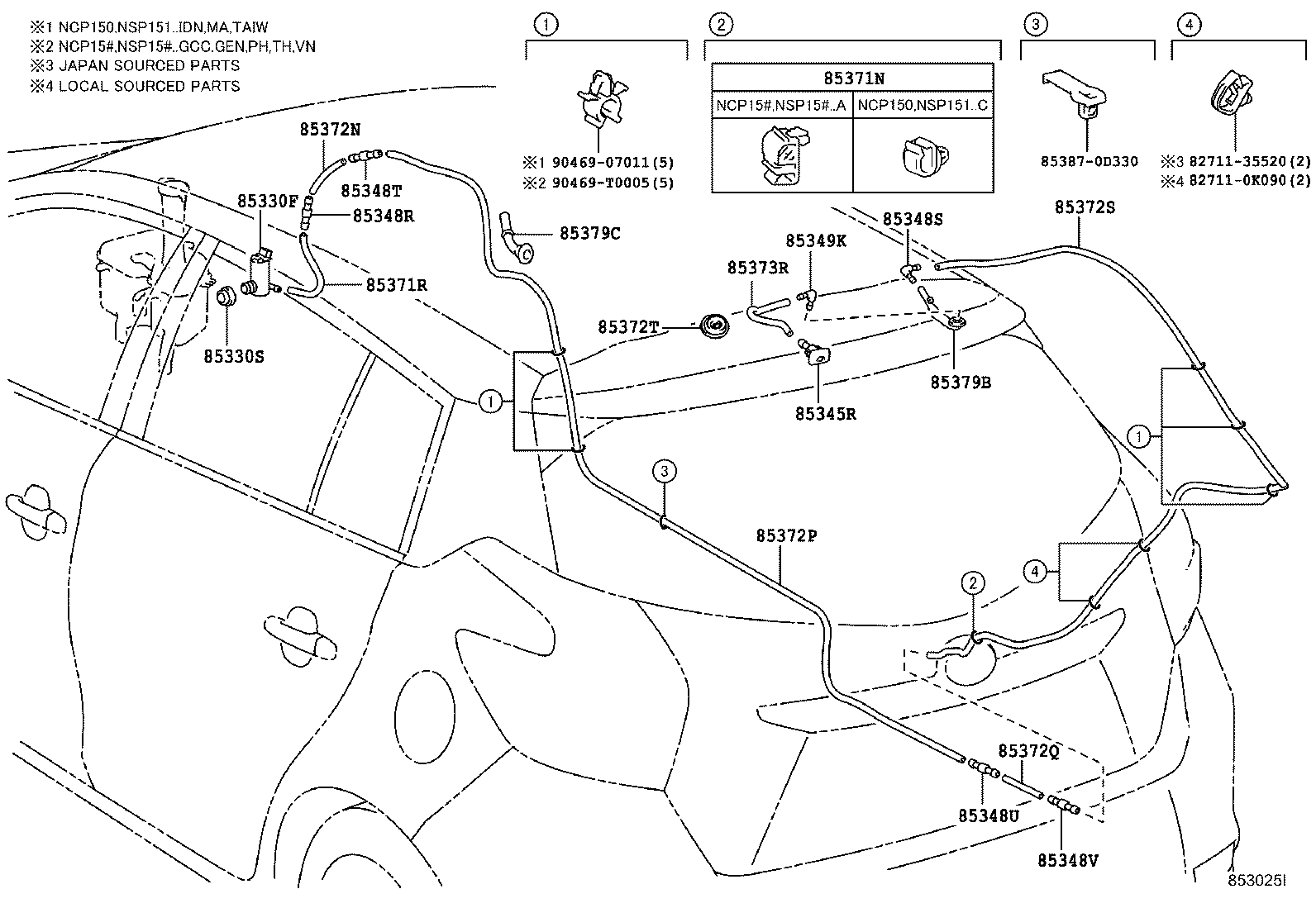

Click highlighted areas on diagram

diagram 827110K090 8271135520 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85349K 85371N 85371R 85372N 85372P 85372Q 85372S 85372T 85373R 85379B 85379C 853870D330 9046907011 90469T0005
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-0D170

NCP150..C

 1
85330-0D170

NCP150..C

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

NCP150..C

 1
90099-32089

NCP150..C

 1
85345R - NOZZLE, REAR WASHER
85391-0D060

NCP150..C

 1
85391-0D060

NCP150..C

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

NCP150..C

 1
85349-89122

NCP150..C

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

NCP150..C

 1
85355-20200

NCP150..C

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

NCP150..C

 1
85349-89122

NCP150..C

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

NCP150..C

 1
85349-89122

NCP150..C

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

NCP150..C

 1
85349-89122

NCP150..C

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

NCP150..C

 1
85355-20200

NCP150..C

 1
85371N - CLAMP, REAR WASHER HOSE
85371-52130

NCP150..C

 1
85371-52130

NCP150..C

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90068-59137

NCP150..C

L=160

 1
90068-59137

NCP150..C

L=160

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90068-33120

NCP150..C

L=50

 1
90068-33120

NCP150..C

L=50

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90068-59135

NCP150..C

L=2320

 1
90068-59135

NCP150..C

L=2320

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90068-33120

NCP150..C

L=50

 1
90068-33120

NCP150..C

L=50

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90068-59136

NCP150..C

L=2290

 1
90068-59136

NCP150..C

L=2290

 1
85372T - GROMMET, WASHER
85373-0D090

NCP150..C

 1
85373-0D090

NCP150..C

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90068-33256

NCP150..C

L=235

 1
90068-33256

NCP150..C

L=235

 1
85379B - GROMMET, WASHER, A
85373-12030

NCP15#,NSP152..A

 1
85373-12030

NCP15#,NSP152..A

 1
85373-0D080

NCP150..C

 1
85373-0D080

NCP150..C

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85379-52530

NCP150..C

 1
85379-52530

NCP150..C

 1
Common parts
82711-0K090
82711-35520
85387-0D330
90469-07011
90469-T0005
