NCP150R-CHPGKE (2014)
Toyota Yaris
Production
Mar 2014
-
Sep 2016
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1310-1709)NCP15#,NSP150,152 ; (1310-1709)NSP151..GCC,GEN,PH,VN ; (1409-1712)NSP151

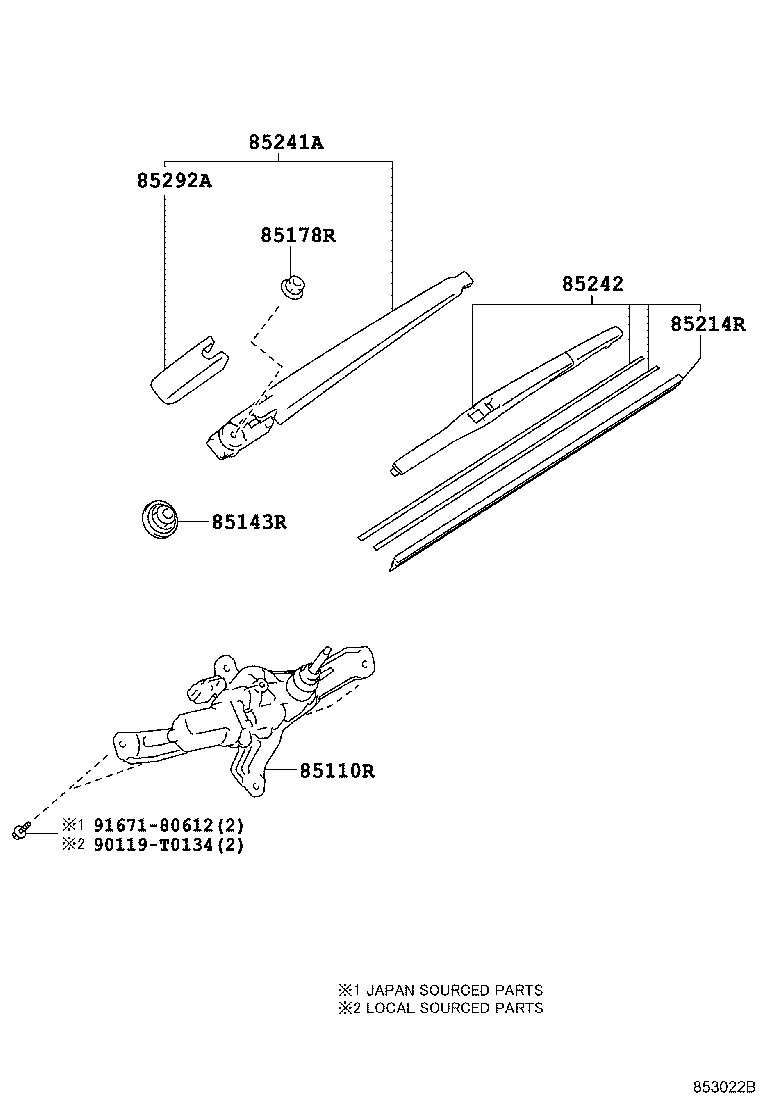

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-0D100 |
NCP150..C |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-0D070 |
NCP150..C |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90182-T0005 |
NCP150..C |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-0D370 |
NCP150..C |
1 | ||
| 85214-0D260 |
NCP150..C |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-0D040 |
NCP150..C |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-0D050 |
NCP150..C |
1 | ||
| 85242-0D110 |
NCP150..C |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-0D080 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90119-T0134 | ||||
| 91671-80612 | ||||
