NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )GCC,GEN,IDN,PH,SA,TAIW,TH,VN..A,C,F

Click highlighted areas on diagram

diagram 89780
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-0D120

NCP150..IDN..(G,R)

 1
89780-0D120

NCP150..4FC..IDN..G

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
89780-0D120

NCP150..4FC..IDN..G

BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1

(1403- )MA

Click highlighted areas on diagram

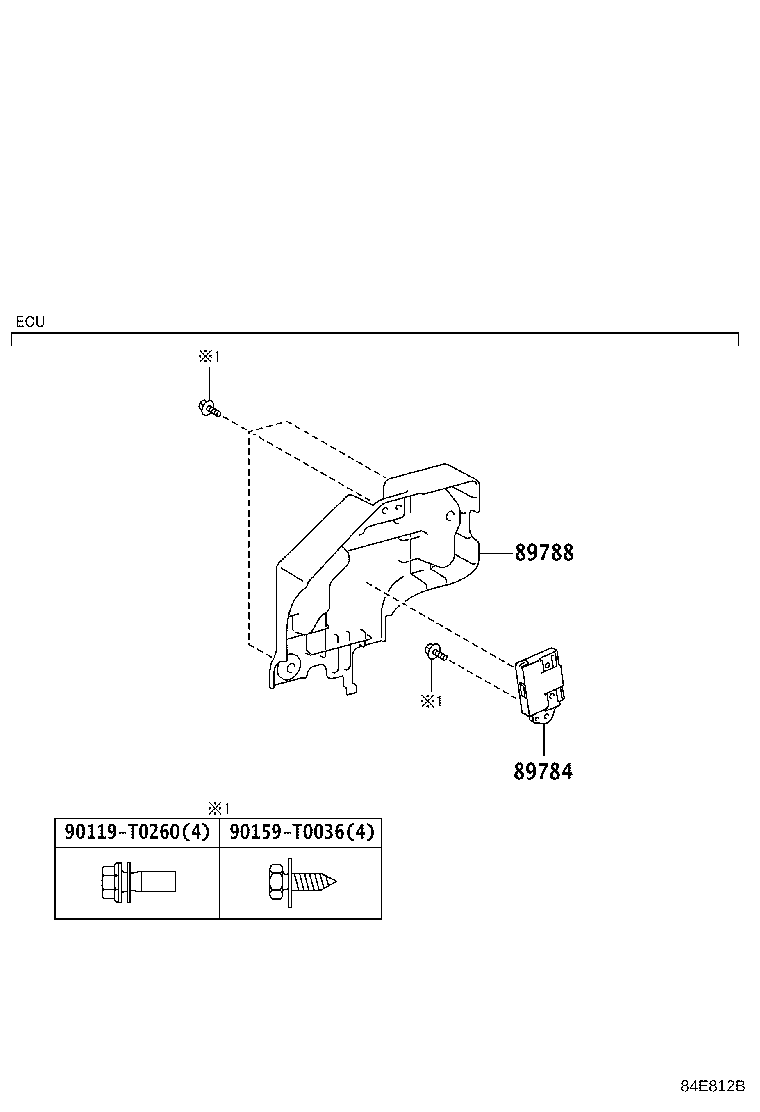

diagram 89784 89788 90119T0260 90159T0036
Part # Description Qty Price
89784 - COMPUTER, IMMOBILIZER CODE
89784-52040

NCP150..MA

 1
89788 - BRACKET, TRANSPONDER KEY
89788-0D010

NCP150..MA

 1
Common parts
90119-T0260
90159-T0036
