NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1708)NCP15#,NSP150,152 ; (1310-1708)NSP151..GCC,GEN,PH,VN ; (1605- )TAIW..

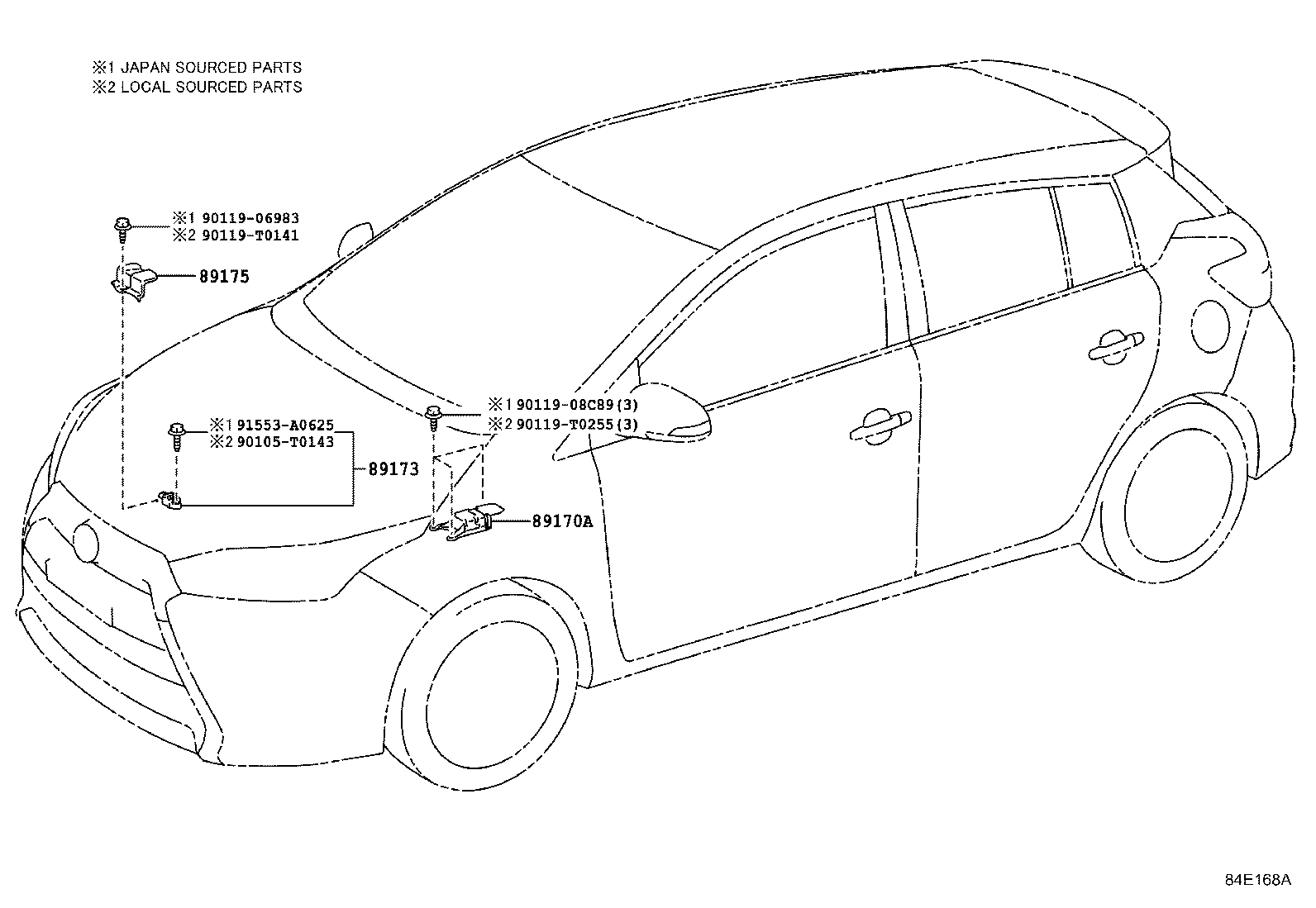

Click highlighted areas on diagram

diagram 89170A 89173 89175 90105T0143 9011906983 9011908C89 90119T0141 90119T0255 91553A0625
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-0D690

NCP150..C

 1
89173 - SENSOR, AIR BAG, FRONT
89173-59295

NCP15#,NSP152

 1
89173-09B90

NCP150..C

 1
89175 - BRACKET, AIR BAG SENSOR
89175-0D060

NCP150..C

 1
Common parts
90105-T0143
90119-06983
90119-08C89
90119-T0141
90119-T0255
91553-A0625
