NCP150R-CHPGKE (2014)
Toyota Yaris

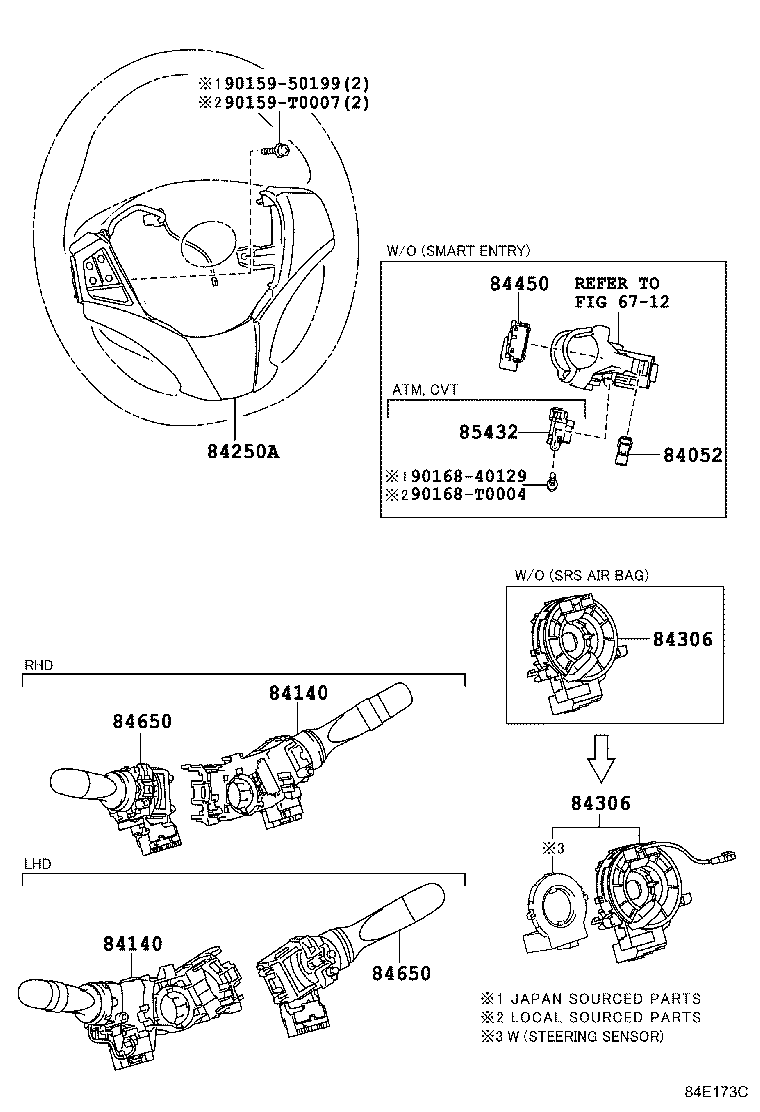

ILLUST NO. 6 OF 7(1310-1708)NCP15#,NSP150,152 ; (1310-1708)NSP151..GCC,GEN,PH,VN ; (1605-1802)TAIW ;
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
NCP150..IDN..(G,R) |
1 | ||
| 84052-0K020 |
NCP150..4FC..IDN..G WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D340 |
NCP150..MA |
1 | ||
| 84140-06350 |
NCP150..IDN..(G,V) |
1 | ||
| 84140-02780 |
NCP150..R..C |
1 | ||
| 84140-06350 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D340 |
NCP150..MA |
1 | ||
| 84140-06350 |
NCP150..IDN..(G,V) |
1 | ||
| 84140-02780 |
NCP150..R..C |
1 | ||
| 84140-06350 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D200C0 |
NCP150..4FC..IDN..G BRUNEI SPEC,BLACK,TRIM0#,2# |
1 | ||
| 84250-0D200C0 |
NCP150..MA BLACK,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D140 |
NCP150..IDN..(G,R) |
1 | ||
| 84306-06080 |
NCP15#..D;NCP15#..(GCC,PH,VN)..R |
1 | ||
| 84306-0D120 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 84306-0D120 |
NCP150..MA;NCP150..V..C |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D140 |
NCP150..IDN..(G,R) |
1 | ||
| 84306-06080 |
NCP15#..D;NCP15#..(GCC,PH,VN)..R |
1 | ||
| 84306-0D120 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 84306-0D120 |
NCP150..MA;NCP150..V..C |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06030 |
NCP150..IDN..(G,R) |
1 | ||
| 84450-06030 |
NCP150..4FC..IDN..G WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K150 |
NCP150..(G,V)..C |
1 | ||
| 84652-0K190 |
NCP150..R..C |
1 | ||
| 84652-0K151 |
NCP150..G,V |
1 | ||
| 84652-0K191 |
NCP150..R |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K150 |
NCP150..(G,V)..C |
1 | ||
| 84652-0K190 |
NCP150..R..C |
1 | ||
| 84652-0K151 |
NCP150..G,V |
1 | ||
| 84652-0K191 |
NCP150..R |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-0D010 |
NCP150..4FC..IDN..(G,R) |
1 | ||
| 85432-06020 |
NCP15#..4FC..(GCC,IDN)..G WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85432-06020 |
NCP151..4FC..R;NCP151..GCC..G;NCP150,NSP152..(ATM,CVT)..(GCC,GEN,IDN,PH,TH)..(D,G,R) |
1 | ||
| 85432-0D010 |
NCP150..4FC..IDN..G WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-T0007 | ||||
| 90168-40129 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 6712 | ||||

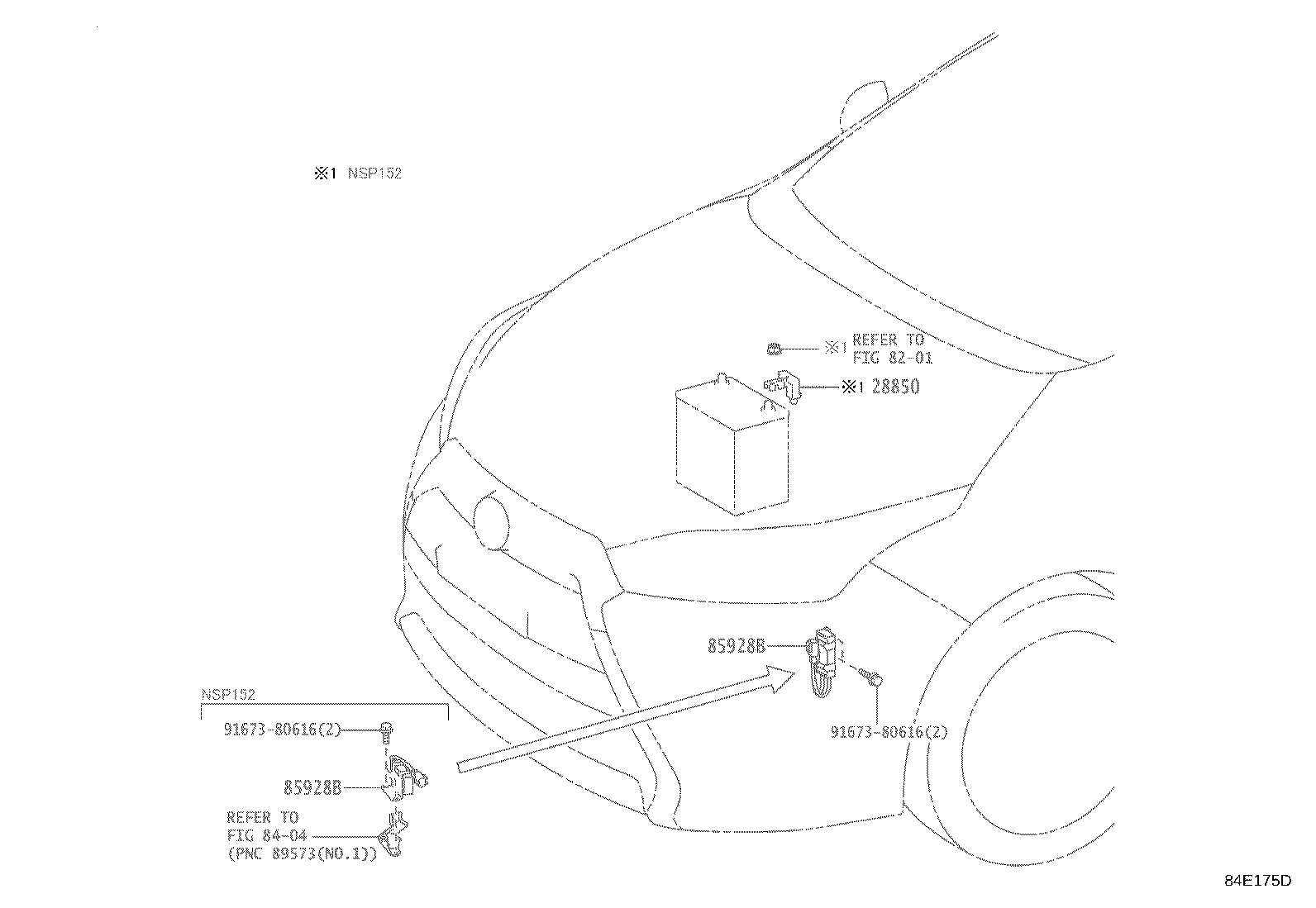

ILLUST NO. 2 OF 7(1310-1708)NCP15#,NSP150,152 ; (1310-1708)NSP151..GCC,GEN,PH,VN ; (1605-1802)TAIW ;
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| 85928-0D020 |
NCP150..C |
1 | ||
| 85928-0D020 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| 85928-0D020 |
NCP150..C |
1 | ||
| 85928-0D020 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8404 | ||||

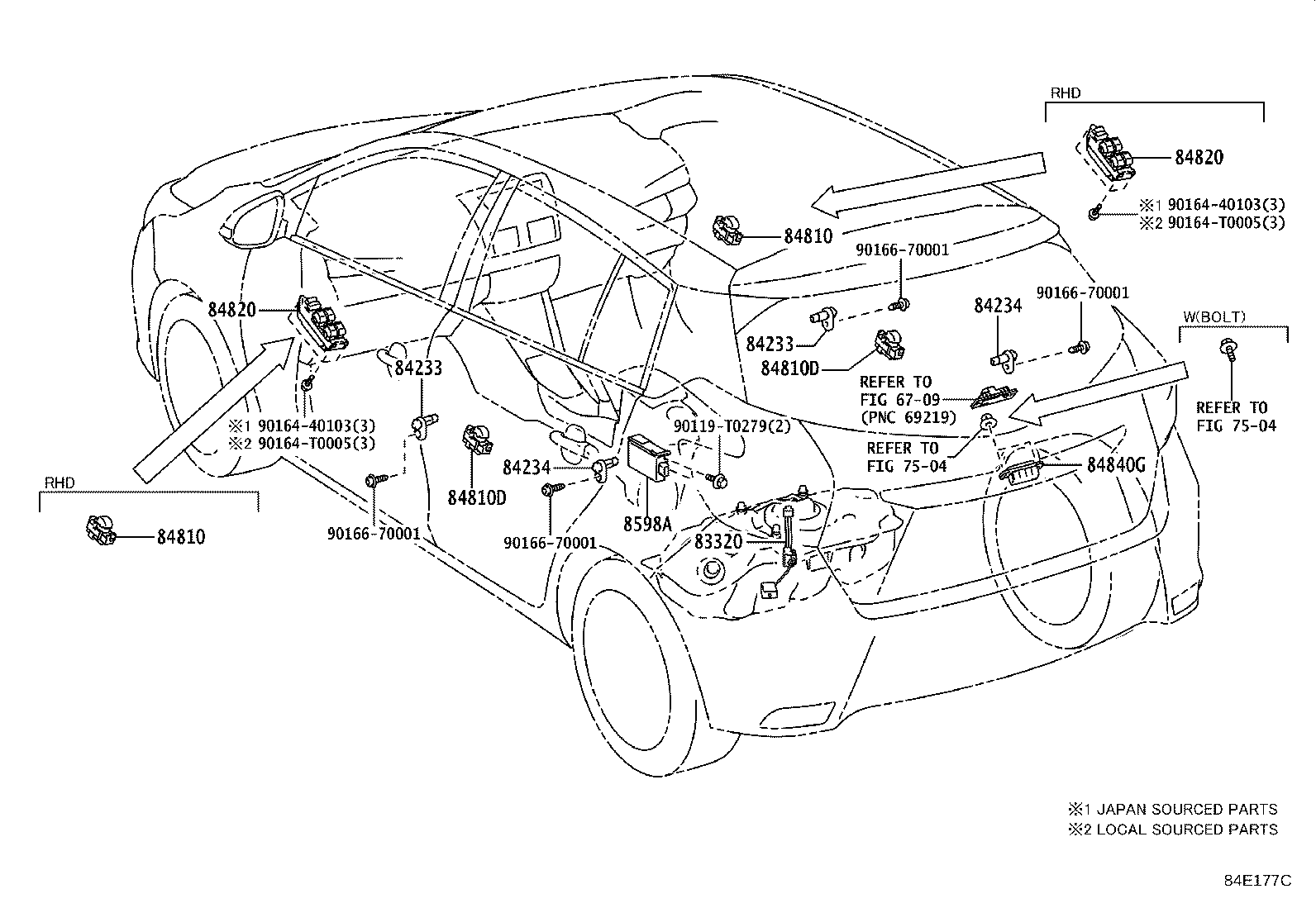

ILLUST NO. 7 OF 7(1310-1708)NCP15#,NSP150,152 ; (1310-1708)NSP151..GCC,GEN,PH,VN ; (1605-1802)TAIW ;
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D150 |
NCP150..C |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D080 |
NCP150..C |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D080 |
NCP150..C |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D080 |
NCP150..C |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D080 |
NCP150..C |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D120 |
NCP150..C |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D120 |
NCP150..C |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D120 |
NCP150..C |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D120 |
NCP150..C |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D400 |
NCP150..C |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D400 |
NCP150..C |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NCP150..IDN..(G,R) |
1 | ||
| 84840-28040 |
NCP150..4FC..IDN..G BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28040 |
NCP150..MA;NCP150..V..C |
1 | ||
| Common parts | ||||
| 90119-T0279 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||
| Linked diagrams | ||||
| 6709 | ||||
| 7504 | ||||

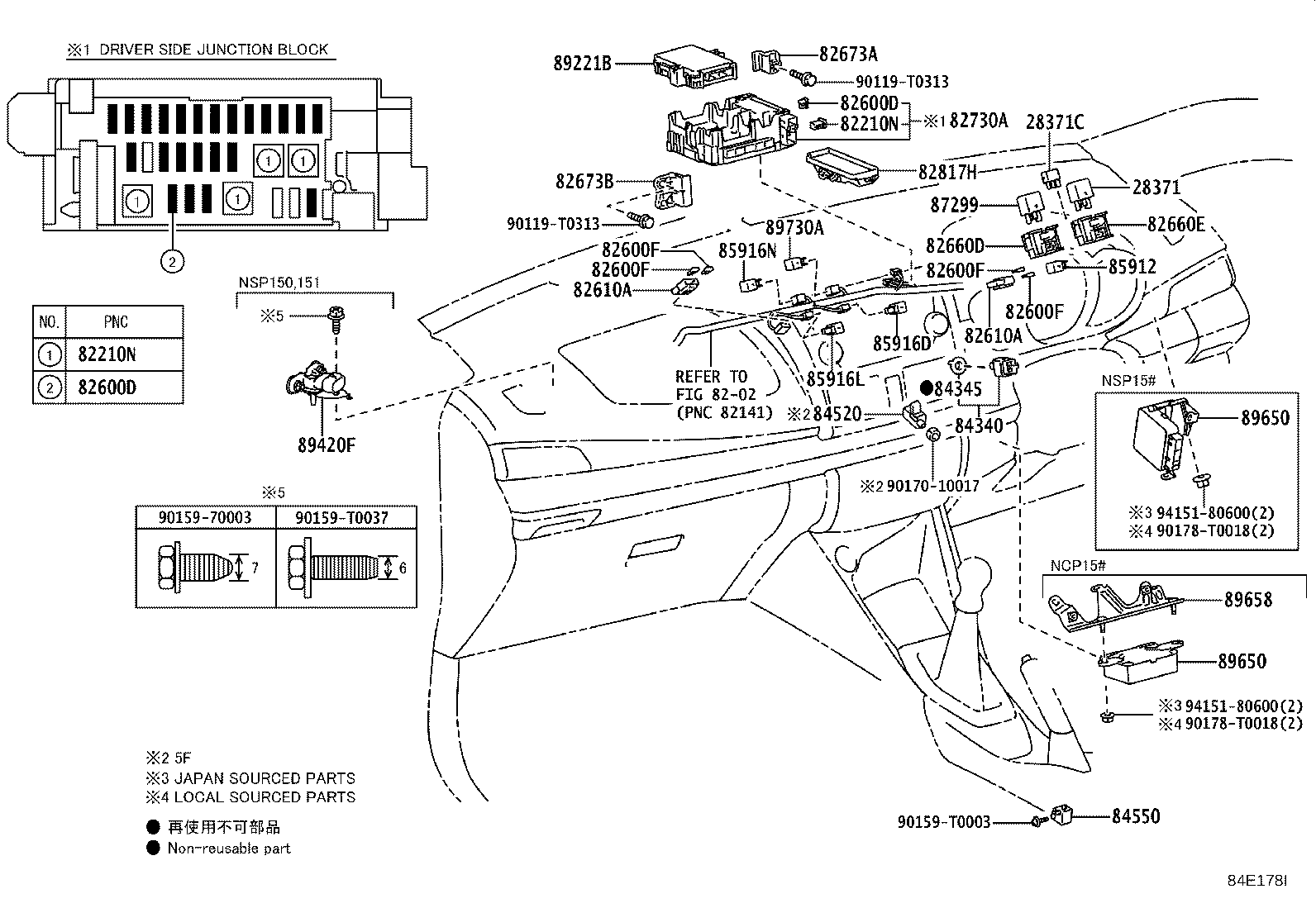

ILLUST NO. 4 OF 7(1310-1708)NCP15#,NSP150,152..RHD ; (1610-1802)C
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2009 |
1NZFE..NCP150..MA;1NZFE..NCP150..V..C |
1 | ||
| 90987-T2009 |
1NZFE..NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
1NZFE..NCP150..MA;1NZFE..NCP150..V..C (J) |
1 | ||
| 90987-02027 |
1NZFE..NCP150..4FC..IDN..G BRUNEI SPEC,(J) |
1 | ||
| 90987-T2001 |
1NZFE..NCP150..MA;1NZFE..NCP150..V..C (L) |
1 | ||
| 90987-T2001 |
1NZFE..NCP150..4FC..IDN..G BRUNEI SPEC,(L) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NCP150..C 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NCP150..C 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NCP150..C 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NCP150..C 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
NCP150..C 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NCP150..C 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NCP150..C 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NCP150..C 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NCP150..C 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NCP150..C 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
NCP150..C 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NCP150..C 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NCP150..C 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NCP150..C 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NCP150..C 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NCP150..C 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN 5A,MINI FUSE,TAN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN |
2 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN |
2 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D050 |
NCP150..C |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D040 |
NCP150..C |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0D510 |
NCP150..C |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-0D390 |
NCP150..C |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09040 |
NCP150..C |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
NCP150..C |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
NCP150..C |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NCP150..G..C (J) |
1 | ||
| 90987-02027 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC,(J) |
1 | ||
| 90987-T2001 |
NCP150..4FC..R..C BRUNEI SPEC,(L) |
1 | ||
| 90987-T2001 |
NCP150..G..C (L) |
1 | ||
| 90987-02027 |
NCP150..4FC..IDN..G SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP)),(J) |
1 | ||
| 90987-T2001 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 90987-02027 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC,(J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
NCP150..(G,V)..C |
1 | ||
| 90987-T2001 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2001 |
NCP150..MA |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
NCP150..C |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T2002 |
NCP150..C (L) |
1 | ||
| 90987-02025 |
NCP150..C (J) |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D340 |
NCP150..IDN |
1 | ||
| 89221-0D341 |
NCP150..IDN |
1 | ||
| 89221-0D391 |
NCP150..MA |
1 | ||
| 89221-0D390 |
NCP150..MA |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D470 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 89650-0D470 |
NCP150..R..C |
1 | ||
| 89650-0D430 |
NCP150..(G,V)..C |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D470 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 89650-0D470 |
NCP150..R..C |
1 | ||
| 89650-0D430 |
NCP150..(G,V)..C |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-0D051 |
NCP150..4FC..IDN..G BRUNEI SPEC,EXCEPT INDONESIA |
1 | ||
| 89658-0D090 |
NCP150..R..C INDONESIA |
1 | ||
| 89658-0D090 |
NCP150..4FC..IDN..G BRUNEI SPEC,INDONESIA |
1 | ||
| 89658-0D051 |
NCP150..R..C EXCEPT INDONESIA |
1 | ||
| 89658-0D090 |
NCP150..(G,V)..C |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2001 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90159-70003 | ||||
| 90159-T0003 | ||||
| 90159-T0037 | ||||
| 90170-10017 | ||||
| 90178-T0018 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

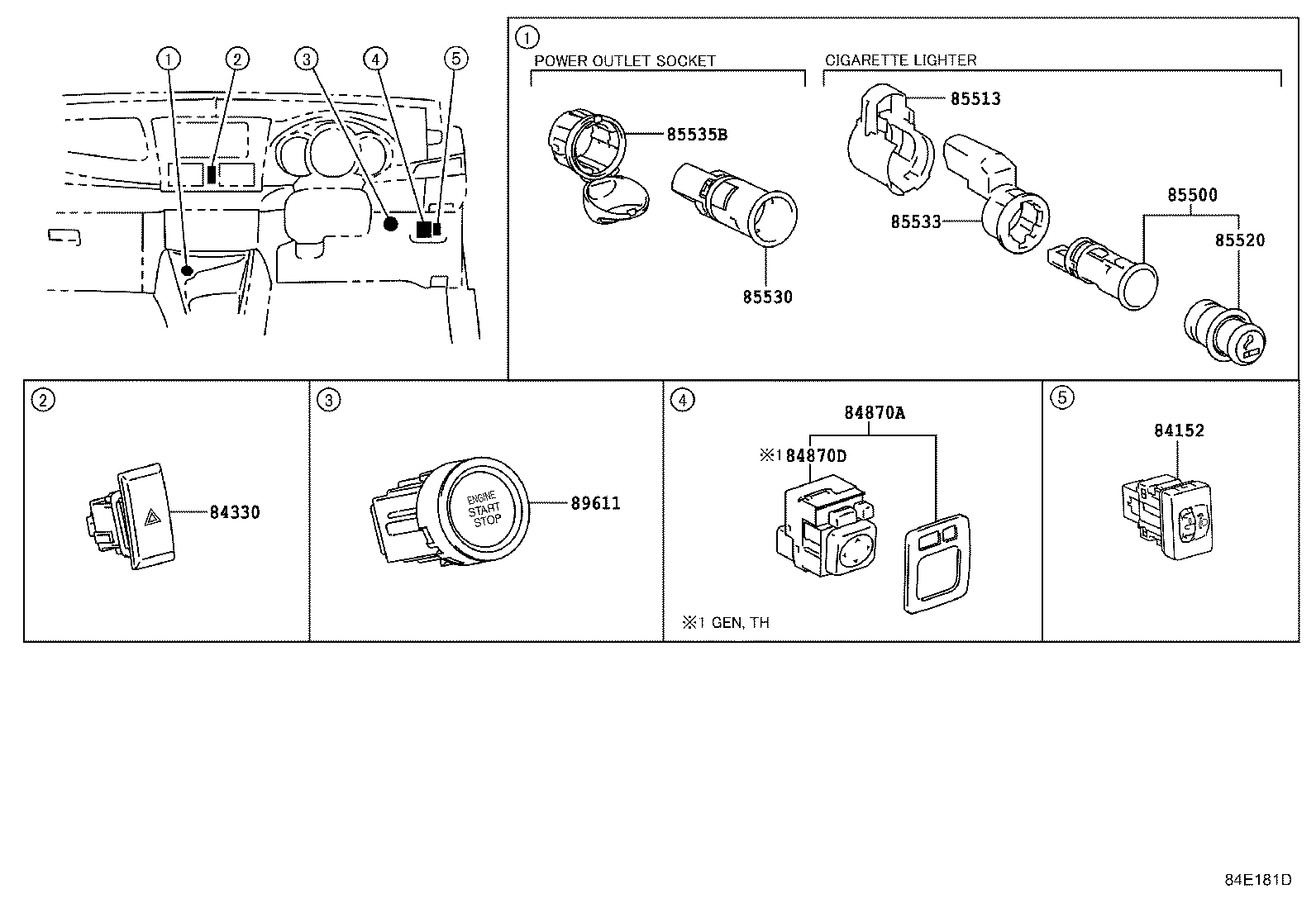

ILLUST NO. 5 OF 7(1310-1708)NCP15#,NSP150,152..RHD ; (1610-1802)C
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D151 |
NCP150..MA |
1 | ||
| 84152-0D150 |
NCP150..MA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0D170 |
NCP150..C |
1 | ||
| 84332-0D171 |
NCP150..C |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D100 |
NCP150..IDN..(G,R) |
1 | ||
| 84870-0K050 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 84870-0K050 |
NCP150..MA;NCP150..V..C |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D060 |
NCP150..C |
1 | ||
| 85530-0K010 |
NCP150..4FC..D LATIN AMERICA SPEC |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0D021 |
NCP150..4FC..D LATIN AMERICA SPEC |
1 | ||
| 85535-0D070 |
NCP150..C |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52032 |
NCP150..4FC..IDN..G BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-52032 |
NCP150..V..C;NCP15#..(GEN,MA,VN)..G |
1 | ||
| 89611-52033 |
NCP150..V..C;NCP15#..(GEN,MA,VN)..G |
1 | ||
| 89611-52033 |
NCP150..4FC..IDN..G BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-52034 |
NCP150..4FC..IDN..G BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-52034 |
NCP150..V;NCP150..MA |
1 | ||

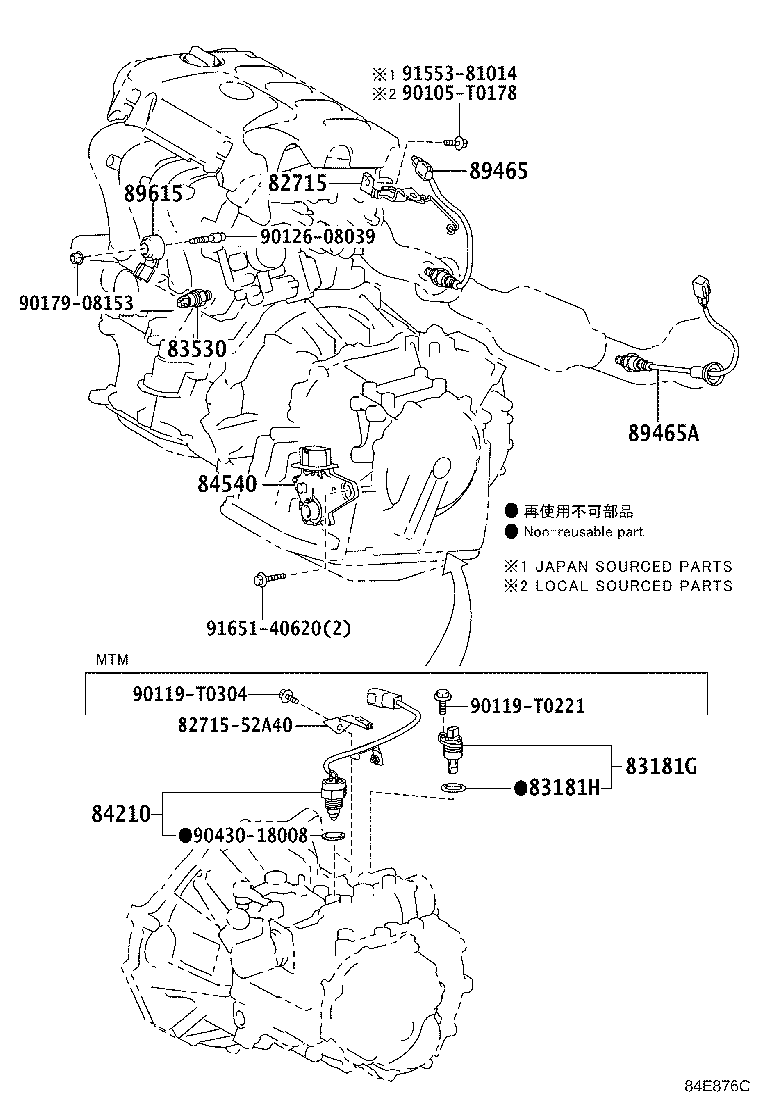

ILLUST NO. 1 OF 7(1403- )NCP15#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-5C120 |
NCP150..C |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP150..C YAZAKI |
1 | ||
| 83530-28020 |
NCP150..C DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-46010 |
NCP15#..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52380 |
NCP150..C |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52700 |
NCP150..C |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP150..C |
1 | ||
| Common parts | ||||
| 82715-52A40 | ||||
| 90105-T0178 | ||||
| 90119-T0221 | ||||
| 90119-T0304 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
ILLUST NO. 3 OF 7(1310-1708)NCP15#,NSP150,152 ; (1310-1708)NSP151..GCC,GEN,PH,VN ; (1605-1802)TAIW ;
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L010 |
1NZFE,2NZFE,3NRFE..NCP15#,NSP152 |
1 | ||
| 28300-0L011 |
1NZFE,2NZFE..NCP15#..A |
1 | ||
| 28300-0L011 |
1NZFE..NCP150..C |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NCP150..C 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08295 |
NCP150..C 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NCP150..C 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
NCP150..C 50A-30A-50A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
NCP150..C 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NCP150..C 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NCP150..C 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NCP150..C 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NCP150..C 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NCP150..C 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NCP150..C |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NCP150..C |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NCP150..C |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0D060 |
NCP150..C |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP150..C |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP150..(G,V)..C |
1 | ||
| 82660-52010 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 82660-26270 |
NCP150..R..C |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NCP150..C |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D230 |
NCP150..(G,V)..C |
1 | ||
| 82662-0D230 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 82662-0D210 |
NCP150..R..C |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D090 |
NCP150..C |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D100 |
NCP150..C |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
NCP150..C |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2003 |
NCP150..R..C |
1 | ||
| 90987-T2001 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 90987-T2001 |
NCP150..(G,V)..C |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2001 |
NCP150..C (L) |
1 | ||
| 90987-02027 |
NCP150..C (J) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
NCP150..C (L) |
1 | ||
| 90987-04004 |
NCP150..C (J) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NCP150..C |
1 | ||
| 90987-02028 |
NCP150..4FC..IDN..(G,R) SINGAPORE & BRUNEI SPEC |
1 | ||
| 90987-02028 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 91671-80620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
