NCP150R-CHPGKE (2014)
Toyota Yaris

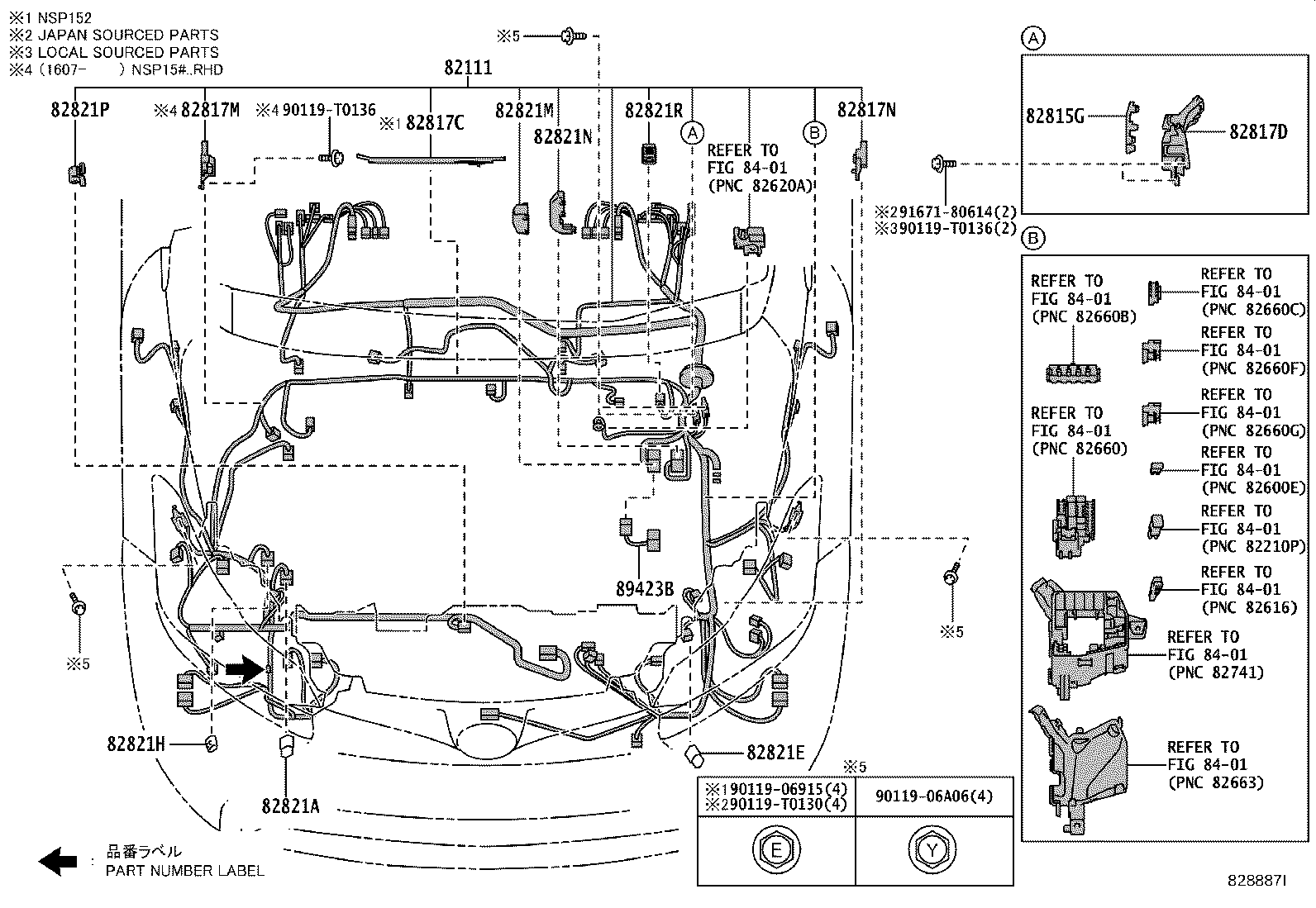

ILLUST NO. 1 OF10(1310- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0UC70 |
NCP150..4FC..IDN..G |
1 | ||
| 82111-0UD10 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82111-0UD00 |
NCP150..MA |
1 | ||
| 82111-0UC70 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 82111-0UC90 |
NCP150..4FC..R..C |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-0D240 |
NCP150..C |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0D580 |
NCP150..C |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-10050 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20390 |
NCP150..4FC..IDN..(G,R) BRUNEI SPEC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90119-T0130 | ||||
| 90119-T0136 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

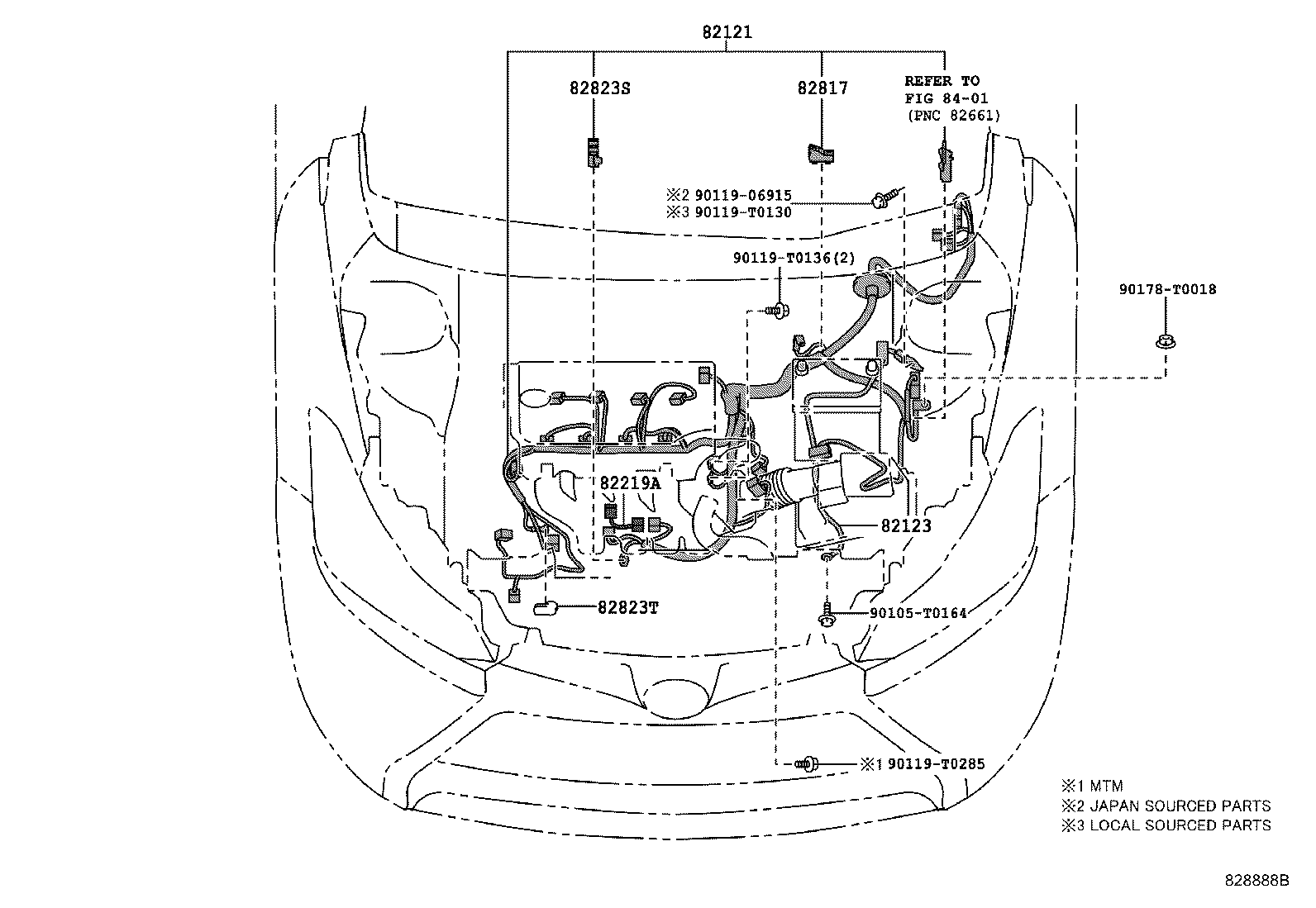

ILLUST NO. 2 OF10(1403- )NCP15#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0DM20 |
NCP150..4FC..C |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0D510 |
NCP150..4FC..C |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-0D120 |
NCP150..C |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP150..C |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90105-T0164 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90119-T0136 | ||||
| 90119-T0285 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 8401 | ||||

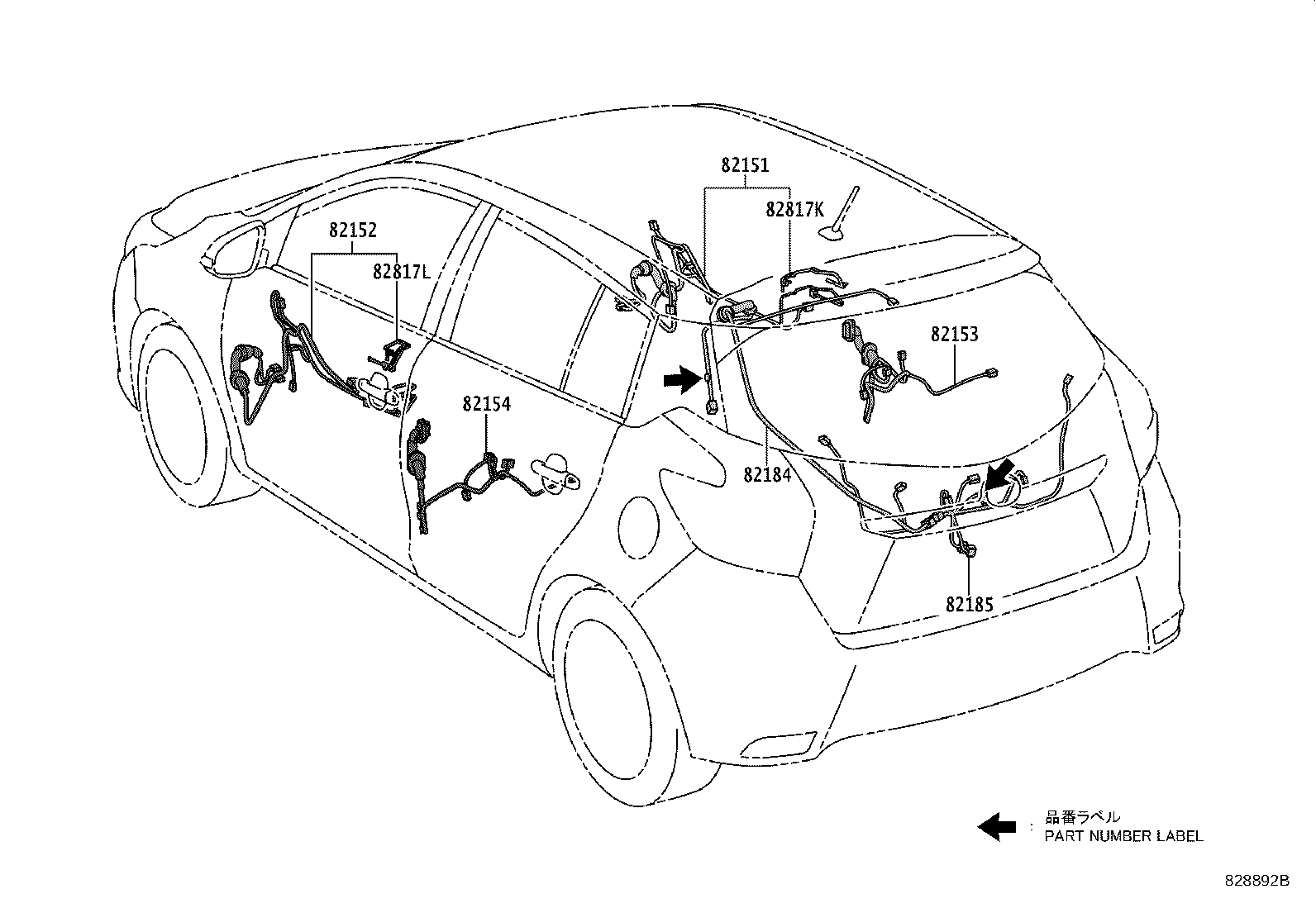

ILLUST NO. 4 OF10(1310- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0DK60 |
NCP150..IDN..(G,R) |
1 | ||
| 82151-0DK90 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82151-0DK90 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0DK90 |
NCP150..IDN..(G,R) |
1 | ||
| 82152-0DL20 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82152-0DL20 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0D610 |
NCP150..IDN..(G,R) |
1 | ||
| 82153-0D630 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82153-0D630 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0D500 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82154-0D500 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82154-0D480 |
NCP150..IDN..(G,R) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0D370 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82184-0D370 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82184-0D360 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 82184-0D380 |
NCP150..R..C |
1 | ||
| 82184-0D360 |
NCP150..IDN..G |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0D420 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82185-0D430 |
NCP150..R..C |
1 | ||
| 82185-0D410 |
NCP150..IDN..G |
1 | ||
| 82185-0D420 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 82185-0D410 |
NCP150..4FC..R..C BRUNEI SPEC |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-0D560 |
NCP150..MA;NCP150..V..C |
1 | ||
| 82817-0D560 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||

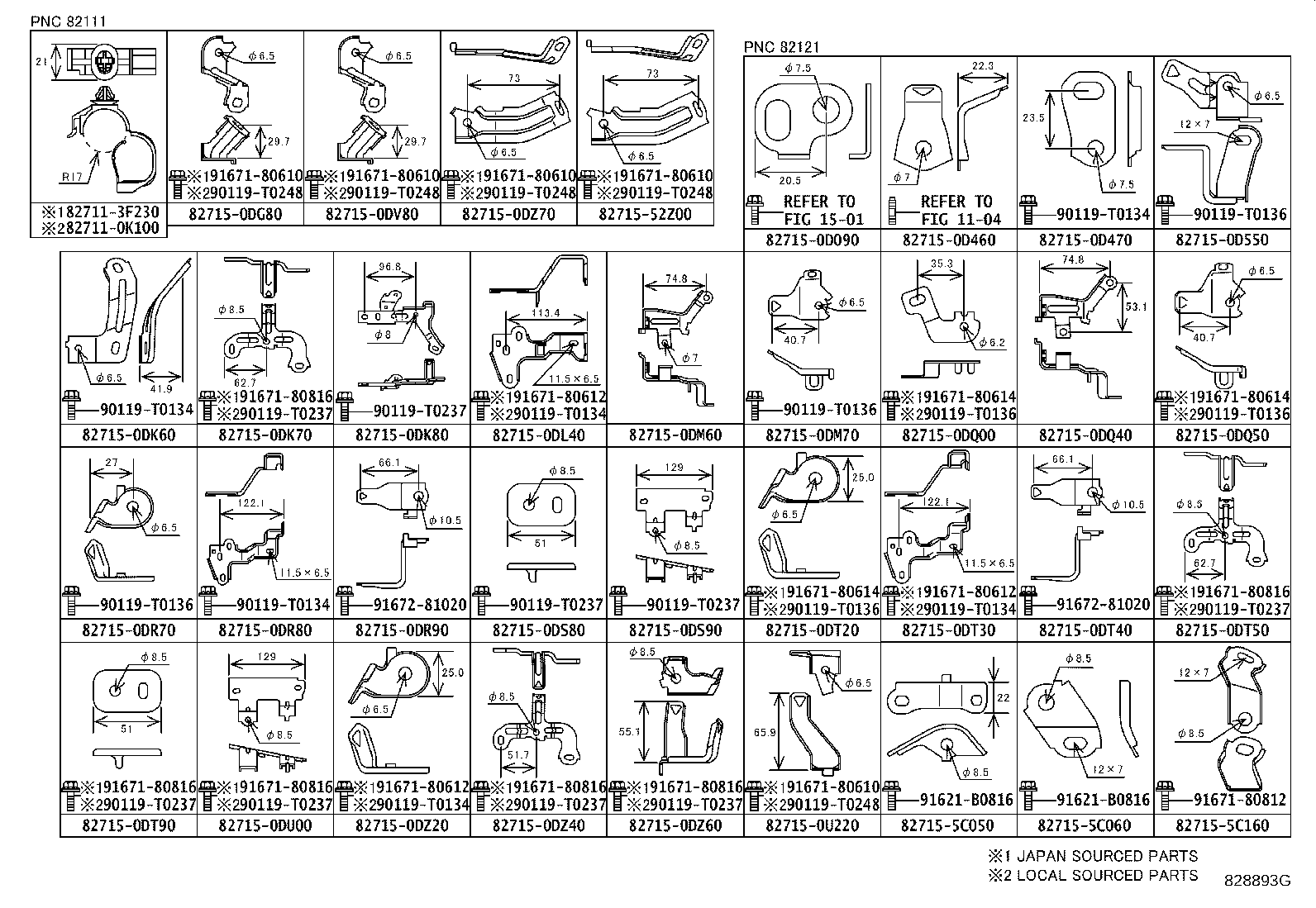

ILLUST NO. 5 OF10(1310- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-0K100 | ||||
| 82711-3F230 | ||||
| 82715-0D090 | ||||
| 82715-0D460 | ||||
| 82715-0D470 | ||||
| 82715-0D550 | ||||
| 82715-0DG80 | ||||
| 82715-0DK60 | ||||
| 82715-0DK70 | ||||
| 82715-0DK80 | ||||
| 82715-0DL40 | ||||
| 82715-0DM60 | ||||
| 82715-0DM70 | ||||
| 82715-0DQ00 | ||||
| 82715-0DQ40 | ||||
| 82715-0DQ50 | ||||
| 82715-0DR70 | ||||
| 82715-0DR80 | ||||
| 82715-0DR90 | ||||
| 82715-0DS80 | ||||
| 82715-0DS90 | ||||
| 82715-0DT20 | ||||
| 82715-0DT30 | ||||
| 82715-0DT40 | ||||
| 82715-0DT50 | ||||
| 82715-0DT90 | ||||
| 82715-0DU00 | ||||
| 82715-0DV80 | ||||
| 82715-0DZ20 | ||||
| 82715-0DZ40 | ||||
| 82715-0DZ60 | ||||
| 82715-0DZ70 | ||||
| 82715-0U220 | ||||
| 82715-52Z00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C160 | ||||
| 90119-T0134 | ||||
| 90119-T0136 | ||||
| 90119-T0237 | ||||
| 90119-T0248 | ||||
| 91621-B0816 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91672-81020 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1501 | ||||

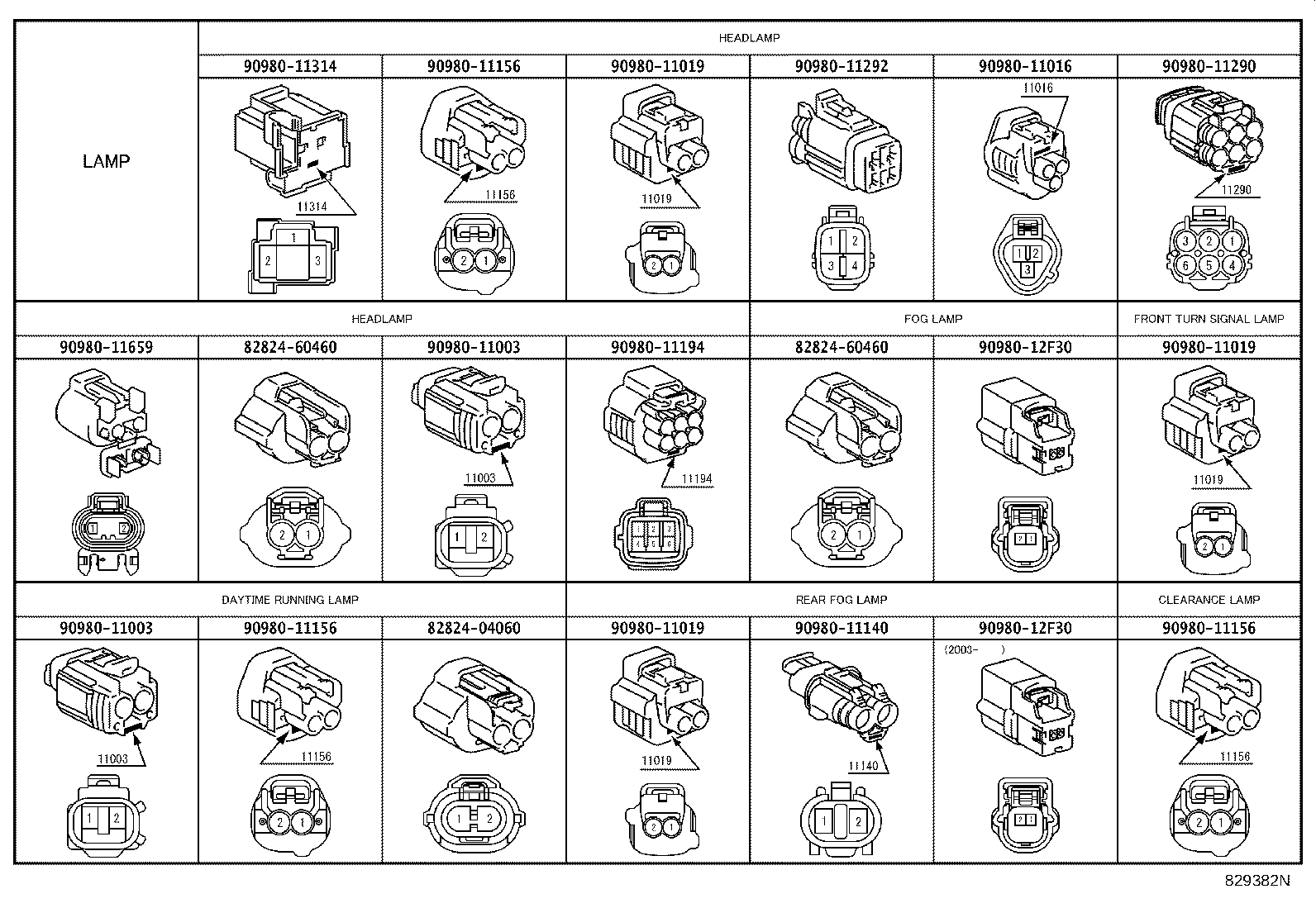

ILLUST NO. 8 OF10(1310- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-04060 | ||||
| 82824-60460 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11140 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11290 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-12F30 | ||||

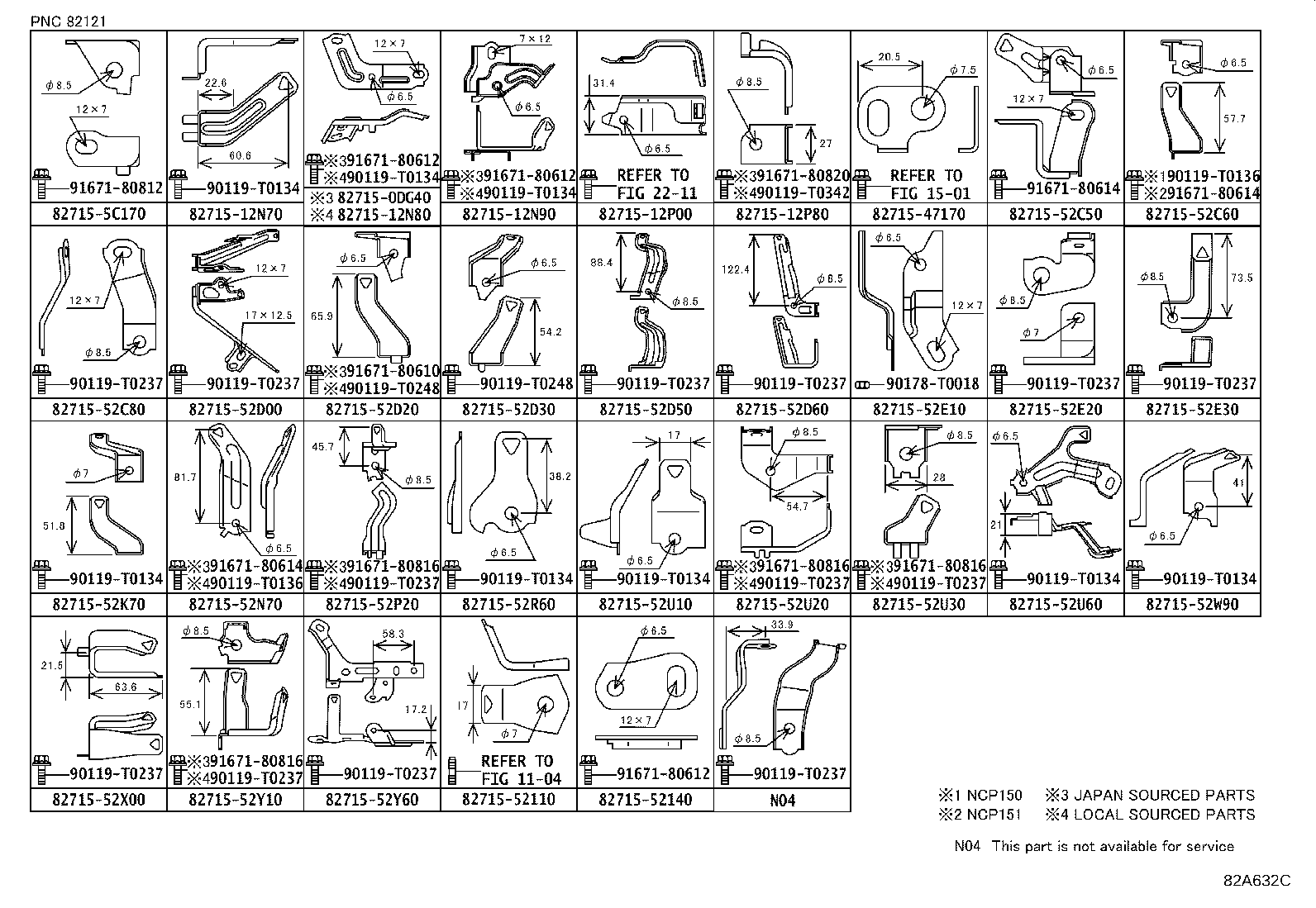

ILLUST NO. 6 OF10(1310- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0DG40 | ||||
| 82715-12N70 | ||||
| 82715-12N80 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P80 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52140 | ||||
| 82715-52C50 | ||||
| 82715-52C60 | ||||
| 82715-52C80 | ||||
| 82715-52D00 | ||||
| 82715-52D20 | ||||
| 82715-52D30 | ||||
| 82715-52D50 | ||||
| 82715-52D60 | ||||
| 82715-52E10 | ||||
| 82715-52E20 | ||||
| 82715-52E30 | ||||
| 82715-52K70 | ||||
| 82715-52N70 | ||||
| 82715-52P20 | ||||
| 82715-52R60 | ||||
| 82715-52U10 | ||||
| 82715-52U20 | ||||
| 82715-52U30 | ||||
| 82715-52U60 | ||||
| 82715-52W90 | ||||
| 82715-52X00 | ||||
| 82715-52Y10 | ||||
| 82715-52Y60 | ||||
| 82715-5C170 | ||||
| 90119-T0134 | ||||
| 90119-T0136 | ||||
| 90119-T0237 | ||||
| 90119-T0248 | ||||
| 90119-T0342 | ||||
| 90178-T0018 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1501 | ||||
| 2211 | ||||

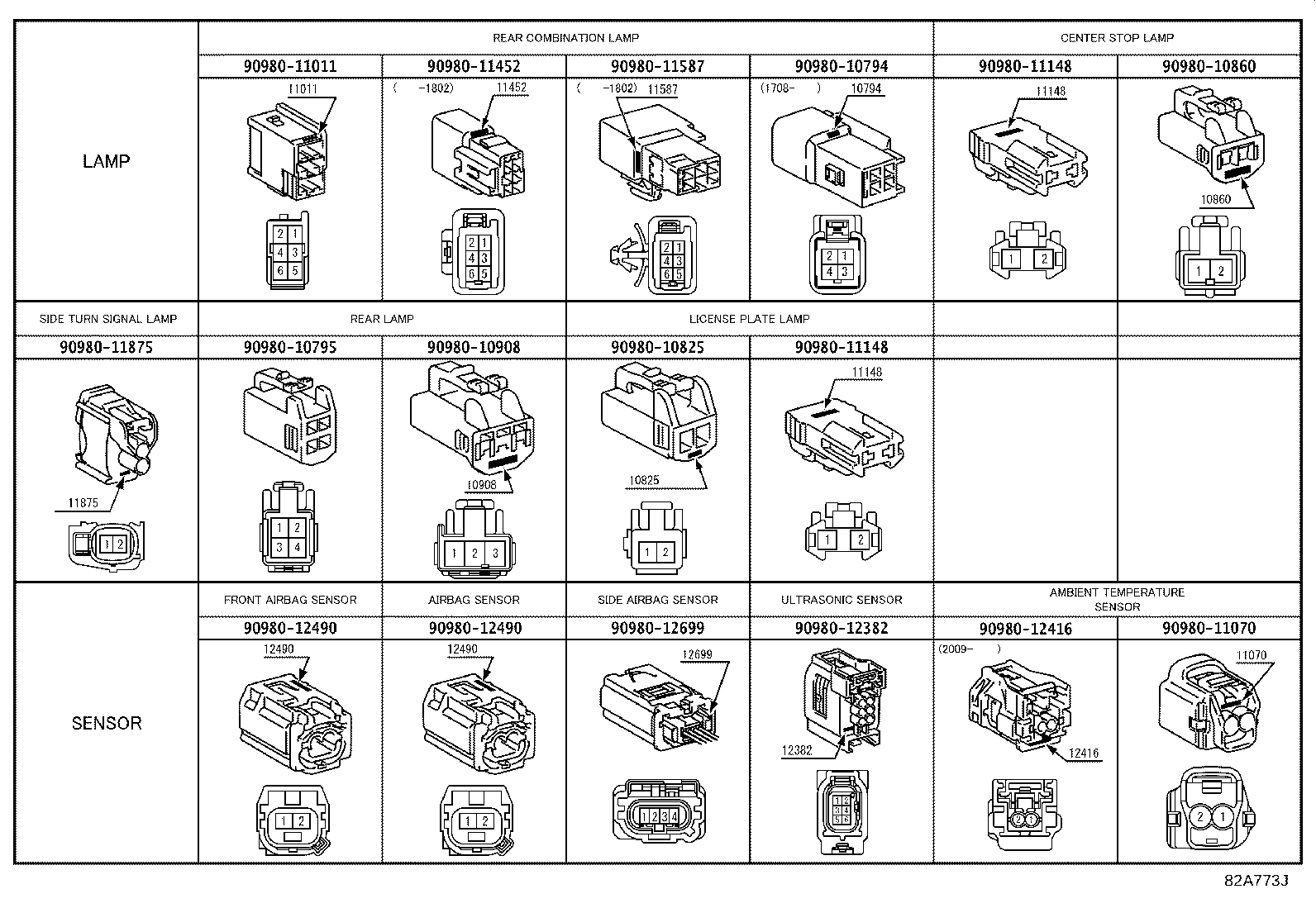

ILLUST NO. 9 OF10(1310- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10794 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10908 | ||||
| 90980-11011 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11452 | ||||
| 90980-11587 | ||||
| 90980-11875 | ||||
| 90980-12382 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||

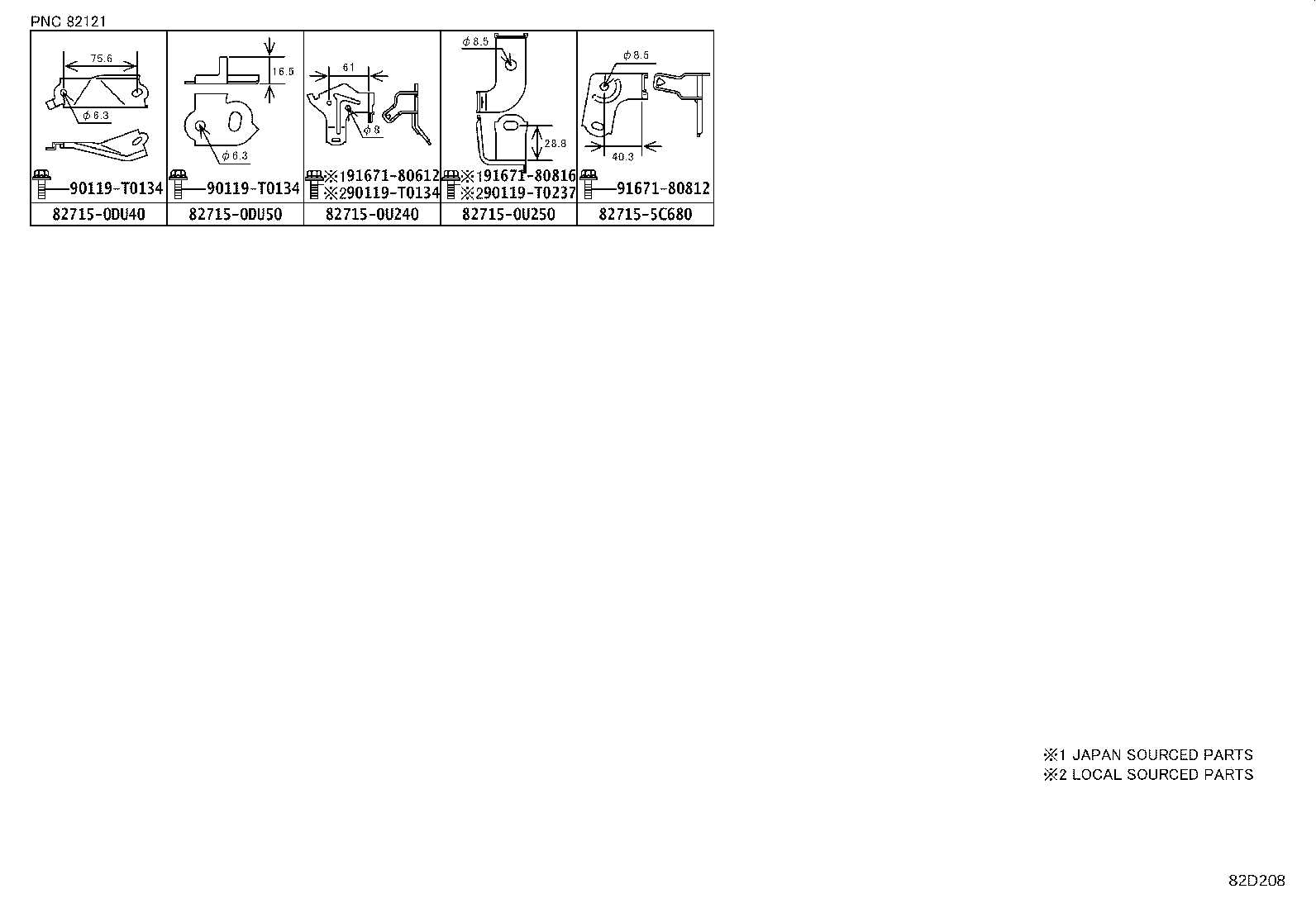

ILLUST NO. 7 OF10(1310- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0DU40 | ||||
| 82715-0DU50 | ||||
| 82715-0U240 | ||||
| 82715-0U250 | ||||
| 82715-5C680 | ||||
| 90119-T0134 | ||||
| 90119-T0237 | ||||
| 91671-80612 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
ILLUST NO.10 OF10(1310- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52430 | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10786 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12212 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12658 | ||||
| 90980-12686 | ||||
| 90980-12936 | ||||
| 90980-12D25 | ||||
