NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

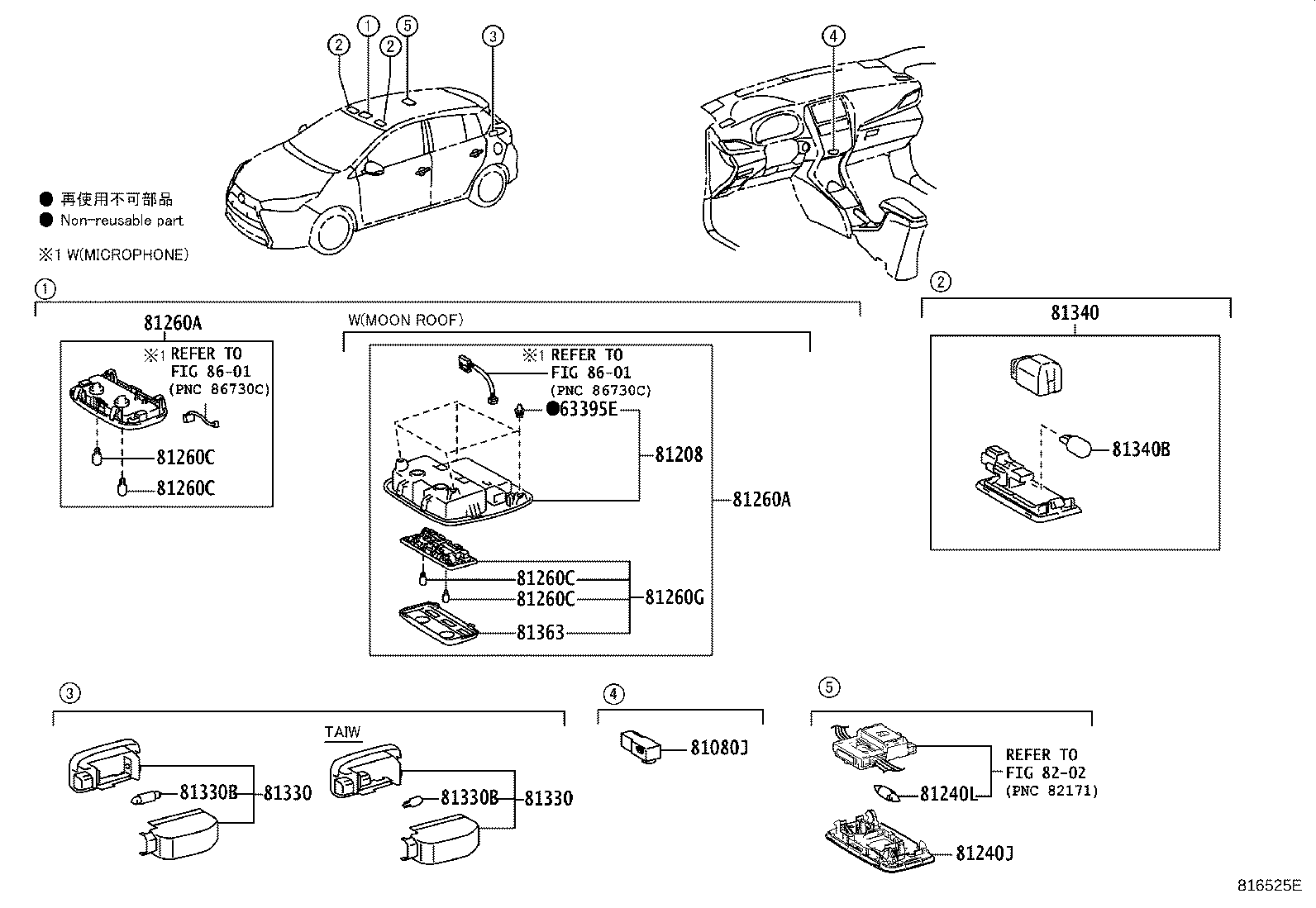

Click highlighted areas on diagram

diagram 63395E 81080J 81208 81240J 81240L 81260A 81260A 81260C 81260C 81260C 81260C 81260G 81330 81330 81330B 81330B 81340 81340B 81363 8202 8601 8601
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-0D200C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
81260A - LAMP ASSY, MAP
81260-0D200C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

12V 8W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0D110

NCP150..C

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0D110

NCP150..C

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-13050

NCP150..C

12V 5W

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-13050

NCP150..C

12V 5W

 1
Linked diagrams
8202
8601
