NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NCP15#,NSP152 ; (1310-1710)CVT..D ; (1310-1710)NSP150,151..GCC,GEN,PH,VN

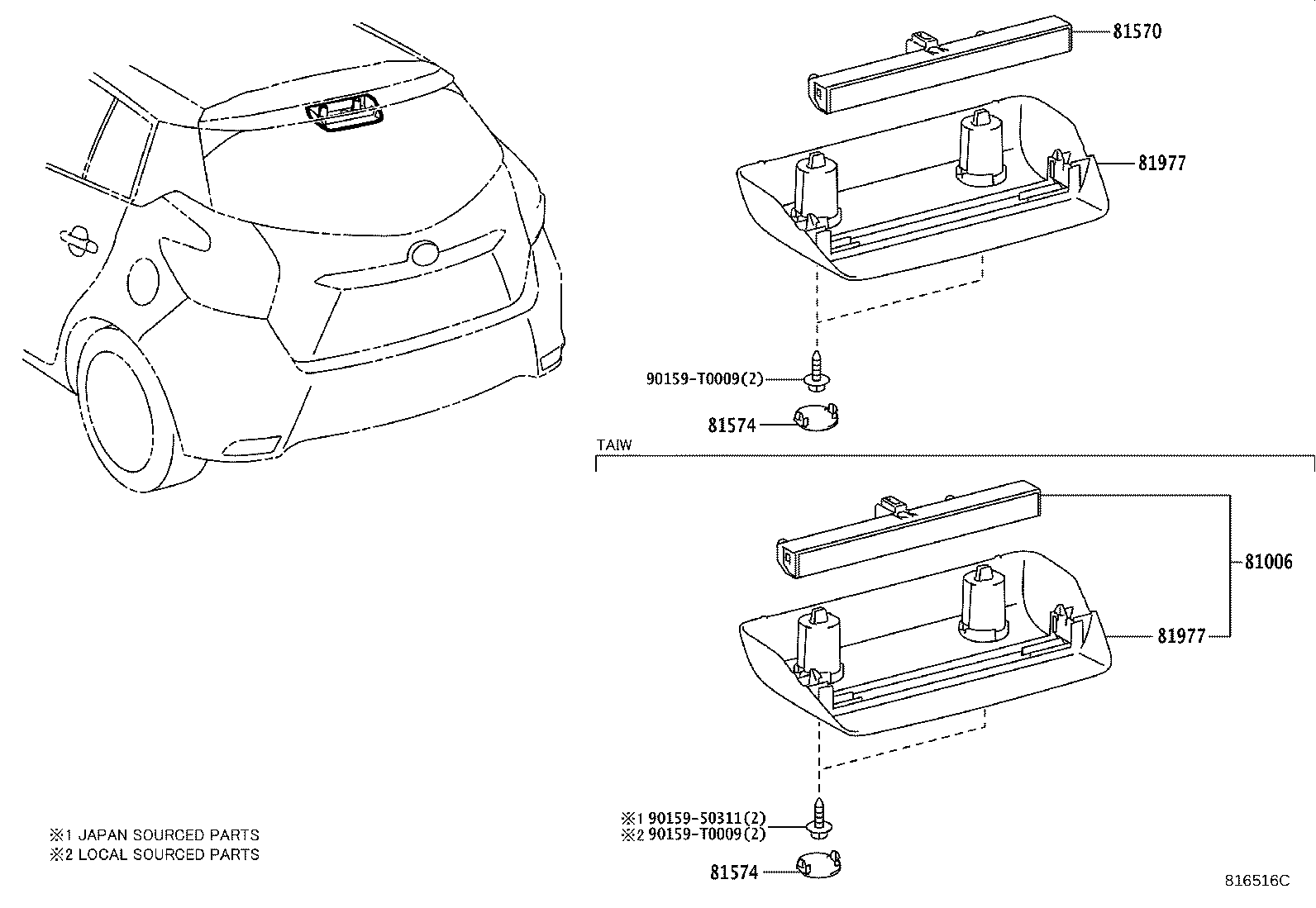

Click highlighted areas on diagram

diagram 81006 81570 81574 81574 81977 81977 9015950311 90159T0009 90159T0009
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-12430

NCP150..(G,V)..C

 1
81570-12430

NCP150..(G,V)..C

 1
81570-12430

NCP150..4FC..R..C

BRUNEI SPEC

 1
81570-12430

NCP150..4FC..R..C

BRUNEI SPEC

 1
81574 - COVER, CENTER STOP LAMP
81952-0D110C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM2#

 2
81952-0D110C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM2#

 2
81952-0D110C0

NCP150..(G,V)..C

BLACK,TRIM2#

 2
81952-0D110C0

NCP150..(G,V)..C

BLACK,TRIM2#

 2
81574 - COVER, CENTER STOP LAMP
81952-0D110C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM2#

 2
81952-0D110C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM2#

 2
81952-0D110C0

NCP150..(G,V)..C

BLACK,TRIM2#

 2
81952-0D110C0

NCP150..(G,V)..C

BLACK,TRIM2#

 2
81977 - COVER, CENTER STOP LAMP
81977-0D190C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM0#,2#

 1
81977-0D190C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM0#,2#

 1
81977-0D190C0

NCP150..G..C

BLACK,TRIM0#,2#

 1
81977-0D190C0

NCP150..G..C

BLACK,TRIM0#,2#

 1
81977 - COVER, CENTER STOP LAMP
81977-0D190C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM0#,2#

 1
81977-0D190C0

NCP150..4FC..R..C

BRUNEI SPEC,BLACK,TRIM0#,2#

 1
81977-0D190C0

NCP150..G..C

BLACK,TRIM0#,2#

 1
81977-0D190C0

NCP150..G..C

BLACK,TRIM0#,2#

 1
Common parts
90159-50311
90159-T0009
