NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1507)

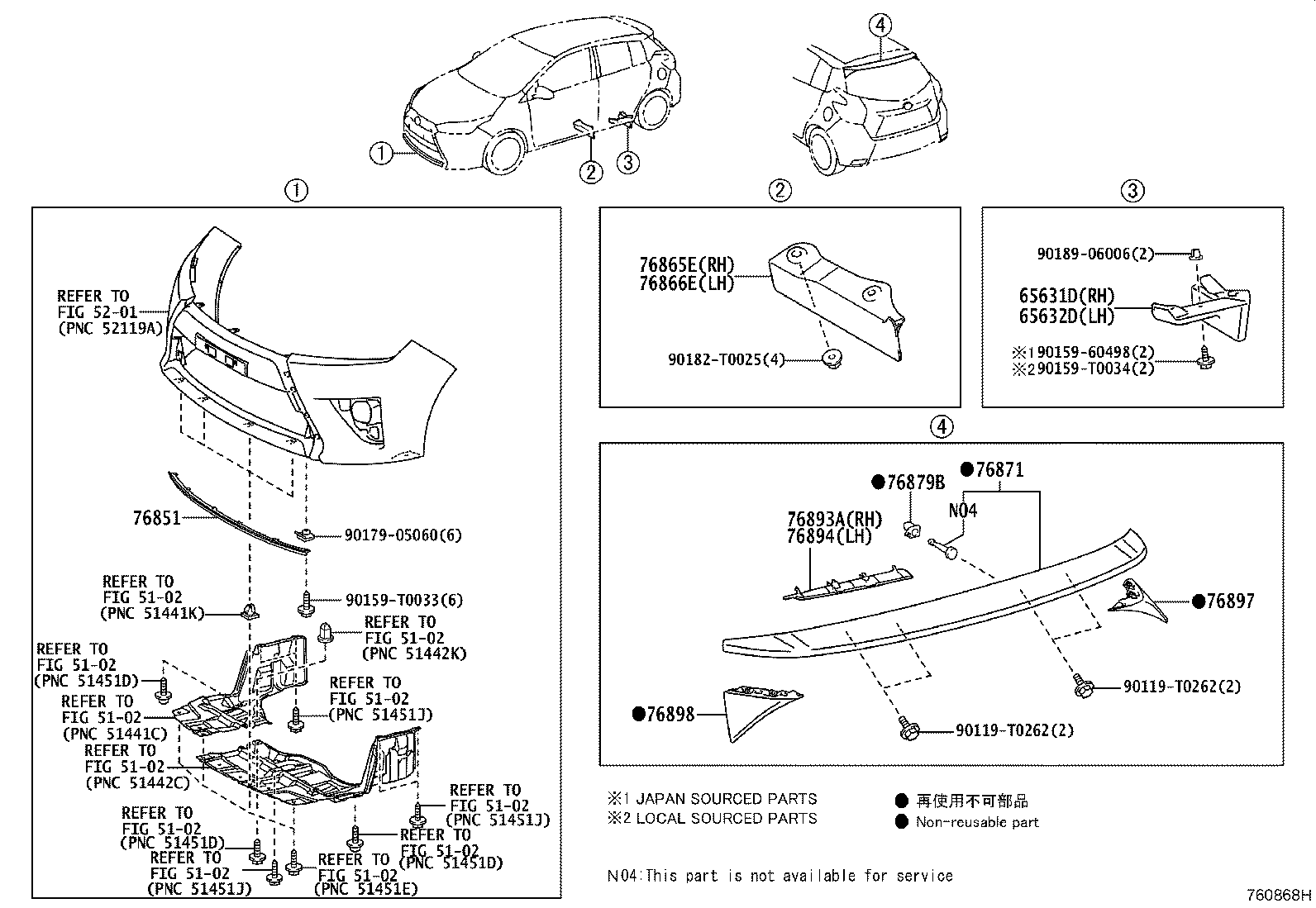

Click highlighted areas on diagram

diagram 5102 5102 5201 65631D 65632D 76851 76865E 76866E 76871 76879B 76893A 76894 76897 76898 90119T0262 90119T0262 9015960498 90159T0033 90159T0034 9017905060 90182T0025 9018906006
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-0D090

NCP150..C

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-0D090

NCP150..C

 1
Common parts
90119-T0262
90159-60498
90159-T0033
90159-T0034
90179-05060
90182-T0025
90189-06006
Linked diagrams
5102
5201
