NCP150R-CHPGKE (2014)
Toyota Yaris
ILLUST NO. 2 OF 2(1310- )A,B,C
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0DC50C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0DB70C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-0D070C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-0D070C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0D080C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
4 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 69285-0D080 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90151-T0002 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 6402 | ||||

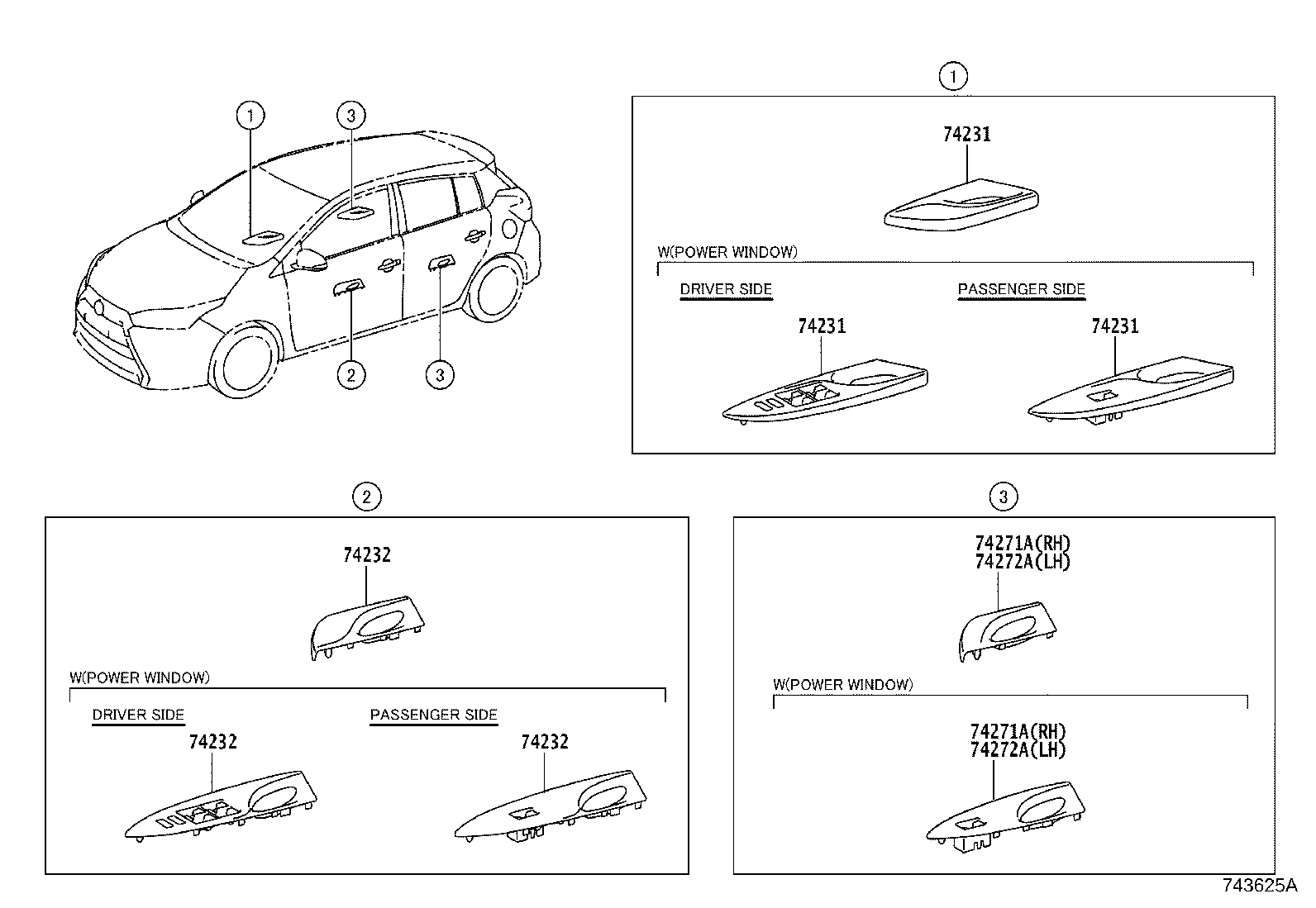

ILLUST NO. 1 OF 2(1310-1609)NCP15# ; (1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1605-1802)TAIW ; (1610-1
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D630 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74231-0D620A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74231-0D620C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D630 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74231-0D620A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74231-0D620C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D630 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74231-0D620A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74231-0D620C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D620 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74232-0D610A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74232-0D610C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D620 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74232-0D610A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74232-0D610C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D620 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74232-0D610A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74232-0D610C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D360 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74271-0D350C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74271-0D350A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D360 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74271-0D350C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74271-0D350A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D350A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74272-0D350C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74272-0D360 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D350A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 74272-0D350C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 74272-0D360 |
NCP150..(G,V)..C SILVER PAINTED |
1 | ||
