NCP150R-CHPGKE (2014)
Toyota Yaris
(1310- )

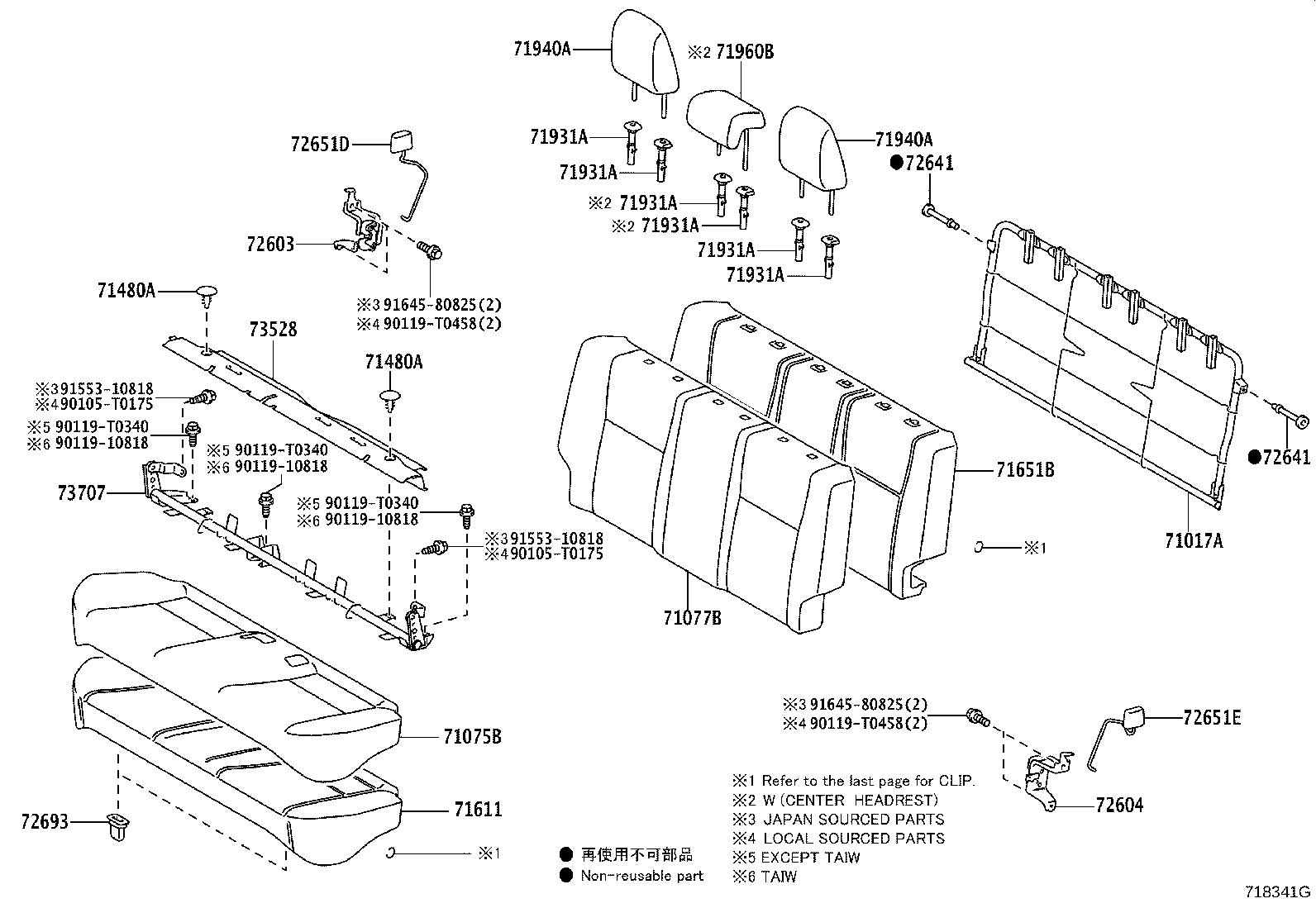

UNITED FOLDING SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-0D400 |
NCP15#..D;NCP15#..GCC..R |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C0 |
NCP150..C BLACK |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C0 |
NCP150..C BLACK |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DC20C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DC20C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D450C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-0D080 |
NCP150..C |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-0D080 |
NCP150..C |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-0D100C0 |
NCP150..C BLACK,TRIM2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72652-0D100C0 |
NCP150..C BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP150..C |
2 | ||
| 73528 - CARPET, REAR SEAT SUB FLOOR, REAR | ||||
| 73528-0D050 |
NCP150..C |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73705-0D270 |
NCP15#..D;NCP15#..GCC..R |
1 | ||
| 73705-0D420 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90105-T0175 | ||||
| 90119-10818 | ||||
| 90119-T0340 | ||||
| 90119-T0458 | ||||
| 91553-10818 | ||||
| 91645-80825 | ||||
(1310- )

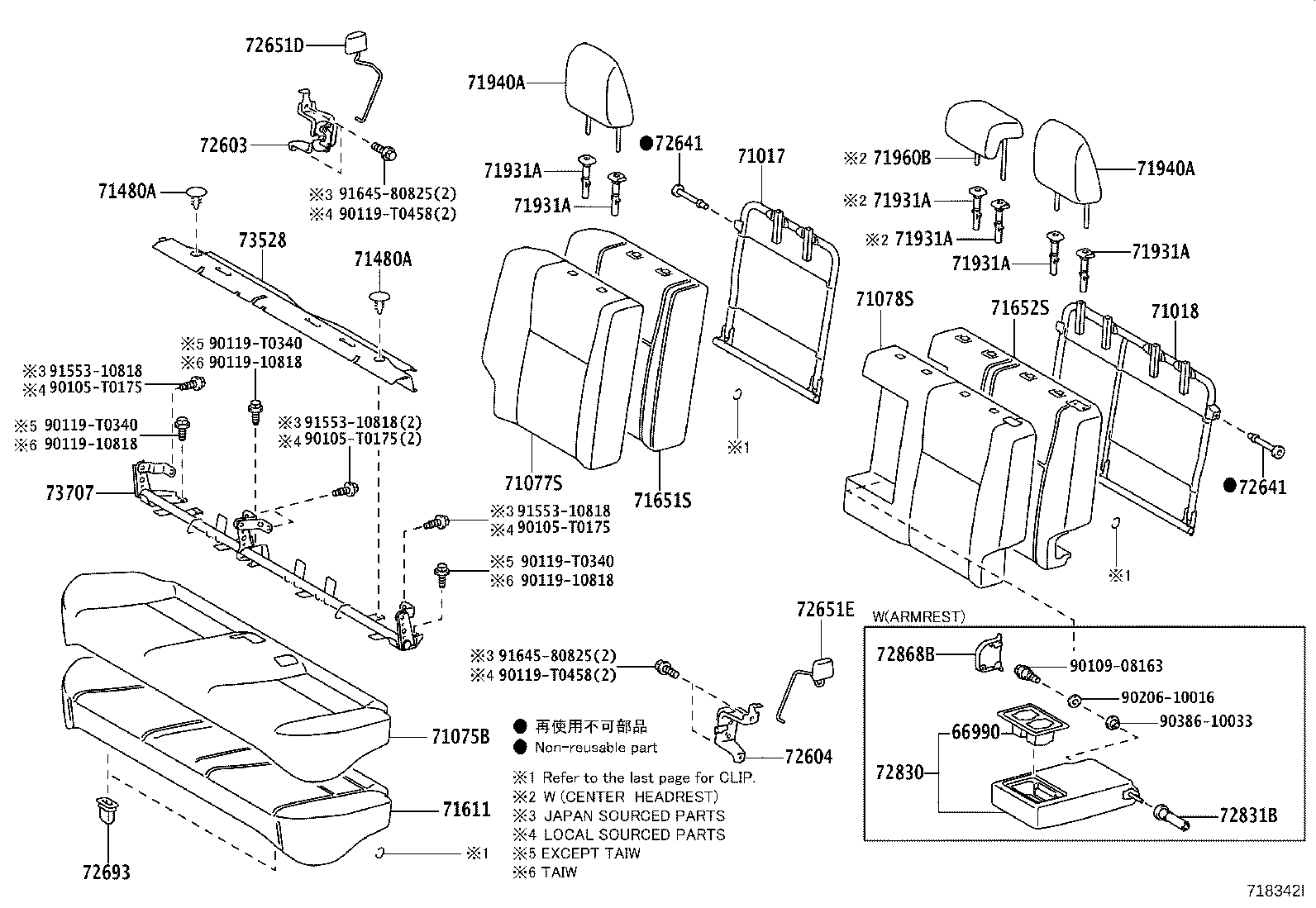

6:4 SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0D460 |
NCP150..C |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0D280 |
NCP150..C |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0D860C0 |
NCP150..G..C BLACK,TRIM2# |
1 | ||
| 71078-0D830C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C0 |
NCP150..C BLACK |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C0 |
NCP150..C BLACK |
2 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0D320 |
NCP150..C |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
NSP151..VN..R;NCP15#,NSP152..(IDN,TH,VN)..R W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DC20C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DC20C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D450C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-0D080 |
NCP150..C |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-0D080 |
NCP150..C |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-0D100C0 |
NCP150..C BLACK,TRIM2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72652-0D100C0 |
NCP150..C BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP150..C |
2 | ||
| 73528 - CARPET, REAR SEAT SUB FLOOR, REAR | ||||
| 73528-0D050 |
NCP150..C |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73705-0D270 |
NCP15#..D;NCP15#..GCC..R |
1 | ||
| 73705-0D420 |
NCP150..C |
1 | ||
| Common parts | ||||
| 90105-T0175 | ||||
| 90109-08163 | ||||
| 90119-10818 | ||||
| 90119-T0340 | ||||
| 90119-T0458 | ||||
| 90206-10016 | ||||
| 90386-10033 | ||||
| 91553-10818 | ||||
| 91645-80825 | ||||
(1310- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
