NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

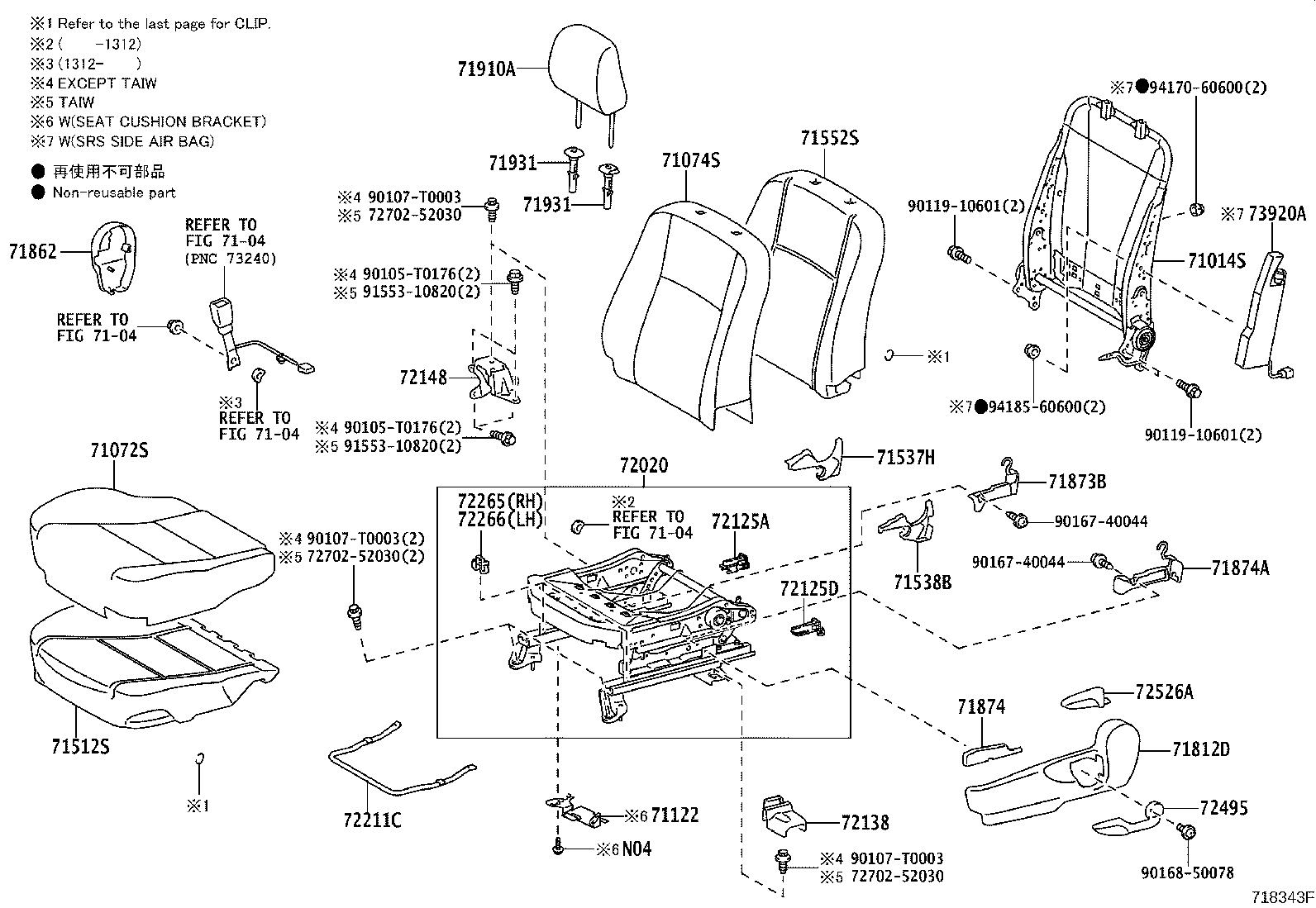

LH SEAT,W(VERTICAL ADJUSTER)

diagram 71014S 7104 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71873B 71874 71874A 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72265 72266 72495 72526A 7270252030 7270252030 7270252030 73920A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9016740044 9016850078 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D110C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D100C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D270C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71812-0D370C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D200C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71862-0D290C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD10C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D150A0

NCP150..(G,R)..C

IVORY,TRIM05

 1
72138-0D150C0

NCP150..(G,R)..C

BLACK,TRIM05,2#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
72526-0D300C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
90167-40044
90168-50078
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 1 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

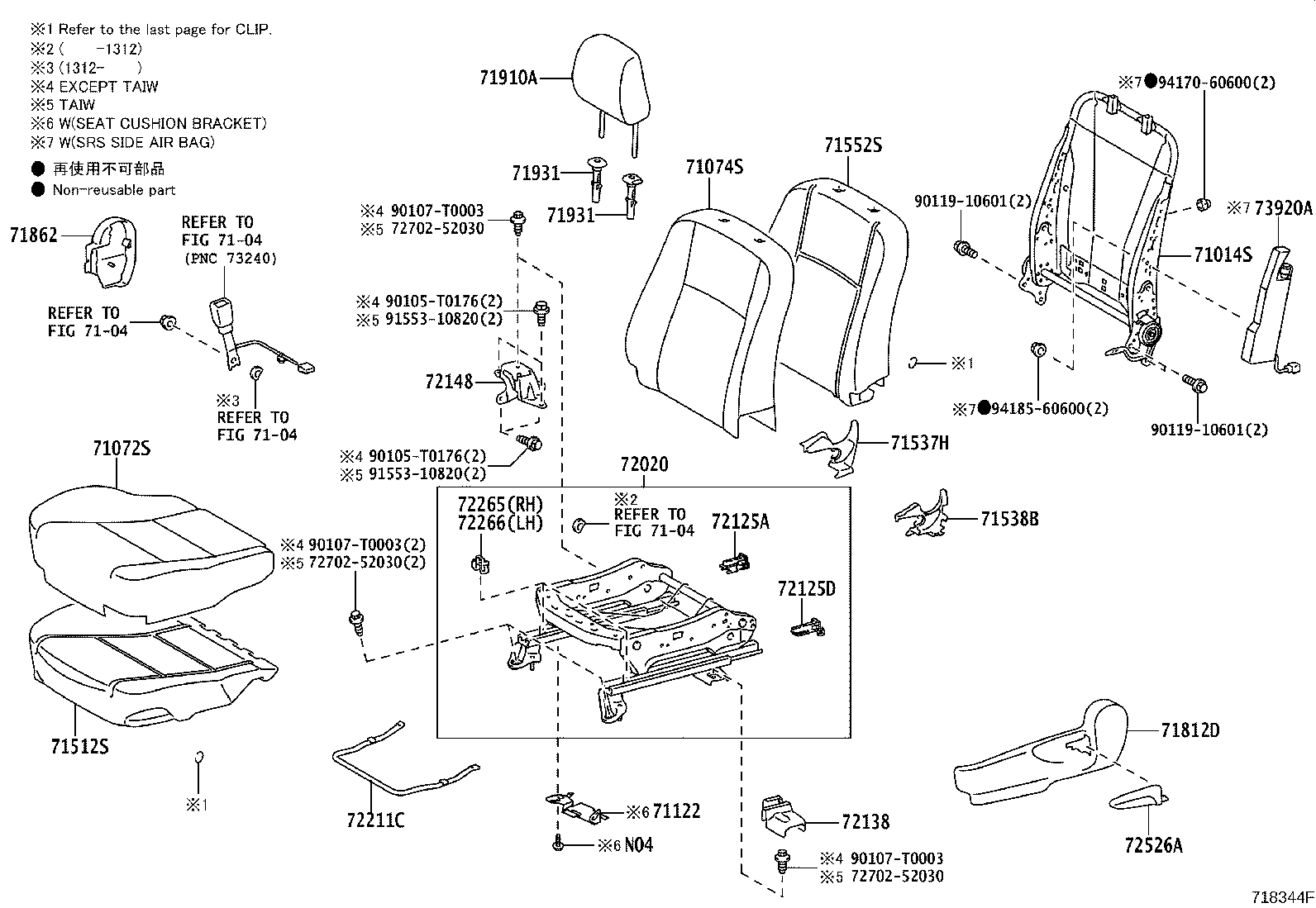

LH SEAT,W/O(VERTICAL ADJUSTER)

diagram 71014S 7104 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72265 72266 72526A 7270252030 7270252030 7270252030 73920A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D110C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D100C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D270C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71812-0D370C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D200C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
71862-0D290C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD10C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D150A0

NCP150..(G,R)..C

IVORY,TRIM05

 1
72138-0D150C0

NCP150..(G,R)..C

BLACK,TRIM05,2#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

NCP15#,NSP150,151..D;NCP151,NSP150,152..RHD

BLACK,TRIM0#,2#

 1
72526-0D300C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

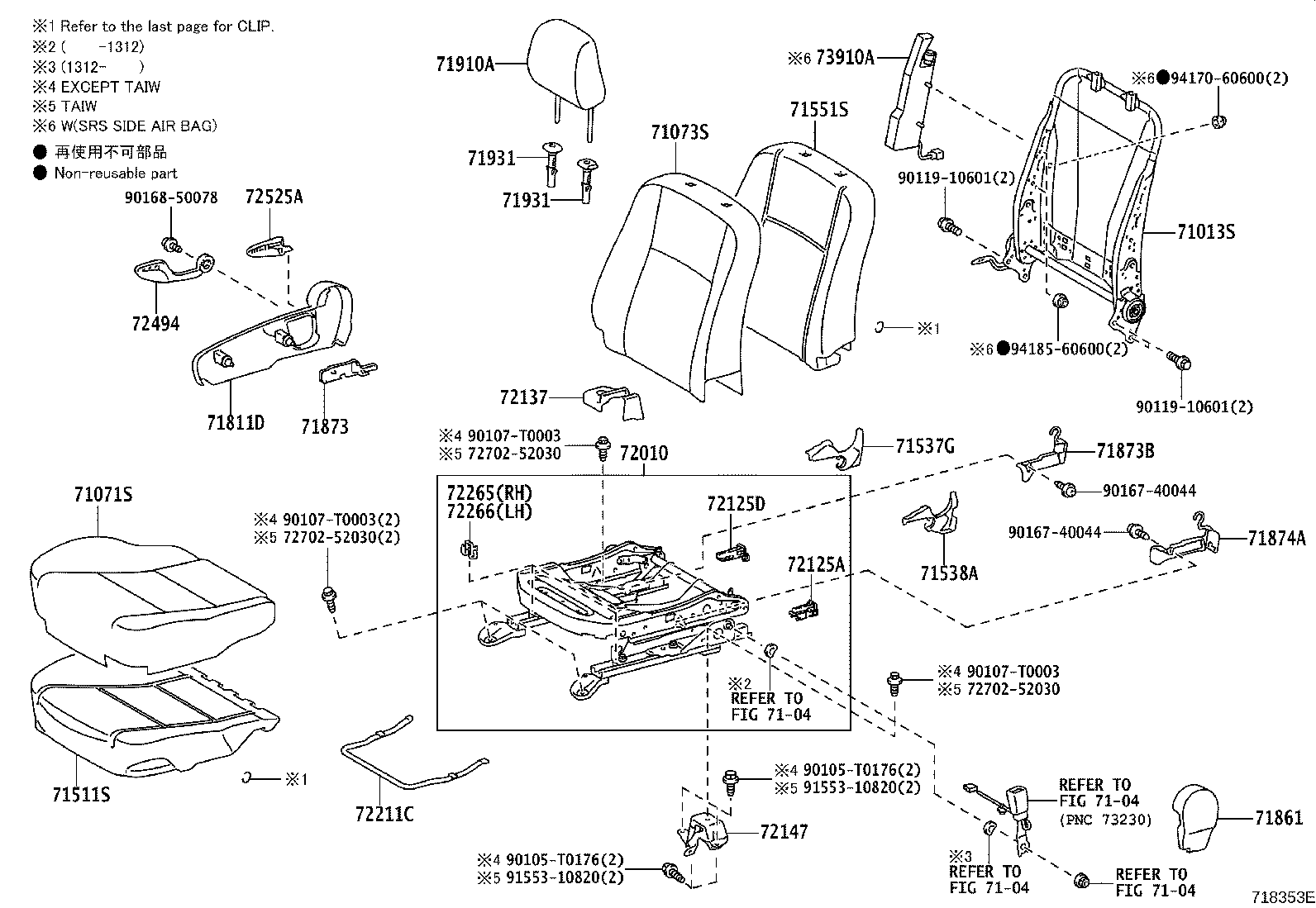

RH SEAT,W(VERTICAL ADJUSTER)

diagram 71013S 7104 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71811D 71861 71873 71873B 71874A 71910A 71931 71931 72010 72125A 72125D 72137 72147 72211C 72265 72266 72494 72525A 7270252030 7270252030 7270252030 73910A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9016740044 9016850078 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0DM20C0

NCP150..MA

BLACK,TRIM2#

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0D320C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-0D220C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D400C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D290C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD10C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D170A0

NCP150..(G,R)..C

IVORY,TRIM05

 1
72137-0D170C0

NCP150..(G,R)..C

BLACK,TRIM05,2#

 1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-0D170C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D330C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
90167-40044
90168-50078
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

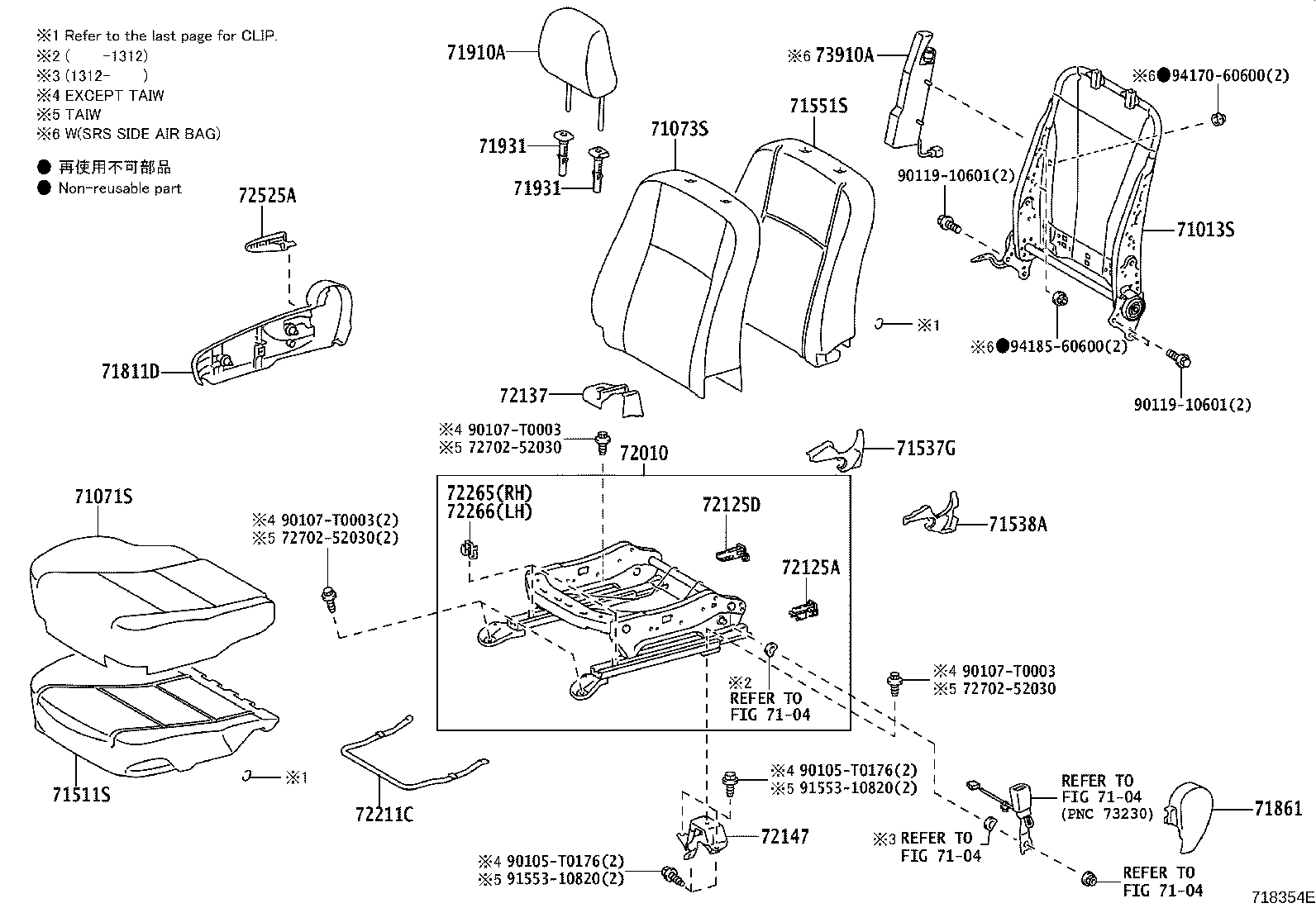

RH SEAT,W/O(VERTICAL ADJUSTER)

diagram 71013S 7104 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71811D 71861 71910A 71931 71931 72010 72125A 72125D 72137 72147 72211C 72265 72266 72525A 7270252030 7270252030 7270252030 73910A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0DM20C0

NCP150..MA

BLACK,TRIM2#

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0D320C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-0D220C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D400C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D290C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD10C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02130C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W/O(LOCK),BLACK,TRIM0#,2#

 2
71930-02370C0

NCP151,NSP150..RHD..R;NSP151..(GCC,TAIW,VN)..R;NCP15#,NSP150,151..GEN..D;NCP15#,NSP150,152..(GCC,IDN,TAIW,TH,VN)..R

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

 2
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D170A0

NCP150..(G,R)..C

IVORY,TRIM05

 1
72137-0D170C0

NCP150..(G,R)..C

BLACK,TRIM05,2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D330C0

NCP150..(G,R)..C

BLACK,TRIM0#,2#

 1
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

(1310- )

Click highlighted areas on diagram

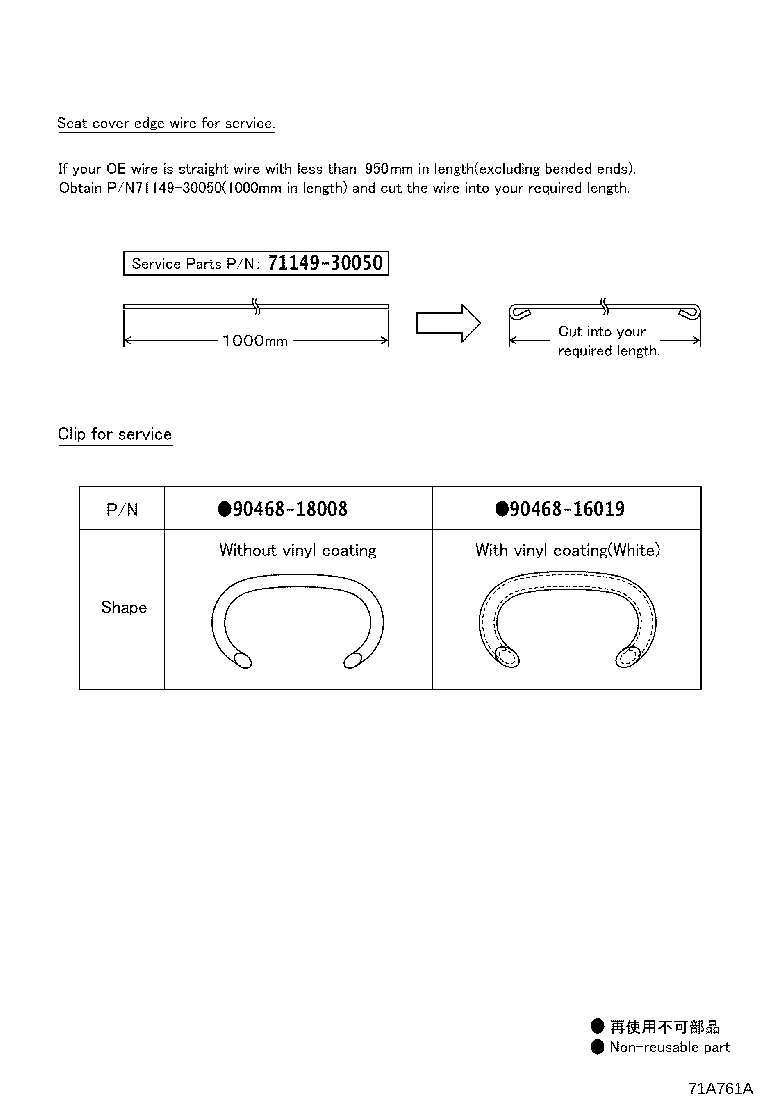

CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008
