NCP150R-CHPGKE (2014)
Toyota Yaris
(1310-1609)NCP15# ; (1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1605-1802)TAIW ; (1610-1

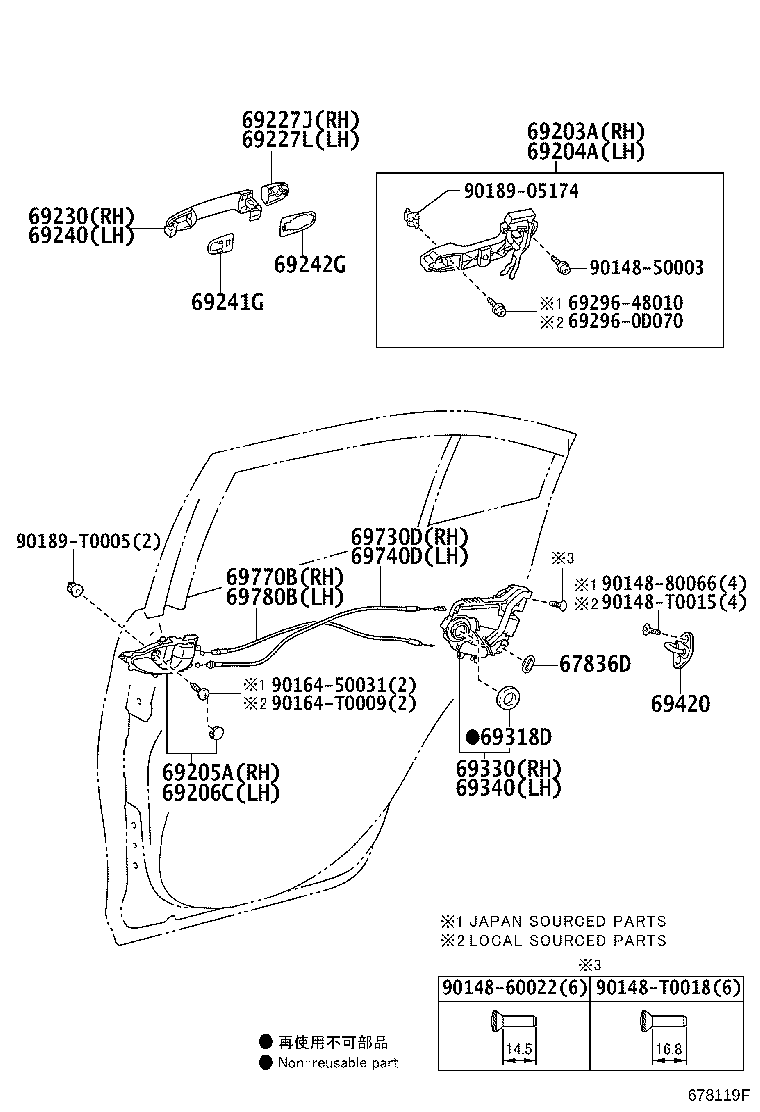

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-02030 |
NCP150..C |
2 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-0D150 |
NCP150..C |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-0D150 |
NCP150..C |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-0D330A0 |
NCP15#..D;NCP15#..(GCC,PH,VN)..R IVORY,TRIM0# |
1 | ||
| 69205-0D430A0 |
NCP150..G..C IVORY,TRIM0# |
1 | ||
| 69205-0D430C0 |
NCP150..G..C BLACK,TRIM2# |
1 | ||
| 69205-0D330C0 |
NCP15#..D;NCP15#..(GCC,PH,VN)..R BLACK,TRIM2# |
1 | ||
| 69205-0D240C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 69205-0D240A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-0D330C0 |
NCP15#..D;NCP15#..(GCC,PH,VN)..R BLACK,TRIM2# |
1 | ||
| 69206-0D230A0 |
NCP150..R..C IVORY,TRIM0# |
1 | ||
| 69206-0D330A0 |
NCP15#..D;NCP15#..(GCC,PH,VN)..R IVORY,TRIM0# |
1 | ||
| 69206-0D430C0 |
NCP150..G..C BLACK,TRIM2# |
1 | ||
| 69206-0D430A0 |
NCP150..G..C IVORY,TRIM0# |
1 | ||
| 69206-0D230C0 |
NCP150..R..C BLACK,TRIM2# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-0K902 |
NCP150..IDN..(G,R) LESS COLOR |
1 | ||
| 69227-0K040 |
NCP150..MA;NCP150..V..C *CR |
1 | ||
| 69227-0K040 |
NCP150..4FC..IDN..G *CR,WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-0K040 |
NCP150..4FC..IDN..G *CR,WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 69227-0K902 |
NCP150..IDN..(G,R) LESS COLOR |
1 | ||
| 69227-0K040 |
NCP150..MA;NCP150..V..C *CR |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-0K010 |
NCP150..4FC..IDN..G PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 69211-0K902 |
NCP150..IDN..(G,R) PAINT REQ. |
1 | ||
| 69210-0K010 |
NCP150..MA;NCP150..V..C PLATED |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-0K010 |
NCP150..MA;NCP150..V..C PLATED |
1 | ||
| 69211-0K902 |
NCP150..IDN..(G,R) PAINT REQ. |
1 | ||
| 69210-0K010 |
NCP150..4FC..IDN..G PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0D190 |
NCP150..C |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0D120 |
NCP150..C |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NCP150..C |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-0D140 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 69050-0D140 |
NCP150..MA;NCP150..V..C |
1 | ||
| 69050-02220 |
NCP150..IDN..(G,R) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-02210 |
NCP150..IDN..(G,R) |
1 | ||
| 69060-0D140 |
NCP150..4FC..IDN..G BRUNEI SPEC |
1 | ||
| 69060-0D140 |
NCP150..MA;NCP150..V..C |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0D060 |
NCP150..C |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D200 |
NCP150..C |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D200 |
NCP150..C |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-0D160 |
NCP150..C |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-0D160 |
NCP150..C |
1 | ||
| Common parts | ||||
| 69296-0D070 | ||||
| 69296-48010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90164-50031 | ||||
| 90164-T0009 | ||||
| 90189-05174 | ||||
| 90189-T0005 | ||||
