NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )RHD

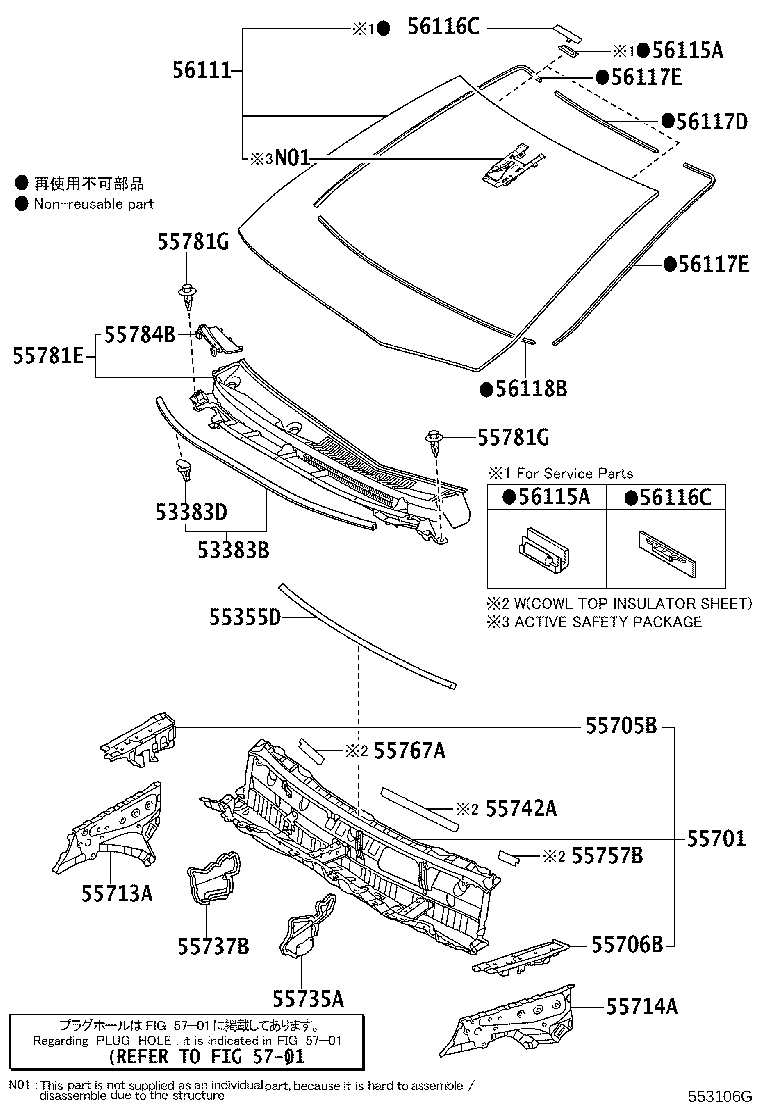

Click highlighted areas on diagram

diagram 53383B 53383D 55355D 55701 55705B 55706B 55713A 55714A 55735A 55737B 55742A 55757B 55767A 55781E 55781G 55781G 55784B 56111 56115A 56115A 56116C 56116C 56117D 56117E 56117E 56118B 5701
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-0D200

NCP150..C

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-0D130

NCP150..C

 5
55355D - CUSHION, INSTRUMENT PANEL, NO.1
55355-0D260

NCP150..C

 1
55701 - PANEL SUB-ASSY, COWL
55700-0D270

NCP150..C

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0D140

NCP150..C

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0D140

NCP150..C

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-0D130

NCP150..C

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-0D130

NCP150..C

 1
55735A - PLATE, WATER GUARD, LH
55734-0D100

NCP150..C

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-0D220

NCP150..C

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0D350

NCP150..C

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
52161-0K040

NCP150..C

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
52161-0K040

NCP150..C

 2
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-0D140

NCP150..C

 1
56111 - GLASS, WINDSHIELD
56101-0D470

NCP150..(G,V)..C

 1
56101-0D460

NCP150..R..C

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP150..C

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP150..C

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP150..C

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP150..C

 1
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-0D310

NCP150..C

L=549

 1
56117E - DAM, WINDOW GLASS ADHESIVE
56117-0D320

NCP150..C

L=915

 2
56117E - DAM, WINDOW GLASS ADHESIVE
56117-0D320

NCP150..C

L=915

 2
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-0D330

NCP150..C

L=1182

 1
Linked diagrams
5701
