NCP150R-CHPGKE (2014)
Toyota Yaris

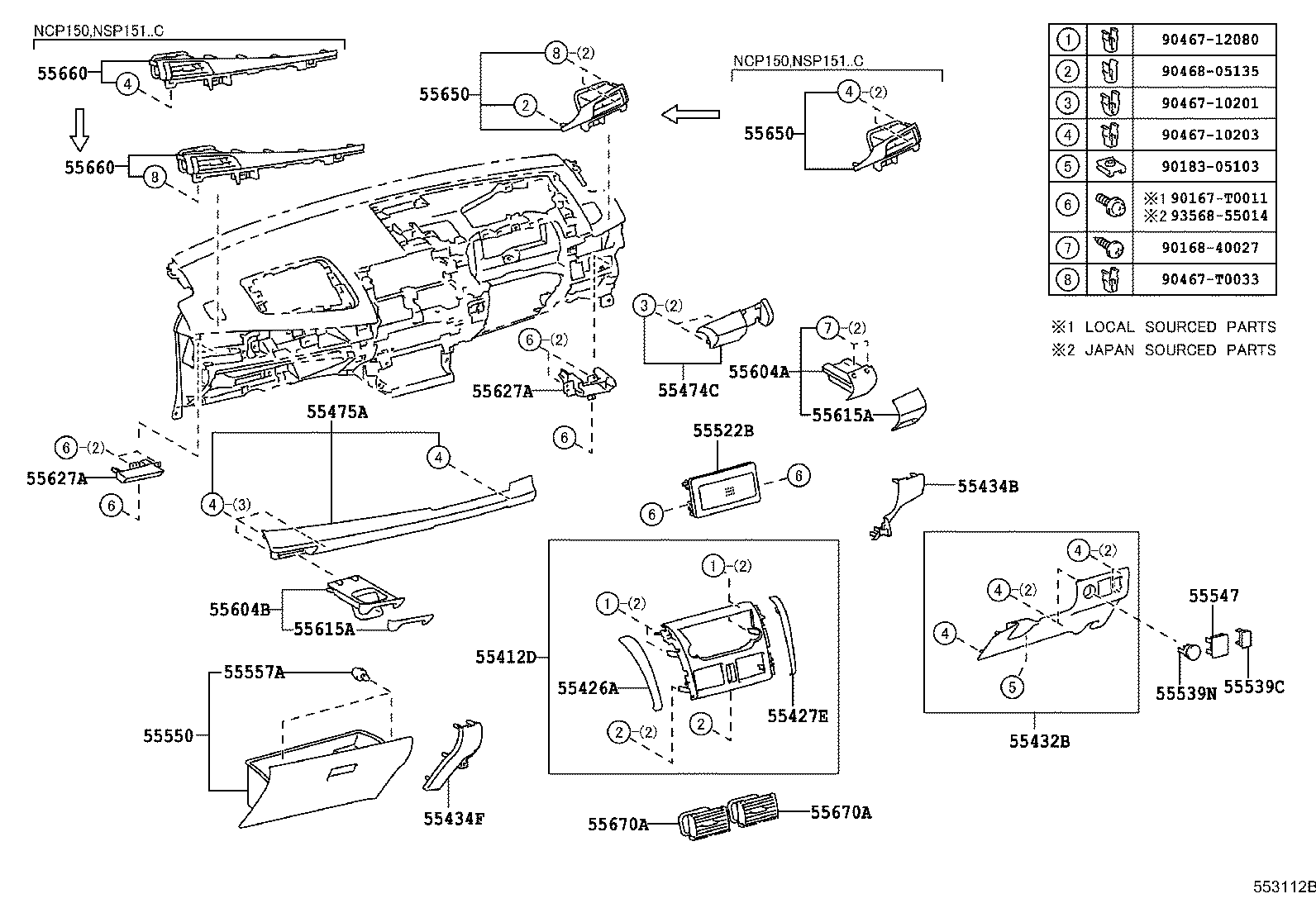

ILLUST NO. 2 OF 2(1310-1709)RHD ; (1709-1710)C ; (1710-1802)C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D600 |
NCP150..C |
1 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-0D060 |
NCP150..C |
1 | ||
| 55427E - BRACKET, CLUSTER FINISH PANEL, NO.2 | ||||
| 55427-0D200 |
NCP150..C |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D140C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55433-0D160C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D150C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-0D080C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-0D080C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-0D010 |
NCP150..C |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D160C0 |
NCP150..IDN..(G,R) BLACK,TRIM0#,2# |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D170C0 |
NCP150..IDN..(G,R) BLACK,TRIM0#,2# |
1 | ||
| 55539-0D170C0 |
NCP150..4FC..IDN..G WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM0#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D270C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NCP150..C |
2 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-0D160C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-0D160C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||||
| 55615-0D310 |
NCP150..C DRIVER SIDE |
1 | ||
| 55615-0D280 |
NCP150..C PASSENGER SIDE |
1 | ||
| 55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||||
| 55615-0D310 |
NCP150..C DRIVER SIDE |
1 | ||
| 55615-0D280 |
NCP150..C PASSENGER SIDE |
1 | ||
| 55627A - RAIL, INSTRUMENT PANEL CUP HOLDER | ||||
| 55627-0D140 |
NCP150..C PASSENGER SIDE |
1 | ||
| 55627-0D130 |
NCP150..C DRIVER SIDE |
1 | ||
| 55627A - RAIL, INSTRUMENT PANEL CUP HOLDER | ||||
| 55627-0D140 |
NCP150..C PASSENGER SIDE |
1 | ||
| 55627-0D130 |
NCP150..C DRIVER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D450C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55650-0D210C0 |
NCP15#..D BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D450C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55650-0D210C0 |
NCP15#..D BLACK,TRIM0#,2#,DRIVER SIDE |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D050C0 |
NCP15#..D BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55660-0D290C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D050C0 |
NCP15#..D BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55660-0D290C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2#,PASSENGER SIDE |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D130 |
NCP15#..D LH |
1 | ||
| 55680-0D040 |
NCP15#..D RH |
1 | ||
| 55680-0D130 |
NCP150..C RH |
1 | ||
| 55670-0D230 |
NCP150..C LH |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D130 |
NCP15#..D LH |
1 | ||
| 55680-0D040 |
NCP15#..D RH |
1 | ||
| 55680-0D130 |
NCP150..C RH |
1 | ||
| 55670-0D230 |
NCP150..C LH |
1 | ||
| Common parts | ||||
| 90167-T0011 | ||||
| 90168-40027 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-T0033 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||

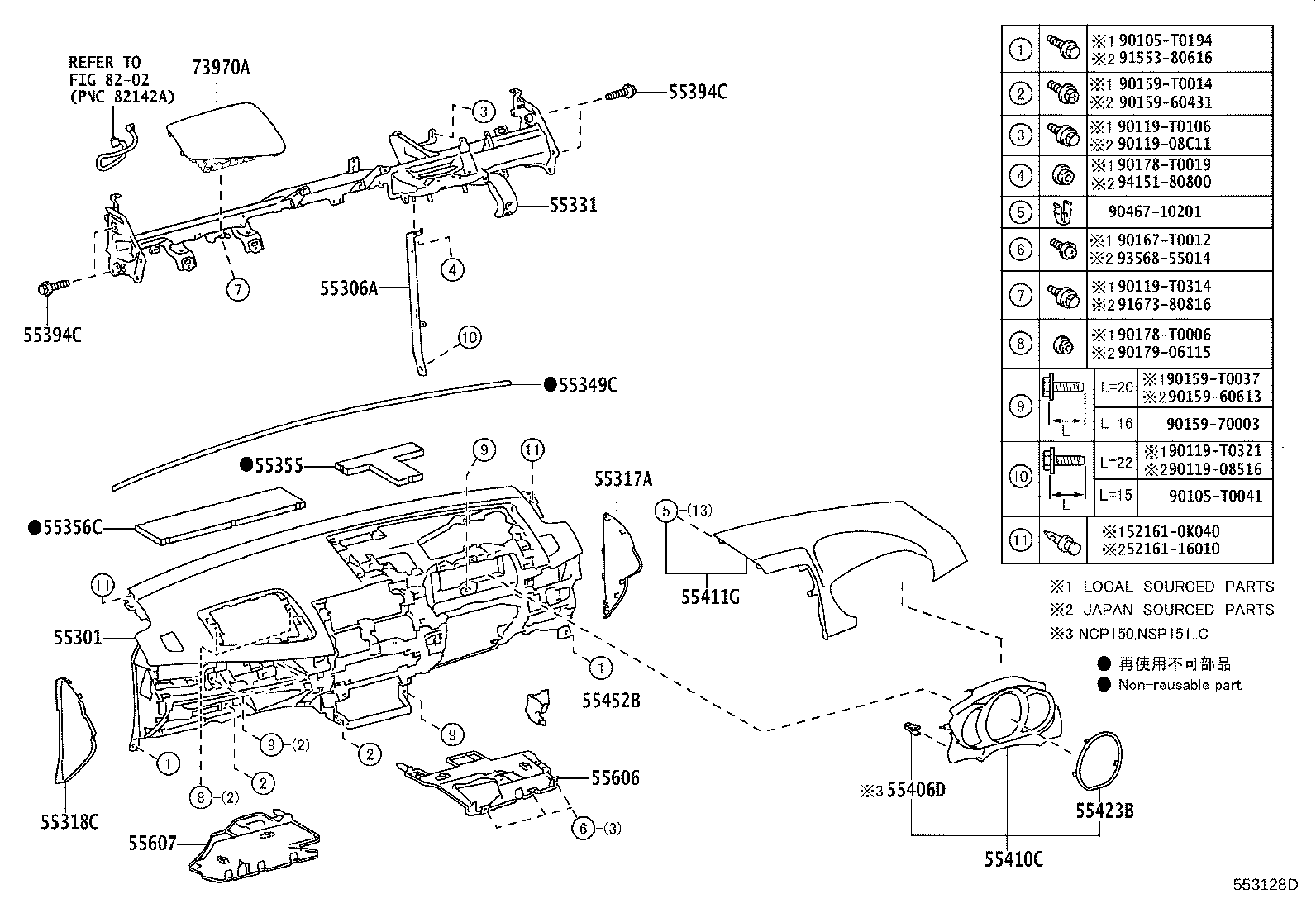

ILLUST NO. 1 OF 2(1310-1709)RHD ; (1709-1710)C ; (1710-1802)C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55310-0D140C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 55310-0D141C0 |
NCP150..C BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D270 |
NCP150..C |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0D140C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-0D120C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D520 |
NCP150..C |
1 | ||
| 55330-0D850 |
NCP150..C |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D220 |
NCP150..C |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D250 |
NCP150..C |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D210 |
NCP150..C |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NCP150..C |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NCP150..C |
4 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-10203 |
NCP150..C |
4 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0D130 |
NCP150..C |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D240C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-0D070 |
NCP150..C |
1 | ||
| 55452B - FILLER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55452-0D120 |
NCP150..C |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D150 |
NCP150..C DRIVER SIDE |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D160 |
NCP150..C PASSENGER SIDE |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0D140C0 |
NCP150..(G,R)..C BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 52161-0K040 | ||||
| 52161-16010 | ||||
| 90105-T0041 | ||||
| 90105-T0194 | ||||
| 90119-08516 | ||||
| 90119-08C11 | ||||
| 90119-T0106 | ||||
| 90119-T0314 | ||||
| 90119-T0321 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0014 | ||||
| 90159-T0037 | ||||
| 90167-T0012 | ||||
| 90178-T0006 | ||||
| 90178-T0019 | ||||
| 90179-06115 | ||||
| 90467-10201 | ||||
| 91553-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
