NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

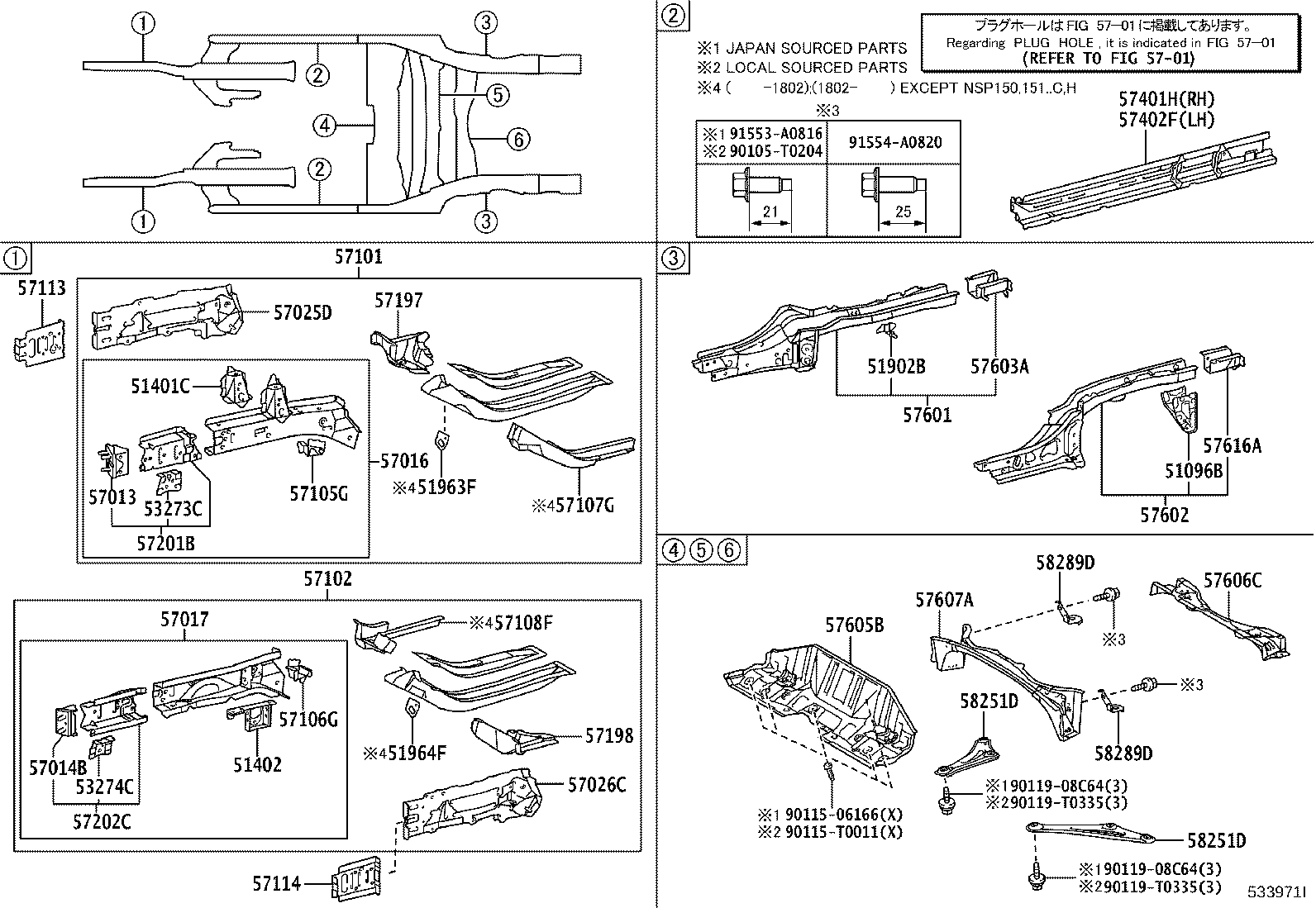

Click highlighted areas on diagram

diagram 51096B 51401C 51402 51902B 51963F 51964F 53273C 53274C 5701 57013 57014B 57016 57017 57025D 57026C 57101 57102 57105G 57106G 57107G 57108F 57113 57114 57197 57198 57201B 57202C 57401H 57402F 57601 57602 57603A 57605B 57606C 57607A 57616A 58251D 58251D 58289D 58289D 90105T0204 9011506166 90115T0011 9011908C64 9011908C64 90119T0335 90119T0335 91553A0816 91554A0820
Part # Description Qty Price
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-0D040

NCP150..C

 1
51401C - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-0D040

NCP150..C

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-0D030

NCP150..C

 1
51902B - HANGER SUB-ASSY, EXHAUST PIPE, NO.2
51902-0D030

NCP150..C

 1
51963F - HOOK, TRANSPORT
51963-0D130

NCP150..C

 1
51964F - HOOK, TRANSPORT, LH
51963-0D130

NCP150..C

 1
53273C - REINFORCEMENT, RADIATOR SUPPORT, RH
53273-0D090

NCP150..C

 1
53274C - REINFORCEMENT, RADIATOR SUPPORT, LH
53274-0D060

NCP150..C

 1
57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D080

NCP150..C

 1
57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D070

NCP150..C

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-0D130

NCP150..C

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-0D200

NCP150..C

 1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-0D060

NCP150..C

 1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-0D060

NCP150..C

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-0D180

NCP150..C

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-0D240

NCP150..C

 1
57105G - SPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH
57105-0D060

NCP150..C

 1
57106G - SPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH
57106-0D040

NCP150..C

 1
57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57107-0D090

NCP150..C

 1
57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57108-0D080

NCP150..C

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-0D050

NCP150..C

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-0D050

NCP150..C

 1
57197 - BOX, TORQUE, FRONT RH
57197-0D060

NCP150..C

 1
57198 - BOX, TORQUE, FRONT LH
57198-0D060

NCP150..C

 1
57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57201-0D040

NCP150..C

 1
57202C - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57202-0D050

NCP150..C

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-0D310

NCP150..C

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-0D250

NCP150..C

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-0D120

NCP150..C

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-0D150

NCP150..C

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-0D110

NCP150..C

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-0D060

NCP150..C

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-0D100

NCP150..C

 1
58251D - BRACE, FLOOR PANEL, FRONT
58251-0D130

NCP150..C

RH

 1
58252-0D110

NCP150..C

LH

 1
58251D - BRACE, FLOOR PANEL, FRONT
58251-0D130

NCP150..C

RH

 1
58252-0D110

NCP150..C

LH

 1
58289D - BRACKET, FLOOR BRAKE HOSE, REAR
58299-0D120

NCP150..C

LH

 1
58289-0D120

NCP150..C

RH

 1
58289D - BRACKET, FLOOR BRAKE HOSE, REAR
58299-0D120

NCP150..C

LH

 1
58289-0D120

NCP150..C

RH

 1
Common parts
90105-T0204
90115-06166
90115-T0011
90119-08C64
90119-T0335
91553-A0816
91554-A0820
